Application case of pull rope displacement sensor in non-woven fabric slitting machine
Application case of pull rope displacement sensor in non-woven fabric slitting machine

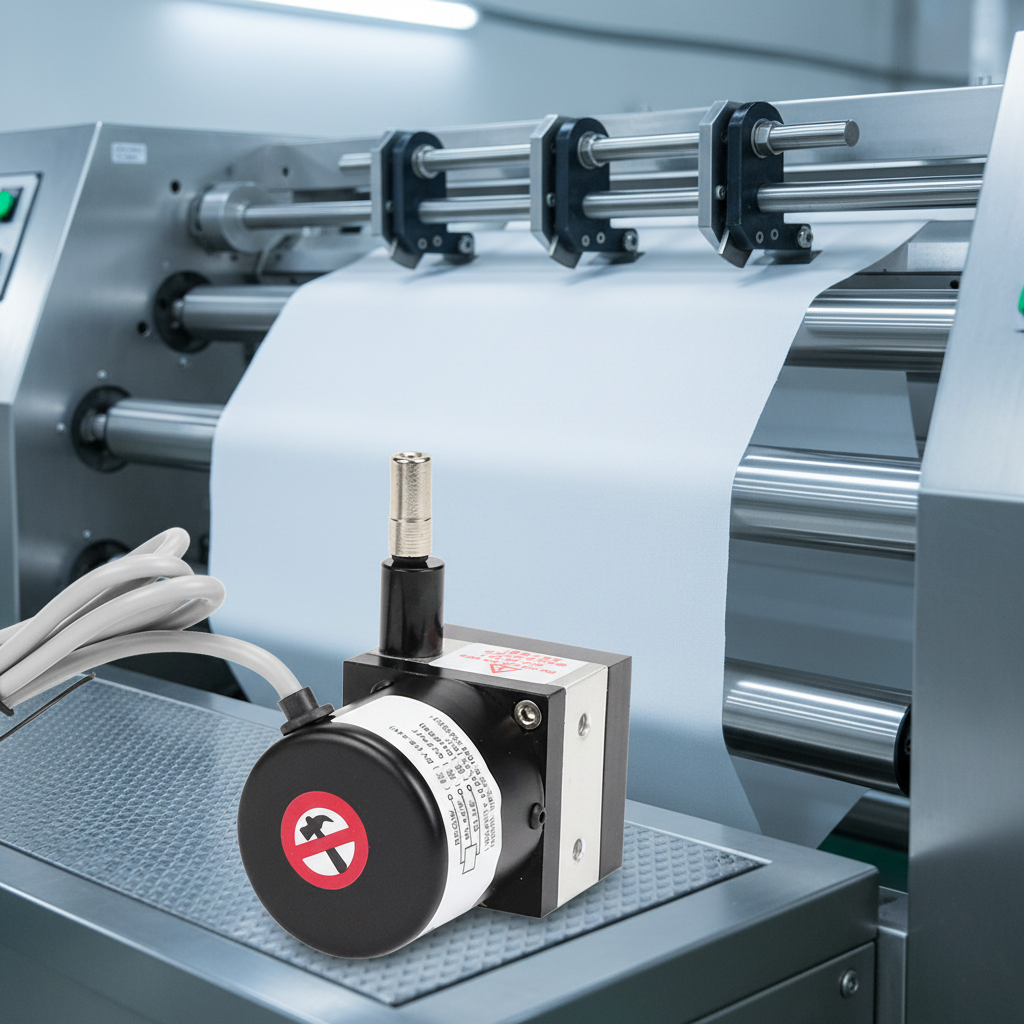

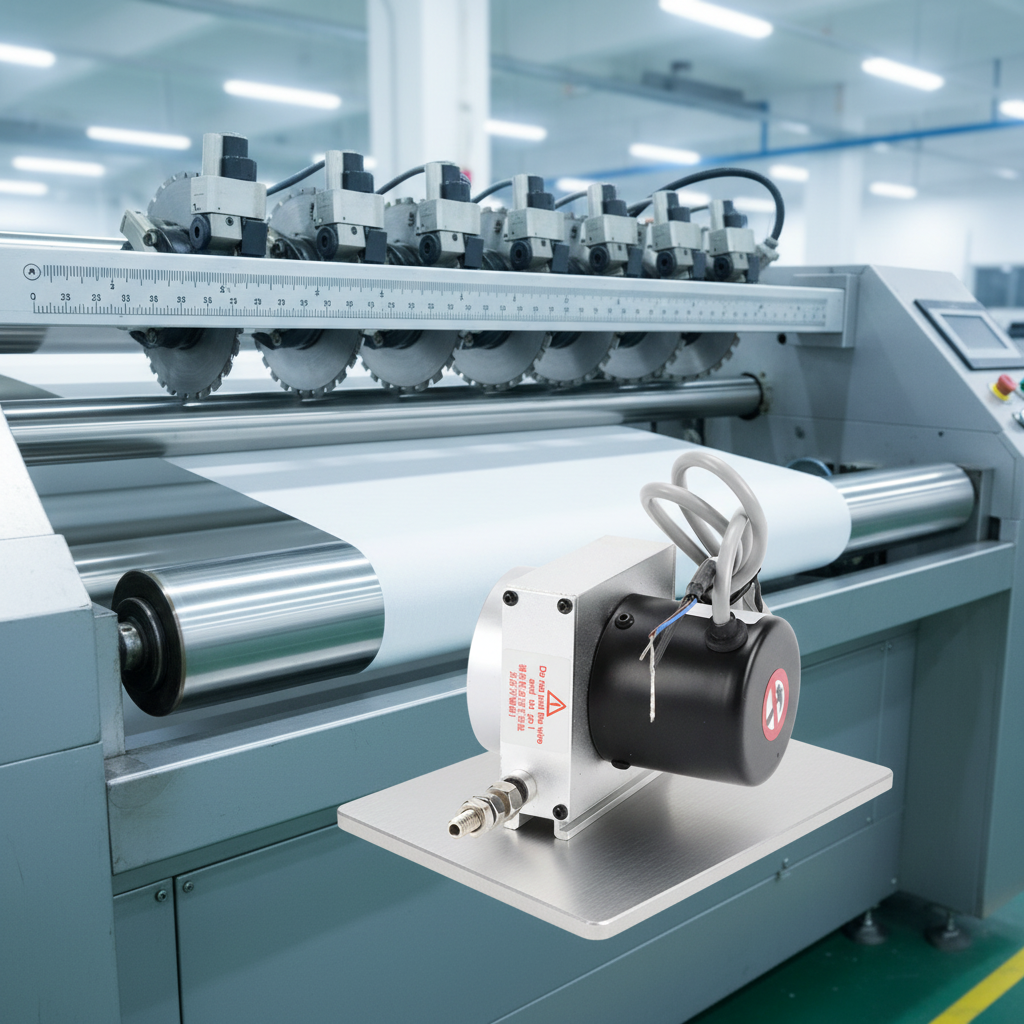

The core of that pull rope displacement sensor in the non-woven fabric cut machine is to accurately detect the position, displacement and synchronous deviation of the cutting tool hold/unwinding/winding, so as to realize the accurate positioning of the cutter position, the stable control of the coil tension and the high-precision control of the cutting size.
The specific role focuses on three points:

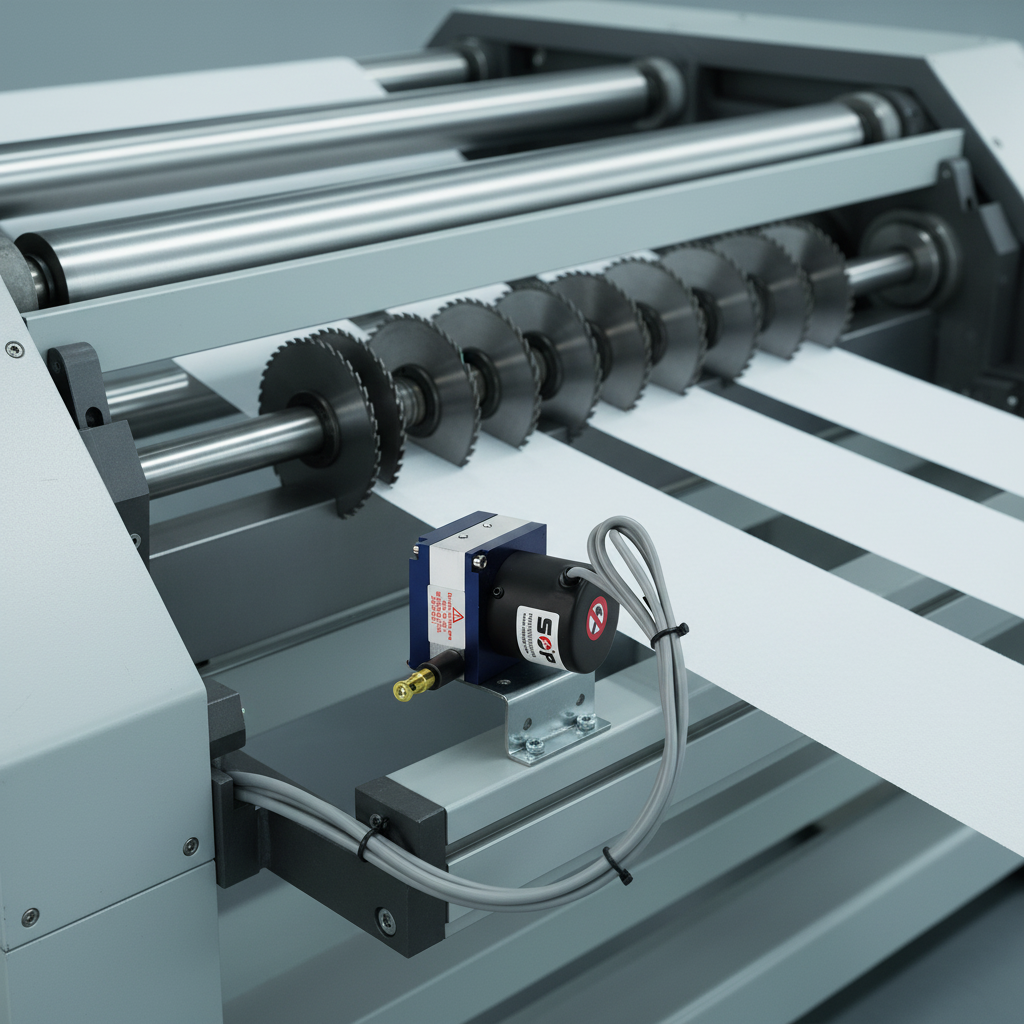

1. Tool rest positioning: accurately feed back the left and right moving position of the cutting knife to ensure the width and size of non-woven fabric cutting are consistent and avoid deviation. 2. Tension control: cooperate with the detection of the displacement change of the unwinding/winding roller, and adjust the tension of the coil in real time to prevent the non-woven fabric from stretching, wrinkling or breaking.
2. Synchronous deviation correction: monitor the position deviation of the coil material, provide displacement signals for the deviation correction system, correct the material path in time, and ensure the cutting alignment. Cable displacement sensor, also known as cable ruler, cable ruler, cable encoder and cable displacement sensor, is a delicate integration of linear displacement sensor in structure, which fully combines the advantages of angle
sensor and linear displacement sensor, and becomes an excellent sensor with compact structure, long measuring stroke, small installation space and high precision measurement. The series products of cable displacement sensor have a great choice space, with the stroke ranging from 1000 to 5000 mm, with analog current signal: 4-20MA, analog voltage signal: 0-5V, 0-10V and pulse signal: P: A, B and Z, which are adopted by customers and accept orders with special specifications.
Application field:
Crack measurement and monitoring, bridge measurement and monitoring, storage location positioning, reservoir dam protection, gate opening control, pressure machinery, paper-making machinery, textile machinery, sheet metal machinery, packaging machinery, printing machinery, level controller, construction machinery, industrial robots, injection machines, woodworking machinery, elevators, air compressors/oil presses, liquid levels and other related dimension measurement and position control.
