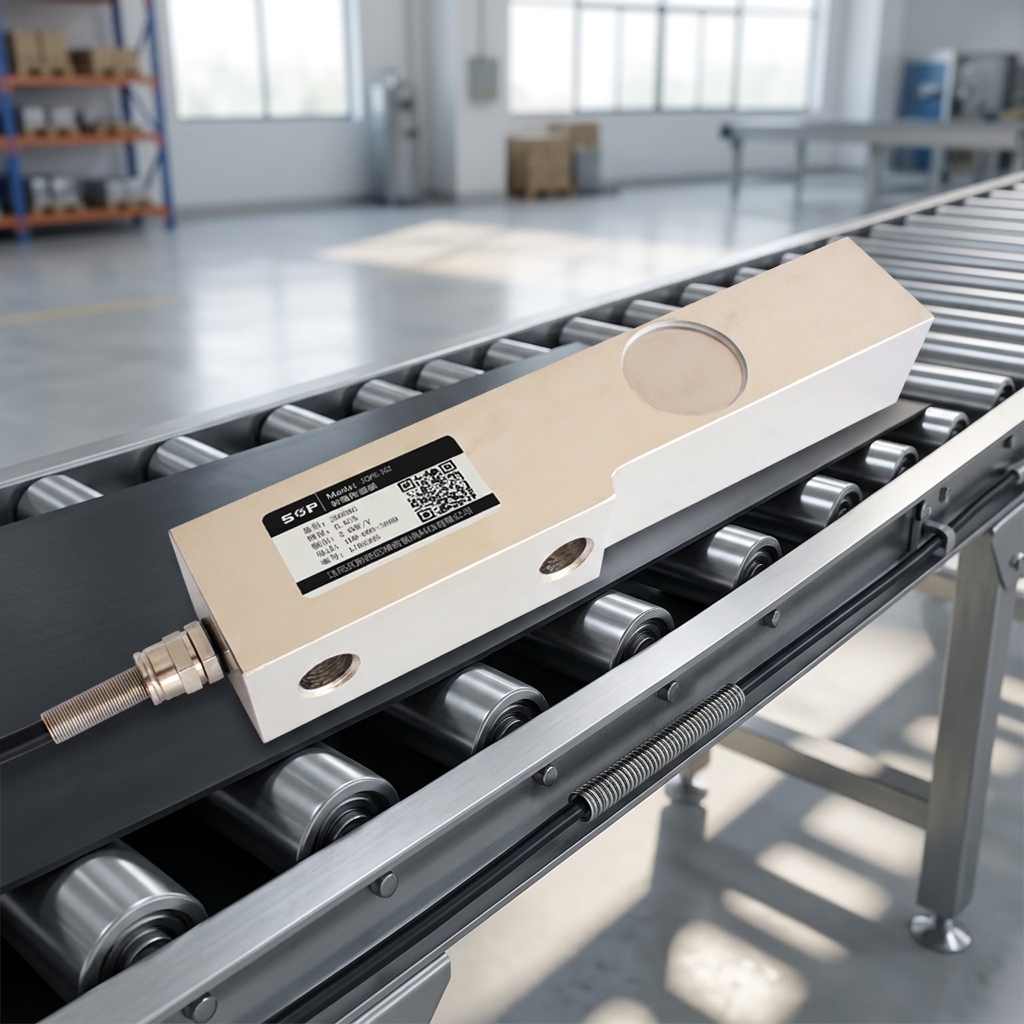

Cantilever Load Cells for Belt Scale Weighing System
Cantilever Load Cells for Belt Scale Weighing System
Cantilever load cells are dedicated core sensing components tailored for industrial belt scales, widely used for dynamic weighing of bulk materials in mining, construction, chemical, grain and processing industries. They serve as the key measurement core of belt conveyor weighing systems, directly dominating the accuracy, stability and consistency of real-time material metering and flow monitoring.
Working Principle for Belt Scale

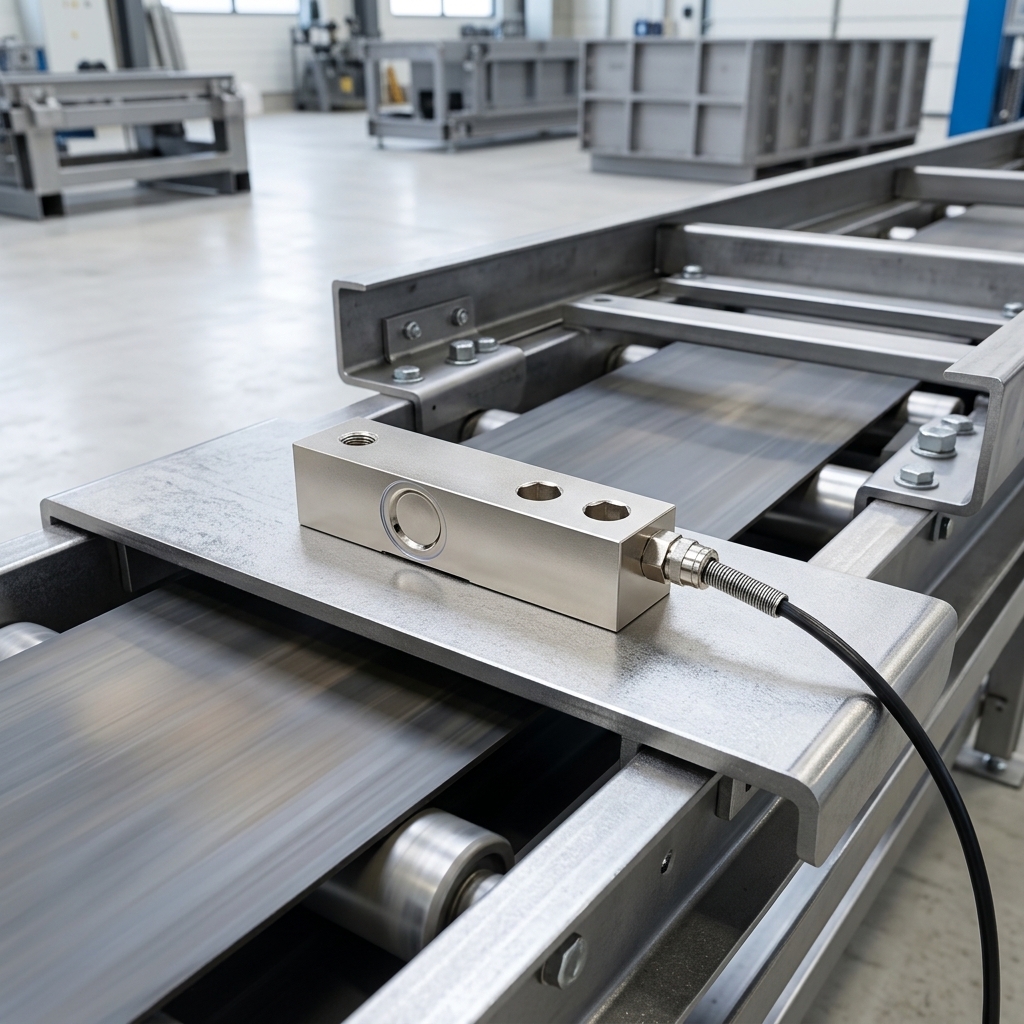

Mounted on the belt scale support frame, cantilever load cells adopt a professional single cantilever structure suitable for dynamic conveyor operation. When bulk materials pass through the running belt, the uniform load acts on the sensor. Internal strain gauges convert mechanical elastic deformation into standard electrical signals. After precise signal processing, the sensor outputs real-time weight and flow data, realizing continuous, automatic dynamic weighing for moving materials on the belt.
Unique Functions for Conveyor Weighing
Different from conventional static load cells, this cantilever type is optimized for belt scale operating characteristics. It adapts to continuous vibration, dynamic impact and uneven material feeding during belt operation. It effectively resists on-site mechanical interference, maintains stable and sensitive real-time load induction, and supports long-term uninterrupted dynamic metering. It also enables cumulative material calculation and flow statistics, providing reliable data support for production monitoring, batching and inventory management.
Core Application Advantages
Designed for belt scale assembly, the sensor features a compact and integrated structure with simple installation, convenient calibration and low daily maintenance requirements. The optimized cantilever structure greatly improves vibration resistance and lateral force resistance, perfectly adapting to harsh industrial environments with heavy dust and continuous vibration.
Boasting excellent linearity and repeatability, the sensor delivers consistent and accurate weighing performance during long-duration operation. With strong environmental anti-interference capability and durable structural design, it effectively reduces calibration times and replacement costs. It is a cost-effective and stable precision sensor specially suitable for various industrial belt scale dynamic weighing systems.
