Introduction

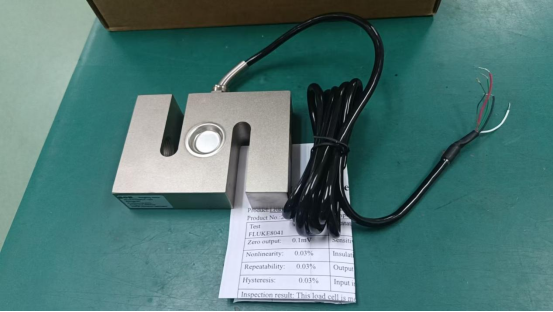

S-Beam load cells, also known as S-type load cells, are one of the most popular strain gauge force sensors in industrial measurement. Named after their distinctive S-shaped mechanical structure, they adopt bonded strain gauge technology. When tension or compression force acts on the sensor body, minor elastic deformation occurs, causing resistance changes of internal strain gauges. The resistance variation is converted into a proportional electrical signal for calculating force value or weight.
The core competitive advantage of S-beam load cells lies in bidirectional
Measurementcapability: they precisely detect both pulling (tension) and pushing (compression) loads. Compact structure, stable performance, excellent anti-eccentric load capacity and convenient installation make them widely adopted across dozens of industries. Available materials include alloy steel and stainless steel, with IP65/IP67 sealing options to adapt to humid, dusty industrial environments. Measuring capacities cover small ranges from several kilograms up to multiple tons.
Core Application Scenarios
1. Hanging Weighing & Crane Scale Systems
This is the most typical tension application for S-beam load cells. Installed on suspension hooks, they serve crane scales, hanging bucket scales and overhead hopper weighing equipment. Operators can measure suspended materials in real time.
· Typical usage: overhead lifting weighing, warehouse hanging scale, livestock hanging weighing, waste recycling suspended weighing.
2. Batching, Filling & Dosing Control
In automatic production lines, S-type load cells are mounted beneath hoppers, small silos and mixing tanks to realize continuous weight monitoring. The system automatically controls feeding valves according to set weight thresholds, achieving precise batching and ingredient proportioning.
· Target industries: food processing, feed production, chemical raw material mixing, construction mortar blending.
3. Material Force Testing & Laboratory Equipment
S-beam sensors are standard components for universal material testing machines. They measure tensile strength, compression resistance, peeling force and breaking force of plastics, rubber, textiles, metal wires and composite materials. Small-size miniature S-beam load cells are preferred for low-force laboratory tests.
· Common tests: packaging bag tensile test, spring compression test, cable tension test, adhesive peeling test.
4. Packaging Machinery & End-of-Line Checkweigher
Installed on automatic filling machines, bagging machines and checkweighers, S-beam load cells monitor product weight during packaging. They reject underweight or overweight finished goods to guarantee consistent packaging specifications.
· Applicable equipment: powder packing machine, granule filling machine, sack sewing weighing station.
5. Conveyor & Belt Scale Auxiliary Measurement
S-beam load cells are deployed on tension frames of conveyor belts to detect belt tension, prevent belt deviation and breakage. They are also used for small belt weighing systems to calculate material flow rate.
6. Construction Machinery & Structural Monitoring
S-beam load cells measure tension of steel cables, anchor bolts and lifting rigging in engineering projects. They are applied for load monitoring of building formwork, lifting platforms and safety protection systems to avoid overload risks.
7. Pharmaceutical & Medical Equipment
Stainless steel sealed S-beam load cells meet hygiene requirements. They are used for pharmaceutical powder batching, medical reagent weighing, and force testing of rehabilitation equipment. Smooth stainless steel surface supports cleaning and disinfection.
8. Other Special OEM Automation
Many equipment manufacturers integrate S-beam load cells as OEM force sensors: tension monitoring for textile winding machines, tension control for wire drawing equipment, press force detection for small hydraulic presses, and load monitoring for elevator safety components.
Selection Notes for Different Scenarios
1. Pure tension working condition: Select standard alloy steel S-beam load cells; equipped with lifting lugs for convenient connection.
2. Humid, corrosive environment (food, chemical): Choose stainless steel fully sealed versions with IP67 protection grade.
3. Dynamic frequent loading (testing machines): Prioritize models with low hysteresis and high repeatability.
4. Limited installation space: Adopt mini compact S-beam load cells.
Conclusion
Thanks to the unique dual tension-compression measuring function, simple installation and cost-effective performance, S-beam load cells remain a universal solution for industrial force and weight measurement. As automated manufacturing and intelligent process control develop, S-beam load cells will continue to be widely deployed in weighing, force detection and automatic control systems across global industries.
