SOP500 intelligent digital transmitter: a high-precision signal hub for industrial measurement and control
In the industrial automation system, the accurate conversion and stable transmission of sensor signals is the core foundation for the reliable operation of the control system. SOP500 series intelligent digital transmitters rely on embedded microprocessor technology and digital compensation algorithm to convert the original signals of weighing and force measuring sensors into standard industrial signals, and become the core hub connecting the sensing layer and the control layer.
In terms of hardware performance, the transmitter supports DC12-26V wide voltage power supply, and the power consumption is less than 3W, which can adapt to various power supply environments in industrial field. The comprehensive accuracy error is only 0.1%, and the acquisition accuracy of 12-16 bits can be flexibly adjusted with the sampling rate, taking into account the measurement response speed and data accuracy. The metal guideway shell has strong anti-electromagnetic interference ability and can run stably for a long time under complex working conditions; Another four-in and four-out model can process multi-channel sensing signals at the same time, greatly improving the system integration efficiency.

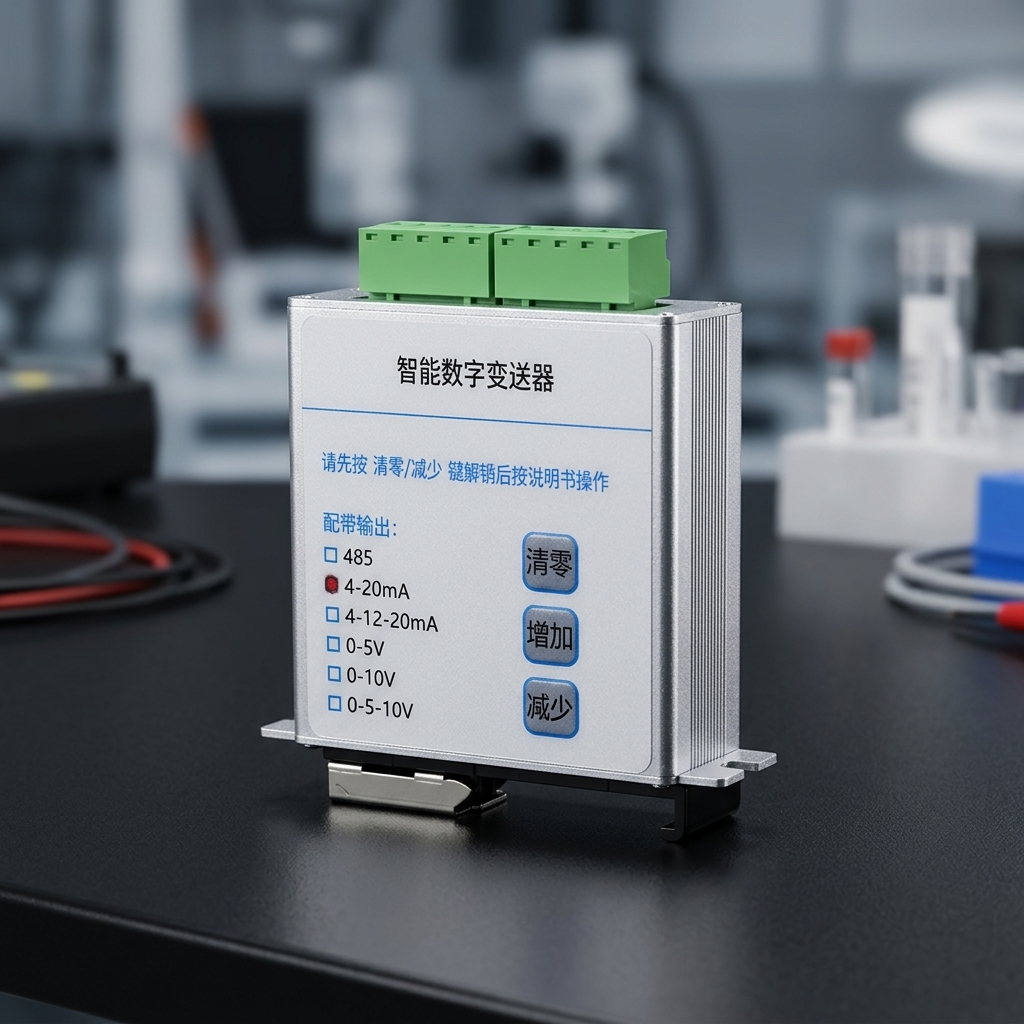

On the functional level, the product adopts digital+analog dual-output architecture: RS485 interface follows Modbus RTU protocol, baud rate covers 1200-115200bps, and it can seamlessly connect PLC, configuration screen and PC system; Analog output supports 0-10V or 4-20mA system, is compatible with traditional control loop, and two outputs can run synchronously and accurately. The equipment comes with physical buttons for resetting and parameter adjustment, which supports quick debugging on site; With the exclusive upper computer test software, the whole process operations such as real-time reading, zero calibration and parameter configuration can be completed remotely. At the same time, it supports the automatic calibration of TEDS intelligent sensor when it is powered on, and with the functions of one-button zero clearing and automatic zero clearing, it significantly reduces the labor and time cost of on-site debugging.

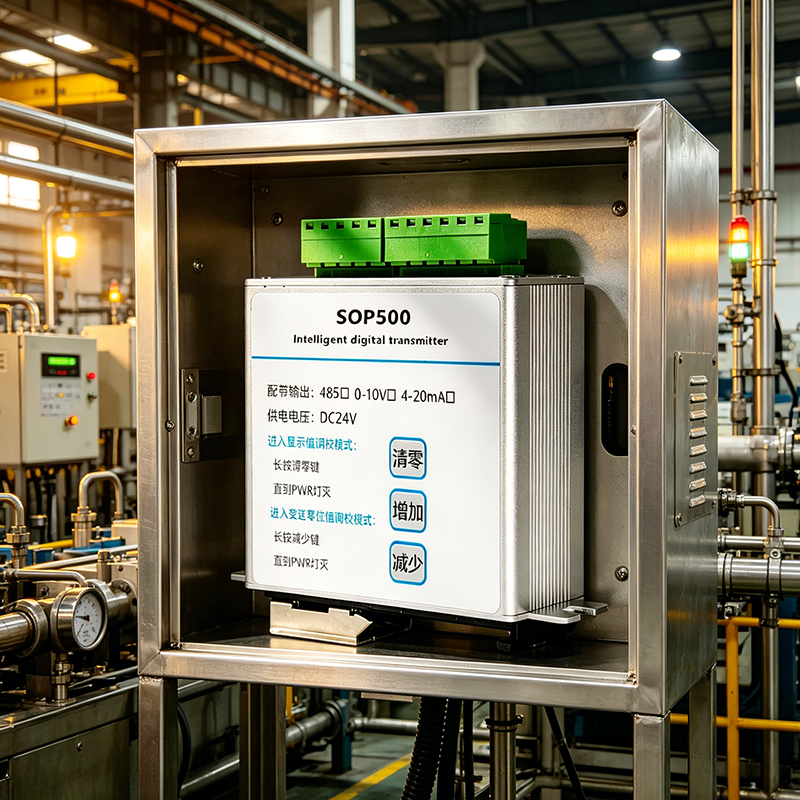

At present, the product has been widely used in weighing and force measurement, water treatment measurement and control, aquaculture, textile machinery, robot load detection, silo weighing and other scenes, which can adapt to various tension, pressure and weighing sensors and build a stable and reliable signal conversion link for industrial automation systems.
