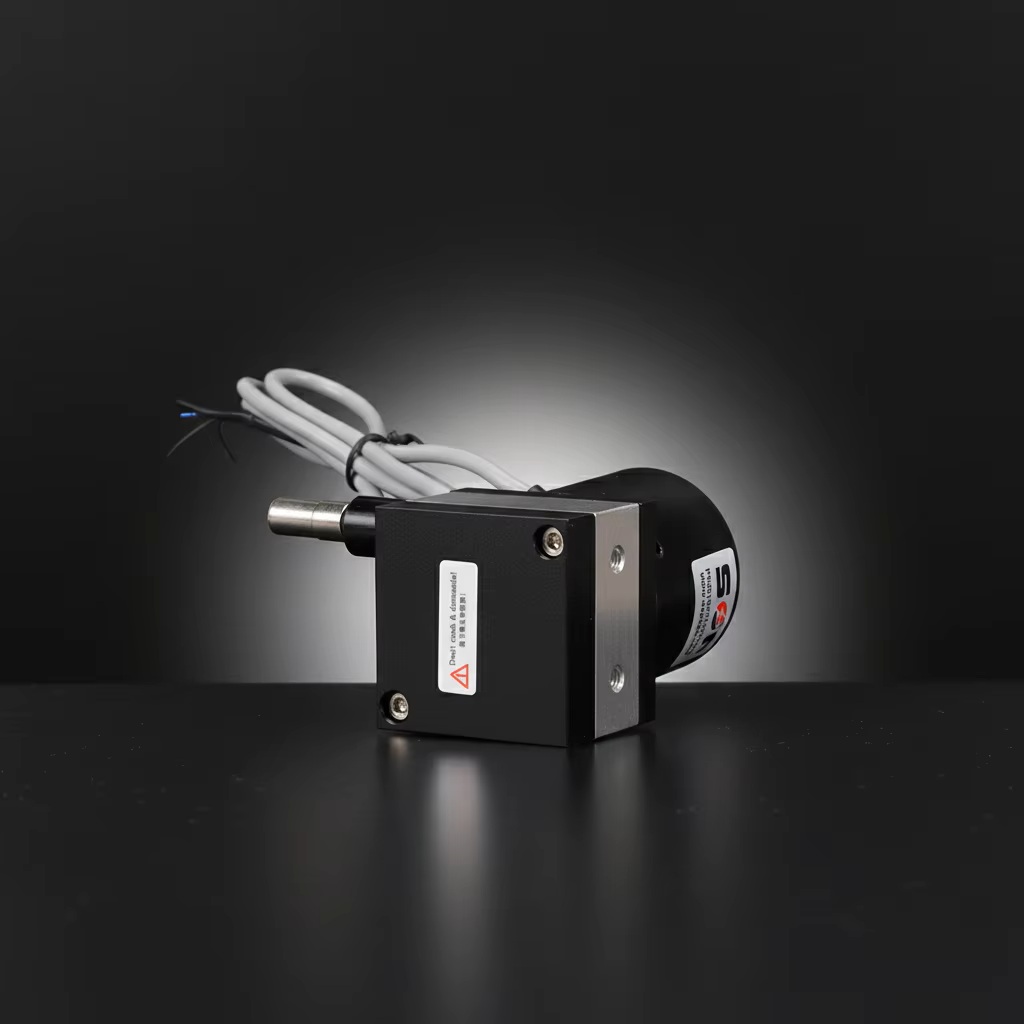

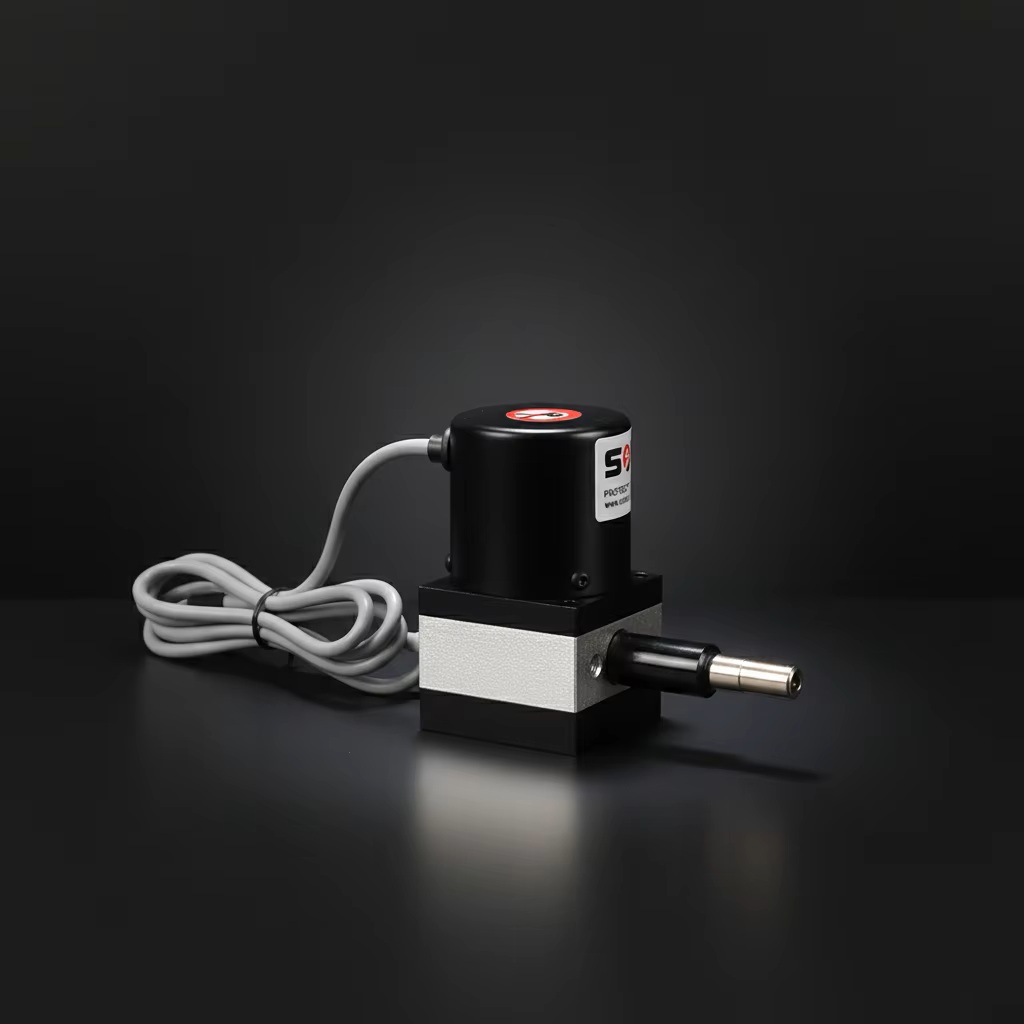

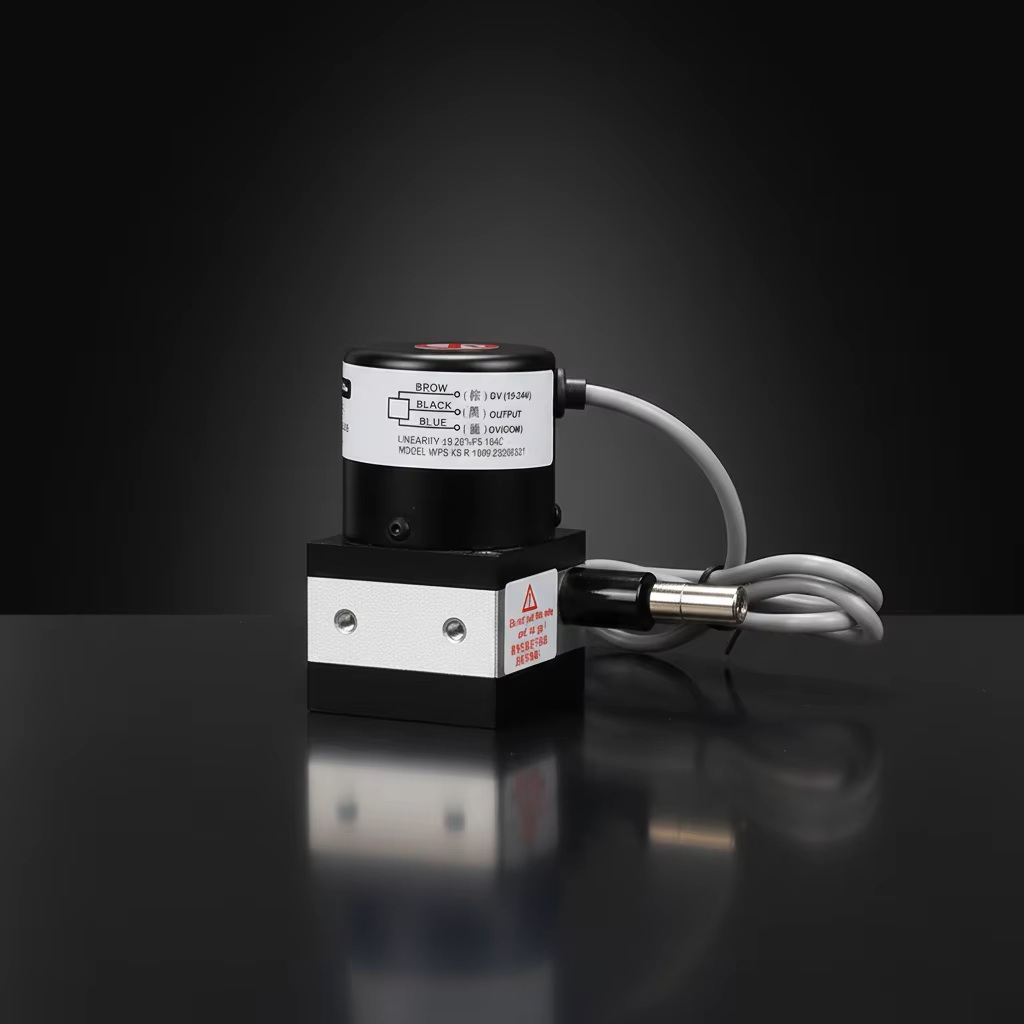

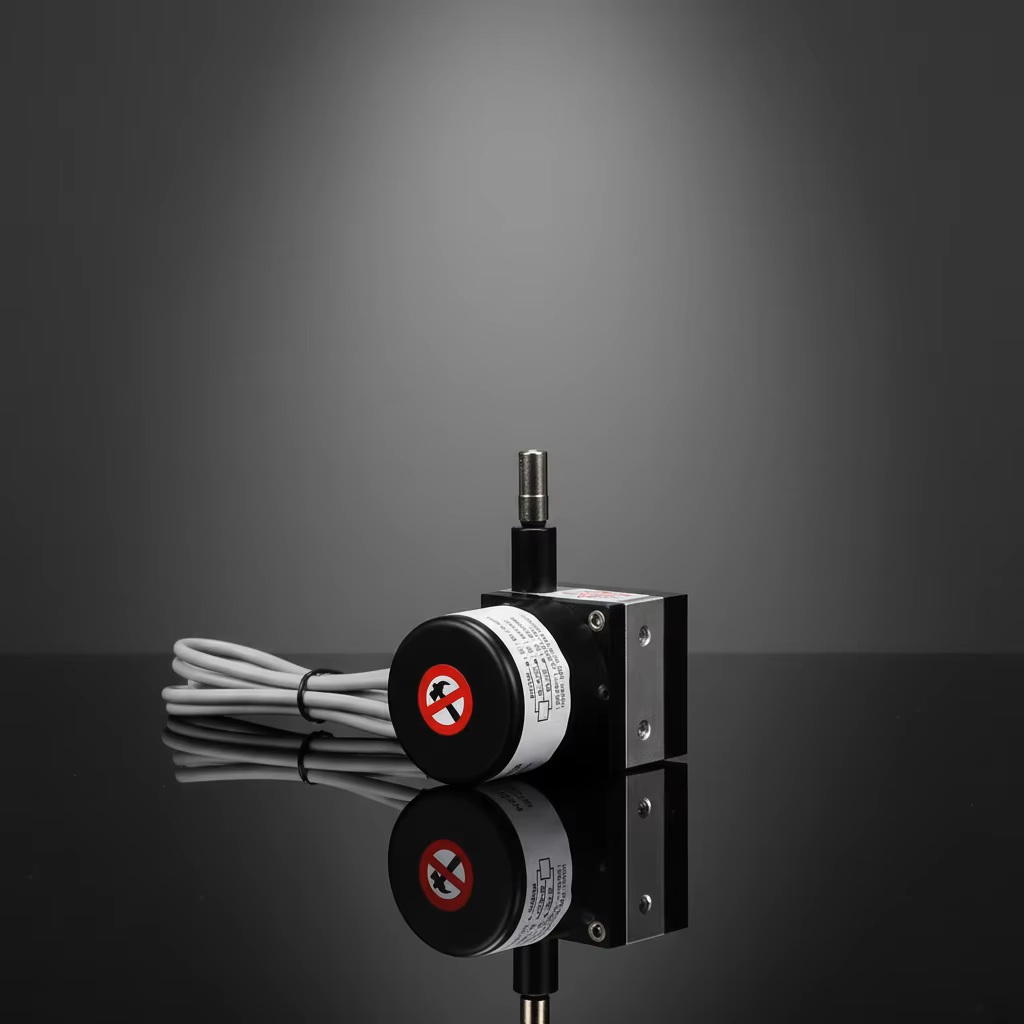

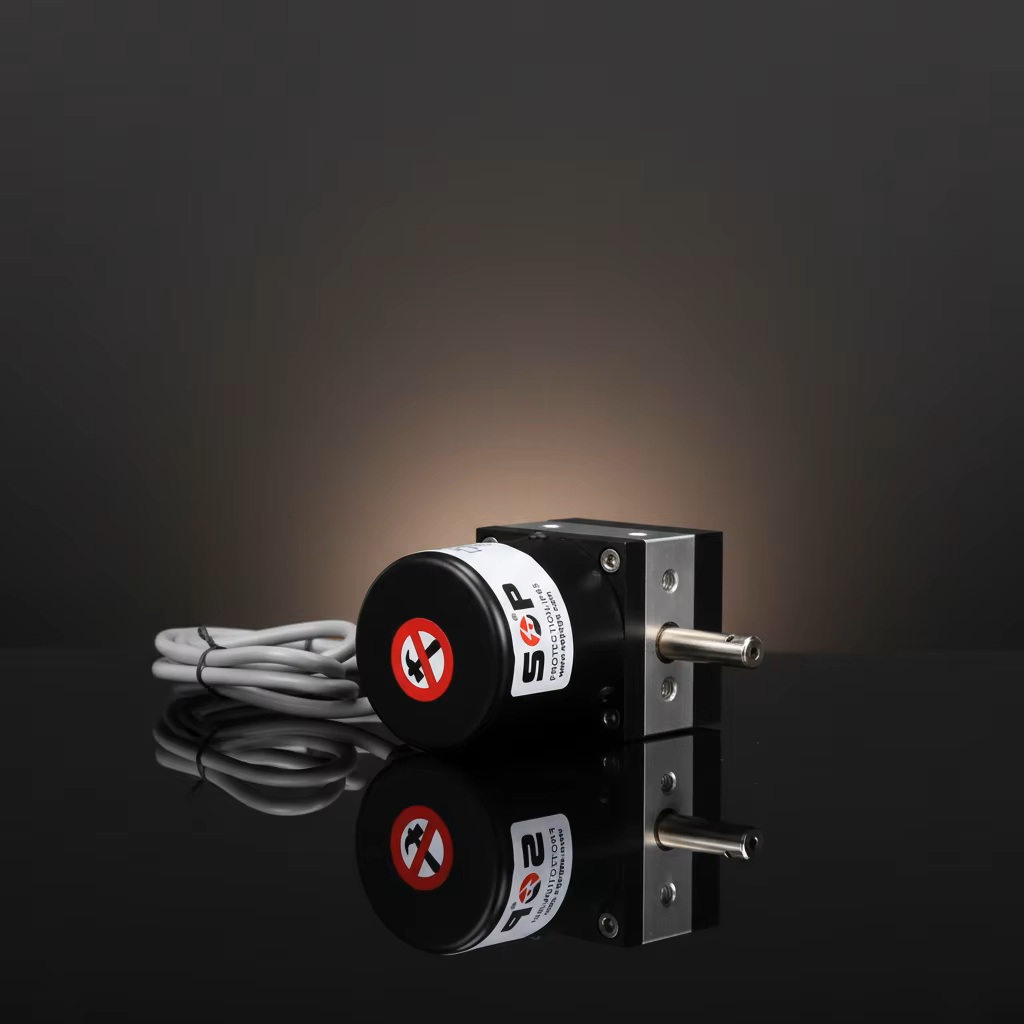

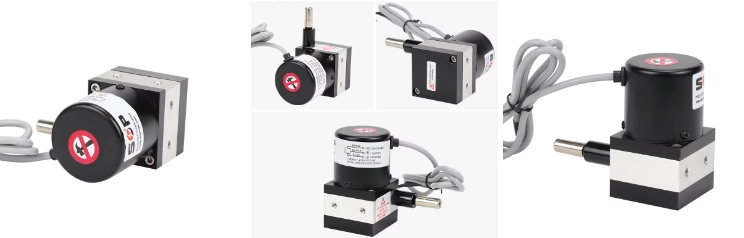

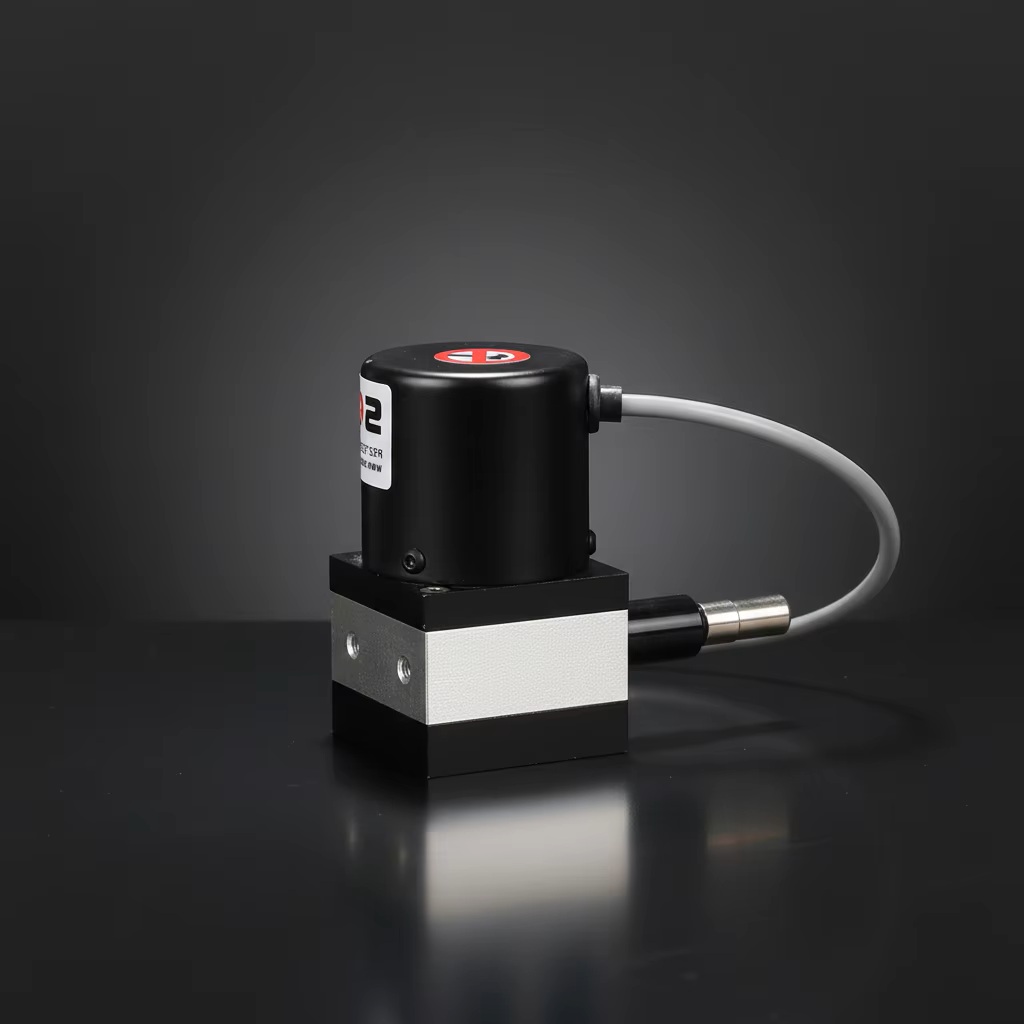

WPS 2000mm Push Pull Draw Wire Encoder Displacement Sensor 4-20mA/0-10V Output Linear Position Sensor for Industrial Automation
Brand SOP
Product origin JiangXi
Delivery time 3-7days
Supply capacity 3000PC/day
Feature
1.Travel 10MM-100000MM Customizable
2.High Stability, High Accuracy, Service Life UP To Five Million Times
3.Permissible Deviation 3, Not Exceeding 35MM For Every 1000MM
4.The Linear Accuracy Can Reach 0.05%-0.08%
5.Protection Level IP65
WPS 2000mm Push Pull Draw Wire Encoder Displacement Sensor 4-20mA/0-10V Output Linear Position Sensor for Industrial Automation
Product Description
SOP Rope Displacement Sensor
Feature
1.Travel 10MM-100000MM Customizable
2.High Stability, High Accuracy, Service Life UP To Five Million Times
3.Permissible Deviation 3, Not Exceeding 35MM For Every 1000MM
4.The Linear Accuracy Can Reach 0.05%-0.08%
5.Protection Level IP65

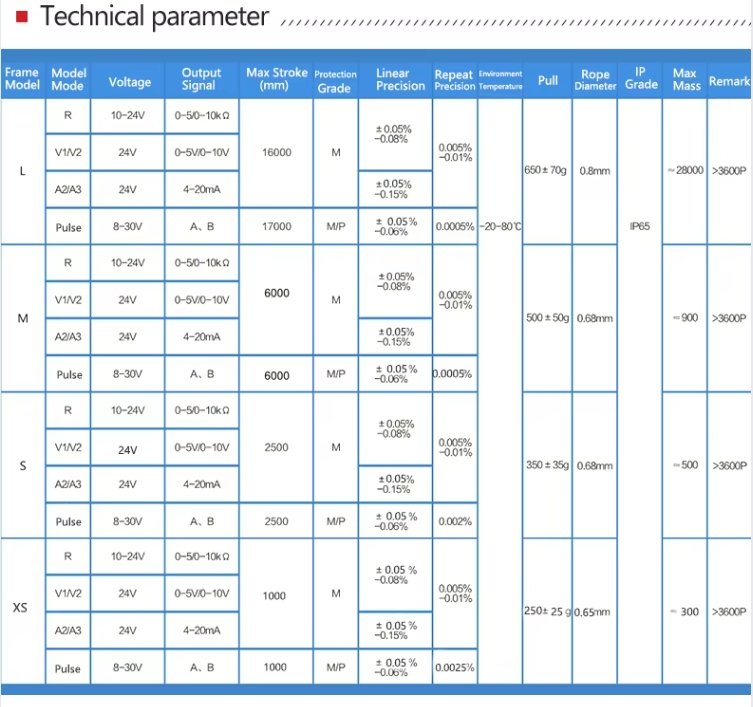

Product Parameters
| Measurement Type | Resistive live band has built-in voltage/current conversion circuit. |
| Linearity | 0.3%，0.25% or 0.1% |
| Measuring Stroke | 10-60000mm |
| Type Of Output Model | Voltage distribution type |
| Output Method | Electric resistance, 0-10V or 4-20mA or Pulse ABZ phase digital output |
| Supply Voltage | 13-30V |
| Electrical Connections | 1 meter conductor |
| Shell Material | Aluminum alloy/metal |
| IP Degree | IP65 |
| Operating Temperature | -40℃/+80℃ |
| Storage Temperature | -30℃/+90℃ |

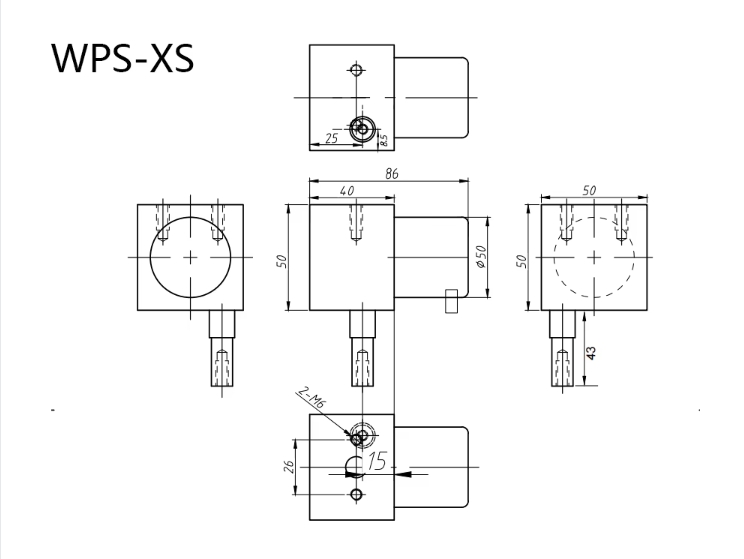

Product Size

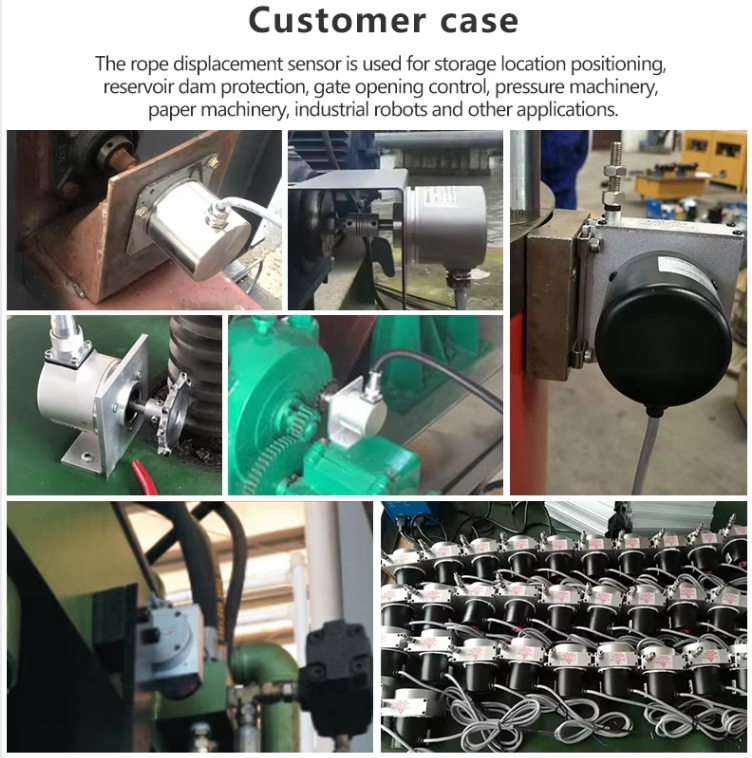

Product Application
Customer Feedback
Product packaging
Company Profile
