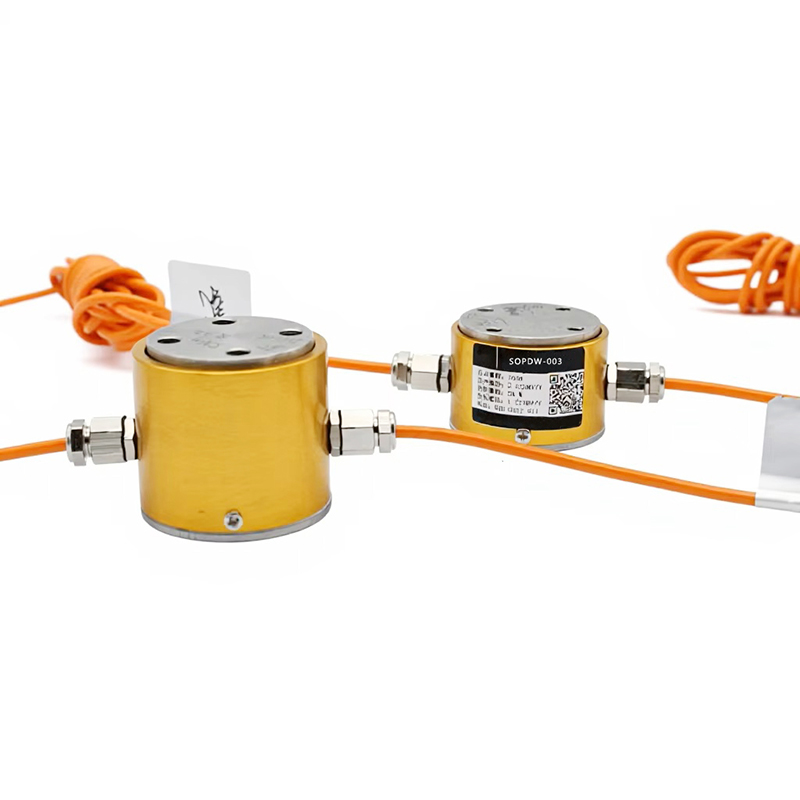

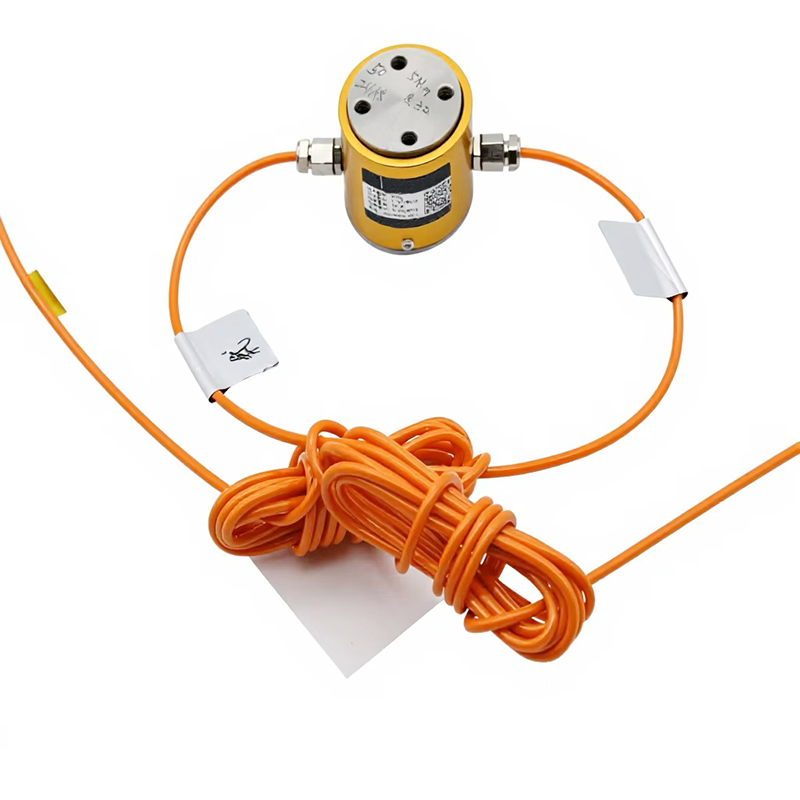

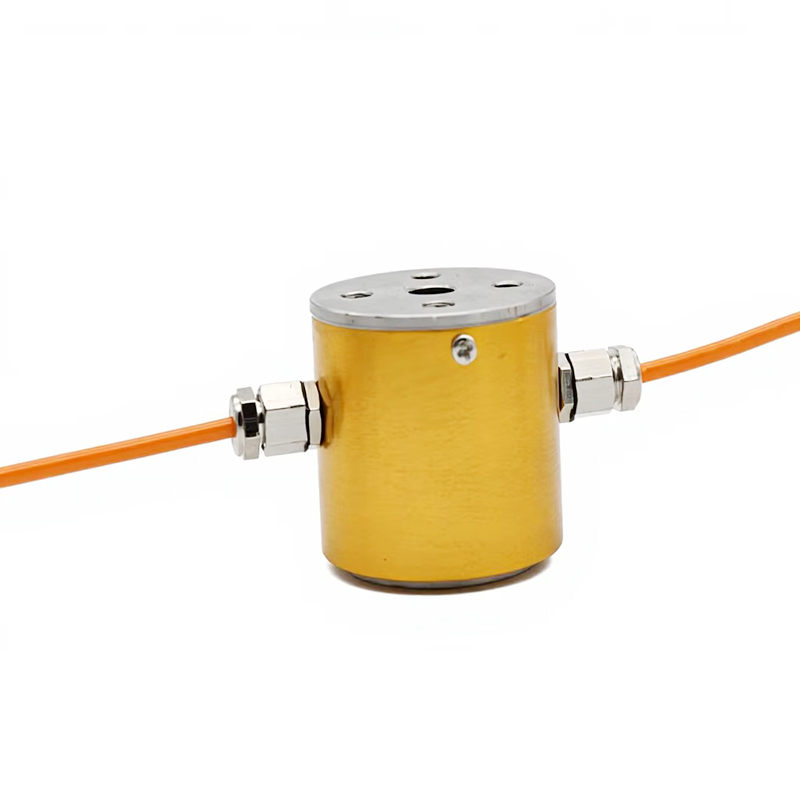

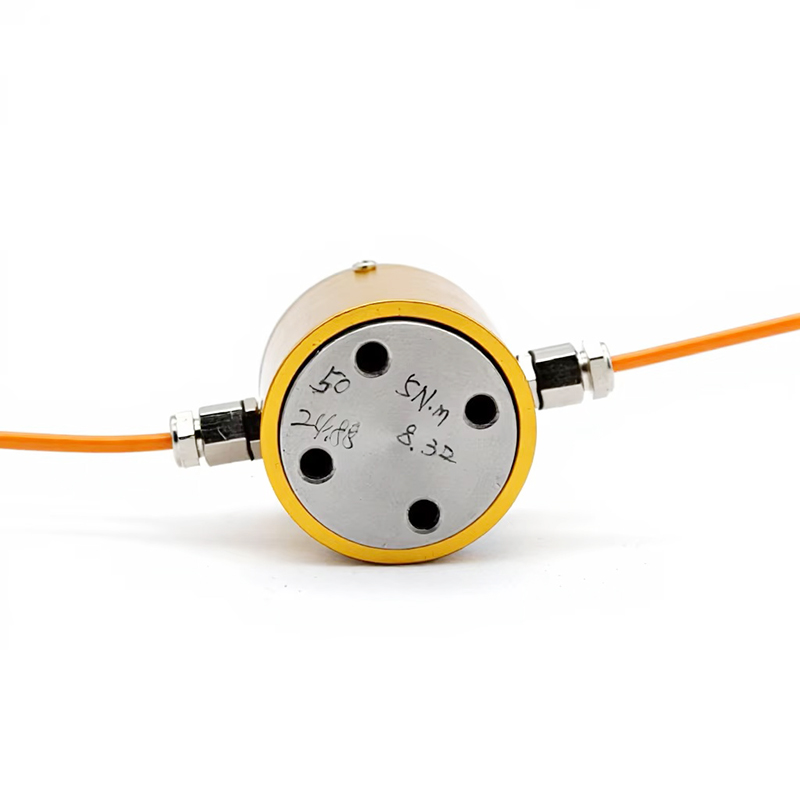

300N 500N 1000N Multi-dimensional Force Sensor Multi Axis Force Tension Torque Sensor Torsion Composite Load Cell
Brand SOP
Product origin JiangXi
Delivery time 3-7days
Supply capacity 3000PC/day
1.SOPDW-003 is a sensor that can measure pressure and torque at the same time. It can be used to measure the feed force and torque during drilling, cutting and screwing, or to measure the torsional characteristics of springs, bearings, clutches and other components.
2.It can be used in machinery, robotics, biomedicine and other fields to analyze and control the mechanical properties of objects.
Products Description

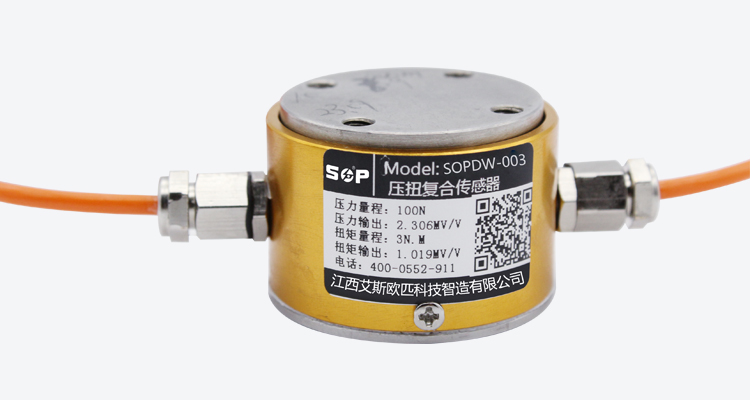

SOPDW-003
1.SOPDW-003 is a sensor that can measure pressure and torque at the same time. It can be used to measure the feed force and torque during drilling, cutting and screwing, or to measure the torsional characteristics of springs, bearings, clutches and other components.
2.It can be used in machinery, robotics, biomedicine and other fields to analyze and control the mechanical properties of objects.
Product Paramenters
| Measuring Range | 1-50N.m 50-1000N | Texture of Material | Alloy Steel |
| Output Sensitivity | 1.0-2.0mV/V | Impedance | 350Ω |
| Zero Point Output | ±2%F.S. | Insulation Resistance | 5000MΩ/100VDC |
| Nonlinear | 0.1%F.S. | Using Voltage | 5-10v |
| Hysteresis | 0.1%F.S. | Working Temperature Range | -20-80℃ |
| Repeatability | 0.1%F.S. | Safety Overload | 120% |
| Creep (30 minutes) | 0.05%F.S. | Ultimate Overload | 200% |
| Temperature Sensitivity Drif | 0.05%F.S. | Cable Specifications | Φ3*2m |
| Zero Point Temperature Drift | 0.05%F.S./10℃ | Cable Ultimate Tension | 10kg |
| Response Frequency | 10kHz | TEDS |

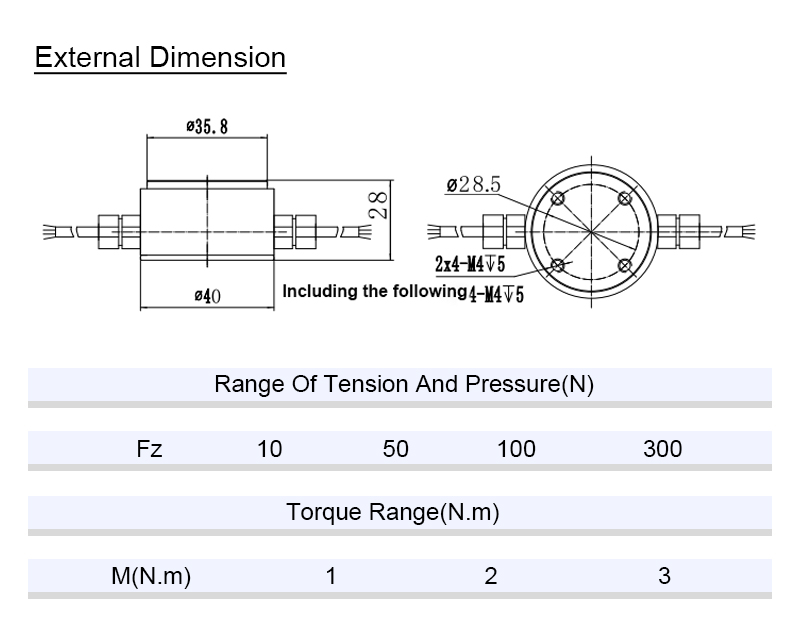

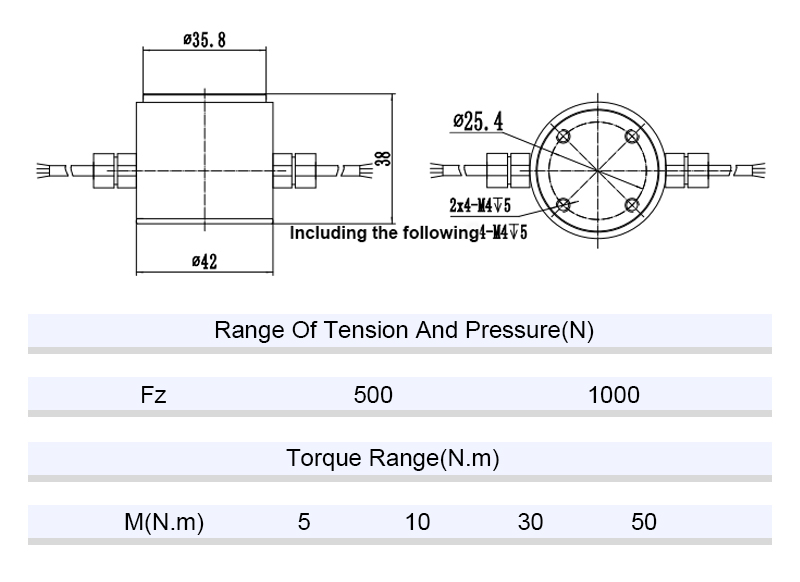

Product Size
