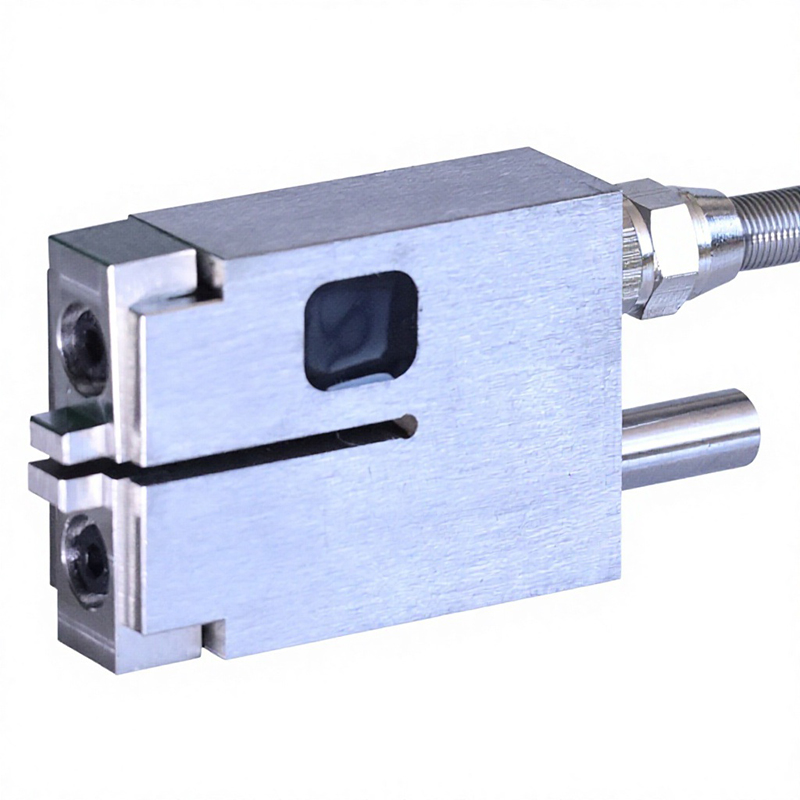

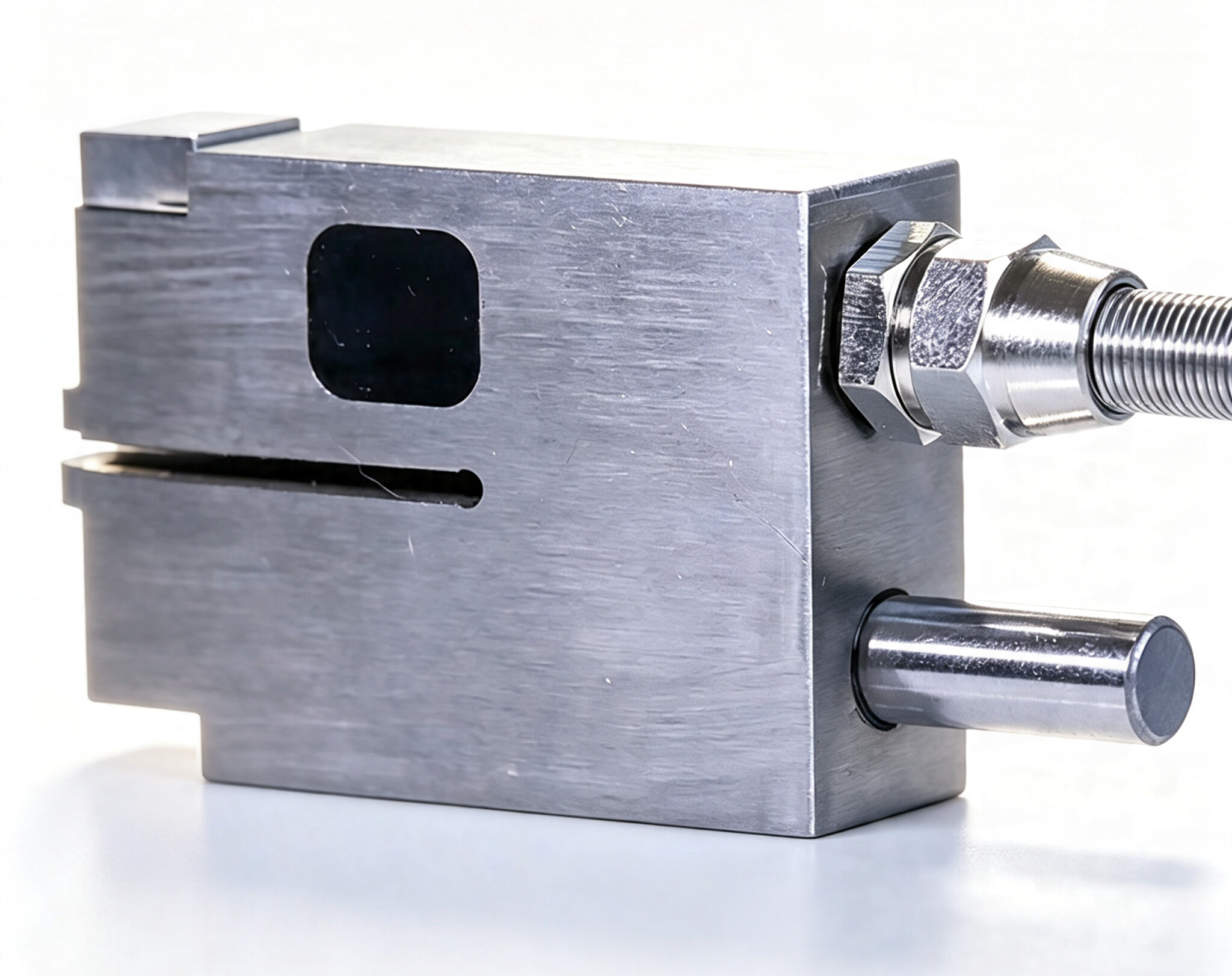

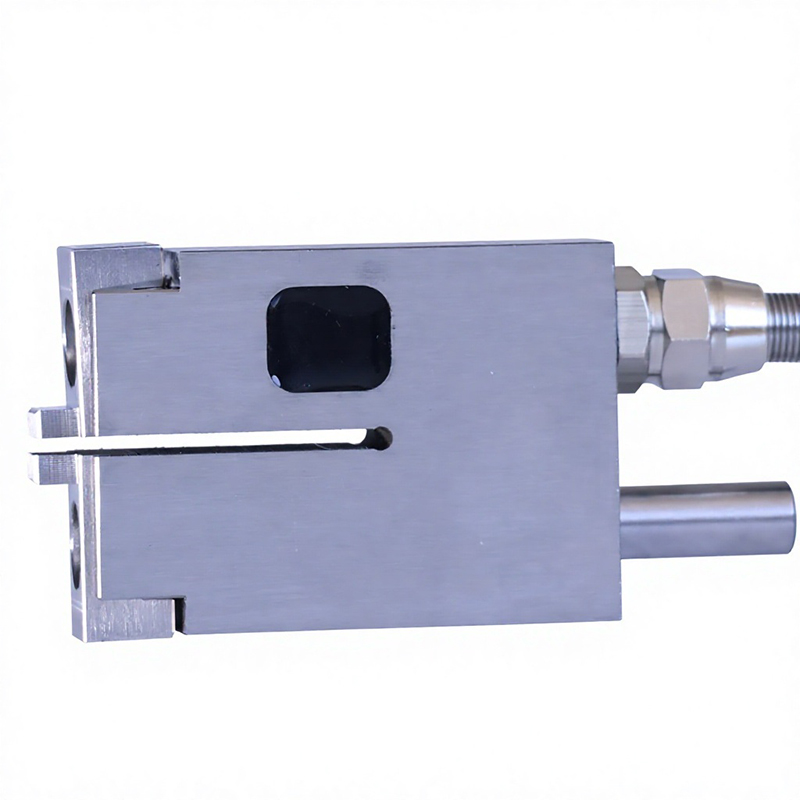

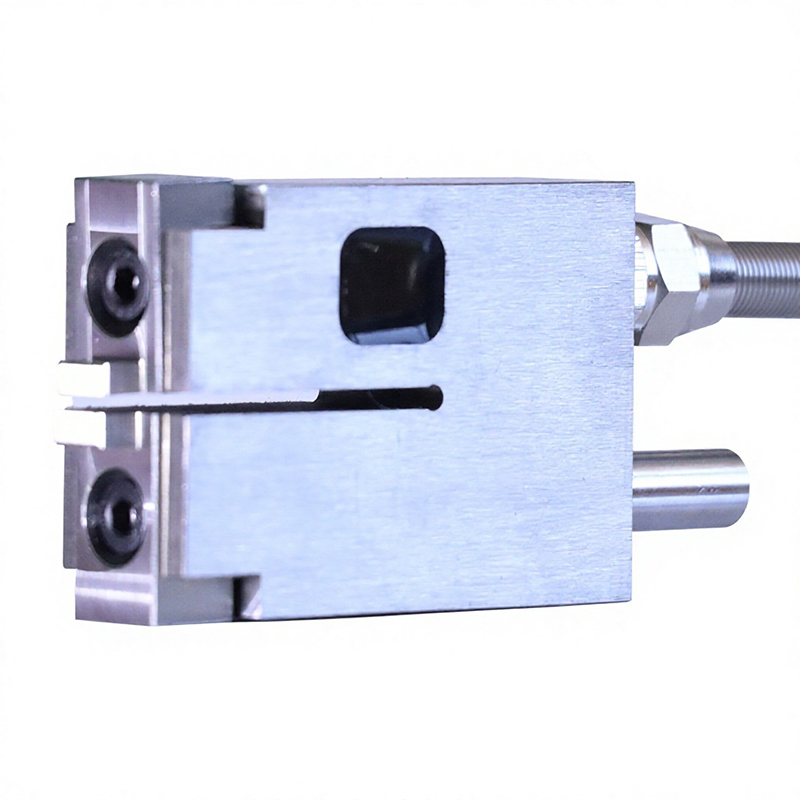

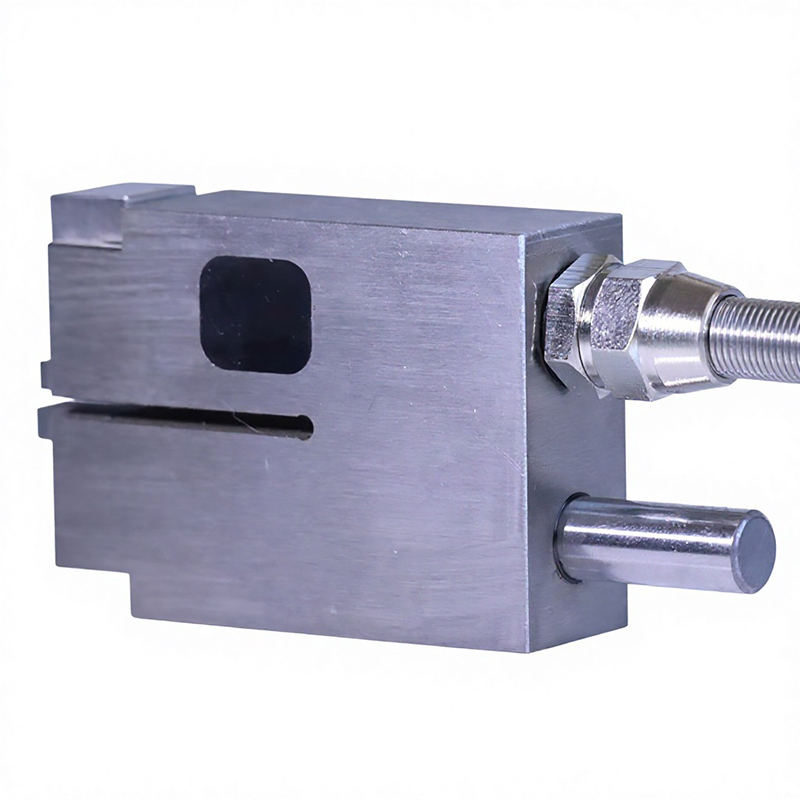

Yarn Tension Sensor SOPJ-002 Wire Transducer Tension Load Cell Textile Wire Tension Detection Sensor for Automatic Assembly
Brand SOP
Product origin JiangXi
Delivery time 3-7days
Supply capacity 3000PC/day
This tension sensor has the characteristics of compact structure, high dynamic response frequency, etc., and can be customized for high-temperature performance, and can be used in manufacturing processes such as injection molding and extrusion.
Products Description
SOPJC-002
This tension sensor has the characteristics of compact structure, high dynamic response frequency, etc., and can be customized for high-temperature performance, and can be used in manufacturing processes such as injection molding and extrusion.

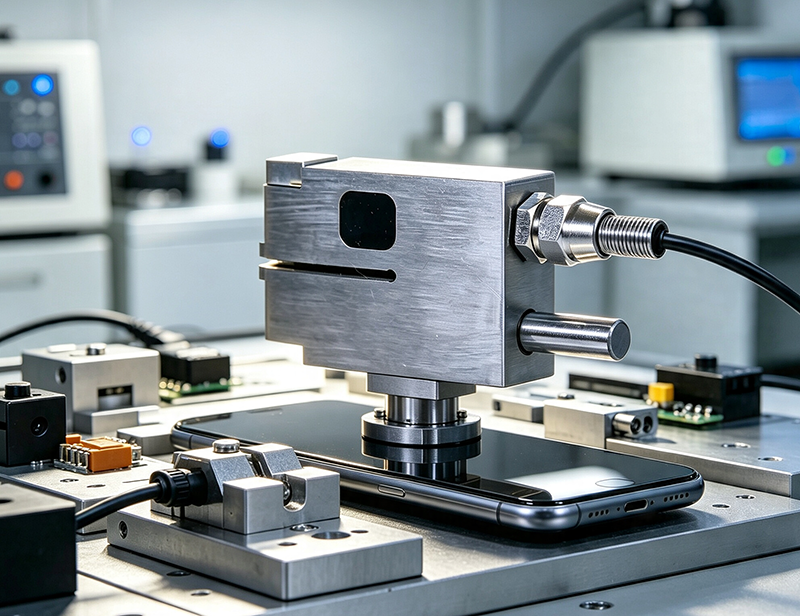

It can be used for Automobile press-fitting, automatic assembly, 3C product testing, new energy product assembly, medical testing, robot field, mold assembly and other industrial testing, automation equipment field and testing field.
Product Paramenters
| Rated range | 0-50kg | Material | stainless steel |
| Output Sensitivity | 1.0-2.0mV/V | Impedance | 350Ω |
| Zero Output | ±1%F.S. | Insulance | ≥5000MΩ/100VDC |
| Non-linearity | 0.5%F.S. | Operating Voltage Range | 5-15V |
| Hysteresis | 0.5%F.S. | Operating Temp Range | -20-60℃ |
| Repeatability | 0.3%F.S. | Safe overload | 150% |
| Creep (30min) | 0.3%F.S. | Maximum Overload | 200% |
| Temp.effect on output | 0.05% F.S. / 10ºC | Cable size | Φ5.5x2m |
| Temp.effect on zero | 0.05% F.S. / 10ºC | Cable ultimate pull | 10kg |
| Response frequency | 10kHz | TEDS |
