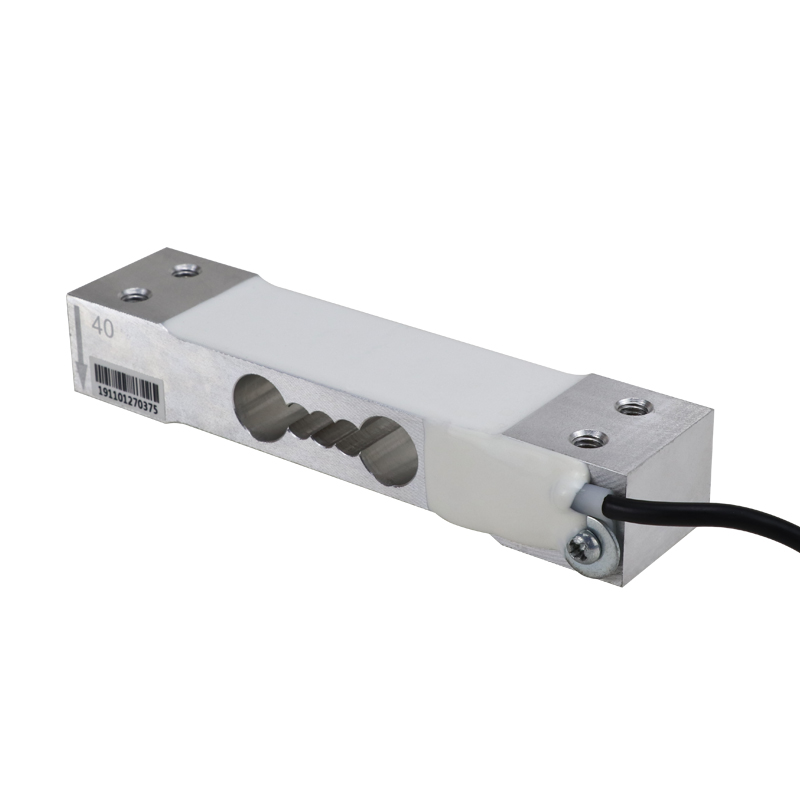

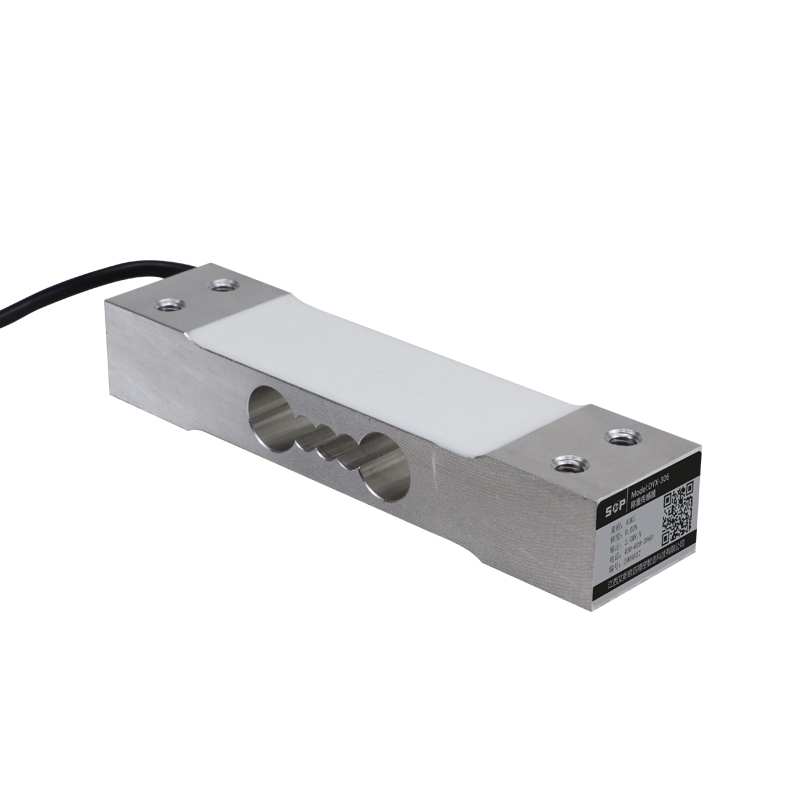

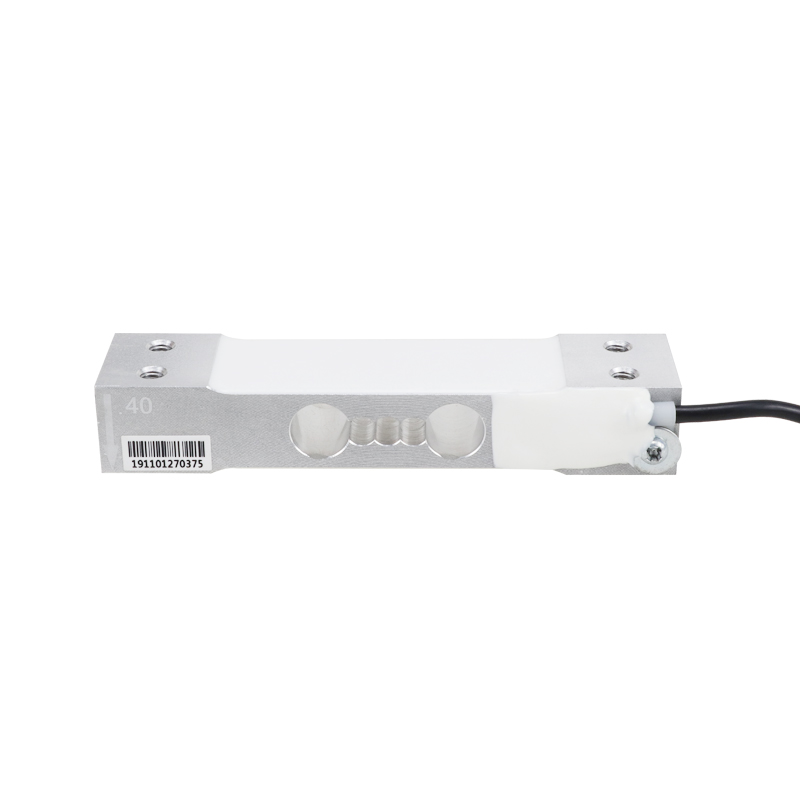

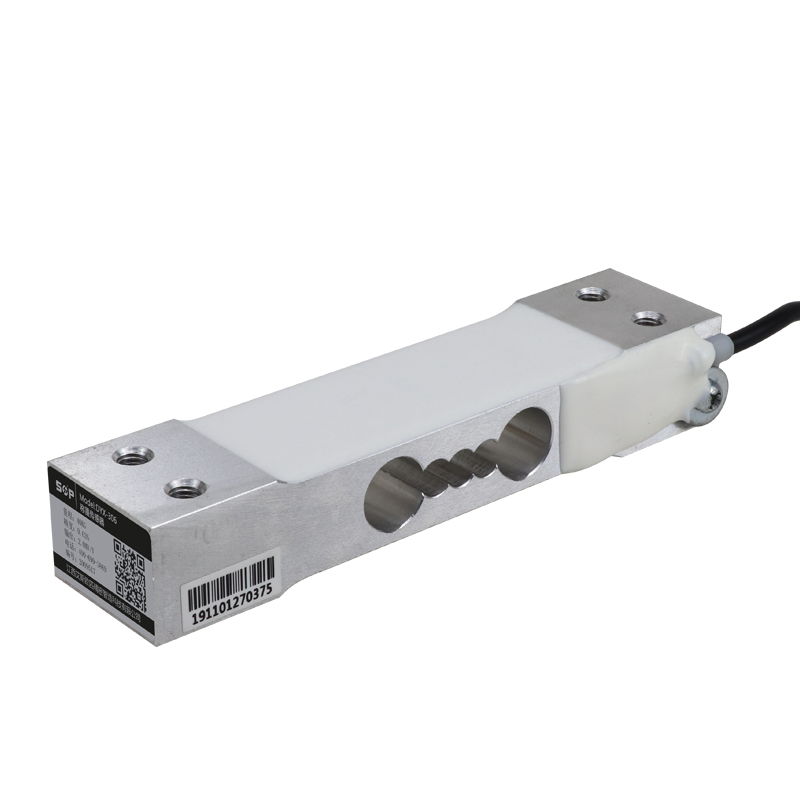

2026 Hot High Accuracy Electronic Platform Scale Computing Scale Weight Sensor Single Point Load Cell 40kg for Belt Scale
Brand SOP
Product origin China
Delivery time 3days
Supply capacity 300 pcs/day
Also known as shear beam weighing sensor, its shape is mostly cuboid, and the strain zone is in the middle of the sensor. Cantilever beam weighing sensor has the characteristics of simple structure, convenient installation, reliable use, long service life and high cost performance.
Product Description
Also known as shear beam weighing sensor, its shape is mostly cuboid, and the strain zone is in the middle of the sensor. Cantilever beam weighing sensor has the characteristics of simple structure, convenient installation, reliable use, long service life and high cost performance.
Cantilever beam weighing sensors have been widely used in small scale, platform scale, steel cylinder scale and other fields in industrial weighing instruments, and generally three or four sensors are used as a group.

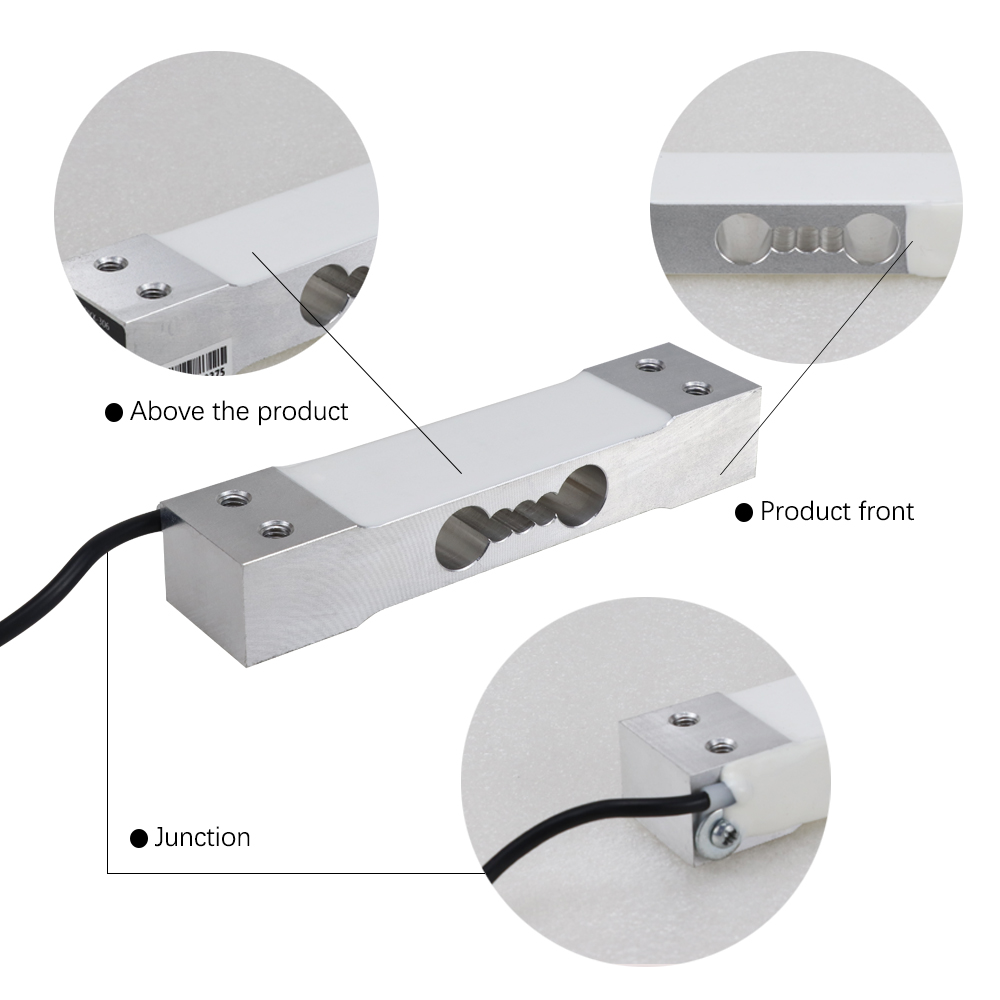

Detail Pictures
Product Parameters
| Parameter Table | |||
| Measuring Range | 0-40kg | Material | Aluminium alloy |
| Output Sensitivity | 2.0±0.05mV/V | Resistance | 350Ω |
| Zero Output | ±1%F.S. | Insulance | ≥5000MΩ/100VDC |
| Non-Linear | 0.02%F.S. | Operating voltage | 5-15v |
| Hysteresis | 0.03%F.S. | Operating temperature range | -20-80℃ |
| Repeatability | 0.02%F.S. | Safety overload | 150% |
| Creep(30min) | 0.03%F.S. | Ultimate overload | 200% |
| Temp.effect on output | 0.03% F.S. / 10ºC | Cable specification | Φ5X3m |
| Temp.effect on zero | 0.03% F.S. / 10ºC | Cable ultimate tension | 10kg |
| Response frequency | 10kHz | TEDS | |
