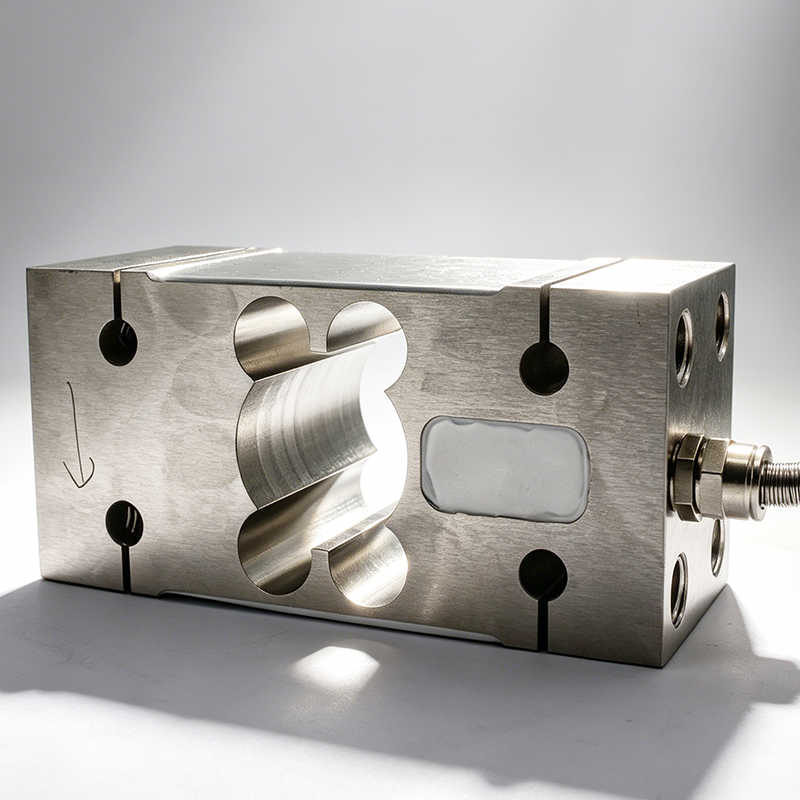

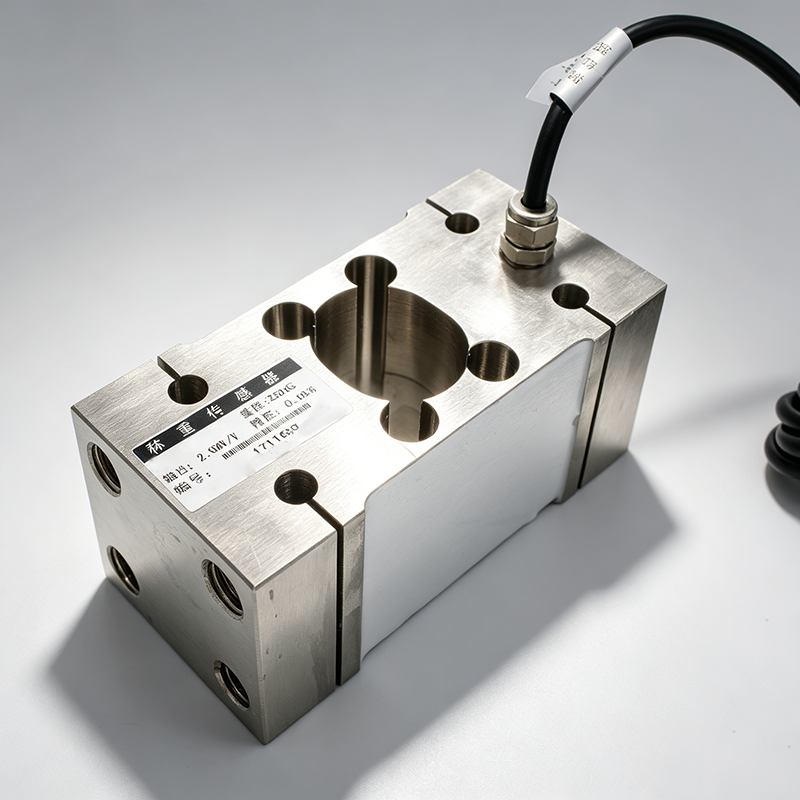

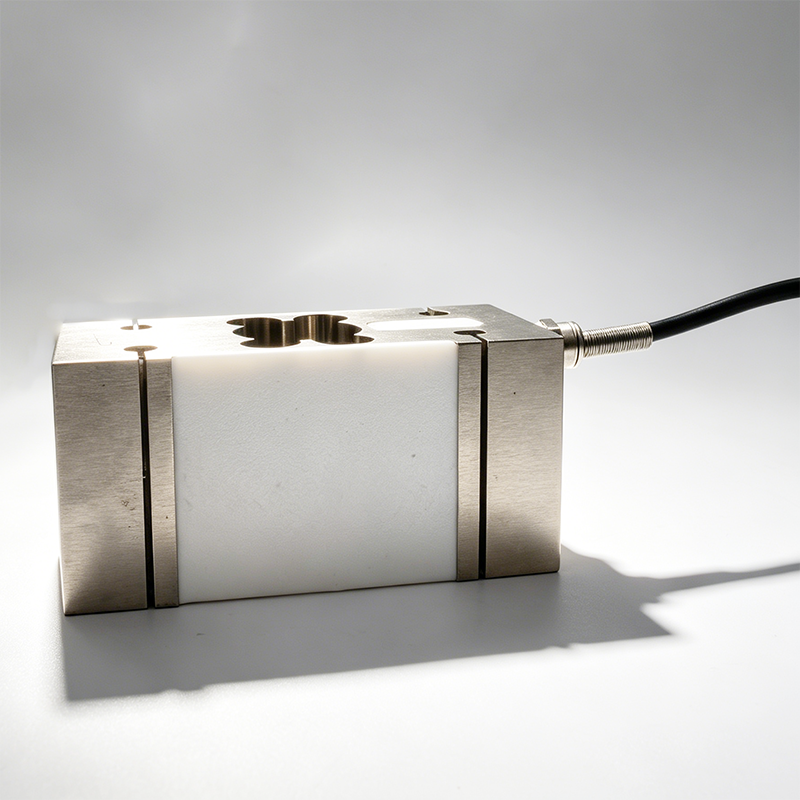

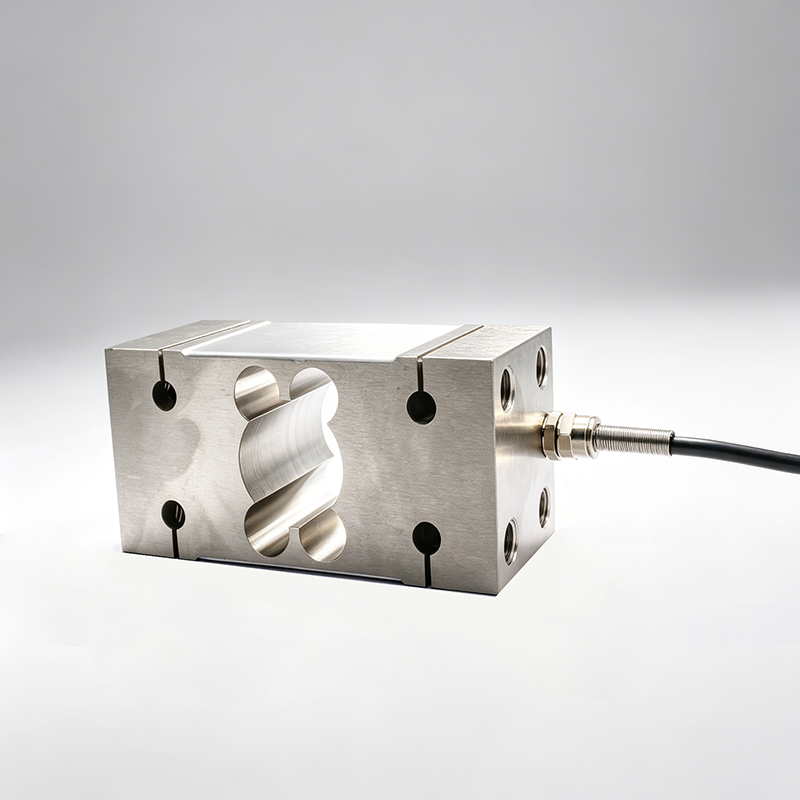

Alloy Steel Single-Point Load Cell Electronic Scale Weighing Sensor Low Range Package Scale Small Weight Counting Scale
Brand SOP
Product origin China
Delivery time 3days
Supply capacity 300 pcs/day
This sensor is a parallel beam weighing sensor, which perfectly meets the accuracy requirements, small deformation, meets the requirements of dangerous areas, calibration methods and environmental conditions, and is convenient and fast to install.
Product Description
This sensor is a parallel beam weighing sensor, which perfectly meets the accuracy requirements, small deformation, meets the requirements of dangerous areas, calibration methods and environmental conditions, and is convenient and fast to install.
It is often used to monitor the load of manipulator, installed between manipulator and fixture to detect the weight of the measured object.

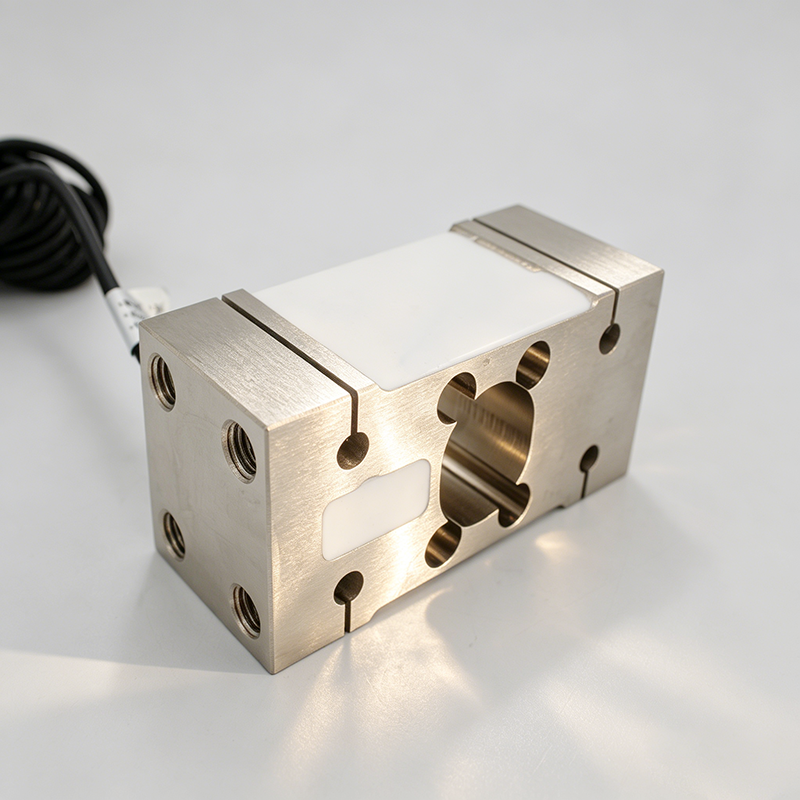

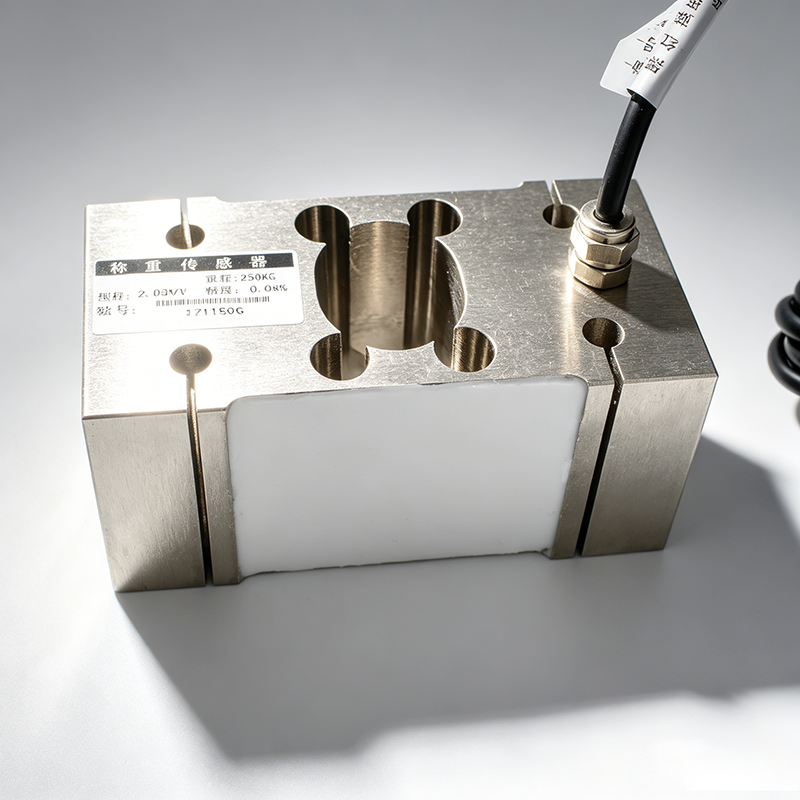

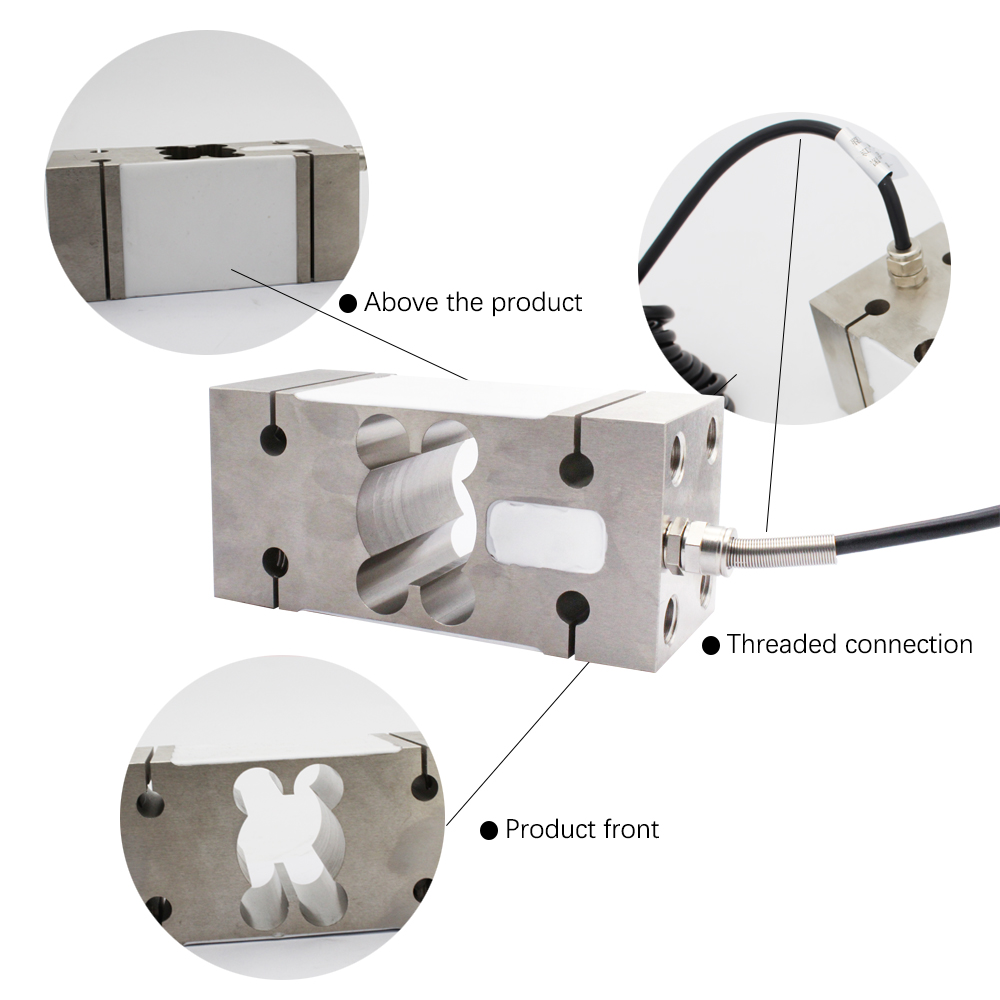

Detail Pictures
Product Parameters
| Parameter Table | |||
| Measuring Range | 150-2000kg | Material | Alloy steel |
| Output Sensitivity | 2.0±0.02mV/V | Resistance | 350Ω |
| Zero Output | ±1%F.S. | Insulance | ≥5000MΩ/100VDC |
| Non-Linear | 0.03%F.S. | Operating voltage | 5-15v |
| Hysteresis | 0.03%F.S. | Operating temperature range | -20-60℃ |
| Repeatability | 0.03%F.S. | Safety overload | 150% |
| Creep(30min) | 0.03%F.S. | Ultimate overload | 200% |
| Temp.effect on output | 0.03% F.S. / 10ºC | Cable specification | Φ5X3m |
| Temp.effect on zero | 0.05% F.S. / 10ºC | Cable ultimate tension | 10kg |
| Response frequency | 10kHz | TEDS | |
