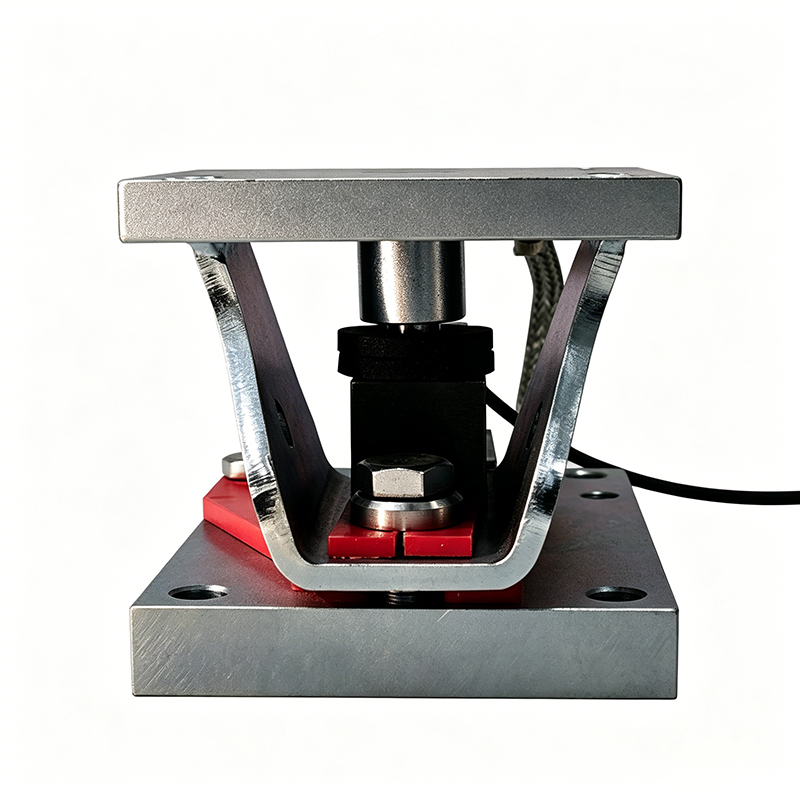

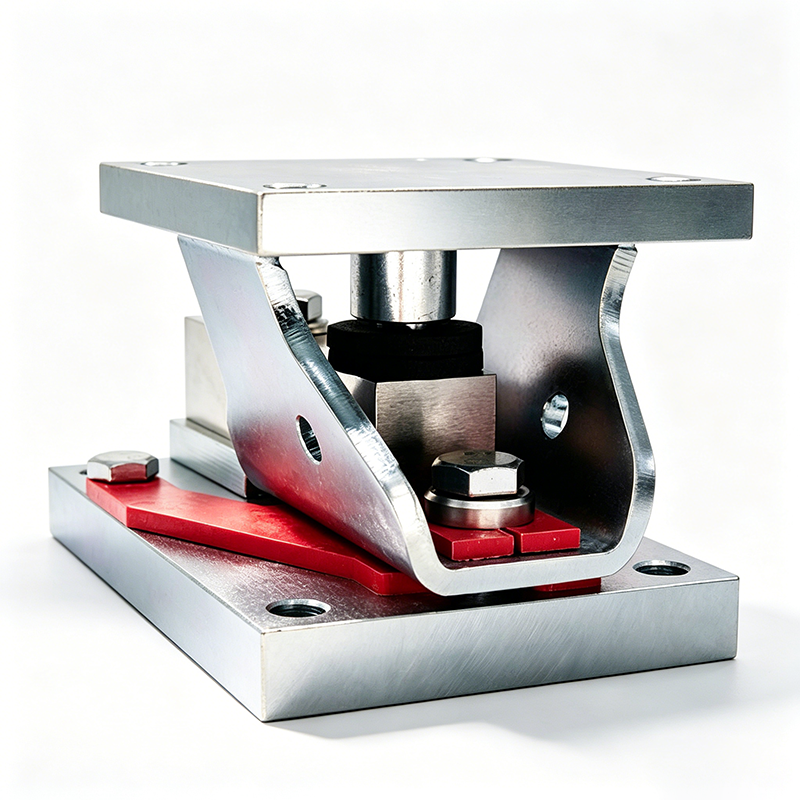

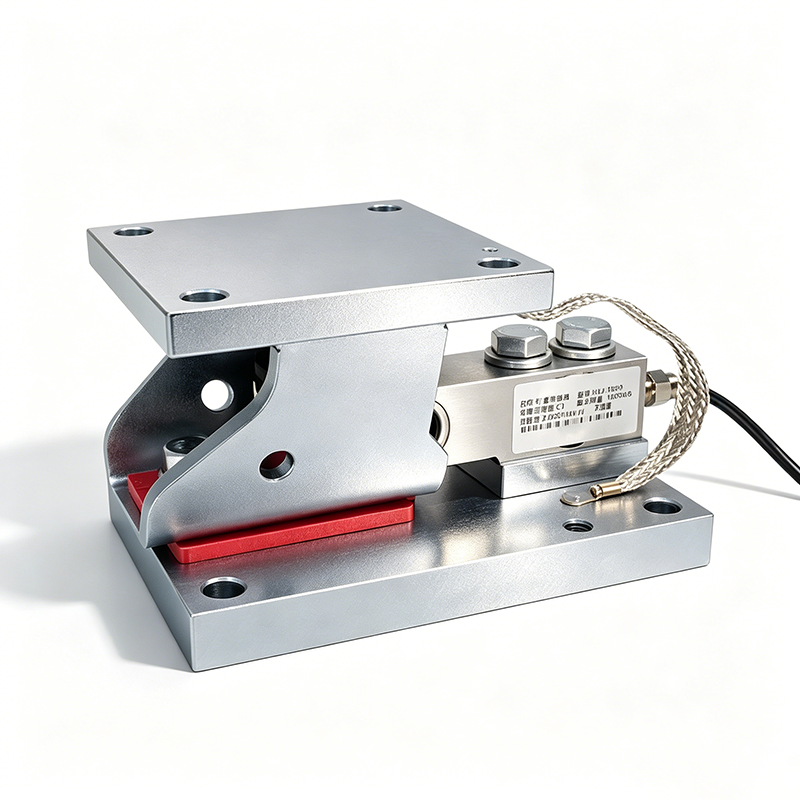

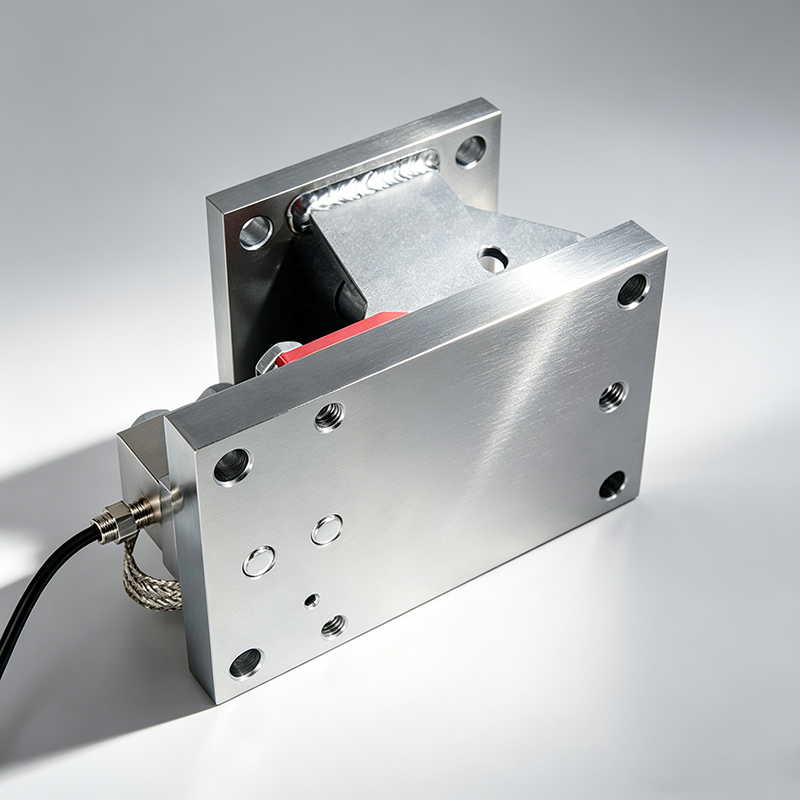

Custom Industrial Load Cell Weighing Module Sensor Reaction Kettle tank Hopper Batching Bin Cantilever Scale Force Measurement

Brand SOP

Product origin China

Delivery time 3 days

Supply capacity 300 pcs/day

Weighing modules are generally used in weighing applications of large tanks, silo scales, reaction kettles, hoppers and vertical tanks.
High precision, high reliability, safety, anti-overturning bolt, 360 horizontal limit to avoid the damage of the tank under the action of large horizontal force, vertical limit to ensure safety and eliminate the overturning and collapse of the tank. Multi-function of dynamic load and static load, stable weighing reading, ensuring weighing accuracy and reducing maintenance cost. The axial symmetry design of the top plate does not need to consider the installation direction, the grounding cable prevents the sensor from being damaged by large current, and the transportation kit prevents the sensor from being damaged during installation and transportation.

Send Email

Custom Industrial Load Cell Weighing Module Sensor Reaction Kettle tank Hopper Batching Bin Cantilever Scale Force Measurement

Product Features

Weighing Module

1.High precision, high reliability, safety, anti-overturning bolt, 360 horizontal limit to avoid the damage of the tank under the action of large horizontal force, vertical limit to ensure safety and eliminate the overturning and collapse of the tank.

2.Multi-function of dynamic load and static load, stable weighing reading, ensuring weighing accuracy and reducing maintenance cost.

3.The axial symmetry design of the top plate does not need to consider the installation direction, the grounding cable prevents the sensor from being damaged by large current, and the transportation kit prevents the sensor from being damaged during installation and transportation.

Product Parameters

Parameters Table
Capacity	0-5T	Material	Stainless steel/Alloy steel
Output Sensitivity	2.0±0.002mV/V	Impedance	350/380Ω
Zero Output	±0.03%F.S.	Insulance	≥5000MΩ/100VDC
Non-Linearity	0.03%F.S.	Operating Voltage	5-15V
Hysteresis	0.03%F.S.	Operating Temperature Range	-20-60℃
Repeatability	0.03%F.S.	Safe Overload	150%
Creep(30min)	0.03%F.S.	Ultimate Overload	200%
Temp Effect on Output	0.002%F.S./10℃	Cable Specifications	φ5x5m
Temp Effect on Zero	0.002%F.S./10℃	Cable Ultimate Pull	10kg
Response Frequency	10kHz	TEDS

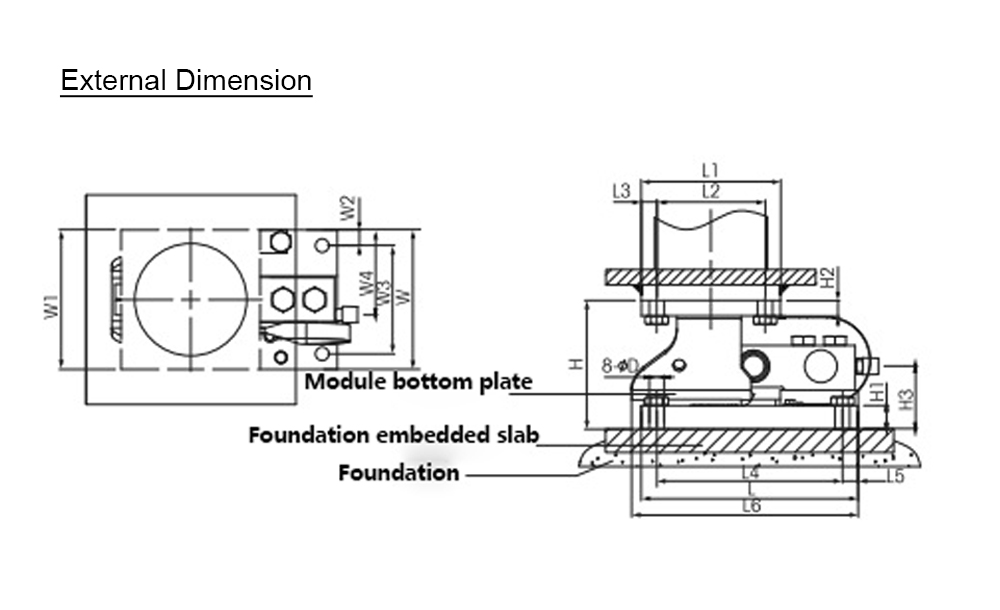

External Dimensions

Industrial Load Cell

Industrial Application

Packaging&Shipping

Company Profile

Weighing Module Sensor

Industrial Load Cell

Weighing Module

Weighing Module Sensor

FAQ：

1. What is the MOQ?

If we don’t have it in stock, the MOQ is different according different models.

If we have it in stock, we can ship you even 1 pc as sample.

2. What is lead time?

If we have it in stock, we can ship it to you within about 3-5 working days.

If we don’t have it in stock, the lead time will be 10-30 days normally.

3. What is the payment terms?

T/T, Western Union,Escrow alibaba is acceptable.Escrow is same like paypal, after you place the order and make the payment on alibaba.com, alibaba company will notify us to make the shipment, your money won’t be released until you get the goods. If we don’t make the shipment, you still can take back your money.

4. What is the express delivery？

DHL, Fedex, TNT ,EMS, UPS etc.We will choose the safe and cheapest way for you to reduce your cost.Economic shipping way: by sea, by air transport .If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.

5. Can you design and customize products for me?

Definitely, we are extremely good at customizing various load cells. If you have any needs, please tell us. However, the customized products would postpone shipping time.

6. How long is your warranty period?

Our warranty period is 12 months.
