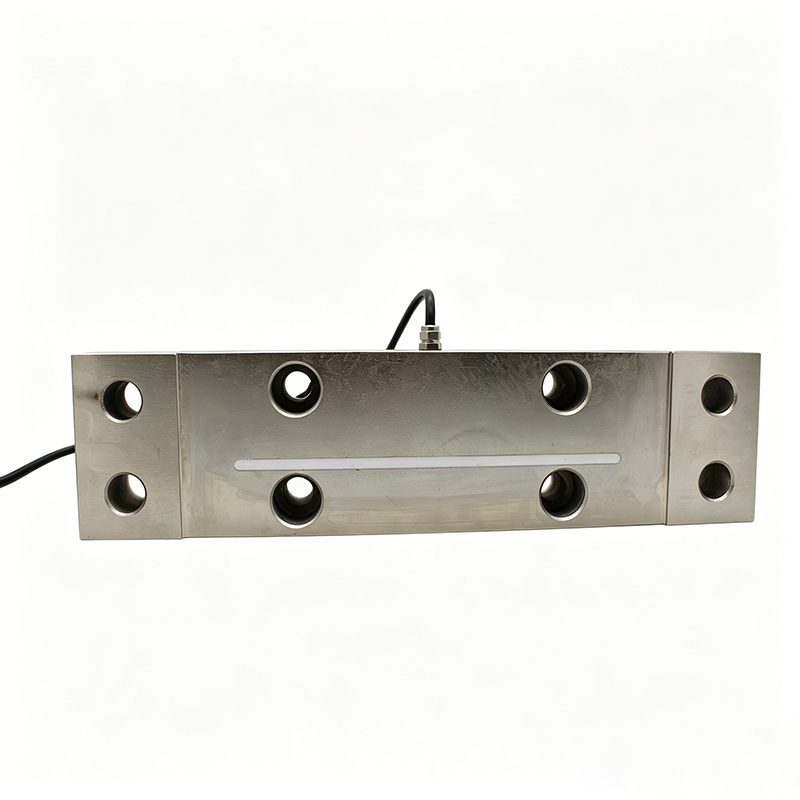

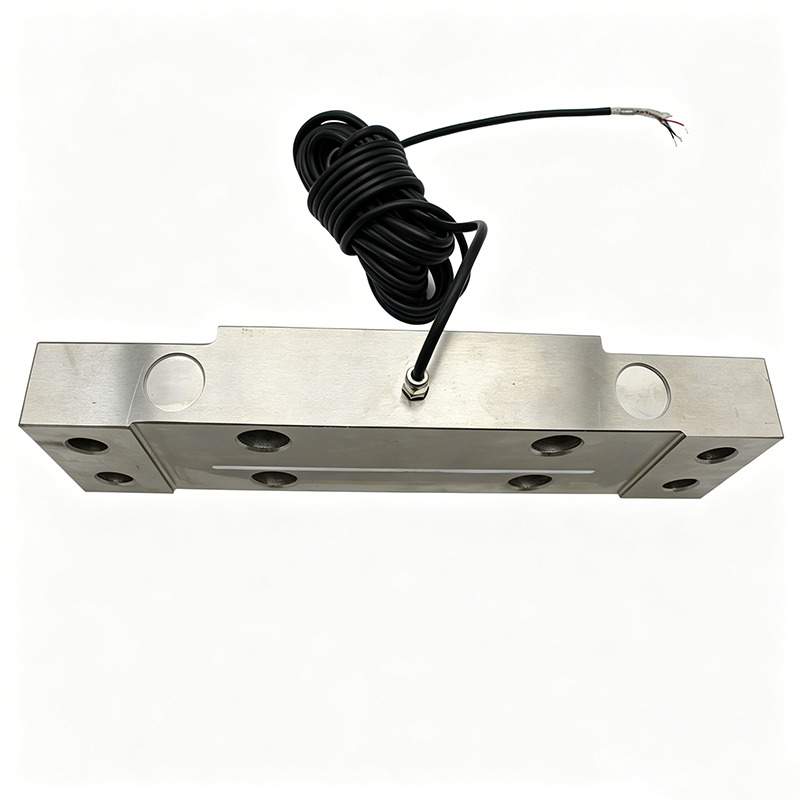

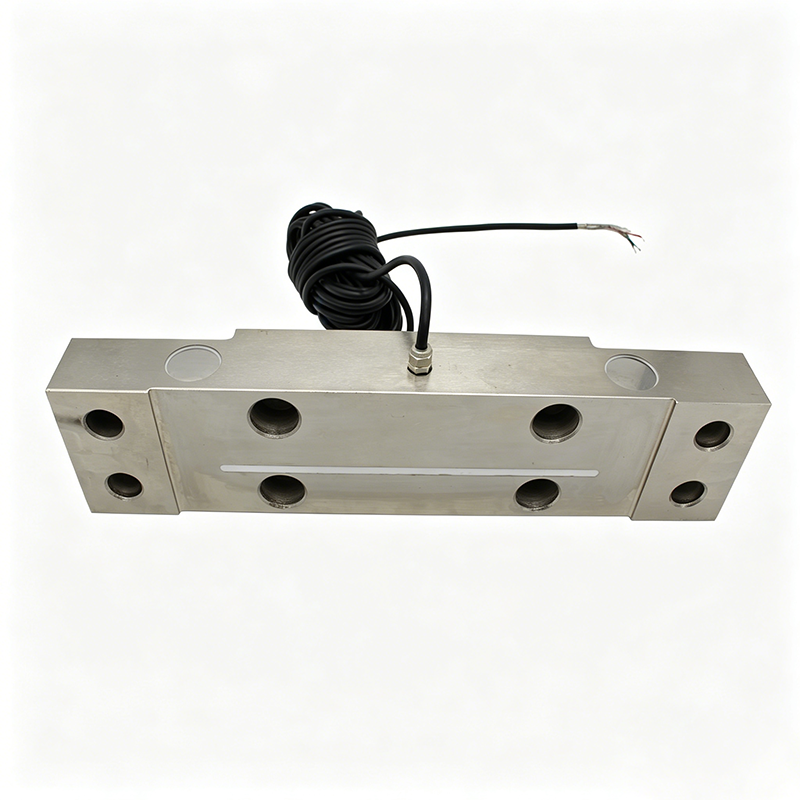

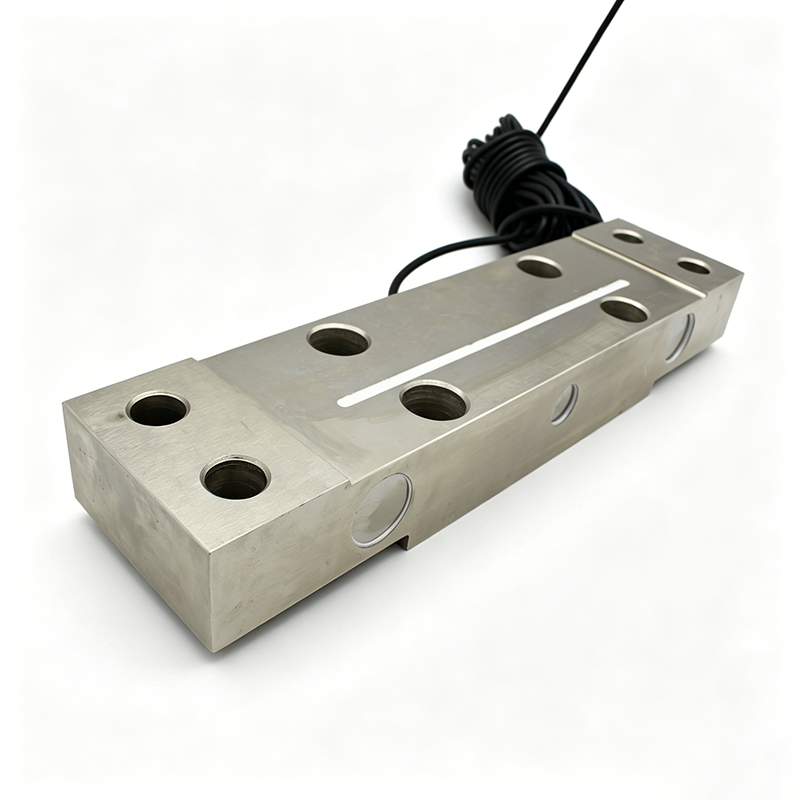

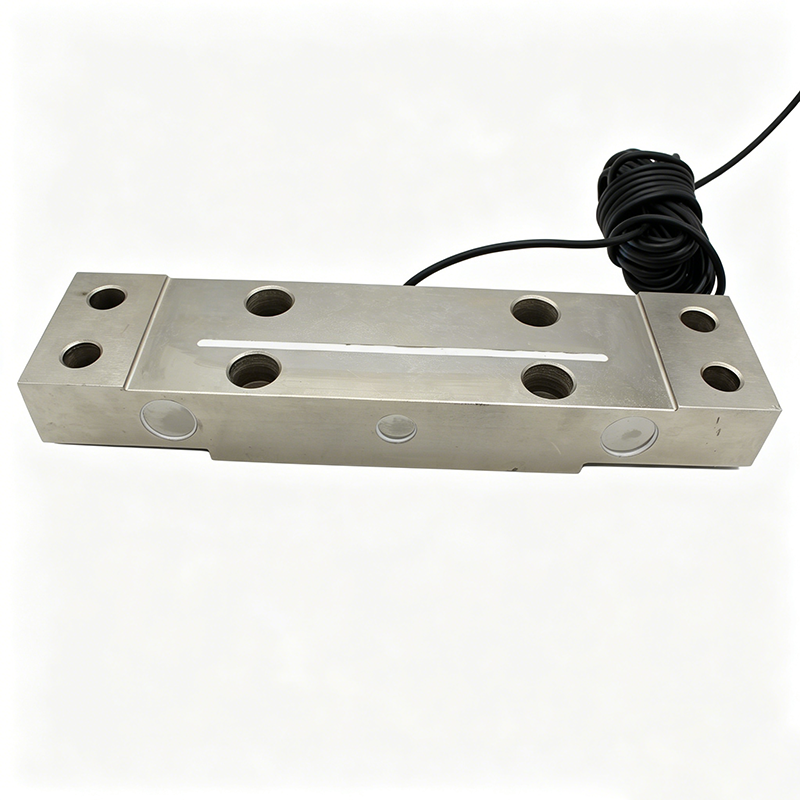

Bearing Housing Mount Cantilever Beam Weighing Sensor 1T 2T 4T 10T Shear Beam Load Cell for Automobile Workshop Force Detecting
Brand SOP
Product origin China
Delivery time 3days
Supply capacity 300 pcs/day
It is made of high-strength alloy steel, sturdy and anti-deformation for long-term industrial use
Special bearing seat mounting design, easy to install under bearing housing to detect bearing force accurately
High output sensitivity: 1.0±0.05mV/V, stable signal output
Excellent linearity & hysteresis: 0.5%F.S.; High repeatability up to 0.5%F.S.
Low temperature drift: 0.05%F.S./10℃, tiny zero drift ±2%F.S.
Small creep (0.5%F.S. within 30 mins), ensures long-time stable weighing
Fast 10kHz response frequency, support real-time dynamic weight monitoring
Ideal for auto manufacturing, production line weighing, bearing force detection
Product Description
It is made of high-strength alloy steel, sturdy and anti-deformation for long-term industrial use
Special bearing seat mounting design, easy to install under bearing housing to detect bearing force accurately
High output sensitivity: 1.0±0.05mV/V, stable signal output
Excellent linearity & hysteresis: 0.5%F.S.; High repeatability up to 0.5%F.S.
Low temperature drift: 0.05%F.S./10℃, tiny zero drift ±2%F.S.
Small creep (0.5%F.S. within 30 mins), ensures long-time stable weighing
Fast 10kHz response frequency, support real-time dynamic weight monitoring
Ideal for auto manufacturing, production line weighing, bearing force detection
Bearing load cell is a special kind of load cell, which is installed under the bearing seat to measure the force of the bearing seat. The weight of the object will exert force on the bearing seat, and the sensor can detect the force of the bearing seat.
Bearing-type load cells are usually used in industrial fields, such as measuring the weight of objects on production lines. They can also be used in other applications, such as measuring the weight of parts in automobile manufacturing.

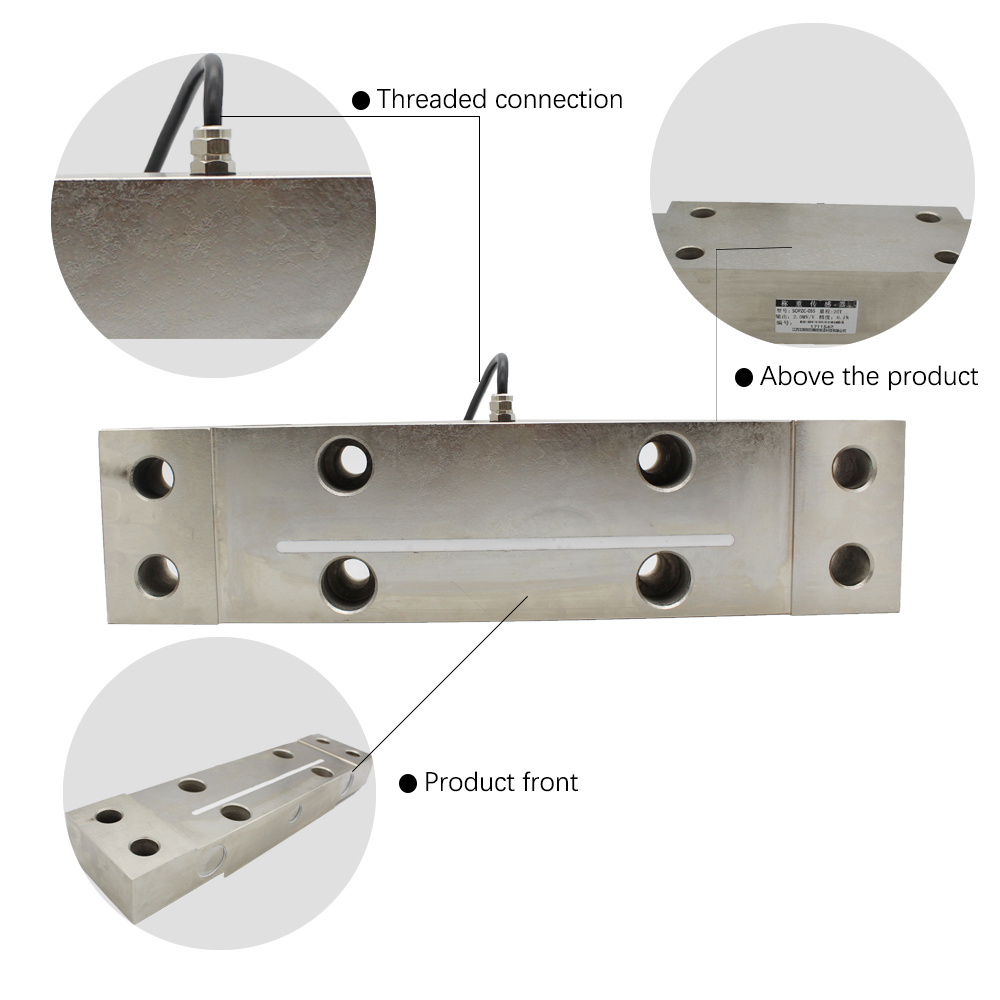

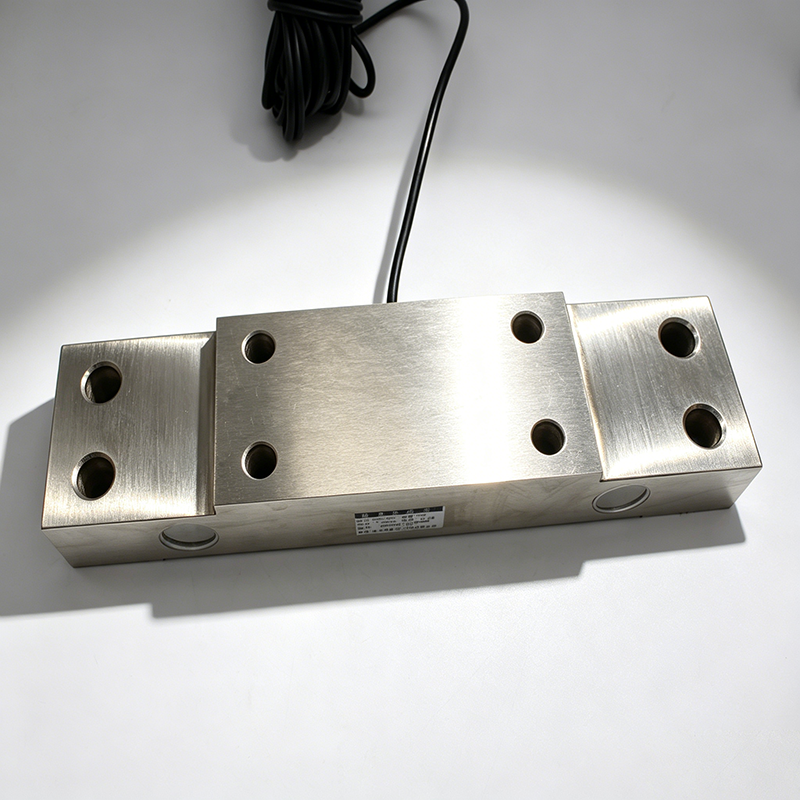

Detail Pictures

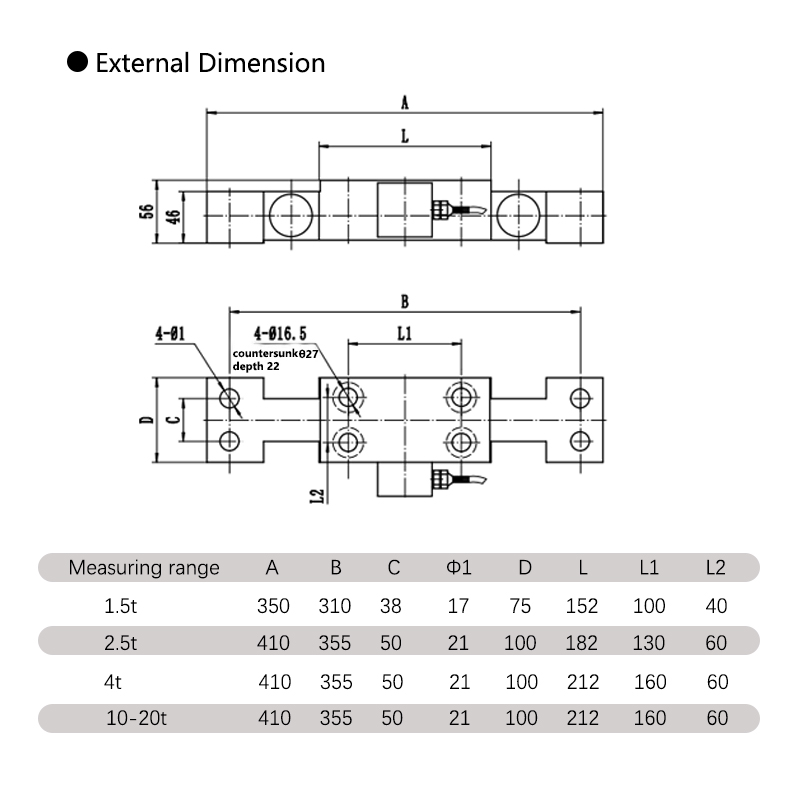

Product Parameters
| Parameter Table | |||
| Measuring Range | 0-20T | Material | Alloy steel |
| Output Sensitivity | 1.0±0.05mV/V | Resistance | 350/750±5Ω |
| Zero Output | ±2%F.S. | Insulance | ≥5000MΩ/100VDC |
| Non-Linear | 0.5%F.S. | Operating voltage | 5-15v |
| Hysteresis | 0.5%F.S. | Operating temperature range | -20-80℃ |
| Repeatability | 0.5%F.S. | Safety overload | 150% |
| Creep(30min) | 0.5%F.S. | Ultimate overload | 300% |
| Temp.effect on output | 0.05% F.S. / 10ºC | Cable specification | Φ5X3m |
| Temp.effect on zero | 0.05% F.S. / 10ºC | Cable ultimate tension | 10kg |
| Response frequency | 10kHz | TEDS | |
