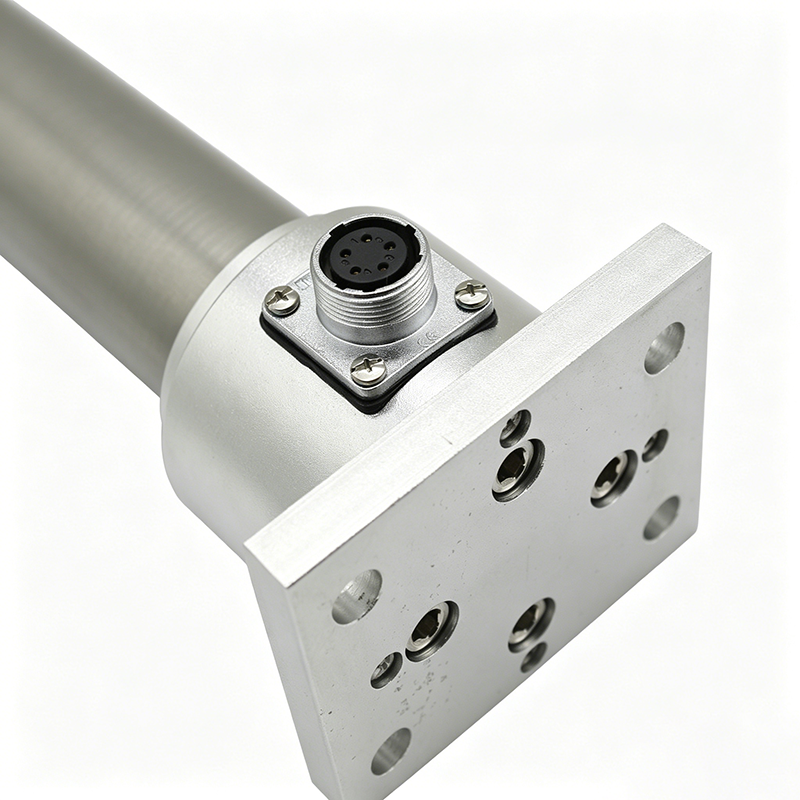

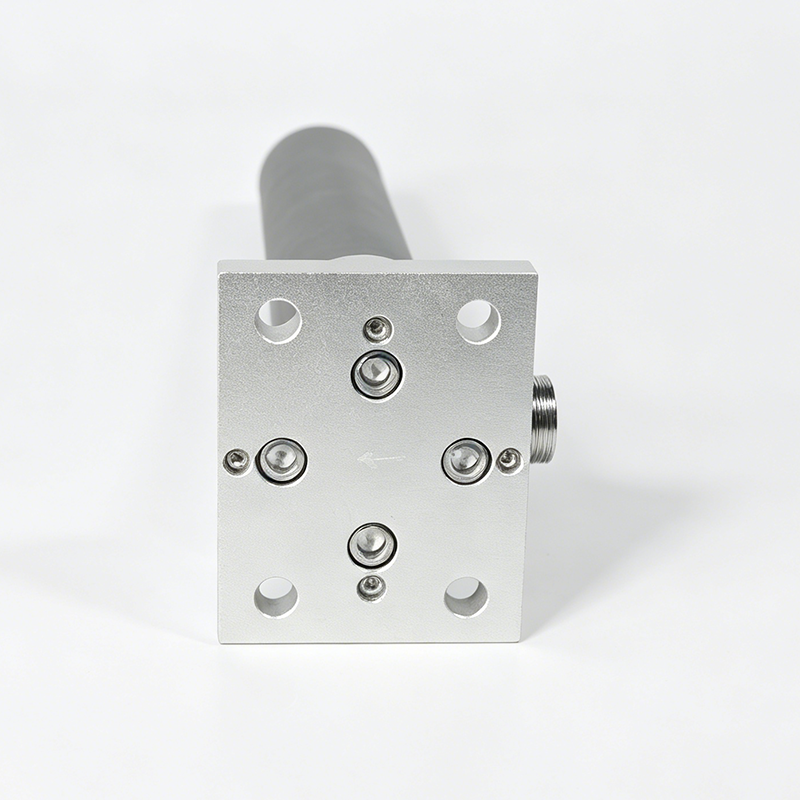

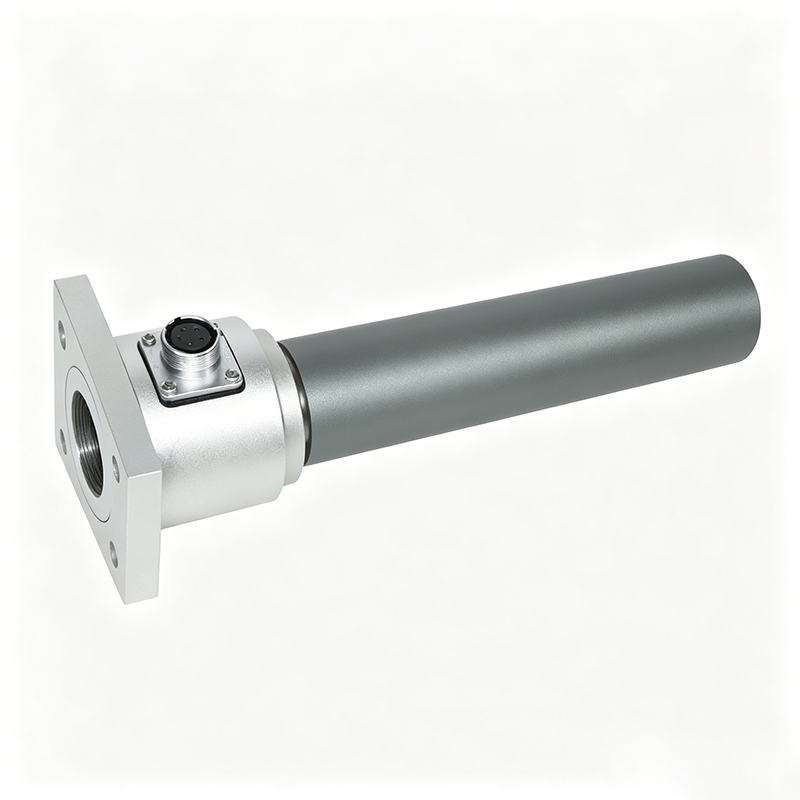

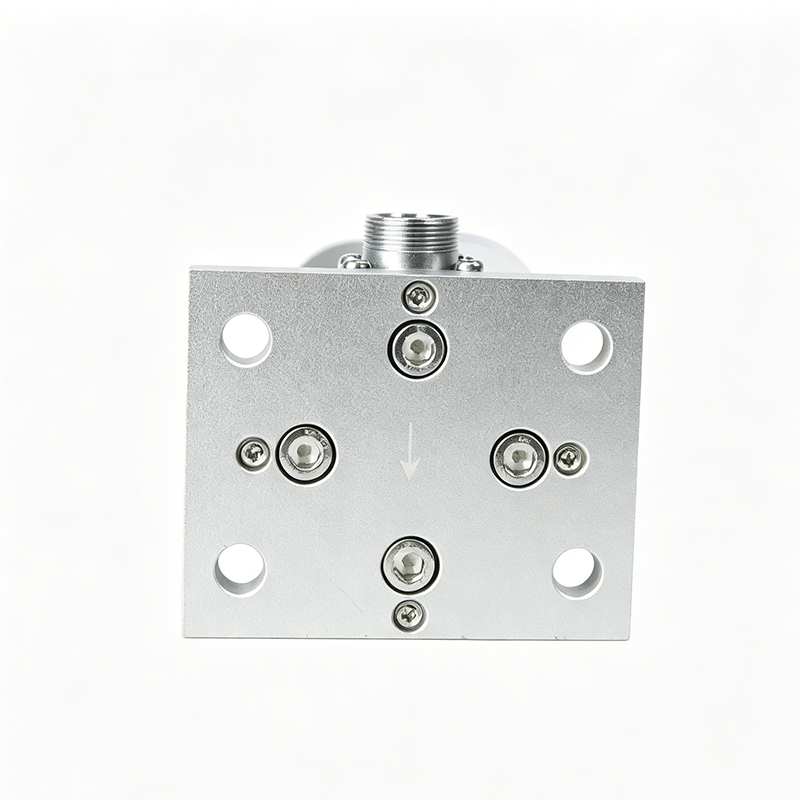

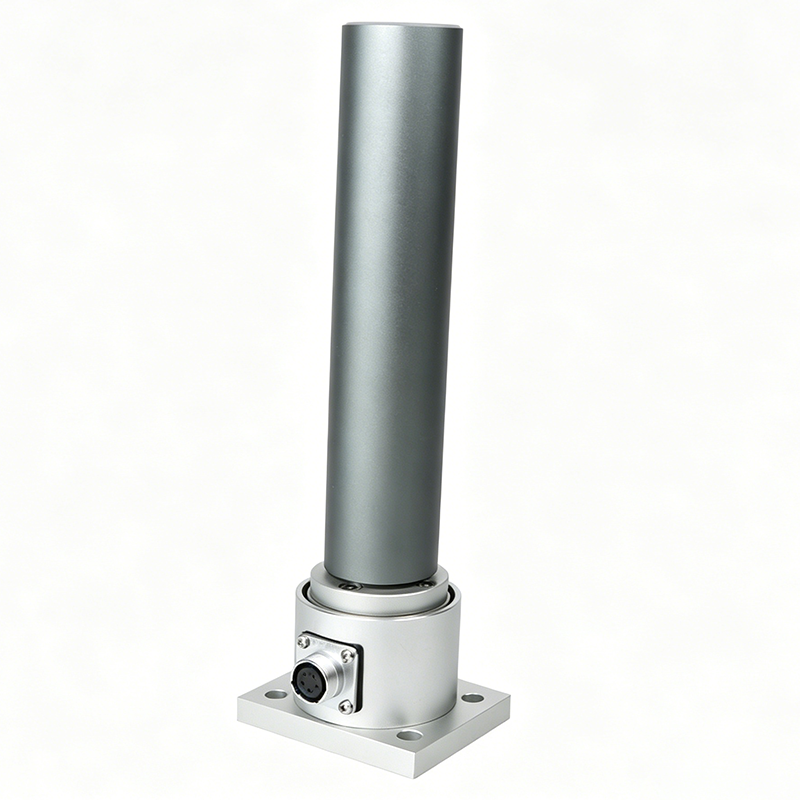

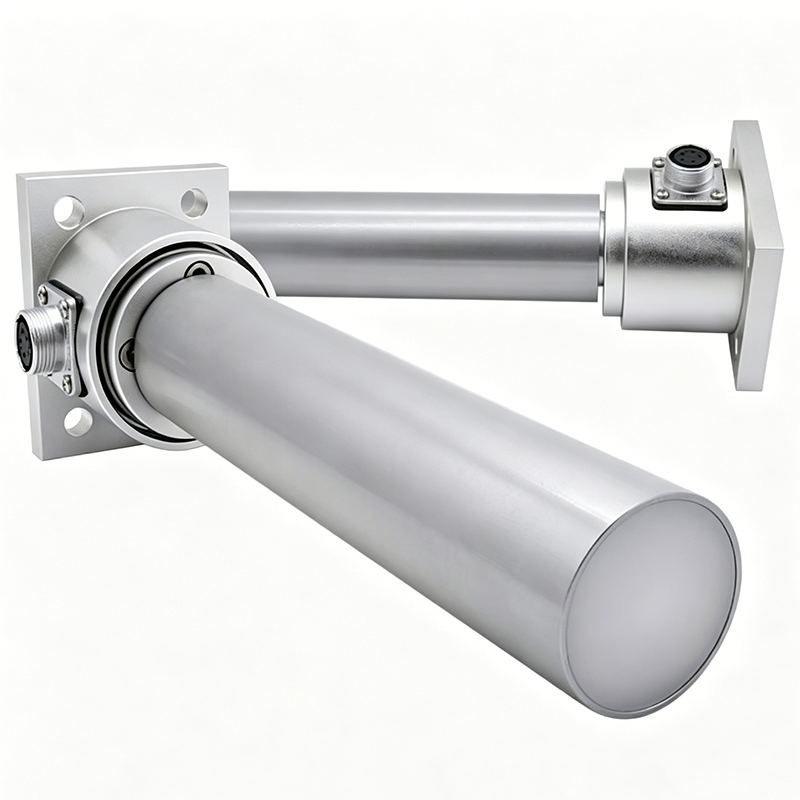

High Precision Cantilever Beam Tension Sensor 0.1% FS Web Tension Load Cell for Textile Printing Packaging
Brand SOP
Product origin JiangXi
Delivery time 3days
Supply capacity 300pcs/day

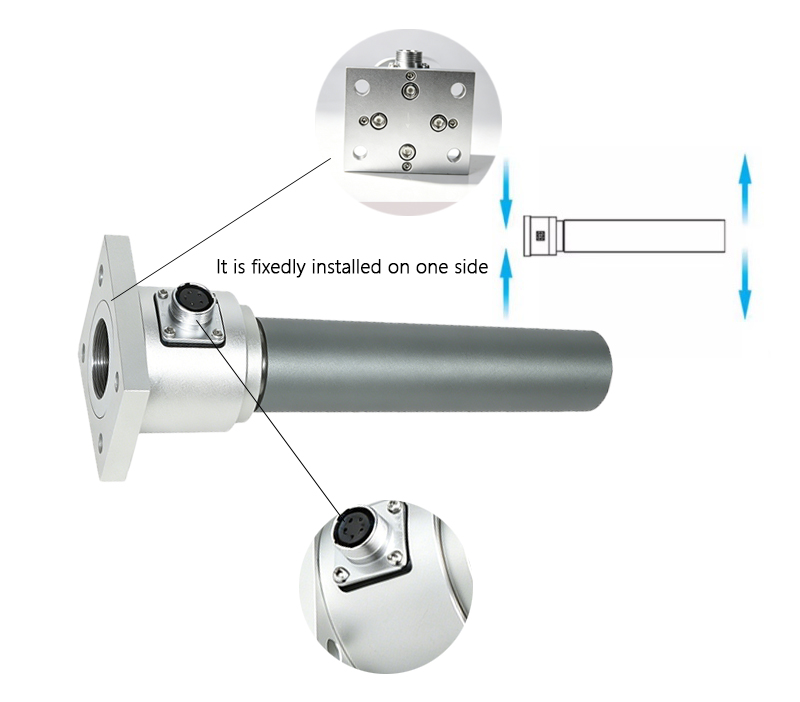

The cantilever beam tension sensor is designed specifically for machines with single-sided structures and is used in industries such as film casting machines, textiles, wire rods, etc. Capable of detecting small changes in tension and providing excellent resolution and sensitivity, its performance in industrial applications is outstanding.
Product Description
The cantilever beam tension sensor is designed specifically for machines with single-sided structures and is used in industries such as film casting machines, textiles, wire rods, etc. Capable of detecting small changes in tension and providing excellent resolution and sensitivity, its performance in industrial applications is outstanding.
Product Parameters
| Measuring Range | 20-300N | Material | Aluminum alloy |
| Output Sensitivity | 2.0±0.1%mV/V | Impedance | 350Ω |
| Zero Output | ±1%F.S. | Insulance | ≥5000MΩ/100VDC |
| Non-linearity | 0.1%F.S. | Operating Voltage Range | 5-15V |
| Hysteresis | 0.1%F.S. | Operating Temp Range | -20-80℃ |
| Repeatability | 0.1%F.S. | Safe overload | 150% |
| Creep (30min) | 0.1%F.S. | Maximum Overload | 200% |
| Temp.effect on output | 0.05% F.S. / 10ºC | Cable size | Φ5x3m |
| Temp.effect on zero | 0.05% F.S. / 10ºC | Cable ultimate pull | 10kg |
| Response frequency | 10kHz | TEDS | |

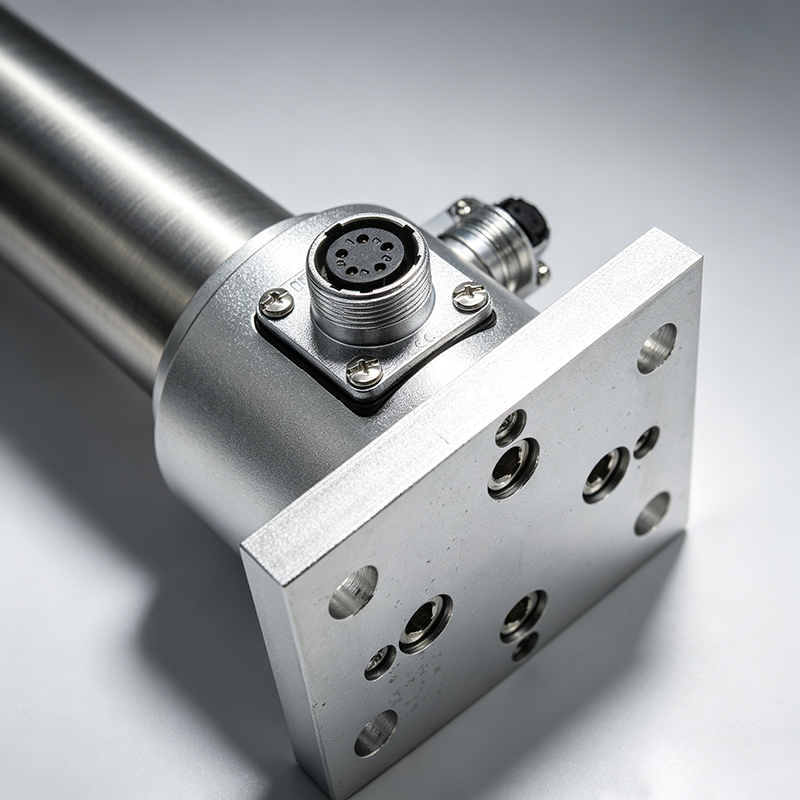

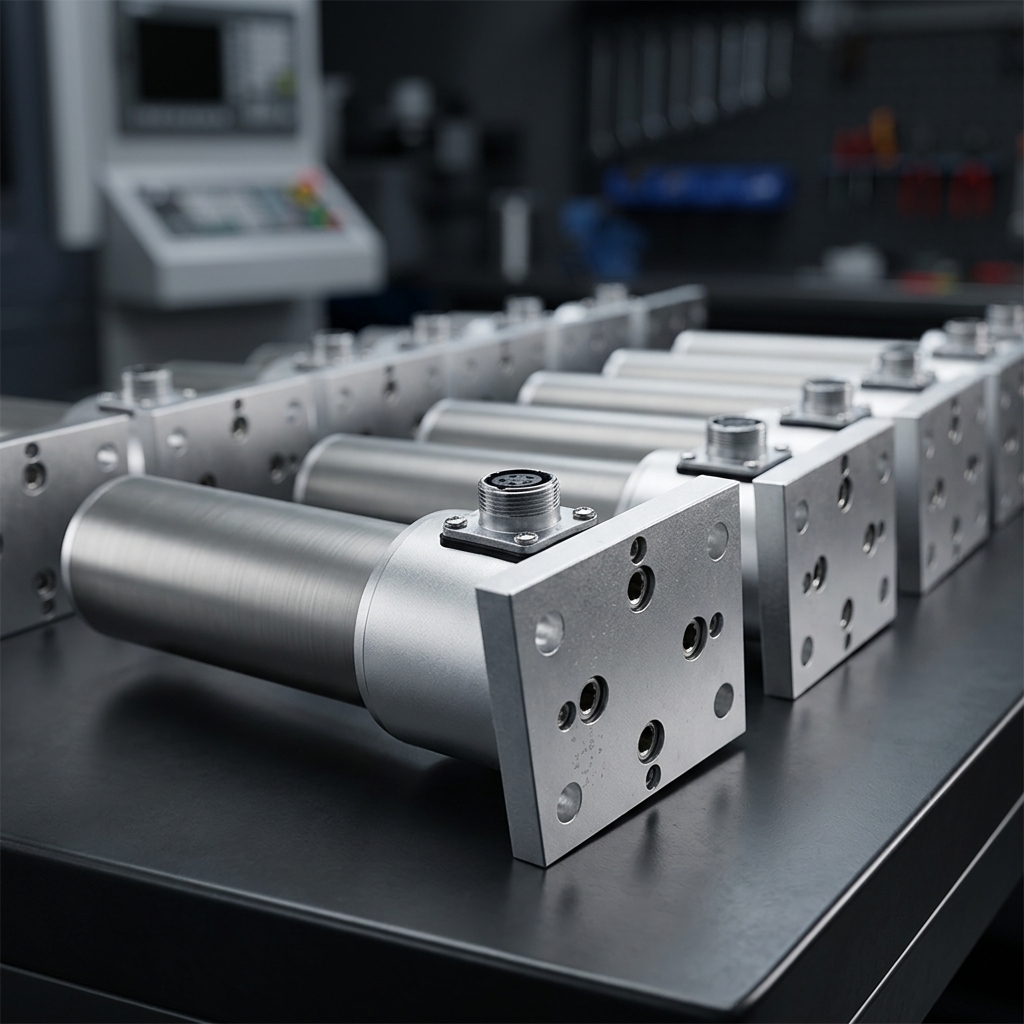

Detail images

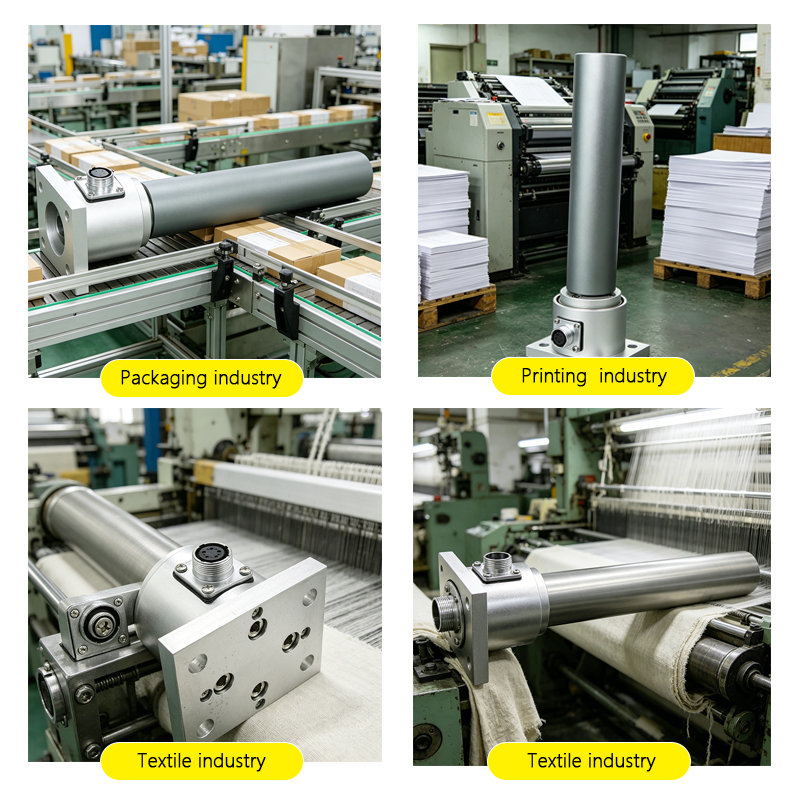

Industrial Application
A tension sensor is an instrument used to measure the tension value of a coil, usually used in the industrial field. They can be used in industries such as pharmaceuticals, textiles, printing, packaging, etc.
