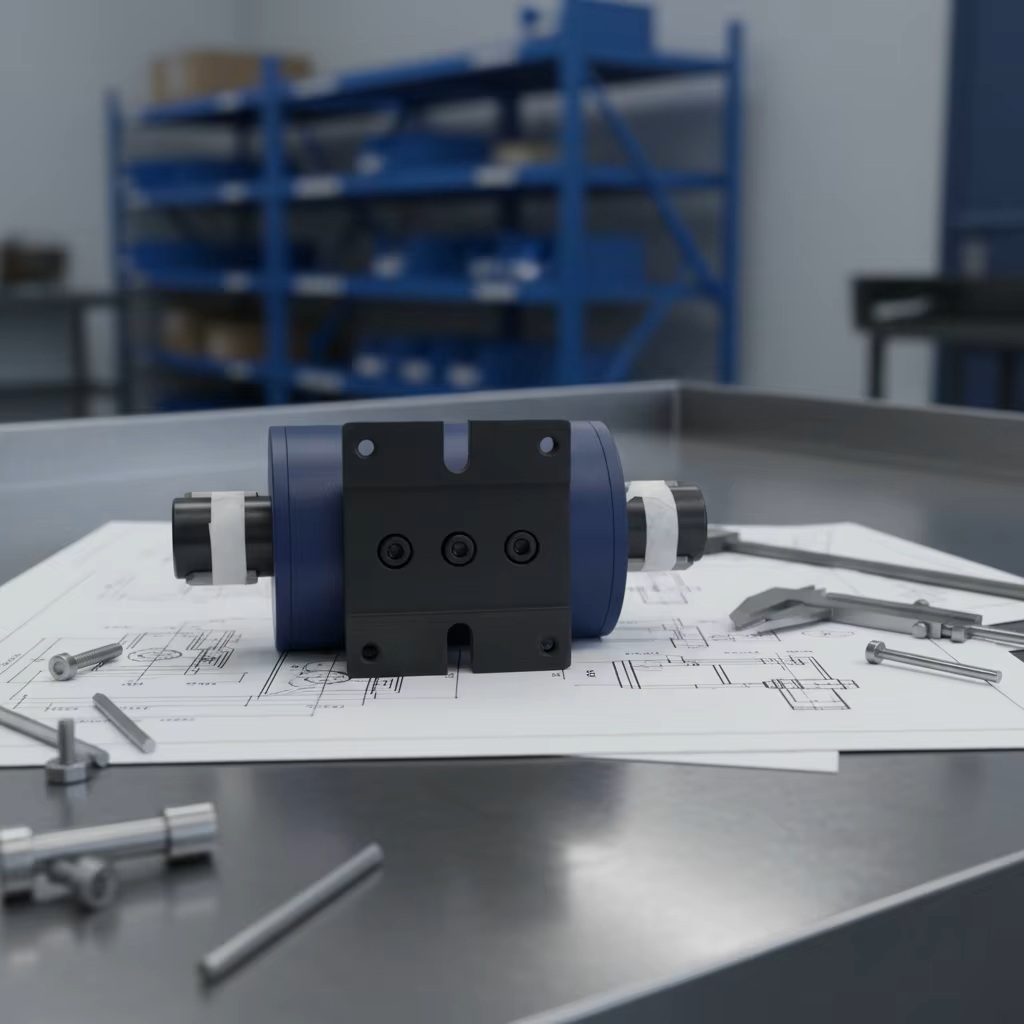

500N.m 1000N.m 2000N.m Non-Contact Dynamic Rotary Force Torque Sensor for Machine Torque Measuring and Calibration Instruments
Brand SOP
Product origin JiangXi
Delivery time 3-7days
Supply capacity 3000PC/day
The SOPN-201 Rotary Torque Sensor is used to measure the rotational torque value. As the output frequency of the square wave signal or 4-20mA current signal, anti-interference ability, easy to use. Because the sensor is the transformer induction power supply, can work long term, widely used in motors, generators, reducer, diesel engine torque, speed and power detection.
Strong anti-interference , high precision, good stability, small size, light weight, easy installation, non-contact ransmission function of energy and signal, independent of rotation speed and steering when transmitting signal, can continuously transmit positive and negative torque signal without repeated zero adjustment, without wearing parts such as collector ring, and can run at high speed for long time it can be used for long-time high-speed operation and can transmit static/ rotating/ static/ dynamic torque signals.
Product Description

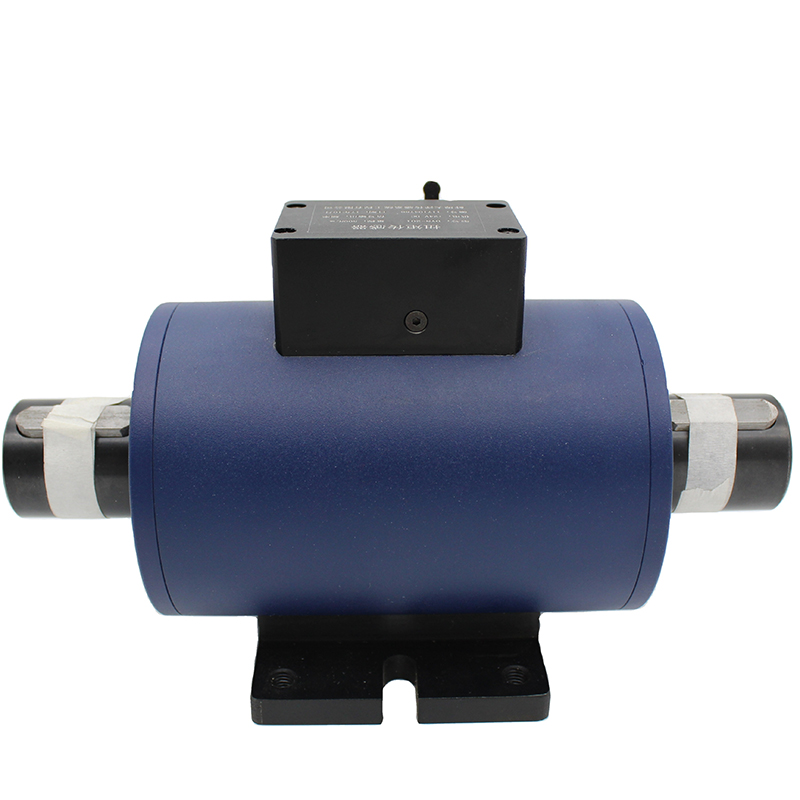

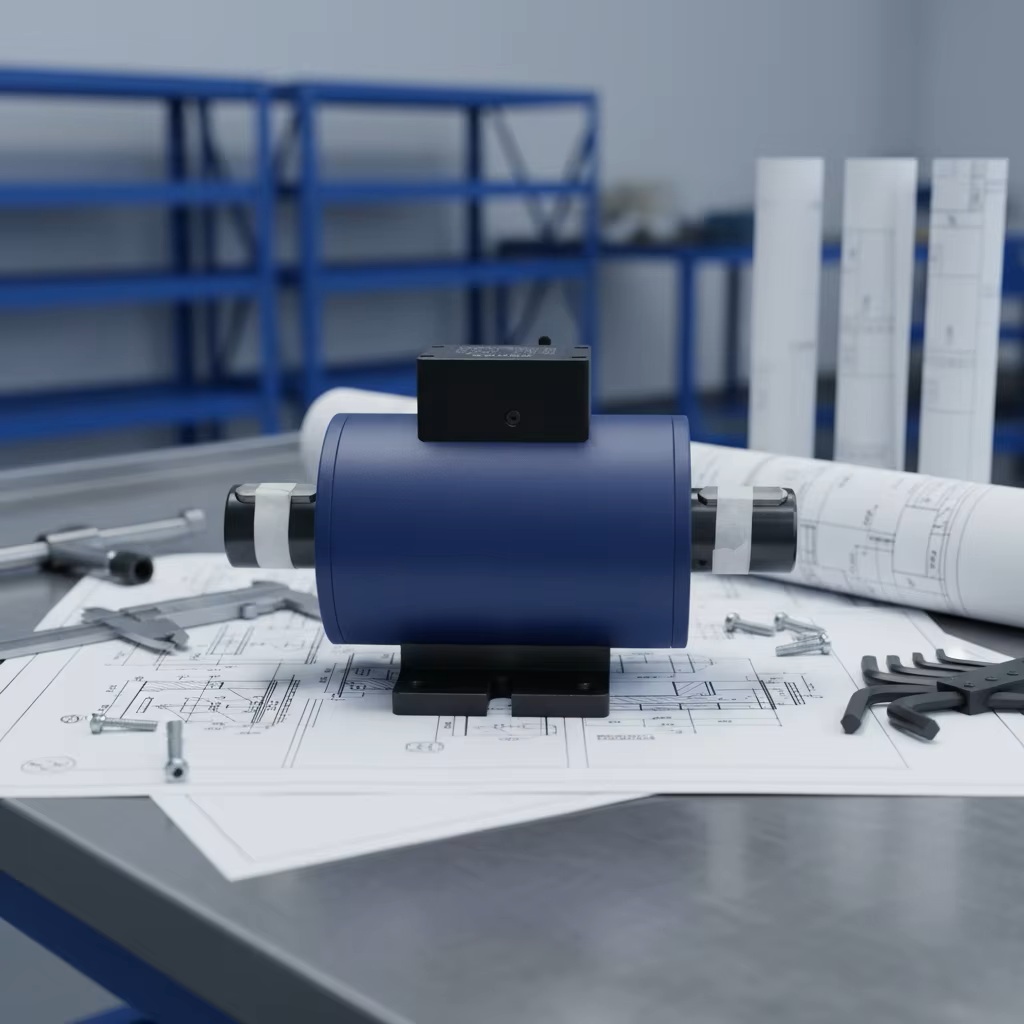

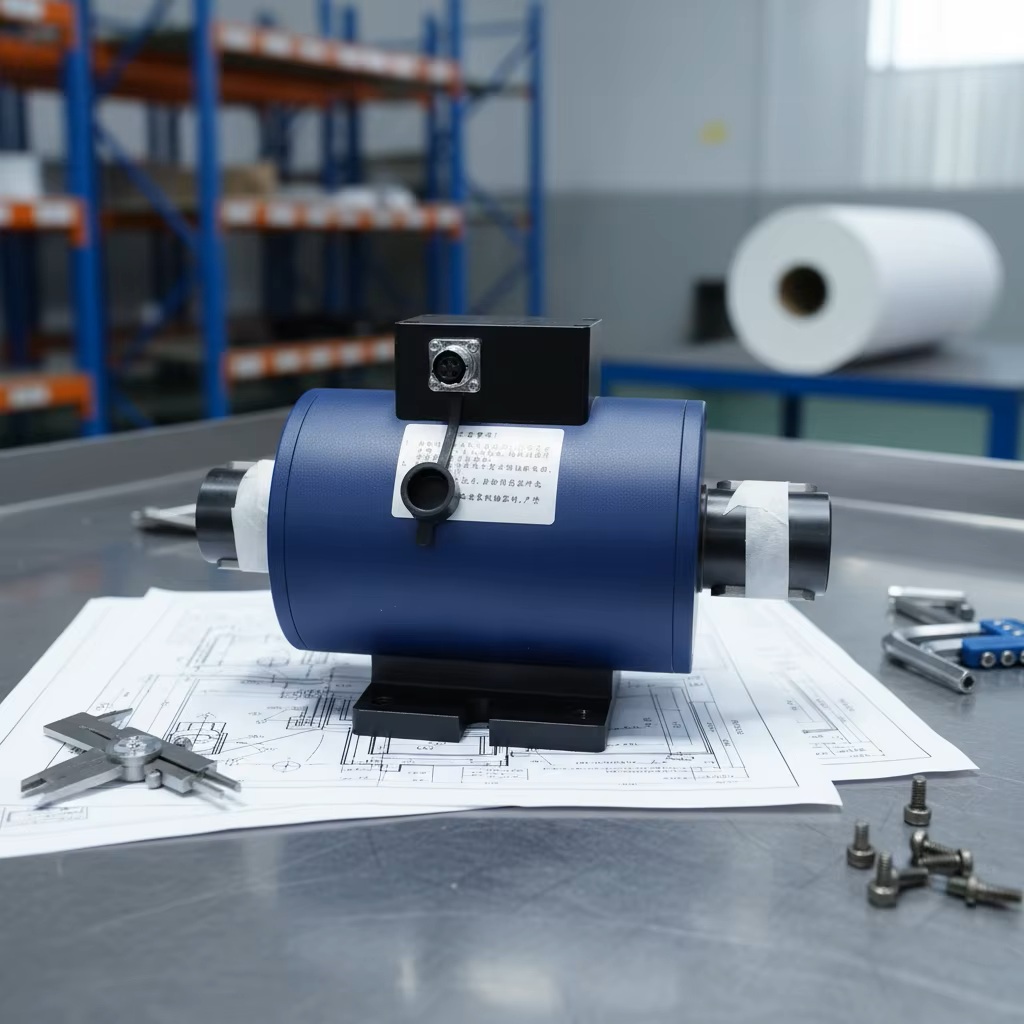

Force torque sensor 0-2000N.m rotary torque transducer
The SOPN-201 Rotary Torque Sensor is used to measure the rotational torque value. As the output frequency of the square wave signal or 4-20mA current signal, anti-interference ability, easy to use. Because the sensor is the transformer induction power supply, can work long term, widely used in motors, generators, reducer, diesel engine torque, speed and power detection.
Measuring principle: Torque measurement
Using strain gauge electrical measurement technology, a strain bridge is formed on the elastic shaft, and the electrical signal of the elastic shaft is measured by supplying power to the strain bridge. After the strain signal is amplified, it undergoes voltage/frequency conversion to become a frequency signal proportional to the twist.
Speed measurement
The speed measurement is shown in the figure. The speed signal is converted into a pulse signal output through optical coupling and corresponding processing circuit. The rotating device outputs 60 pulses per revolution.
Product Features
Strong anti-interference , high precision, good stability, small size, light weight, easy installation, non-contact ransmission function of energy and signal, independent of rotation speed and steering when transmitting signal, can continuously transmit positive and negative torque signal without repeated zero adjustment, without wearing parts such as collector ring, and can run at high speed for long time it can be used for long-time high-speed operation and can transmit static/ rotating/ static/ dynamic torque signals.
Specification

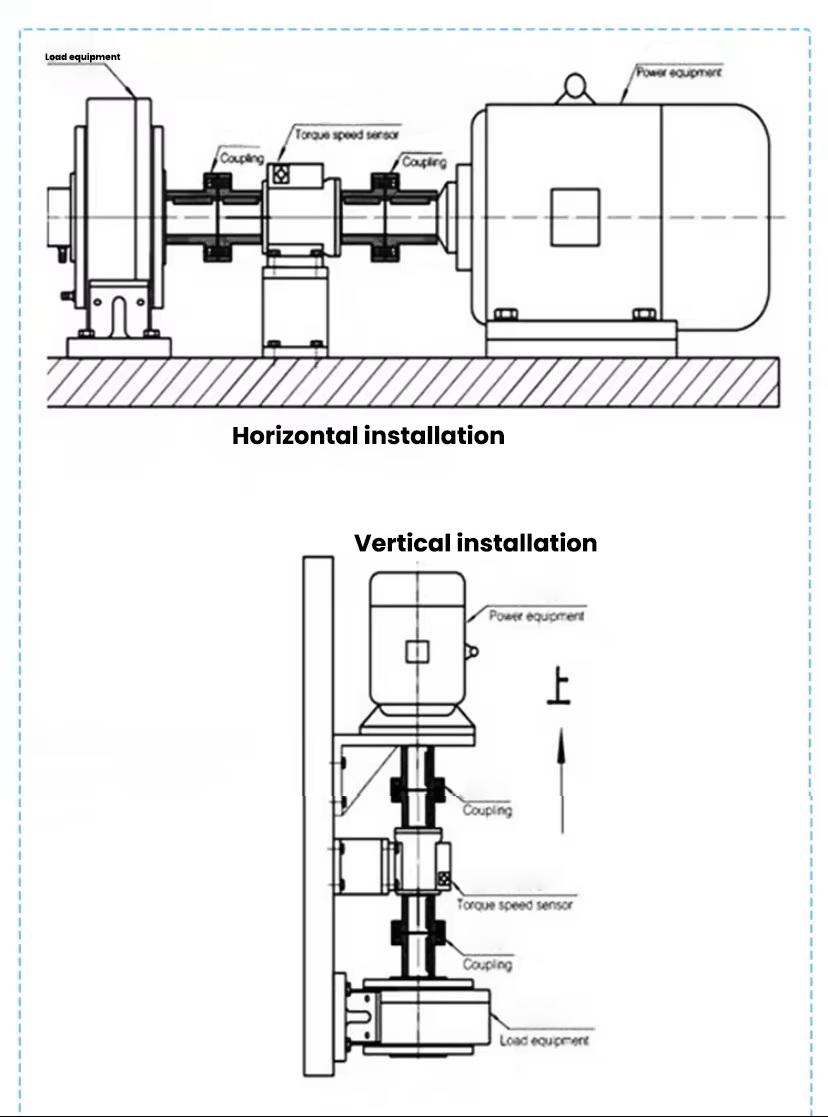

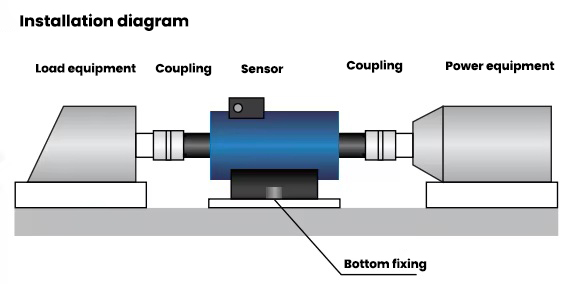

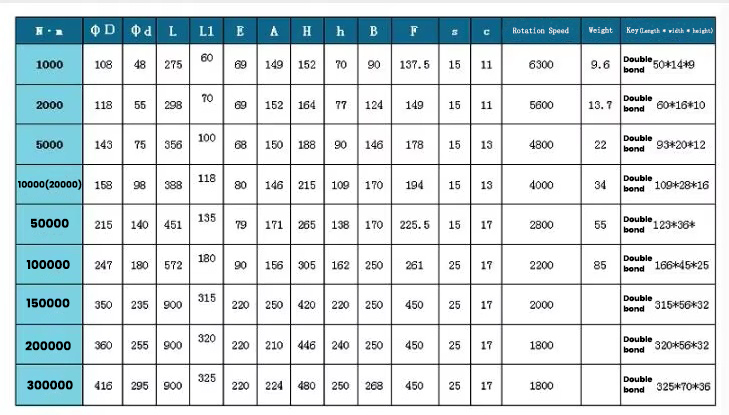

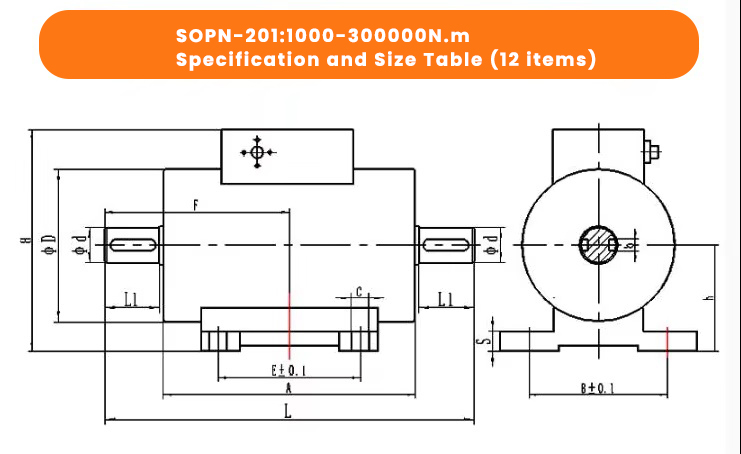

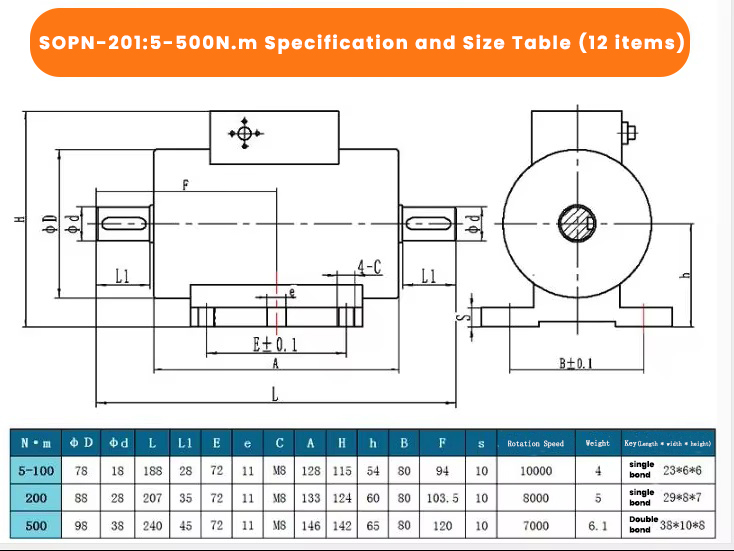

| Measure range | 0~5、10、20、50、100、200、500、1K、2K、3K、5K、10K、20K、3 0K、50K、100K、150K、200KN.m |
| Supply & output | +15V DC ≥50mA output: frequency square wave 10 KHz±5KHz24V DC output: current signal 4~20mA, voltage signal 1~5VDC |
| RPM range | 0~3000RPM，0~6000RPM，0~8000 RPM |
| Speed signal | 60 pulse/turn (over 10k N.m max output 180pulse/turn) |
| Resolution | ±0.1%F·S,±0.2%FS , ±0.5%F.S |
| Zero temp. drift | Zero temp. drift |
| Insulation resistance | >500MΩ |
| Year stability | 0.3% F· s /year |
| Work temp. | -20℃ ~ 60℃ |
| Safe overload | 150 % |
| Fracture load | 200 % |
| Relative humidity | 0~90% RH |
