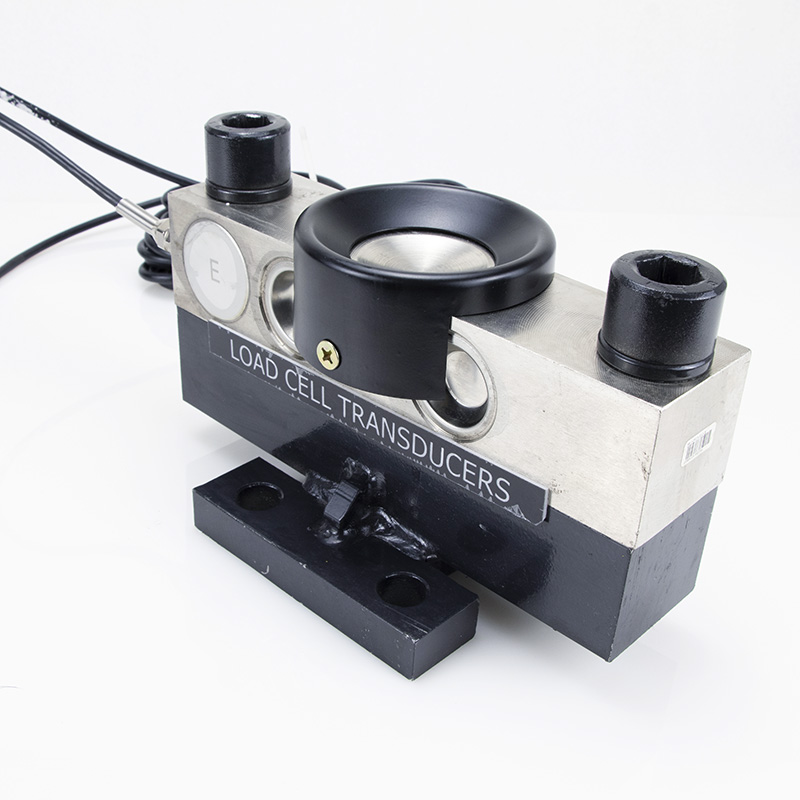

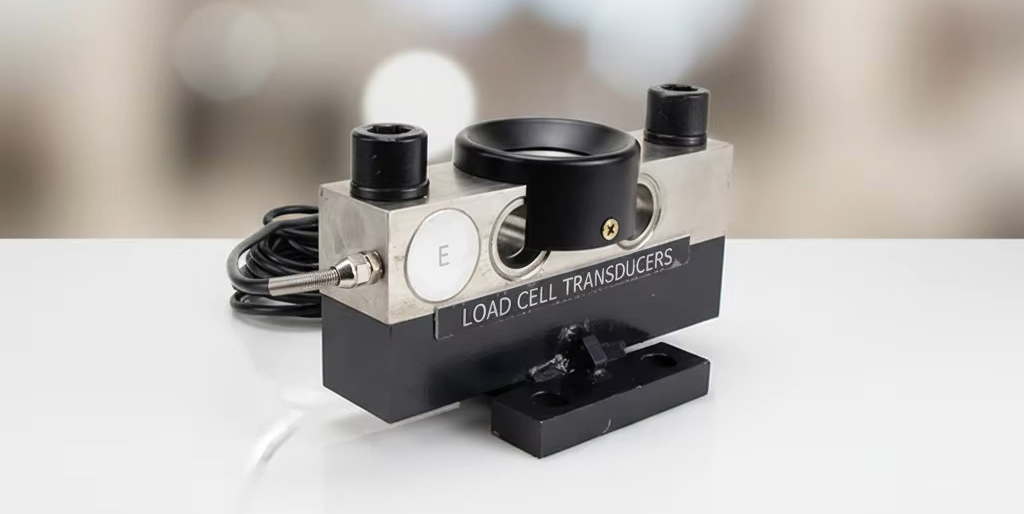

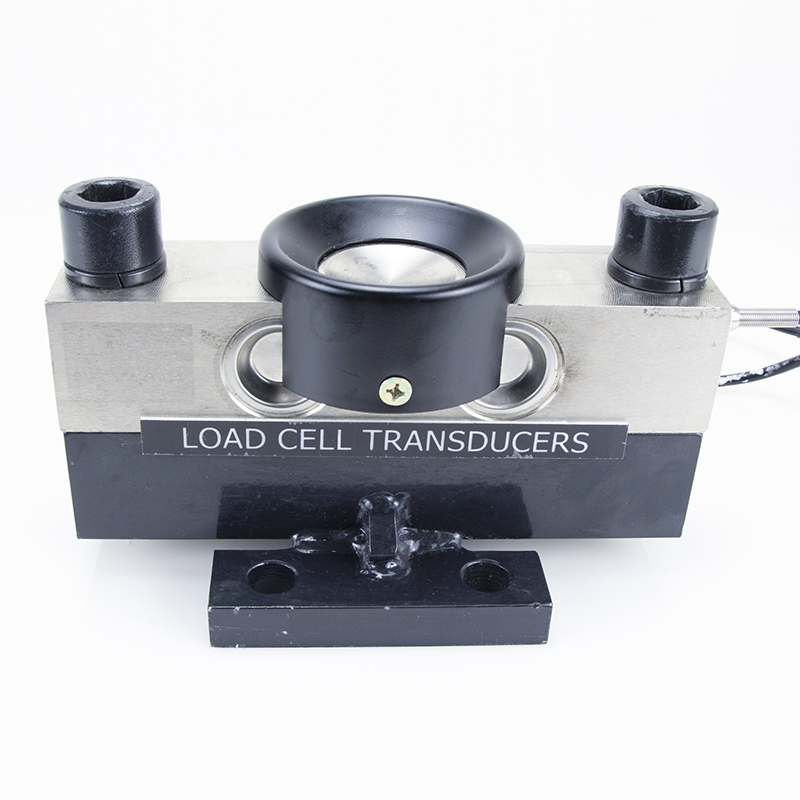

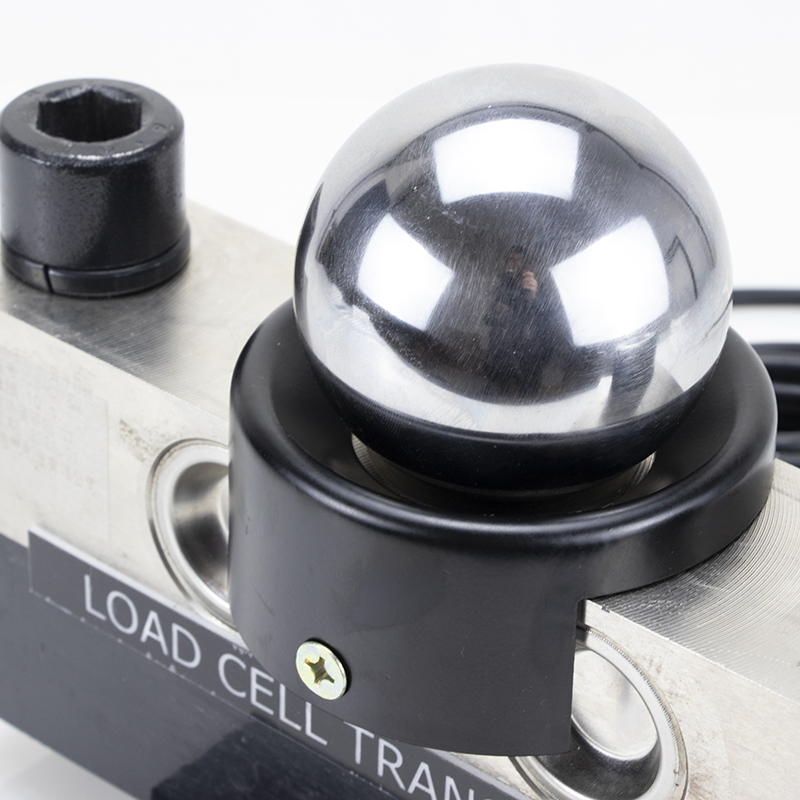

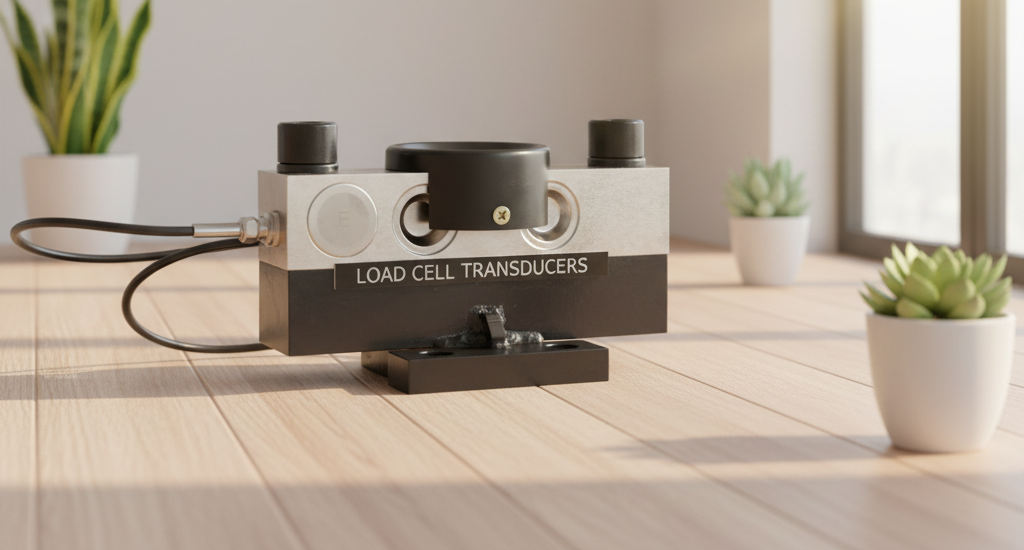

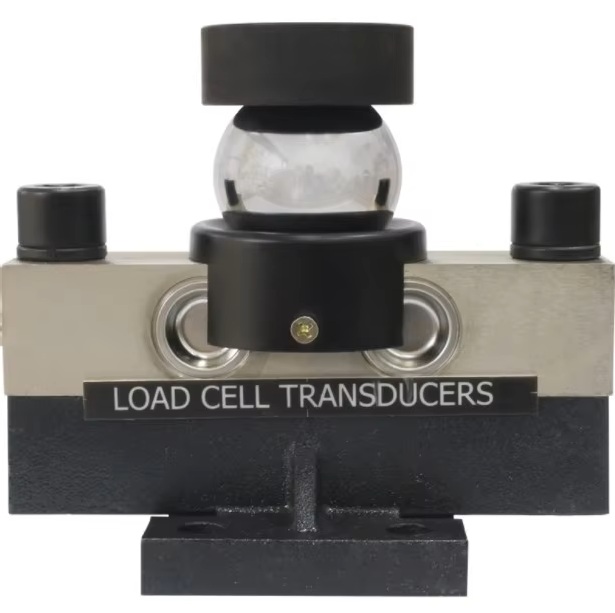

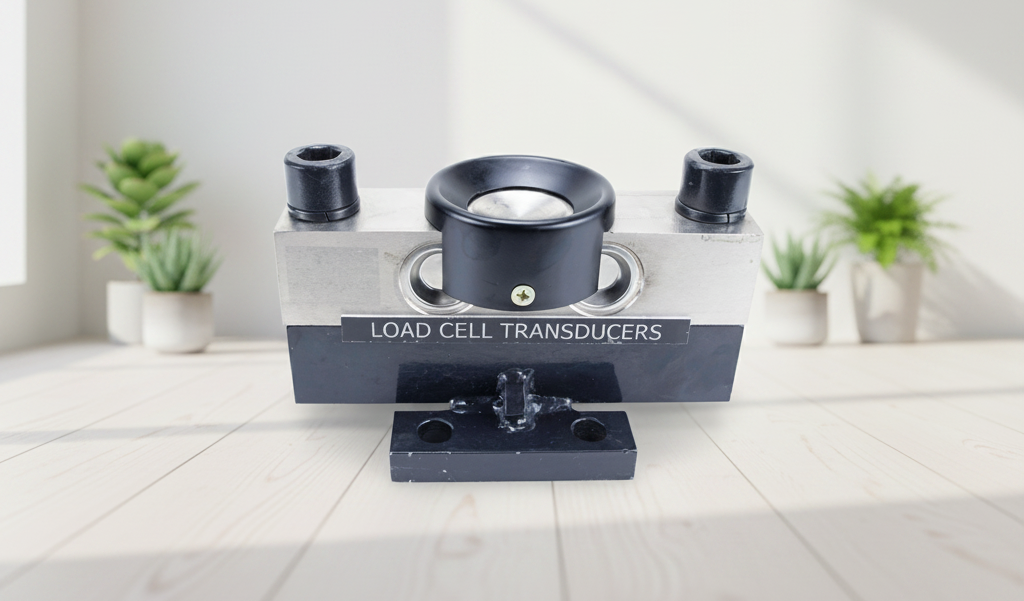

Factory Direct Sale Low Cost Load Cell 30T Double Beam Loading Cell Alloy Steel IP67 High Quality Truck Scales Force Sensor
Brand SOP
Product origin JiangXi
Delivery time 3-7days
Supply capacity 3000PC/day
The SOPZ-01 is a Column Type load cell, with a higher capacity up to 1000T, The compression load cell is mad e of Alloy Steel material used for Truck Scale, Rail weighbridge, Hopper Scale, Industrial weighing system. Complete accessory equipped for quality guarantee of column load cell sensor.
Product Description
Load cell 40Ton weighing load cells for scale truck
The SOPZ-01 is a Column Type load cell, with a higher capacity up to 1000T, The compression load cell is mad e of Alloy Steel material used for Truck Scale, Rail weighbridge, Hopper Scale, Industrial weighing system. Complete accessory equipped for quality guarantee of column load cell sensor.
Features:
High profile with column type
Capacity: 2-1000T
Precision: 0.2%R.O.
Optional accessories: Indicator / display, junction box.
Usage & Applications：
Truck Scale; Rail Weighbridge;Hopper Scale;Industrial weighing systems;

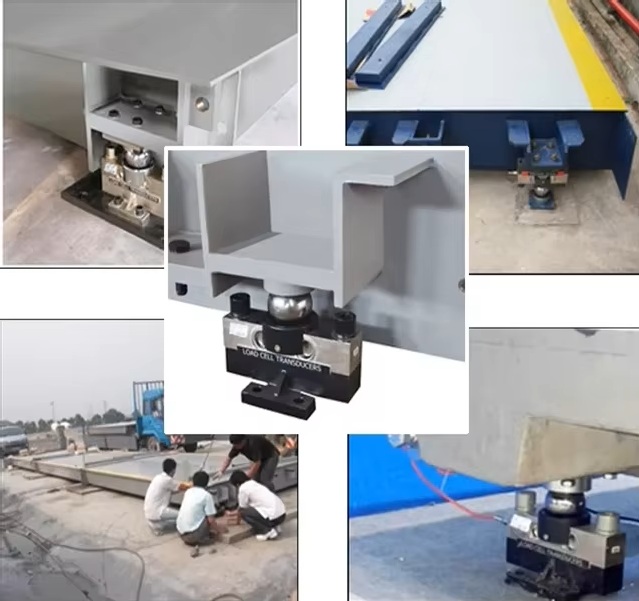

Industrial Application
Product parameter
| Product Name | Load cell 40Ton weighing load cells for scale truck |
| Total Error | 土0.02%F.S |
| Capacity | 2-1000T |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Creep Error(30min) | 土0.02%F.S |
| Temperature Effect Sensitivity | 土0.02%F.S/10C |
| Temp Effect Zero | 0.03%F.S./10 ℃ |
| Recommended Excitation Voltage | 9~12VDC |
| Material | Alloy Steel |
| Insulation Resistance | ≥5000mΩ(100VDC) |
| Safety Overload | 150%F·S |
| Maxiumum Overload | 200% |
| Operating Temp Range | -30-+70C |
| Cable ultimate pull | Φ5*3m |
