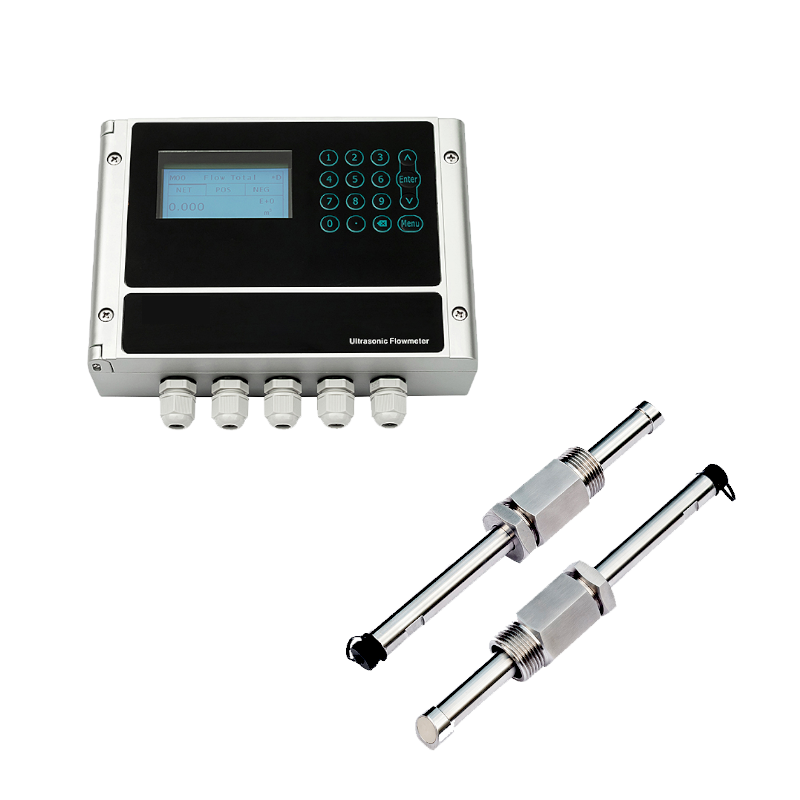

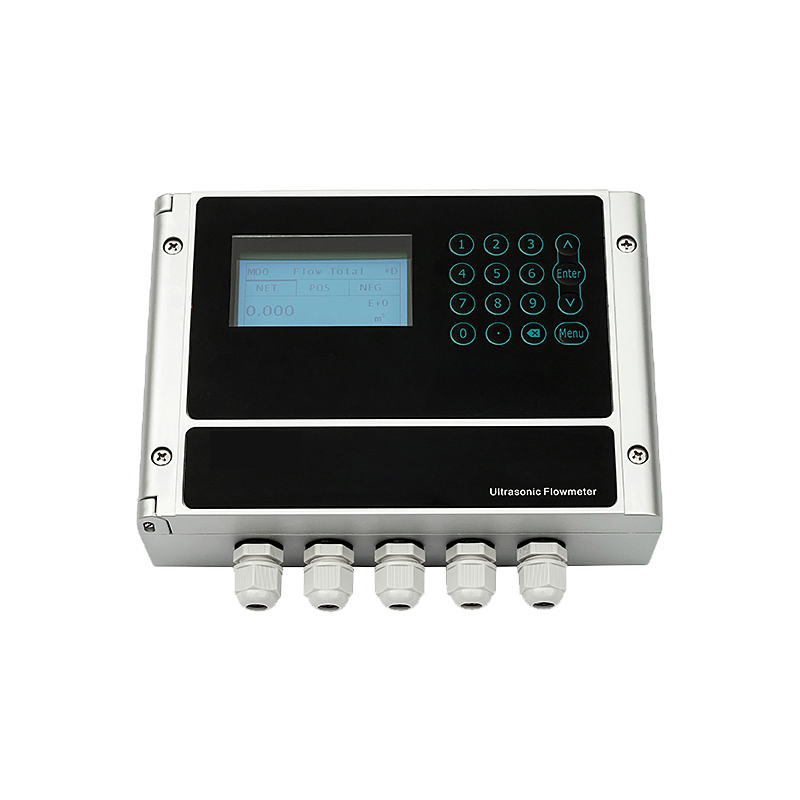

Factory Price High Stability DN15-DN1200mm Digital Insertion Ultrasonic Water Flow Meter
Brand SOP
Product origin JiangXi
Delivery time 3-7days
Supply capacity 3000PC/day

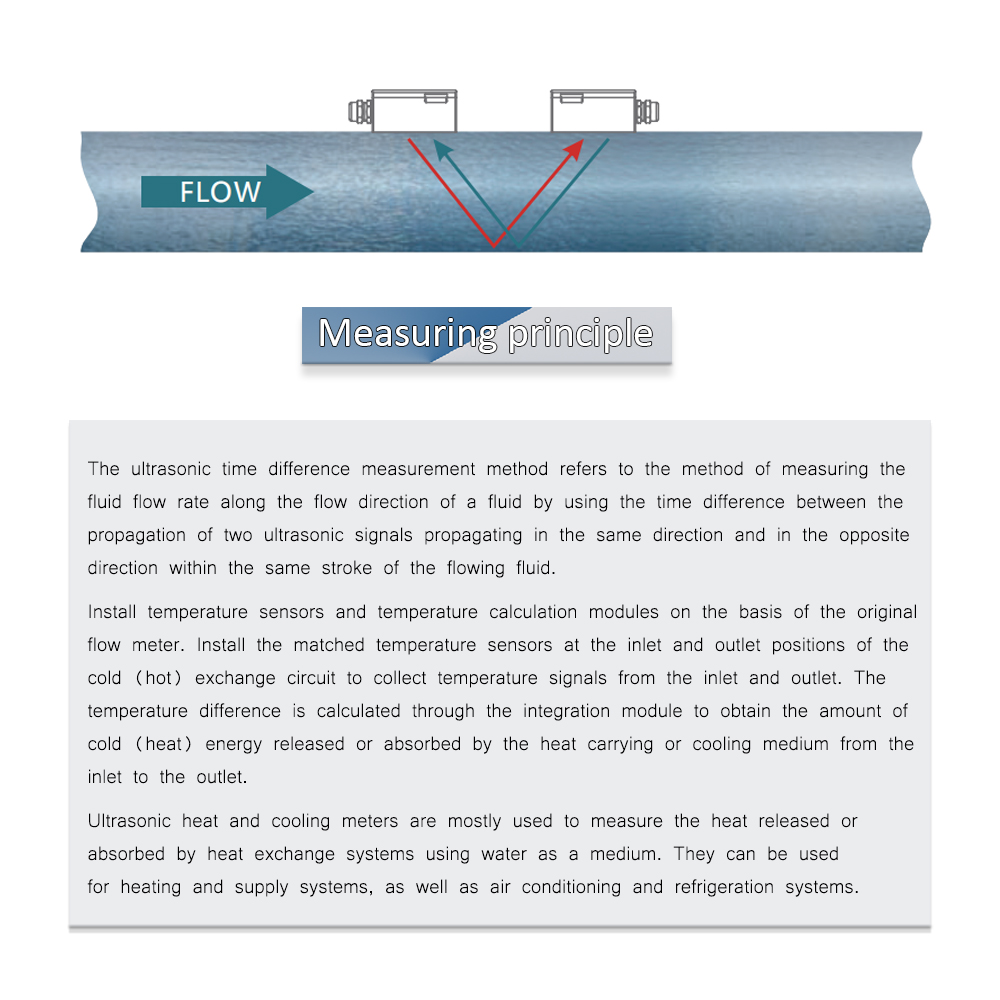

SOPSWU801 is an economical time difference ultrasonic flowmeter specifically designed for water. Compared to other ultrasonic flow meters on the market, it has the characteristics of high reaction rate, low power consumption, and high stability. Still continuing the independently developed TGA technology.
TGA is a high-speed and high-precision process time measurement algorithm developed and implemented by our company through research on ultrasonic time measurement algorithms and reference to various existing TDC algorithms. The time measurement accuracy of TGA can reach tens of ps, and it also has the characteristics of simple and convenient installation of ultrasonic flow meters, which can be completed without breaking pipes or stopping water supply.
Product description

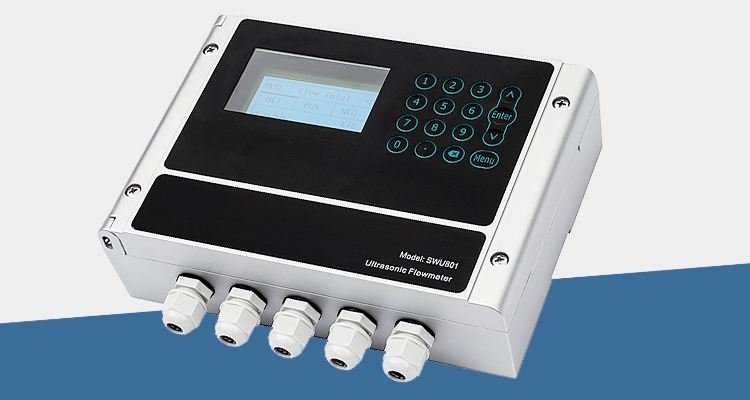

SOPSWU801 is an economical time difference ultrasonic flowmeter specifically designed for water. Compared to other ultrasonic flow meters on the market, it has the characteristics of high reaction rate, low power consumption, and high stability. Still continuing the independently developed TGA technology. TGA is a high-speed and high-precision process time measurement algorithm developed and implemented by our company through research on ultrasonic time measurement algorithms and reference to various existing TDC algorithms. The time measurement accuracy of TGA can reach tens of ps, and it also has the characteristics of simple and convenient installation of ultrasonic flow meters, which can be completed without breaking pipes or stopping water supply.
Product features
1.SOPSWU801 can be combined with RTD models and temperature sensors to become an energy meter for measuring the heat and cold consumption of heating pipelines and air conditioning refrigeration pipelines.

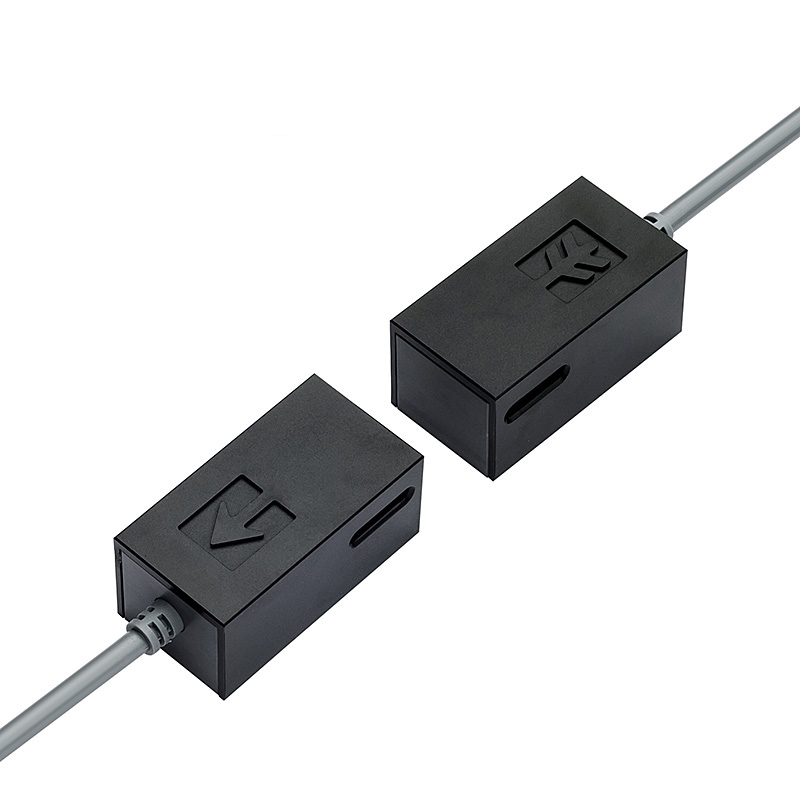

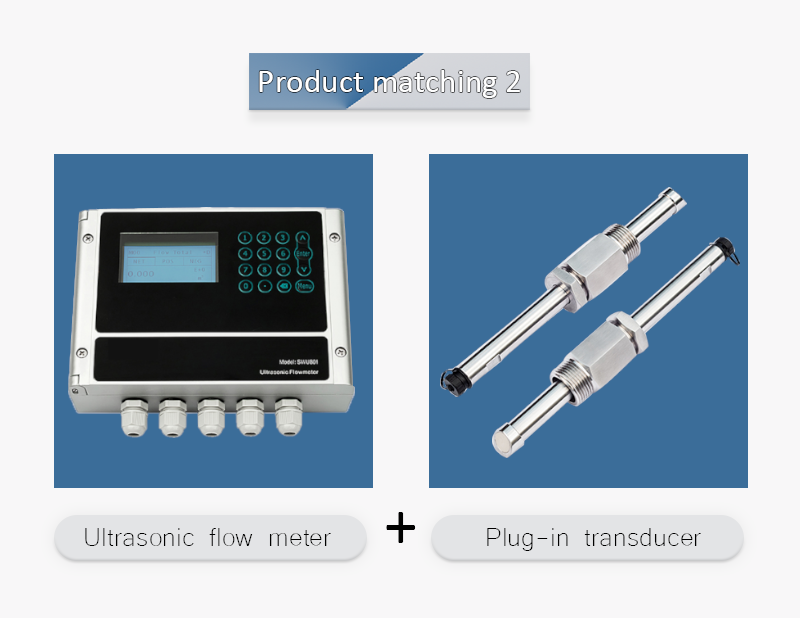

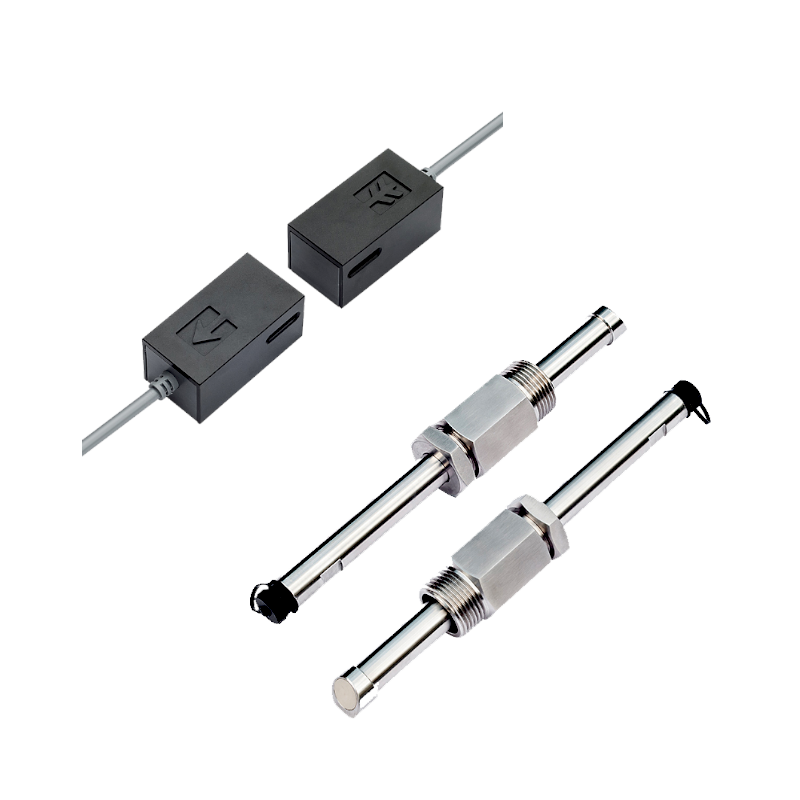

2.There are two types of sensors available: plug-in transducer and clamp-on transducer, and a pair of sensors can be used for all pipe diameters.
3.The upper temperature limit of the standard plug-in transducer is 130 ℃.
Product advantage

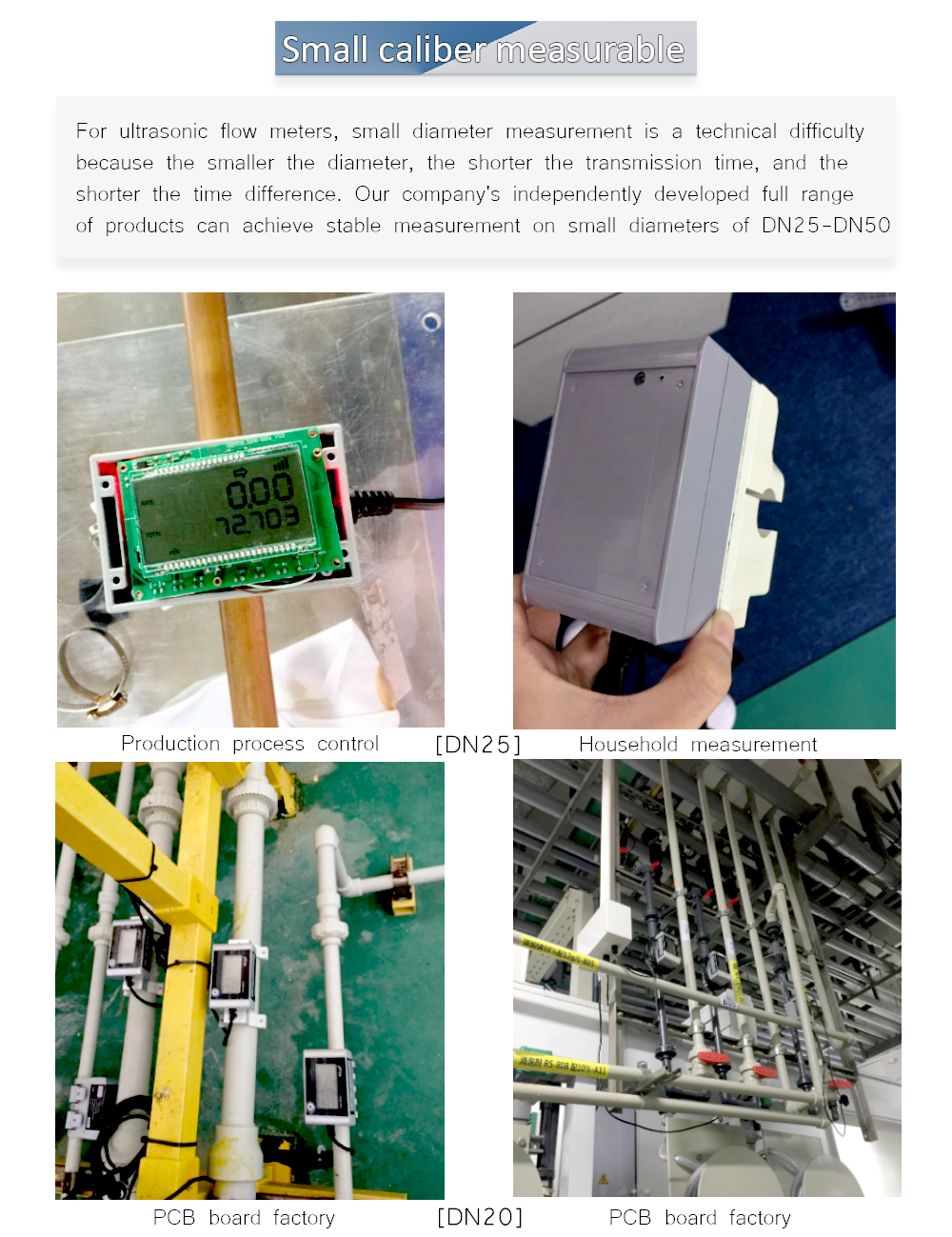

1.Customized product - small pipe diameter

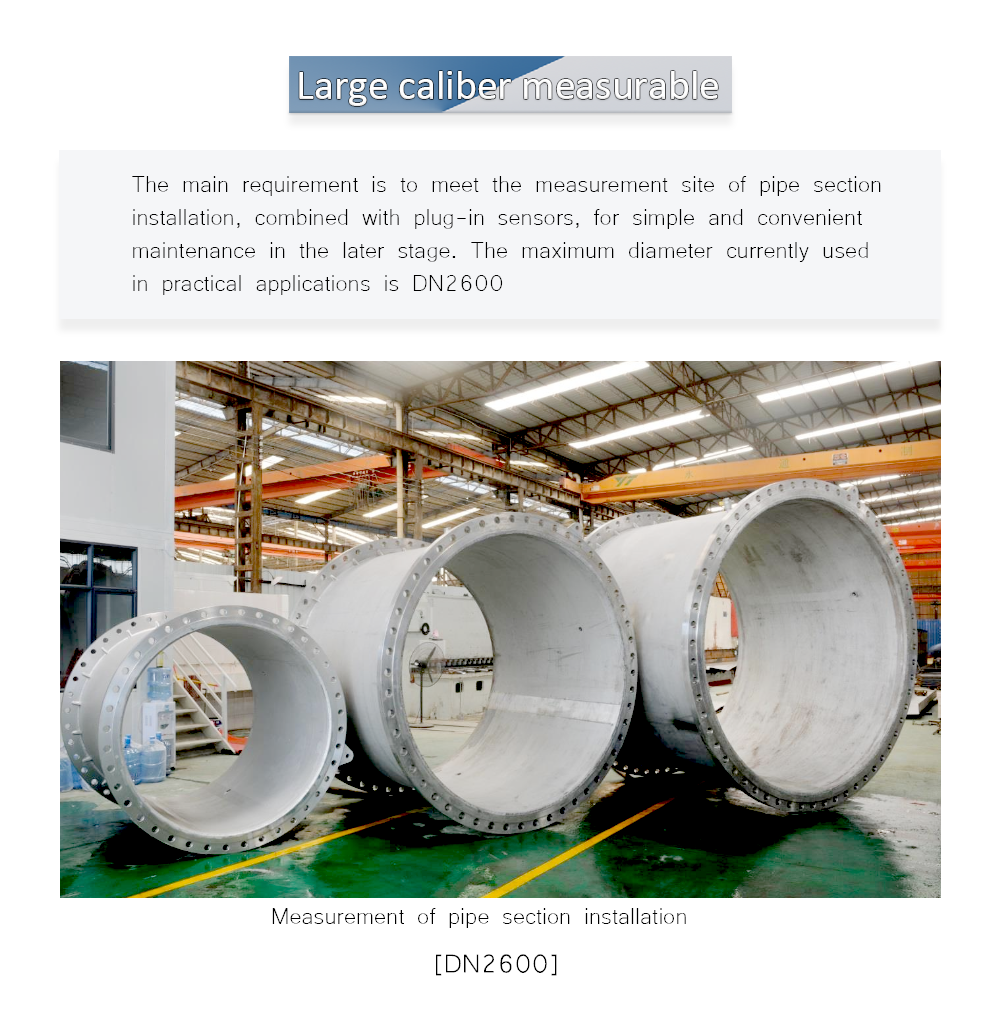

2.Customized product - large pipe diameter

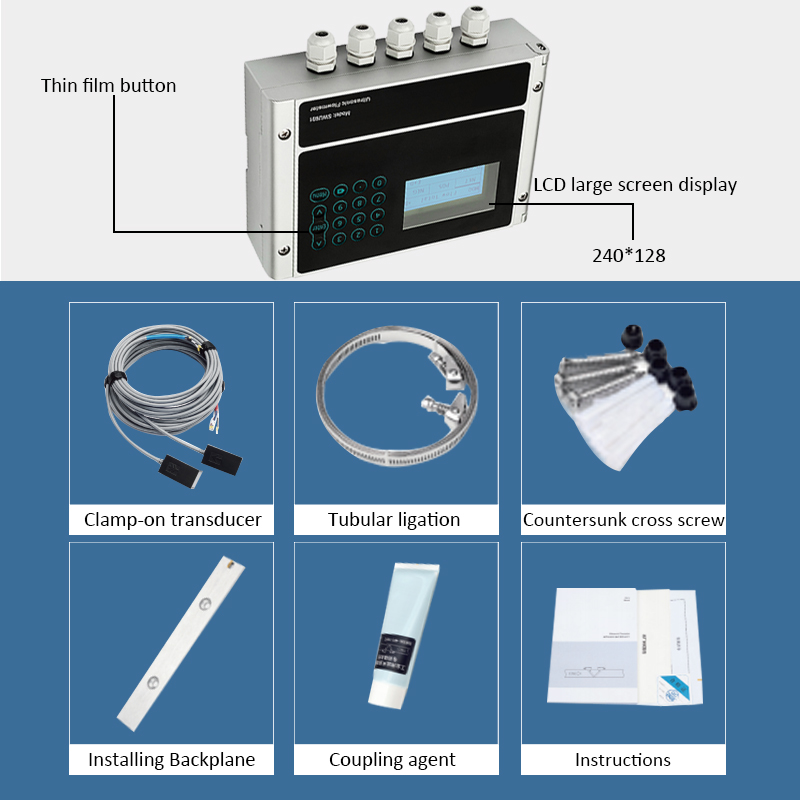

Product Accessories
SOPSWU801 product accessories include:
installation backplate, clamp-on transducer (protection level IP68, sealed design, twisted pair shielded output), pipe tie, coupling agent, countersunk cross screw, expansion rubber plug, plug, certificate of conformity, instruction manual, calibration report, and packing list.
Product parameter
| Performance | |
| Flow range | ±0.09ft/s ~ ±16ft/s (±0.03m/s ~ ±5m/s) |
| Accuracy | ±1% of measured value |
| Repeatability | 0.2% of measured value |
| Linearity | ±1% |
| Pipe size | 1"to 48" (25mm to 1200mm).Pipe size under 1” is an option |
| Fluid | Water |
| Function | |
| Outputs | Analog output: 4~20mA, max load 750Ω Pulse output: 0~10KHz |
| Communication | RS232/RS485 Modbus |
| Power supply | 10~36VDC/1A |
| Display | 240*128 back lit LCD |
| Temperature | Transmitter: -14℉~140℉(-20℃~60℃) Transducer:-40℉~176℉(-40℃~80℃,standard) |
| Humidity | Up to 99% RH,non-condensing |
| Physical | |
| Transmitter | PC/ABS,IP65 |
| Transducer | ABS,IP68 Encapsulated design Double-shielded transducer cable Standard/maximum cable length:30ft/900ft(9m/274m) |

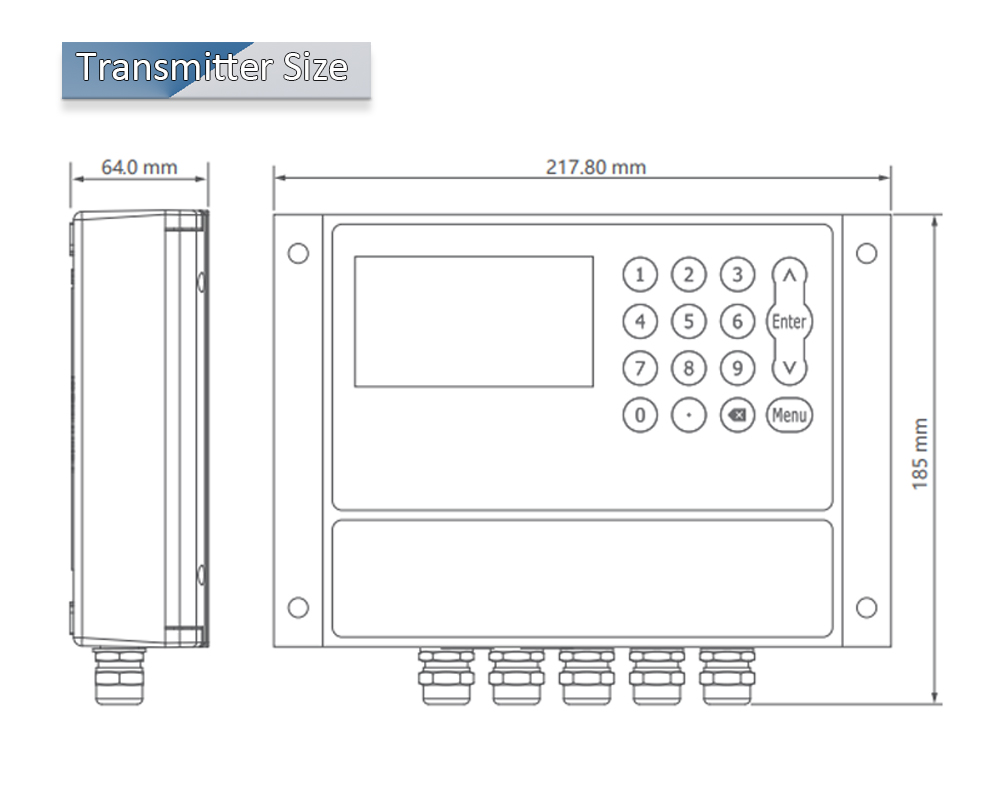

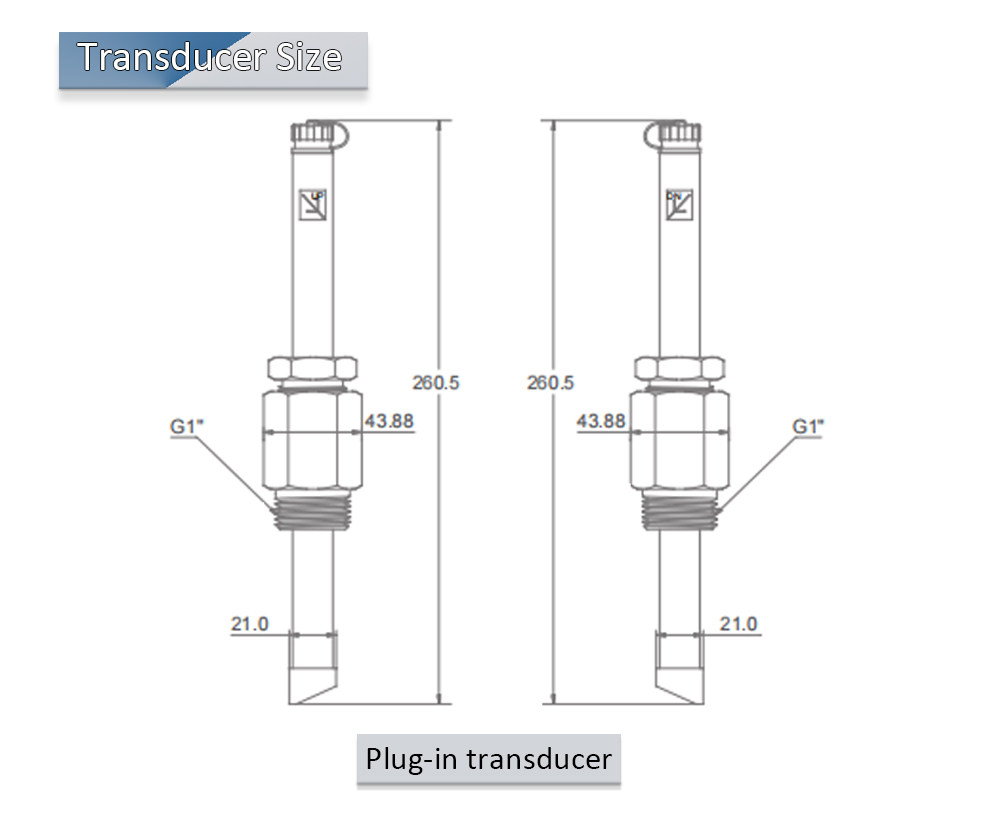

product size

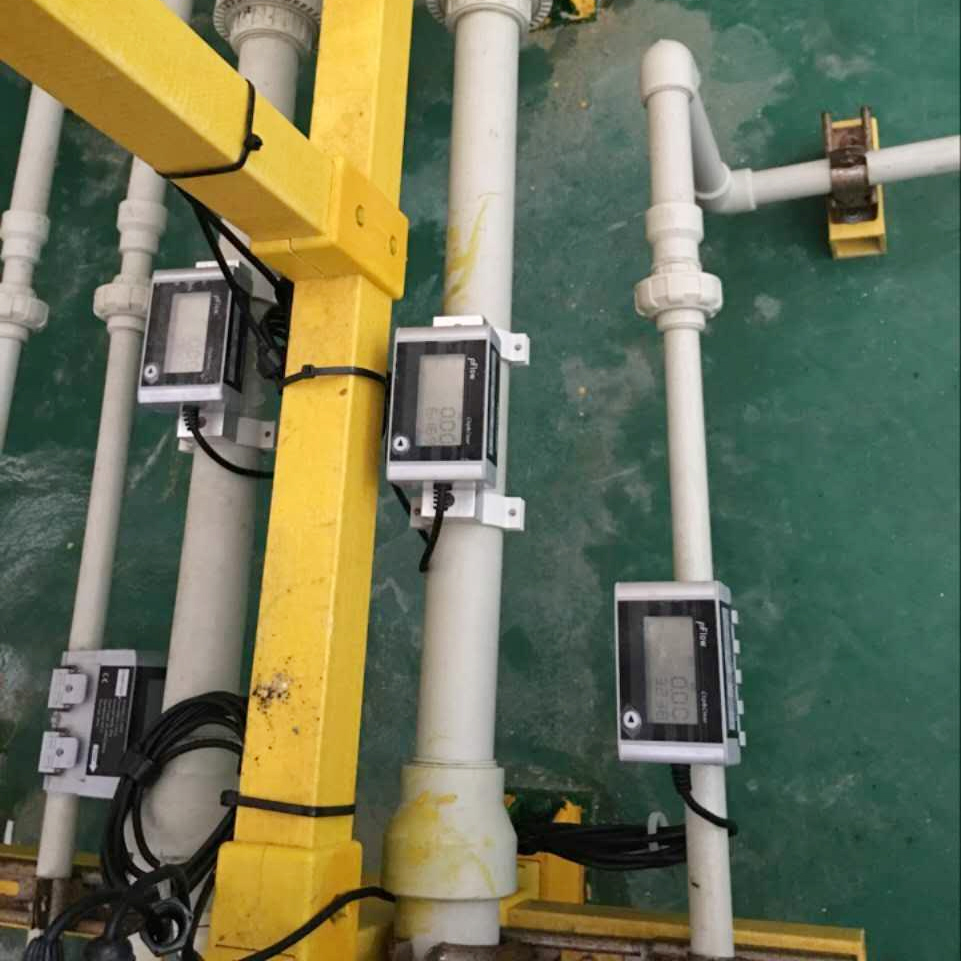

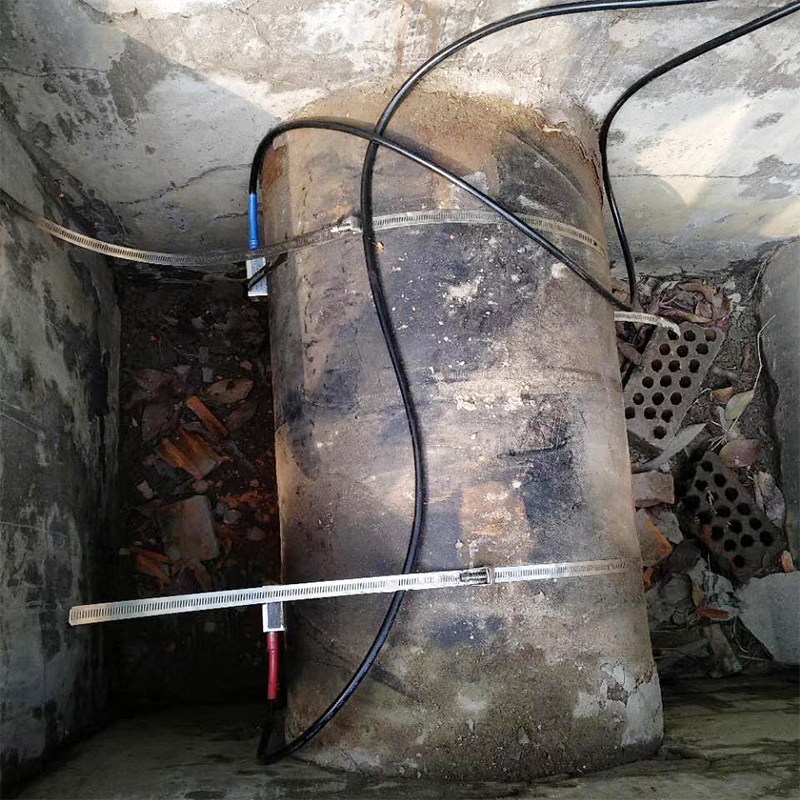

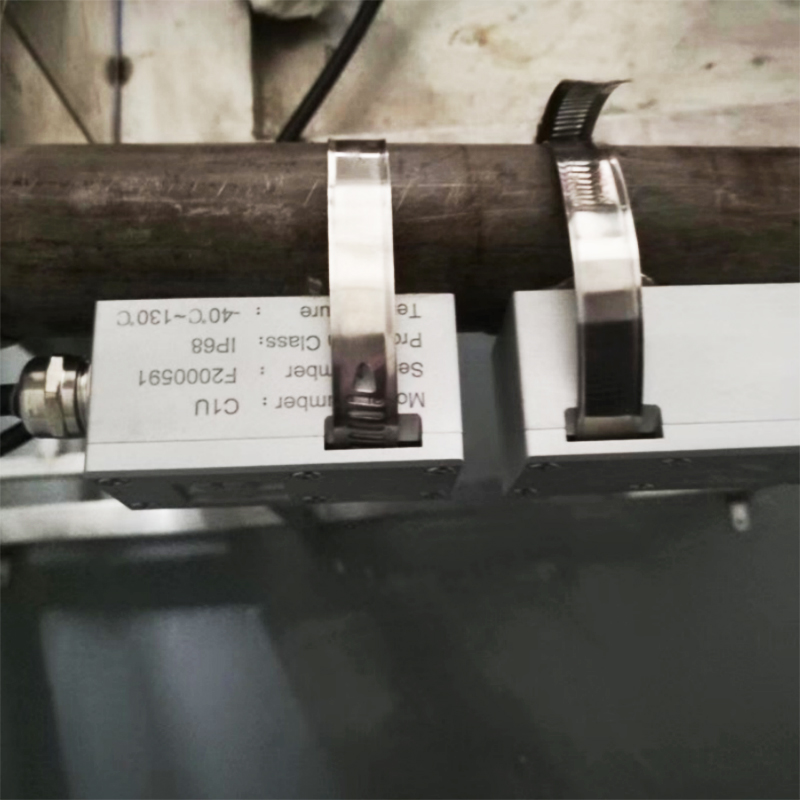

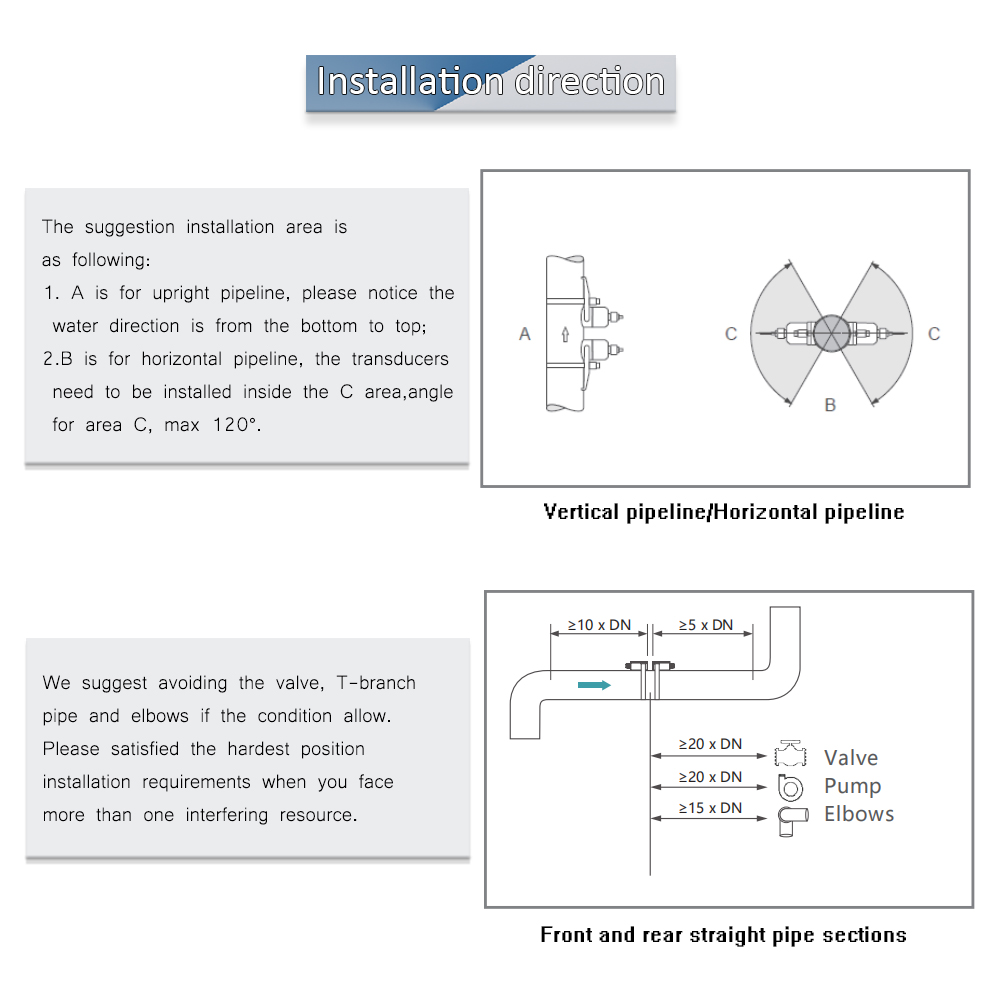

Installation Instructions
Application
ExpressTransportation
company profile
