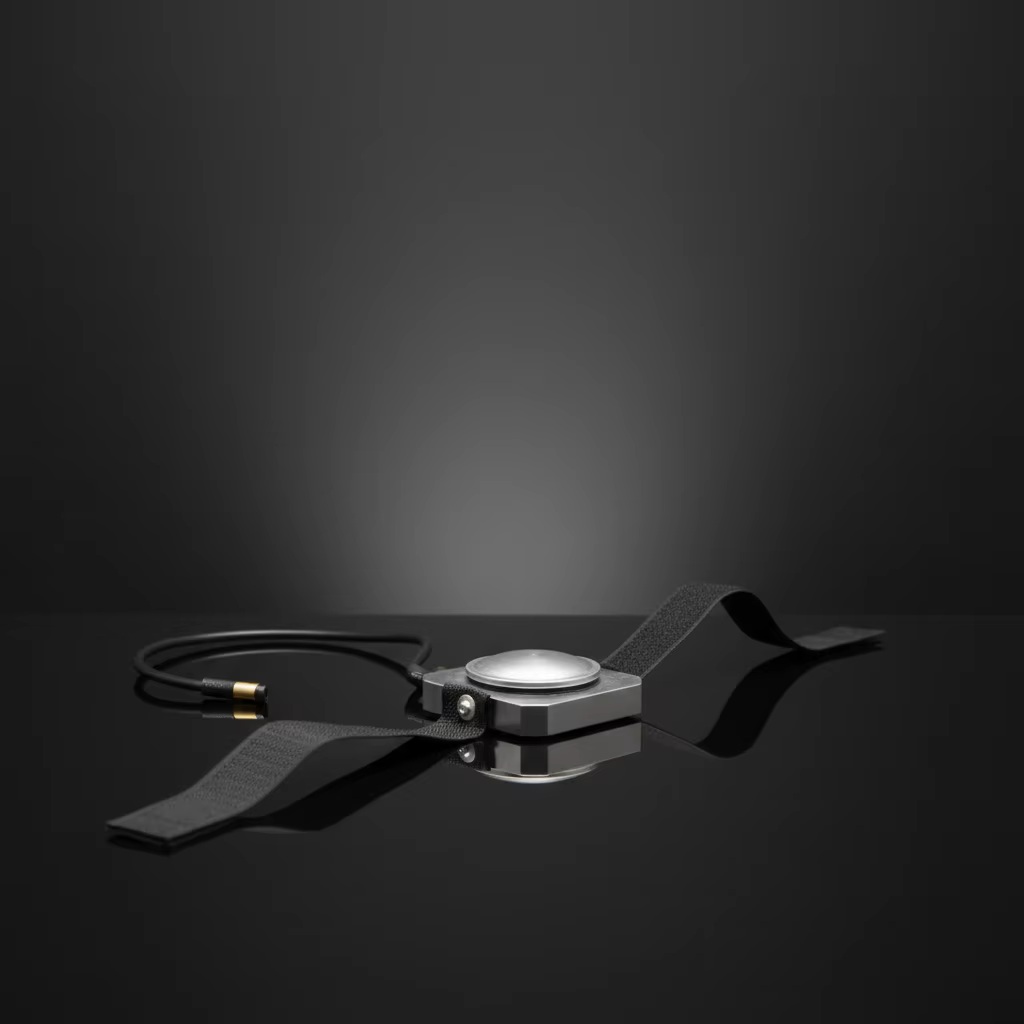

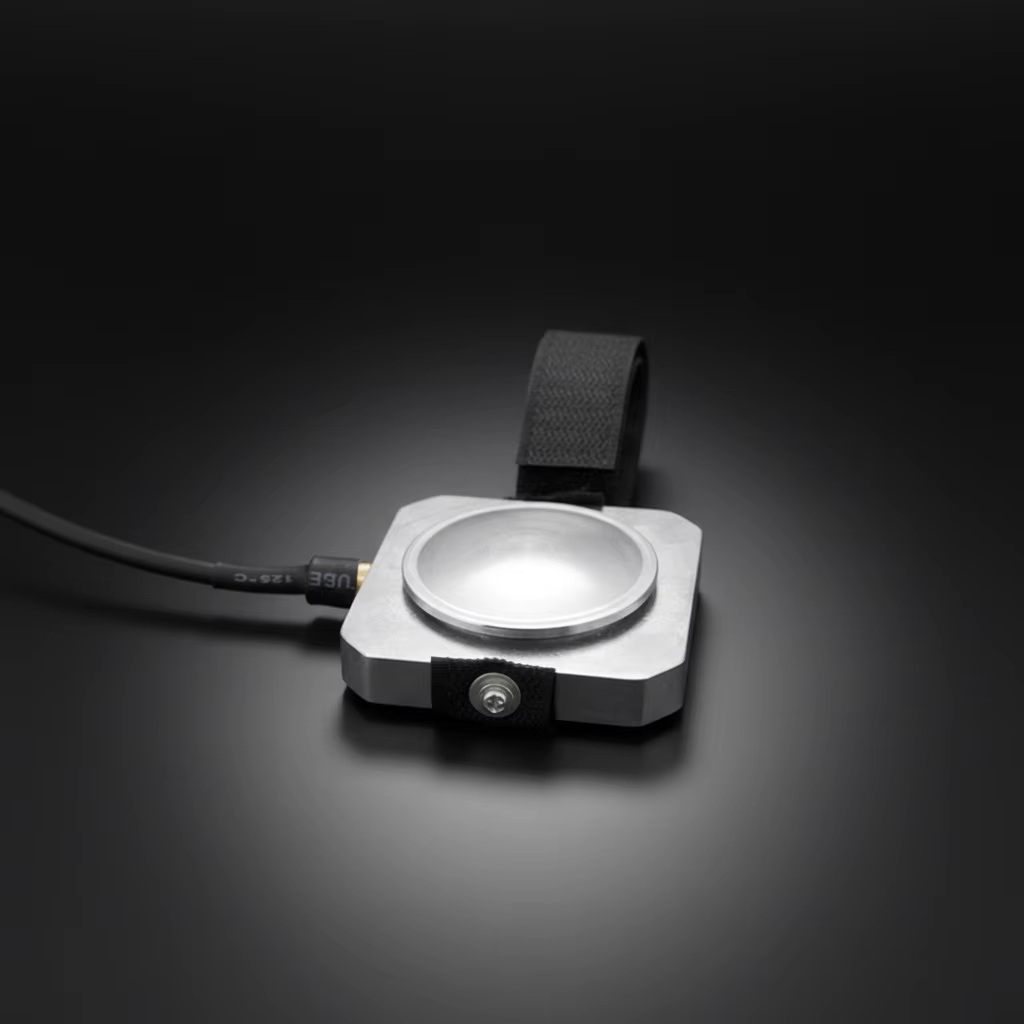

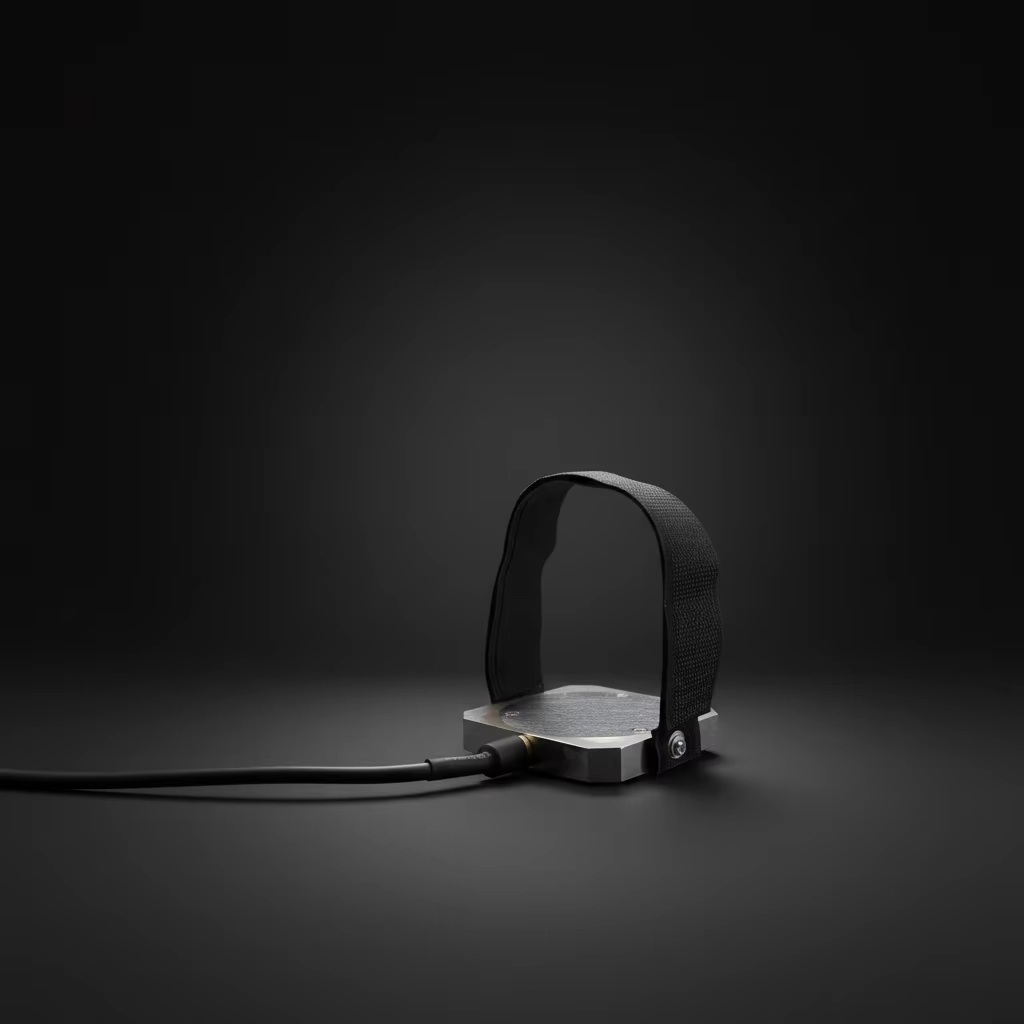

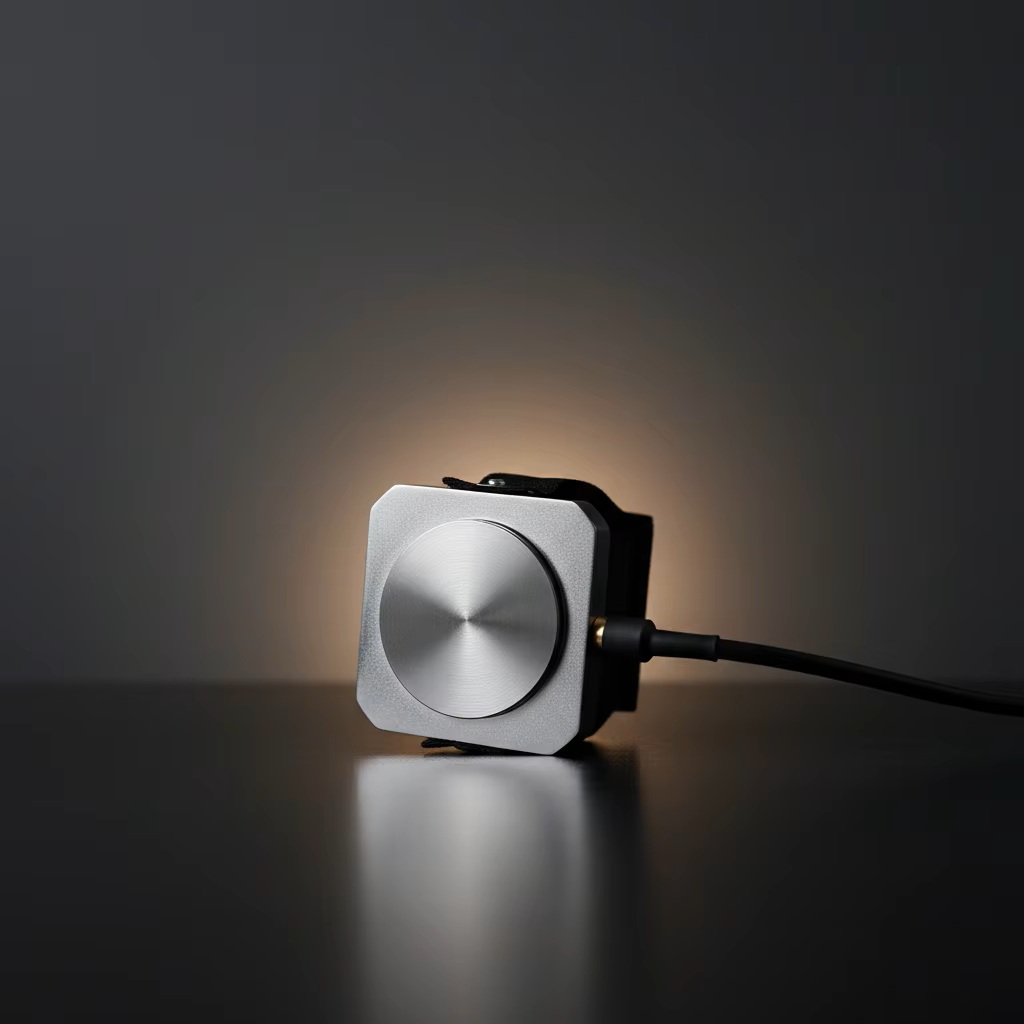

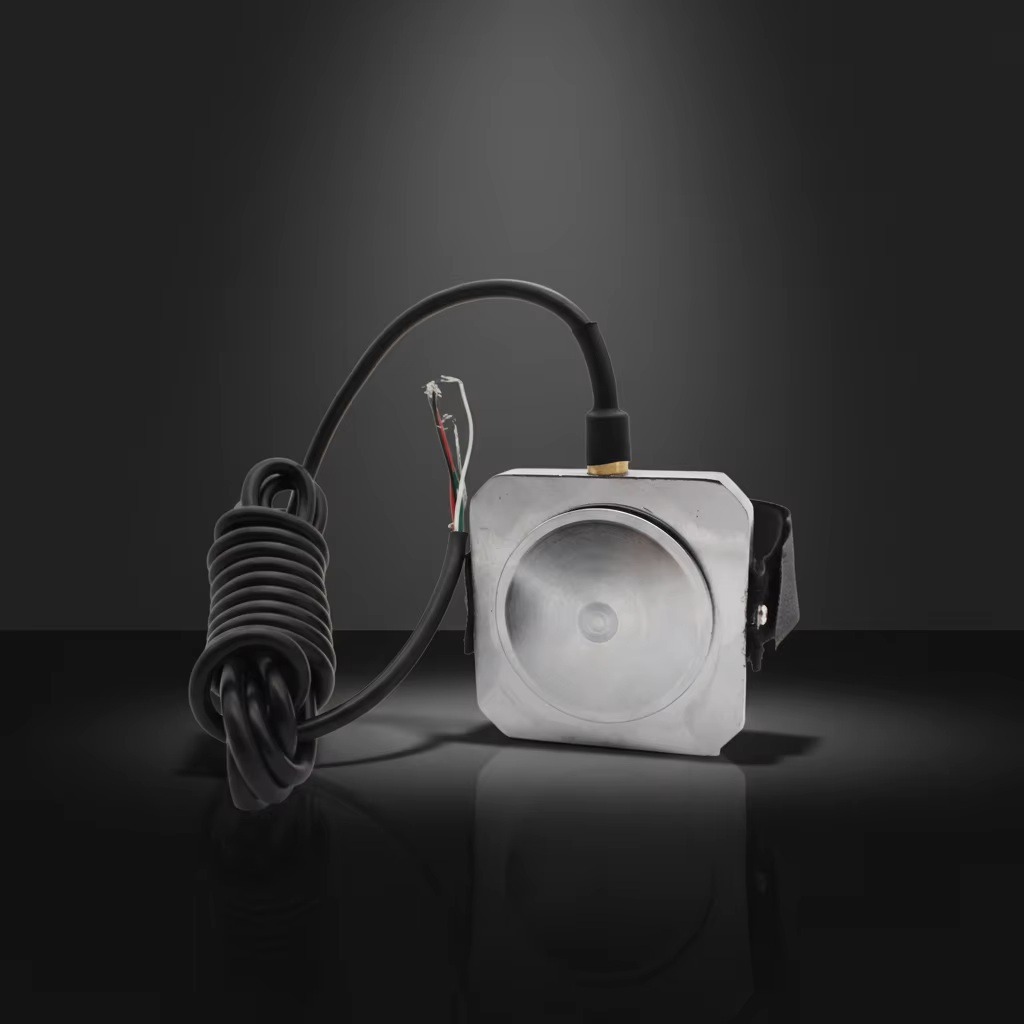

Hot Selling Alloy Steel Stainless Steel Aluminum Alloy Pedal Force Sensor 200kg Load Cell Scale 5-10v for Vehicle Braking
Brand SOP
Product origin JiangXi
Delivery time 3-7days
Supply capacity 3000PC/day

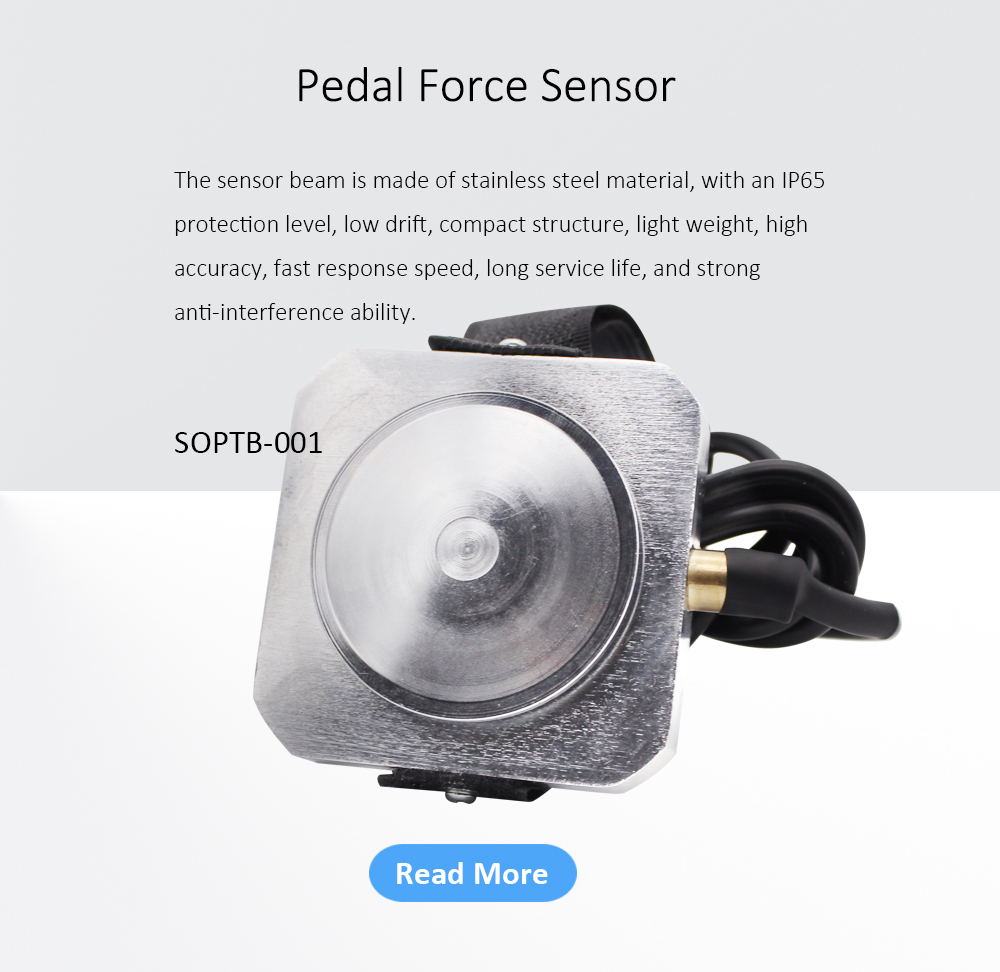

1.The sensor beam is made of stainless steel material, with an IP65 protection level, low drift, compact structure, light weight, high accuracy, fast response speed, long service life, and strong anti-interference ability.
2.It is suitable for measuring and controlling force in the 3C digital production process, automation equipment, aging testing machines, button force analysis, and assistance devices.

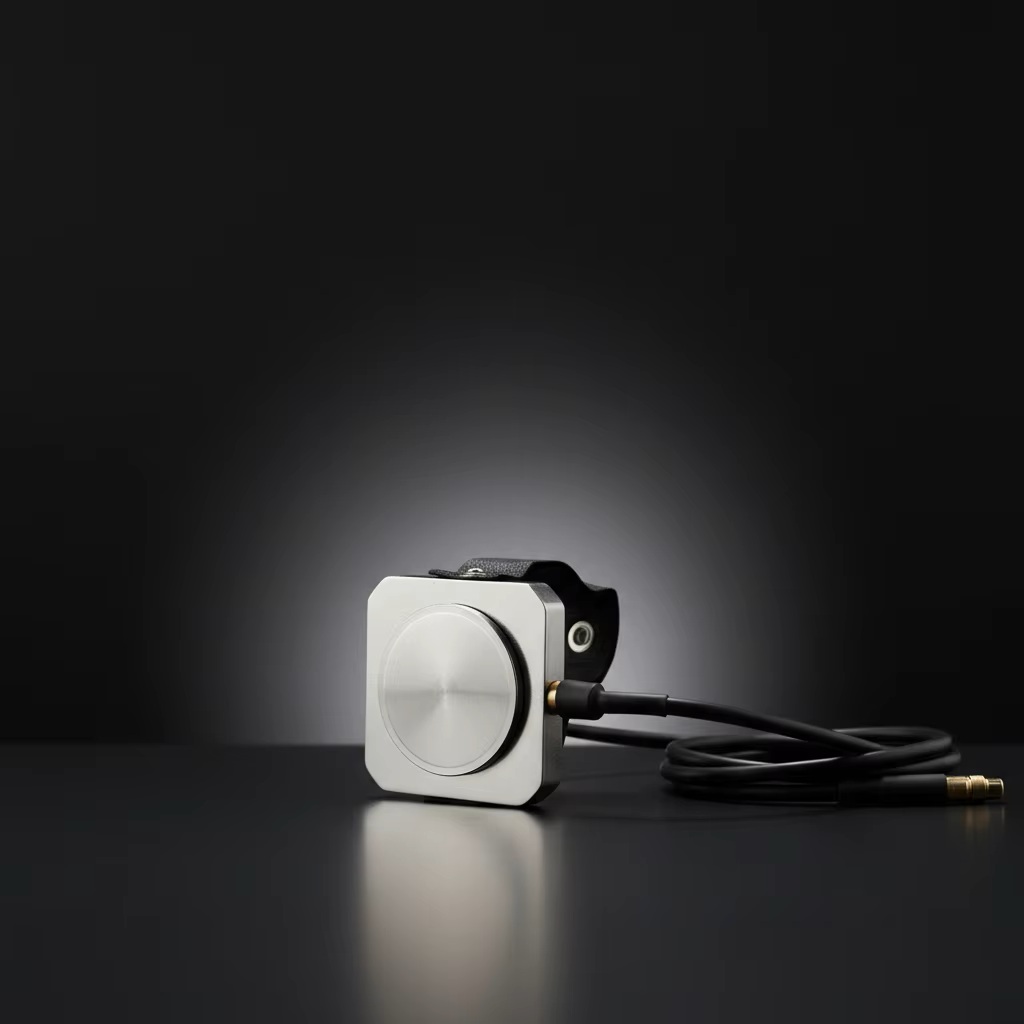

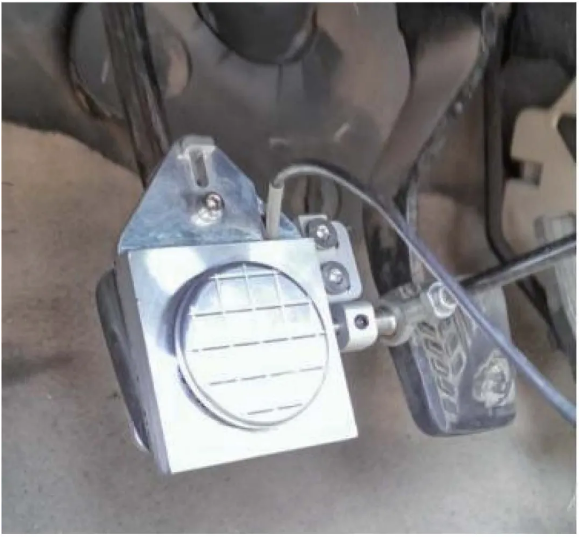

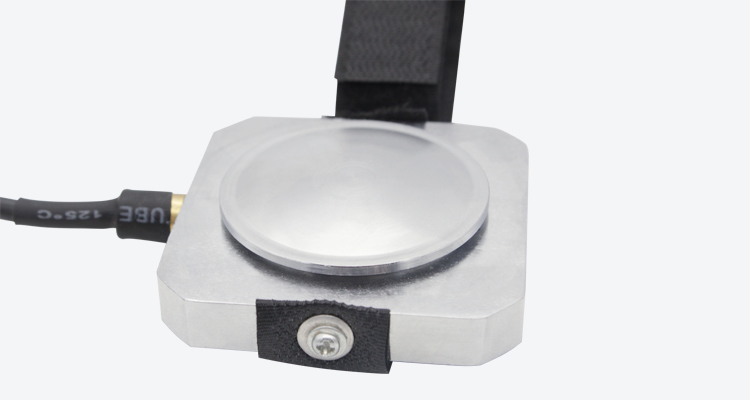

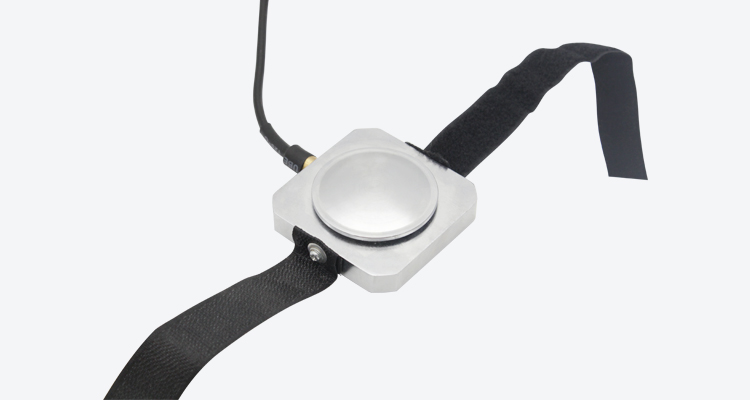

3.The pedal force sensor adopts a flat structure, which can be flexibly and conveniently installed on the car pedal. It has the advantages of a flat and small appearance, as well as strong vibration resistance.
Products Description
Product Features
1.The sensor beam is made of stainless steel material, with an IP65 protection level, low drift, compact structure, light weight, high accuracy, fast response speed, long service life, and strong anti-interference ability.
3.The pedal force sensor adopts a flat structure, which can be flexibly and conveniently installed on the car pedal. It has the advantages of a flat and small appearance, as well as strong vibration resistance.

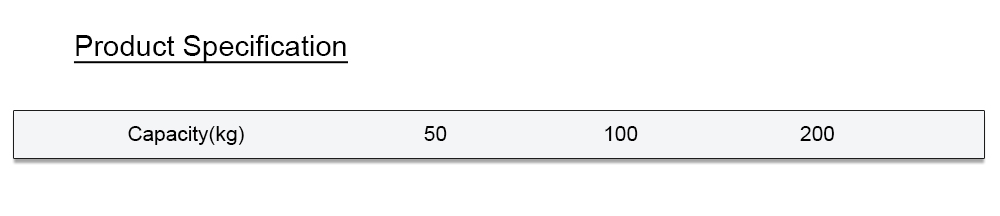

Product Paramenters
| Capacity | 1-200kg | Material | Alloy Steel/Stainless Steel/Aluminium Alloy |
| Output Sensitivity | 1.0-1.5mV/V | Impedance | 700Ω |
| Zero Output | ±2%F.S. | Insulance | ≥5000MΩ/100VDC |
| Non-Linearity | 0.3%F.S. | Operating Voltage | 5-10V |
| Hysteresis | 0.3%F.S. | Operating Temperature Range | -20-70℃ |
| Repeatability | 0.1%F.S. | Safe Overload | 150% |
| Creep(30min) | 0.05%F.S. | Ultimate Overload | 200% |
| Temp Effect on Outpu | 0.3%F.S./10℃ | Cable Specifications | φ3x2m |
| Temp Effect on Zero | 0.3%F.S./10℃ | Cable Ultimate Pull | 10kg |
| Response Frequency | 10kHz | TEDS | Optional |

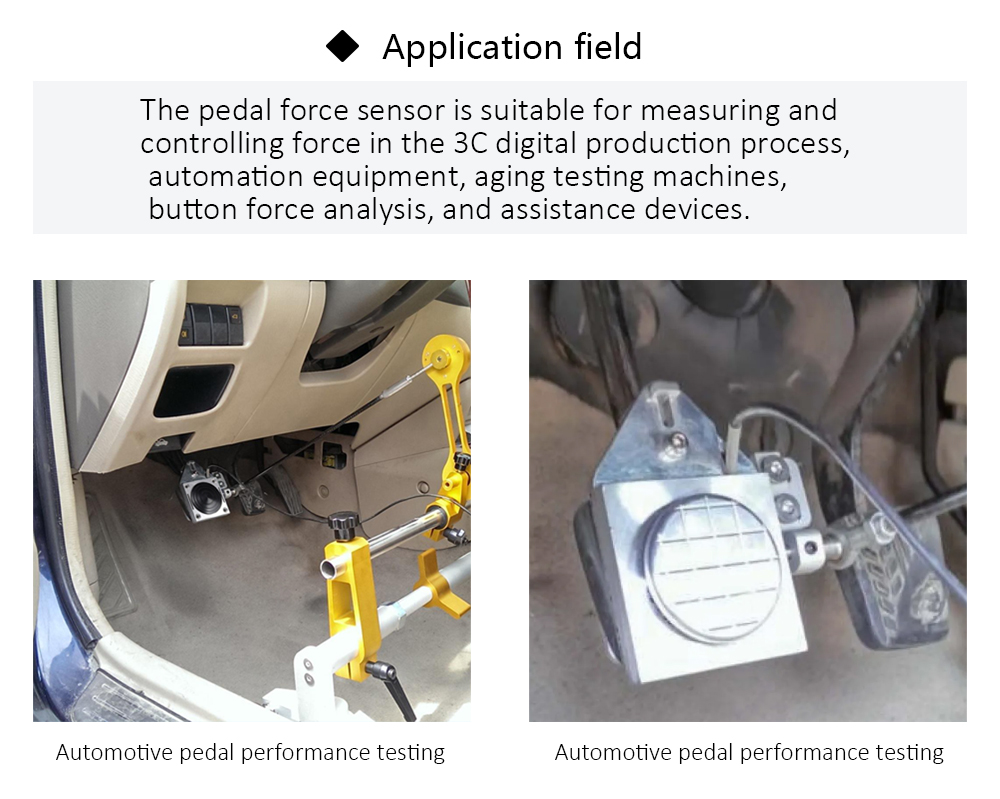

Industry Applications
