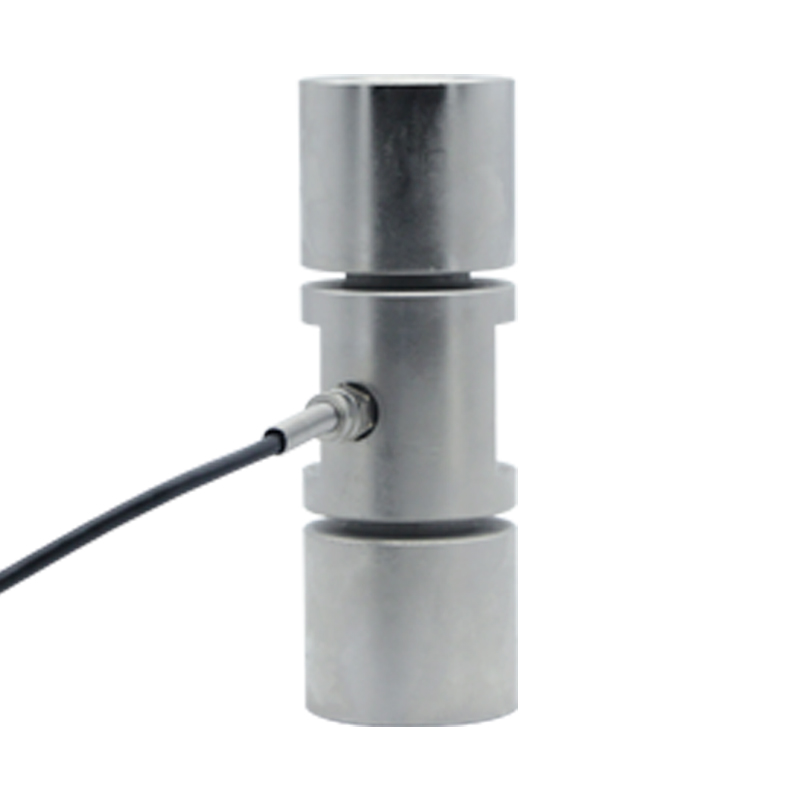

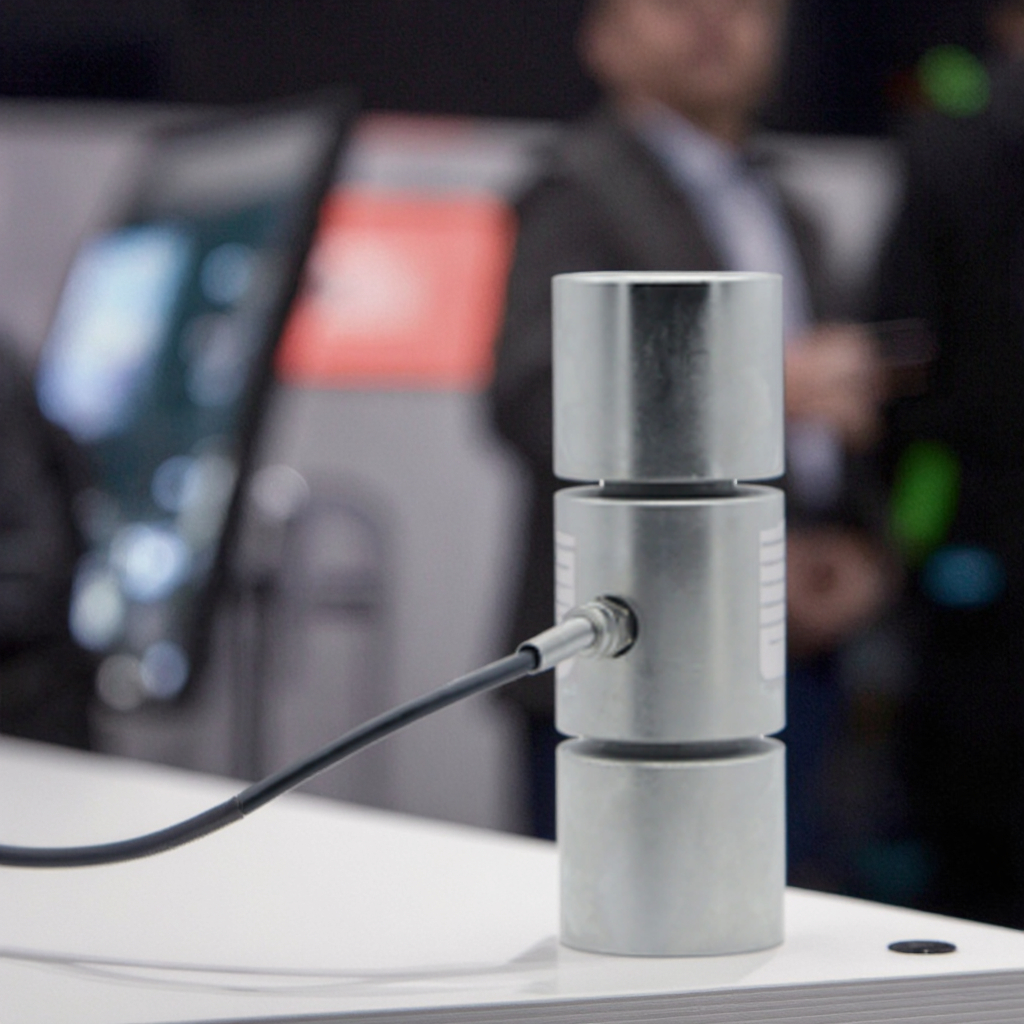

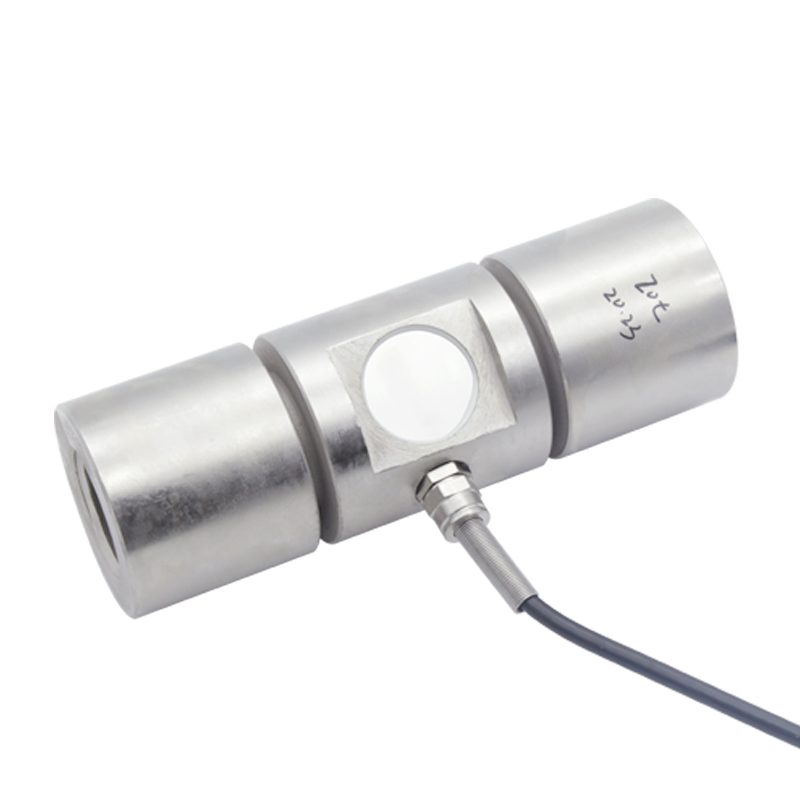

Large Range Force Column Sensor Alloy Steel 100t Column Load Cell Weighting Sensor for Automation Force Control
Brand SOP
Product origin JiangXi
Delivery time 3-7days
Supply capacity 3000PC/day

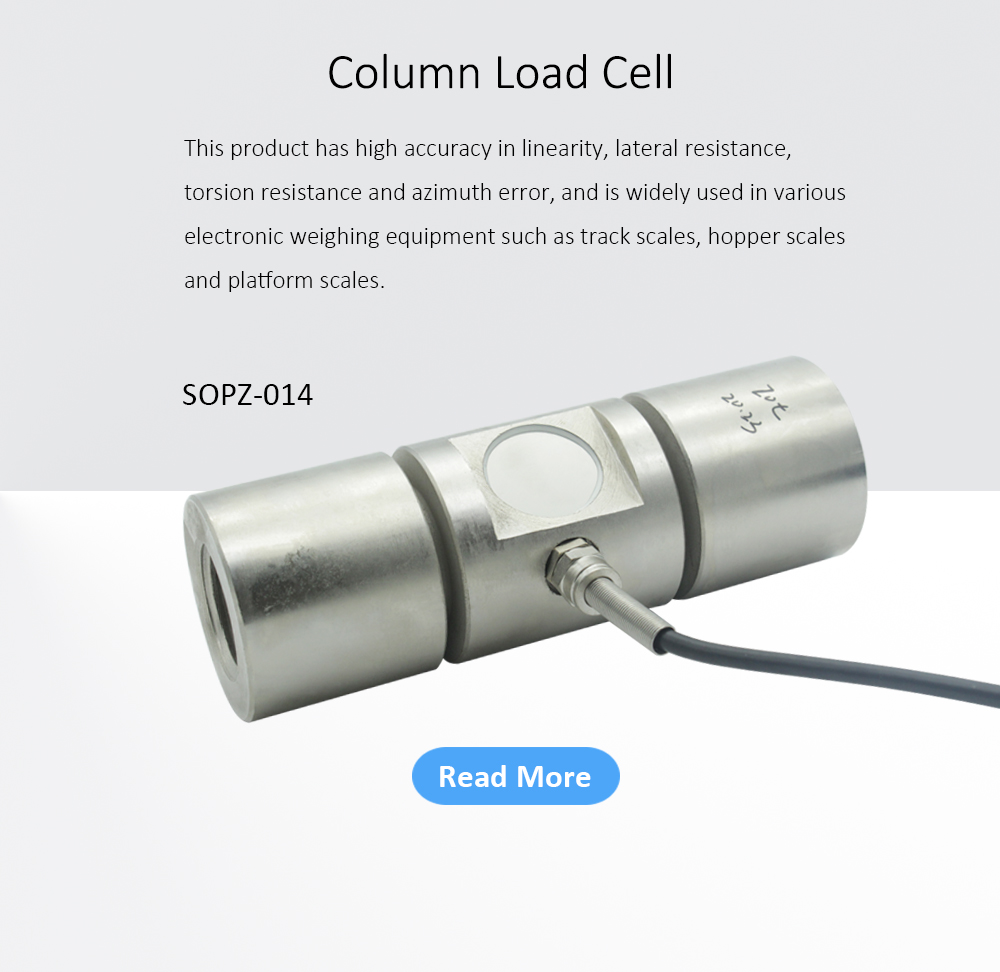

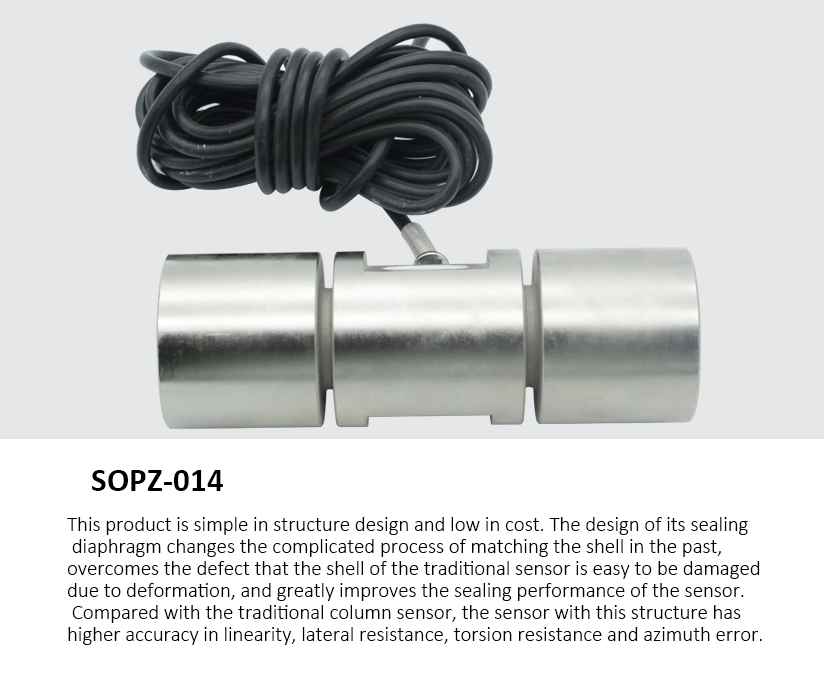

This product is simple in structure design and low in cost. The design of its sealing diaphragm changes the complicated process of matching the shell in the past, overcomes the defect that the shell of the traditional sensor is easy to be damaged due to deformation, and greatly improves the sealing performance of the sensor. Compared with the traditional column sensor, the sensor with this structure has higher accuracy in linearity, lateral resistance, torsion resistance and azimuth error.
Large Range Force Column Sensor Alloy Steel 100t Column Load Cell Weighting Sensor for Automation Force Control
Product Description
Product parameter
| Measuring Range | 0-100T | Material | Alloy steel |
| Output Sensitivity | 1.5±0.05mV/V | Impedance | 350Ω |
| Zero Output | ±1%F.S. | Insulance | ≥5000MΩ/100VDC |
| Non-linearity | 0.1%F.S. | Operating Voltage Range | 10-15V |
| Hysteresis | 0.1%F.S. | Operating Temp Range | -20-80℃ |
| Repeatability | 0.05%F.S. | Safe overload | 120% |
| Creep (30min) | 0.5%F.S. | Maximum Overload | 150% |
| Temp.effect on output | 0.1% F.S. / 10ºC | Cable size | Φ5x3m |
| Temp.effect on zero | 0.1% F.S. / 10ºC | Cable ultimate pull | 10kg |
| Response frequency | 10kHz | TEDS |

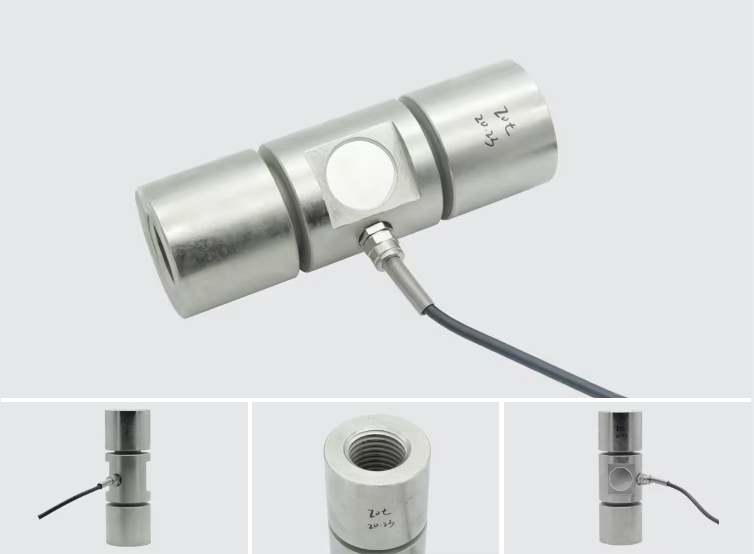

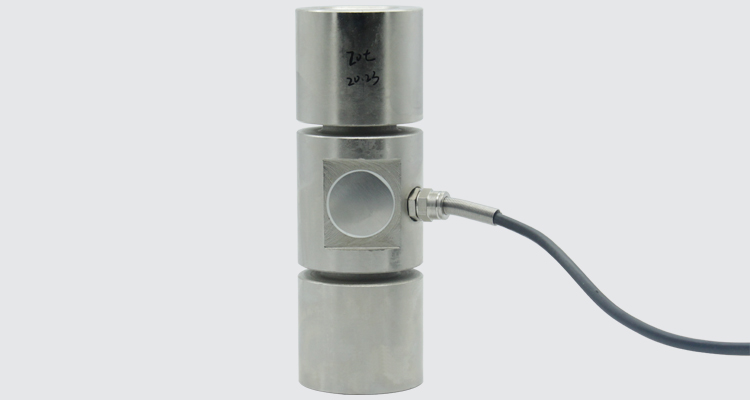

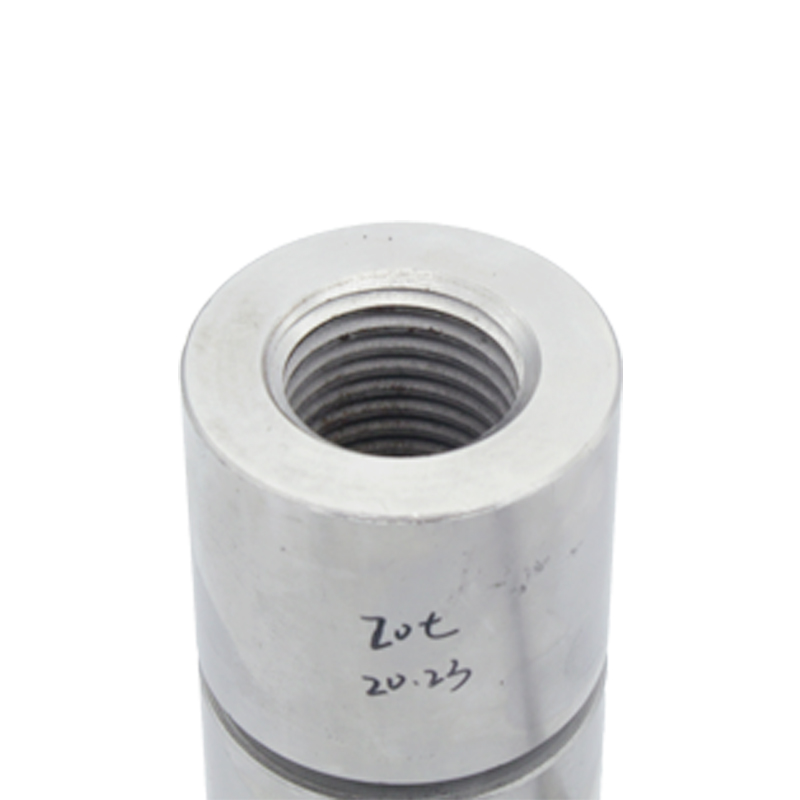

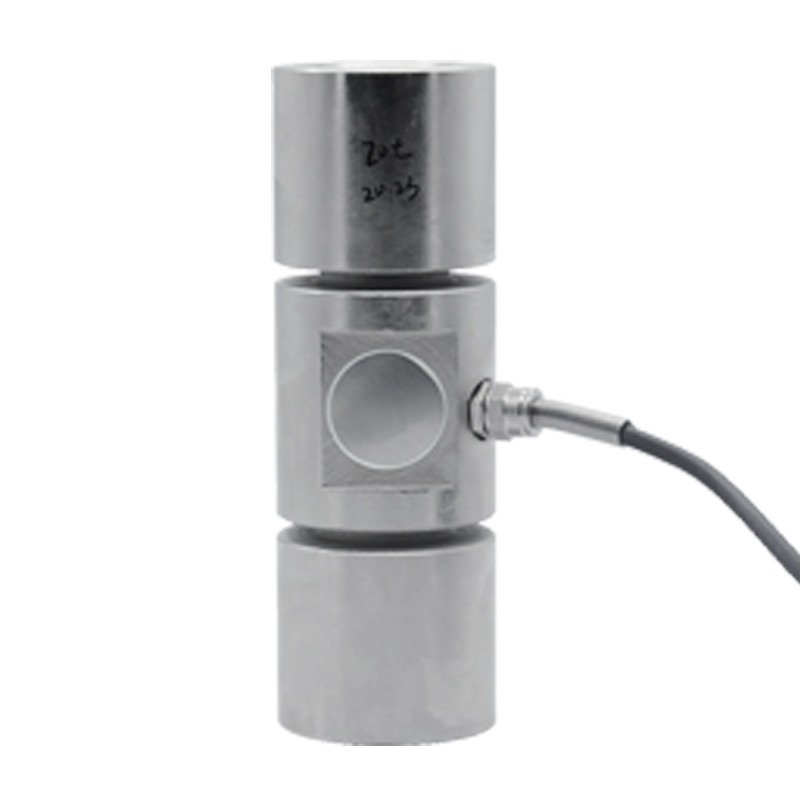

Detail picture

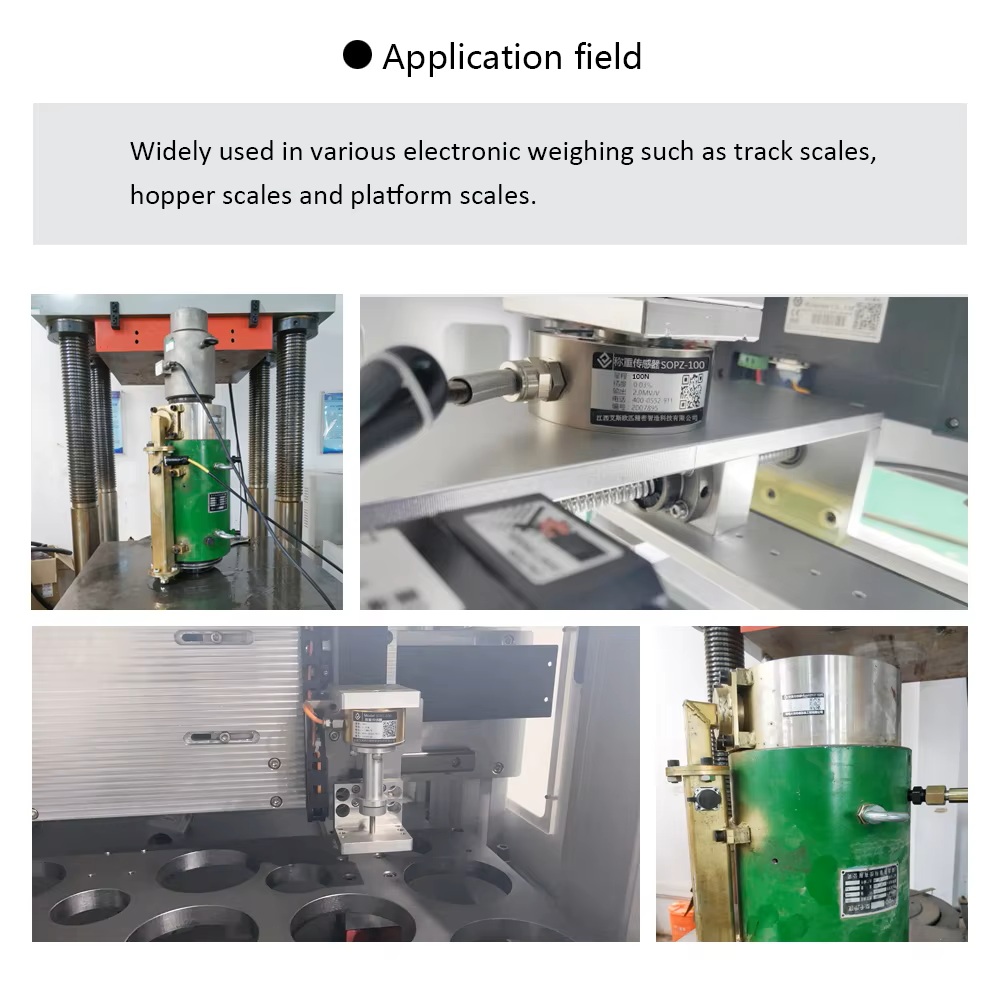

Industry Applications
Packaging &Shipping
Company Profile
