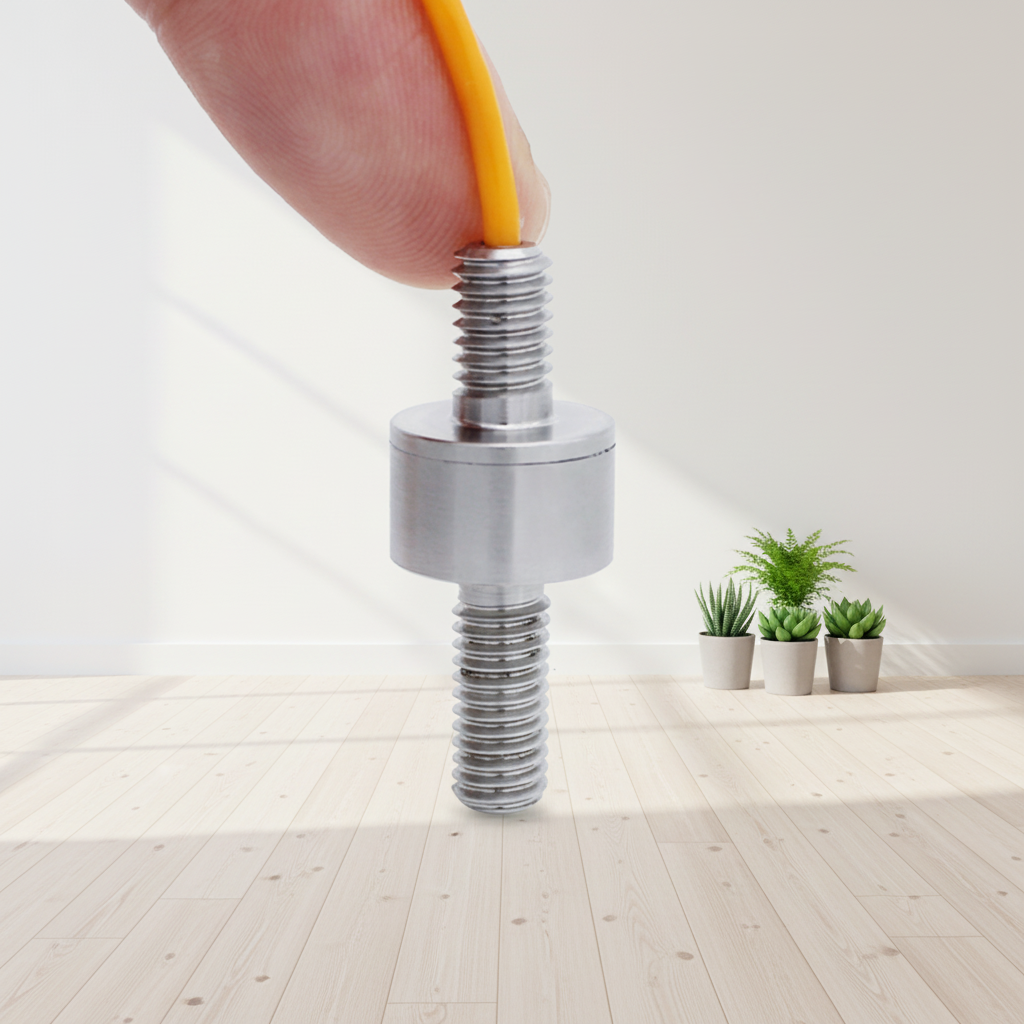

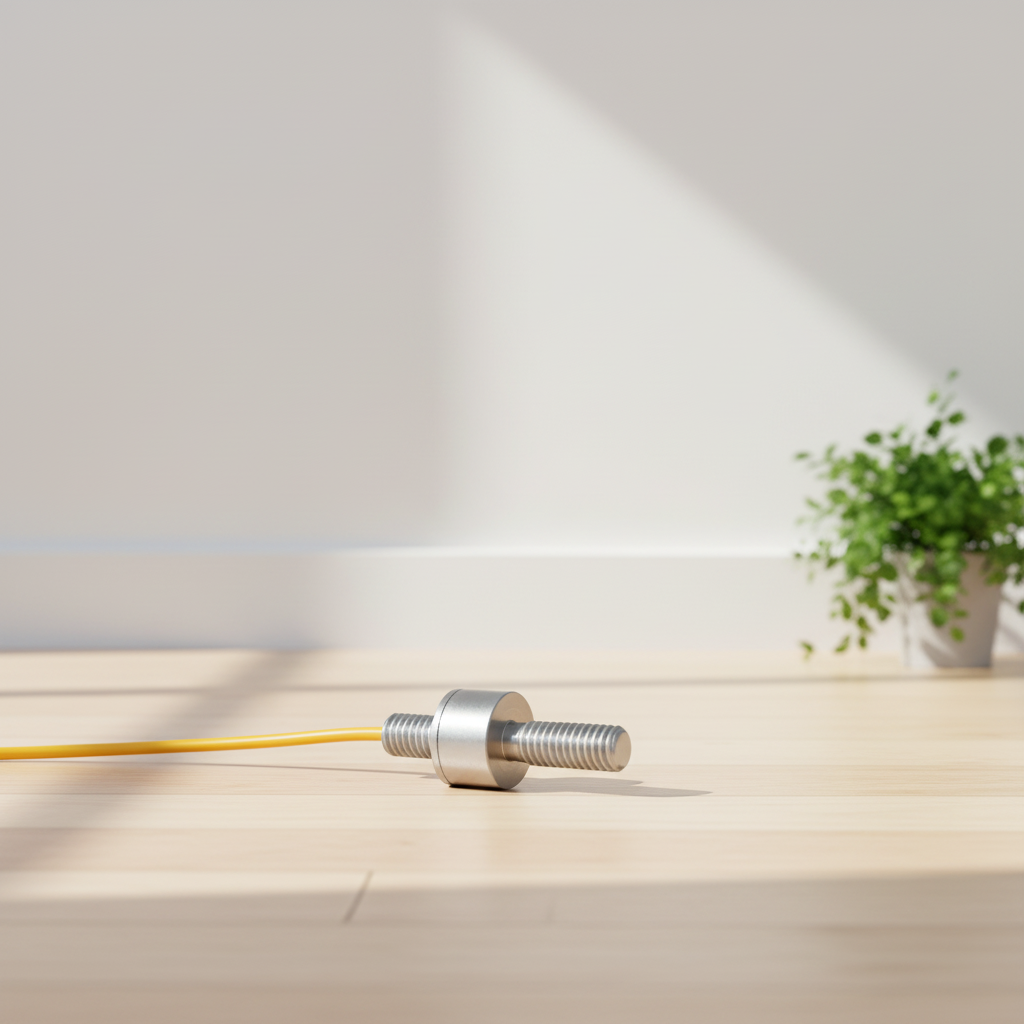

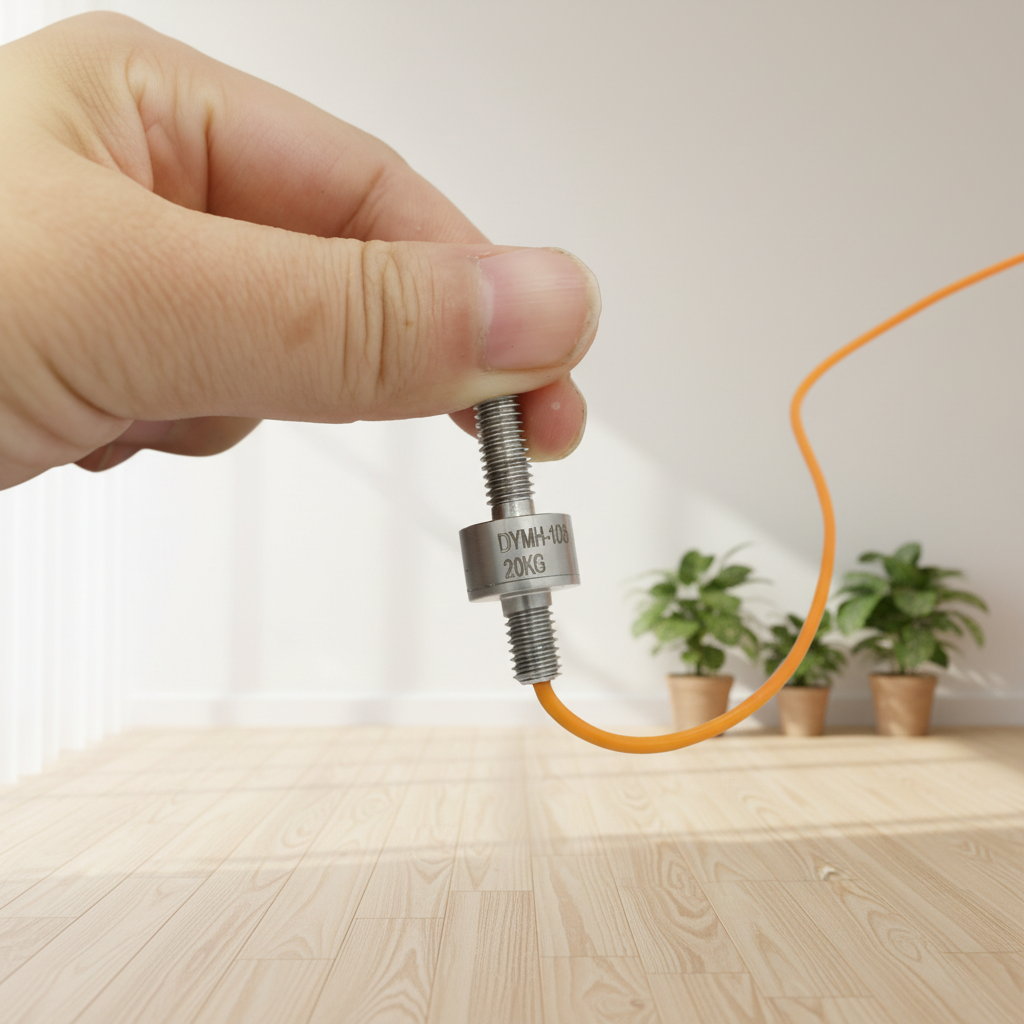

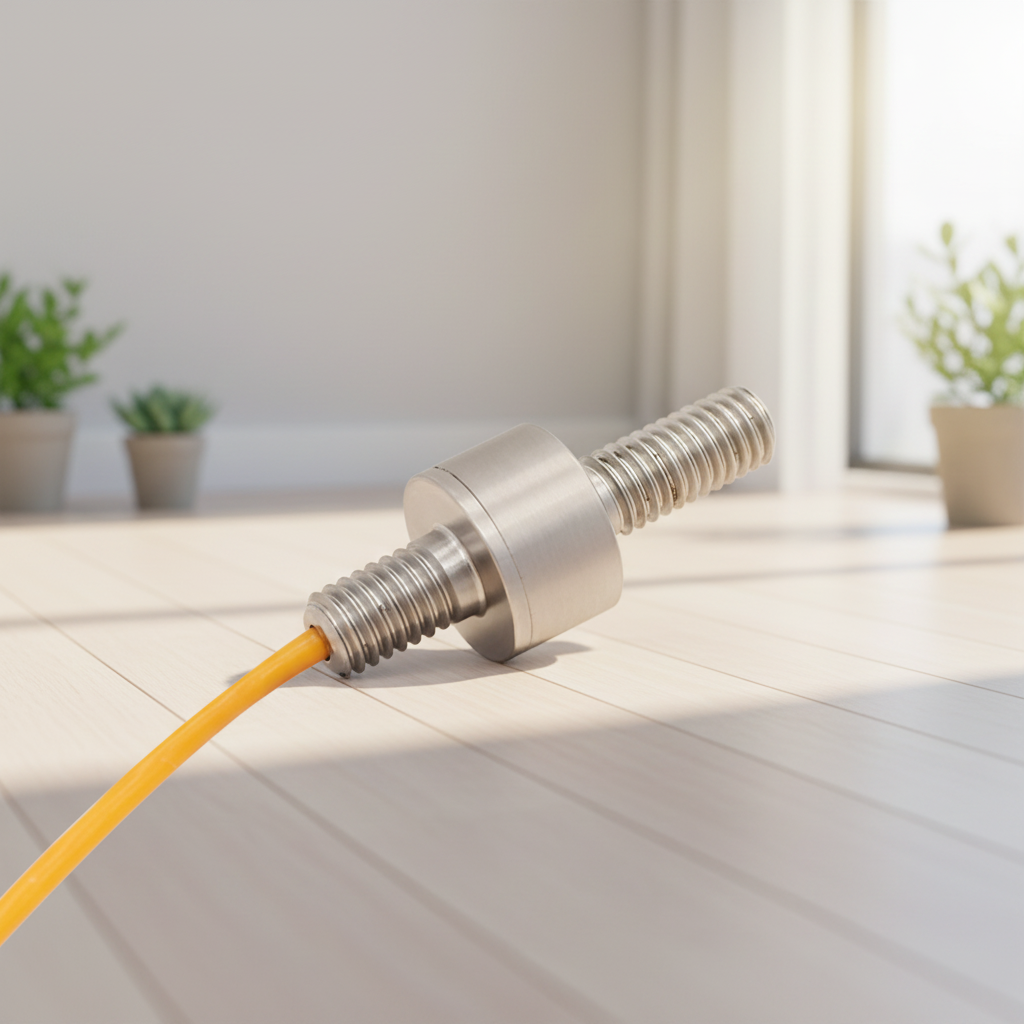

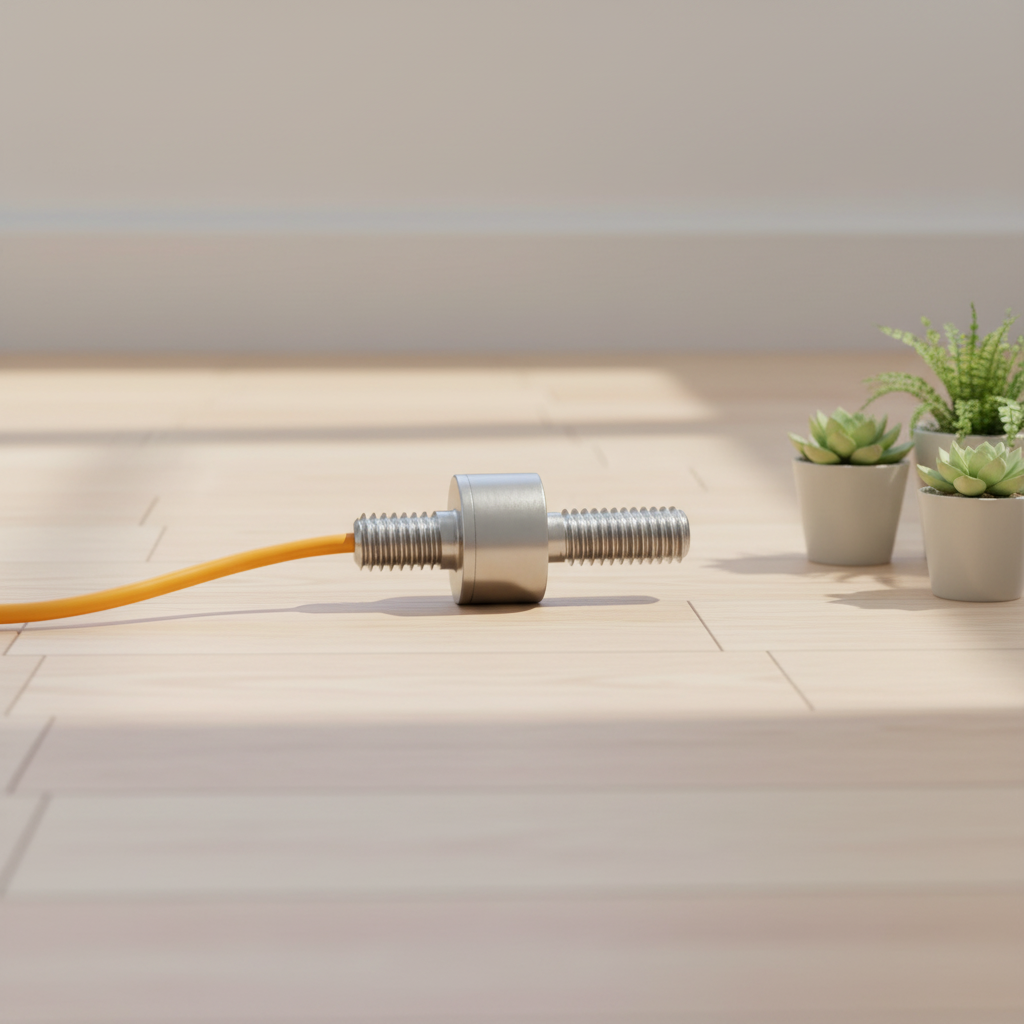

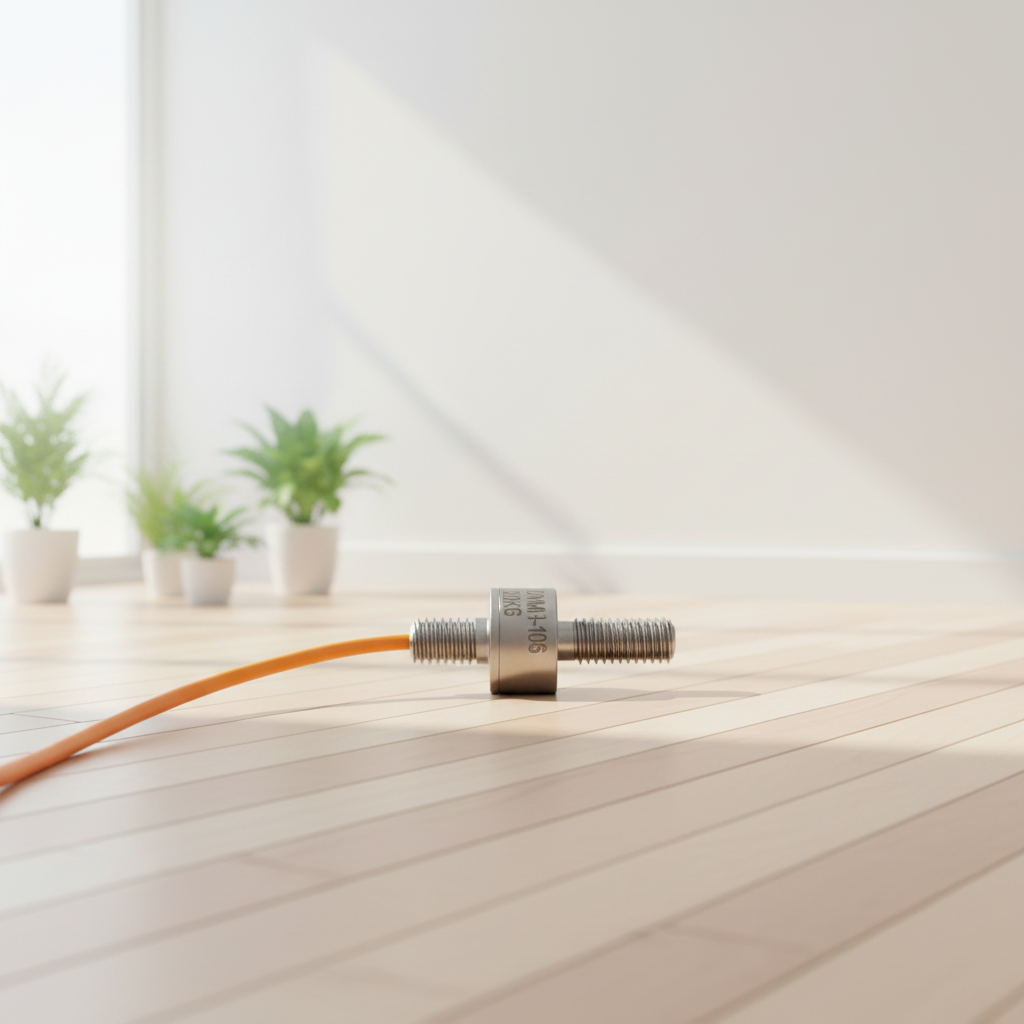

Micro Pull Rod Load Cell Sensor Screw Type Inline Load Cell 5kg 50kg 500kg 1T SOPMH-106 Micro Weighing Sensor for Tensile Tester

Brand SOP

Product origin China

Delivery time 3-7days

Supply capacity 300 pcs/day

1.This capsule type sensor can be installed directly with screws. Attention should be paid to the center displacement deformation of the sensor during installation. When using a tension sensor, it is best to use a soft connection, such as a universal joint. When using a pressure sensor, one end can be fixed (usually at the fixed end, the deformation end is subjected to force). When fixing, attention should be paid to the flatness and verticality of the force axis.
2.It is suitable for aging testing machines for 3C digital products, force detection on production lines, force monitoring on automated assembly lines, pressure testing machines, and other automation fields.
3.It is suitable for aging testing machines for 3C digital products, force detection on production lines, force monitoring on automated assembly lines, pressure testing machines, and other automation fields.

Send Email

Micro Pull Rod Load Cell Sensor Screw Type Inline Load Cell 5kg 50kg 500kg 1T SOPMH-106 Micro Weighing Sensor for Tensile Tester

Product Description

Product Features

2.It is suitable for aging testing machines for 3C digital products, force detection on production lines, force monitoring on automated assembly lines, pressure testing machines, and other automation fields.

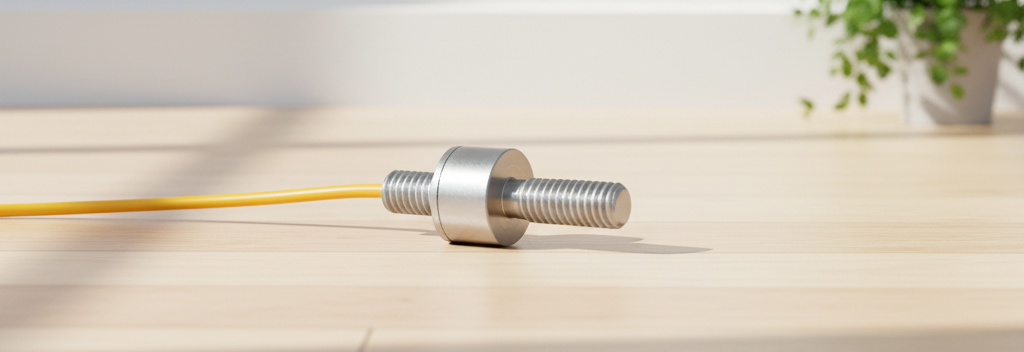

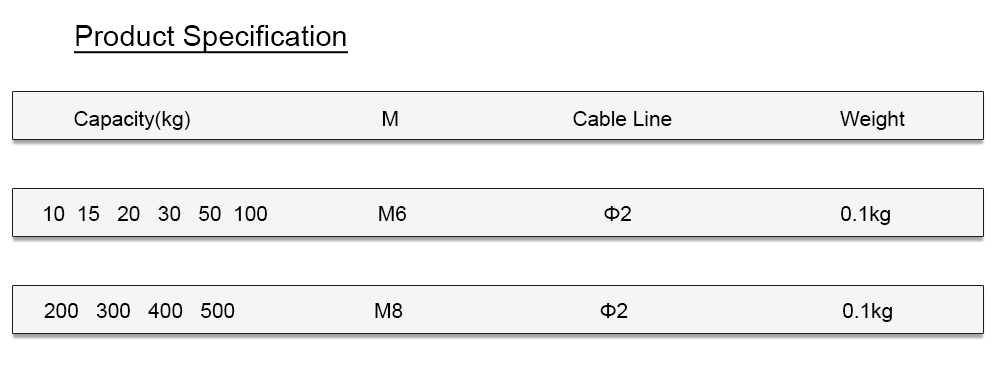

Screw Type Inline Load Cell

Product Paramenters

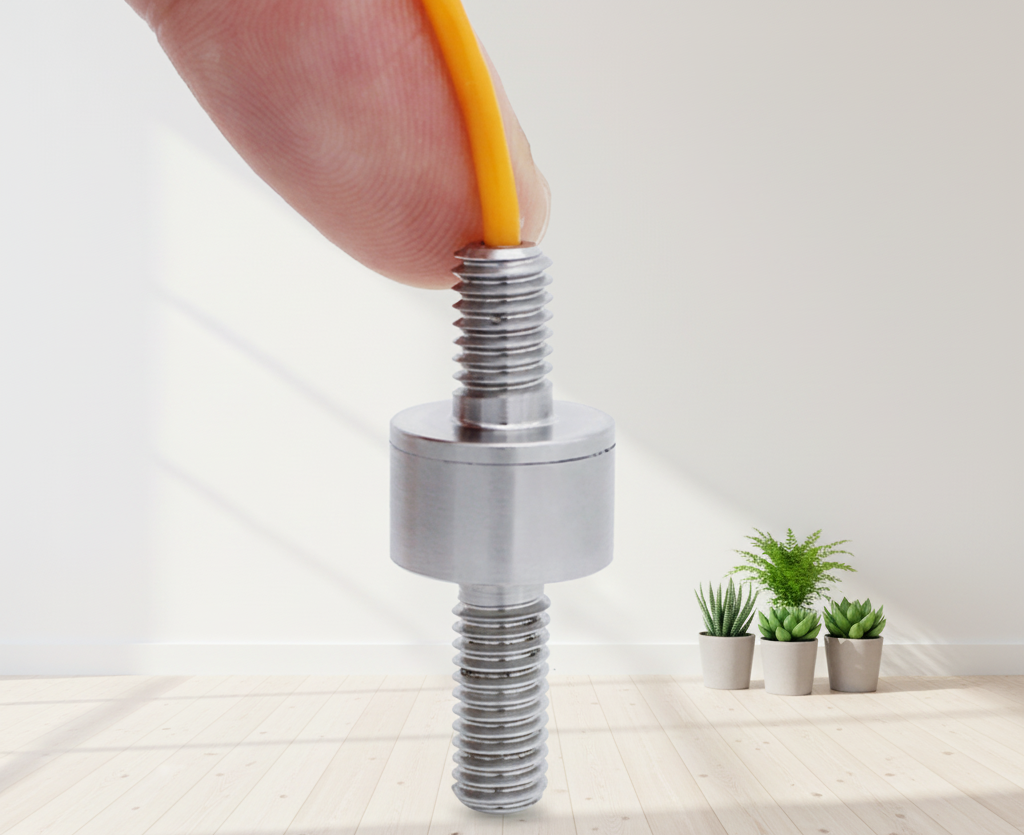

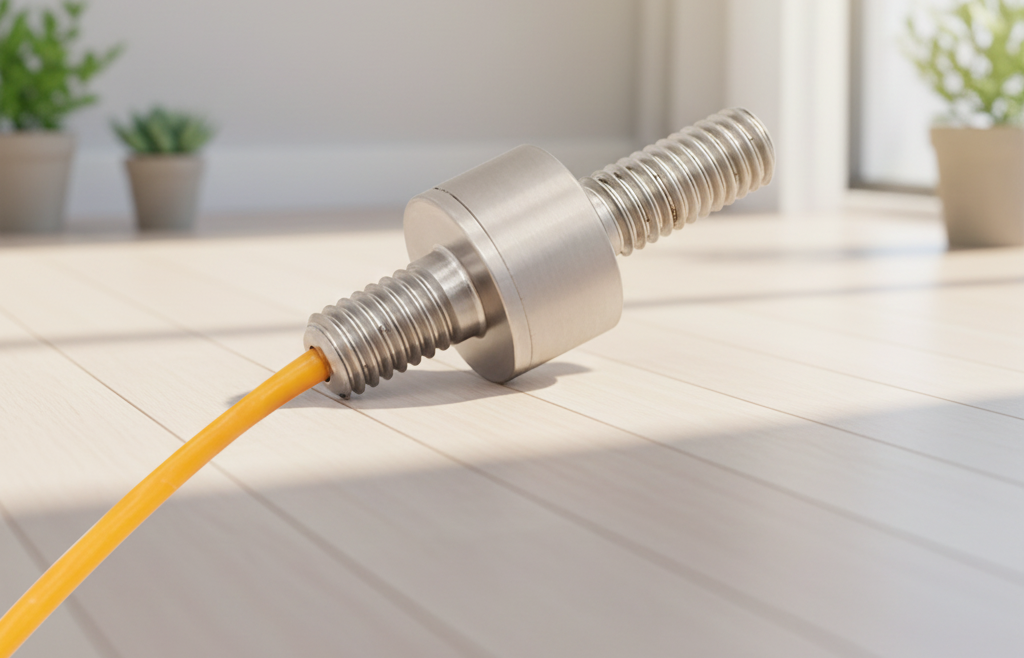

Micro weighing sensor

Capacity	0-500kg	Material	Stainless Steel
Output Sensitivity	1.0±20%mV/V	Impedance	350/500/1000Ω
Zero Output	±5%F.S.	Insulance	≥5000MΩ/100VDC
Non-Linearity	1%F.S.	Operating Voltage	5-10V
Hysteresis	0.5%F.S.	Operating Temperature Range	-20-80℃
Repeatability	0.5%F.S.	Safe Overload	120%
Creep(30min)	0.1%F.S.	Ultimate Overload	200%
Temp Effect on Output	0.2%F.S./10℃	Cable Specifications	φ2x2m
Temp Effect on Zero	0.2%F.S./10℃	Cable Ultimate Pull	10kg
Response Frequency	10kHz	TEDS

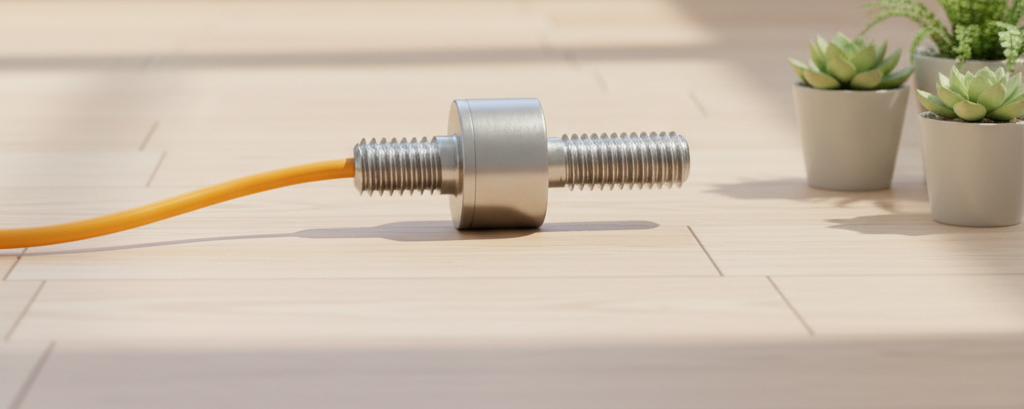

Load Cell Sensor

Screw Type Inline Load Cell

Industry Applications

Micro weighing sensor

Packing & Delivery

Micro Miniature Load Cell Tension Sensor Pull Rod Pressure Weight Sensor 60kg 100kg 200kg 300kg 500kg

♦ Packing:

1* Load cell packing materials are eco-friendly and really protect your product well. Each item has its own independent foam/sponge/plastic bag packaging, then packed in a carton

♦ Delivery:

A wide range of options : Express(Fedex, DHL, TNT, EMS, UPS etc.) air and shipping

Company Profile

Micro weighing sensor

Load Cell Sensor

Screw Type Inline Load Cell

FAQ

1. What is the MOQ?

If we don't have it in stock, the MOQ is different according different models.

If we have it in stock, we can ship you even 1 pc as sample.

2. What is lead time?

If we have it in stock, we can ship it to you within about 3-5 working days.

If we don't have it in stock, the lead time will be 10-30 days normally.

3. What is the payment terms?

T/T, Western Union, Escrow alibaba is acceptable.Escrow is same like paypal, after you place the order and make the payment on alibaba.com, alibaba company will notify us to make the shipment, your money won't be released until you get the goods. If we don't make the shipment, you still can take back your money.

4. What is the express delivery？

DHL, Fedex, TNT ,EMS, UPS etc.We will choose the safe and cheapest way for you to reduce your cost.Economic shipping way: by sea, by air transport .If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.

5. Can you design and customize products for me?

Definitely, we are extremely good at customizing various load cells. If you have any needs, please tell us. However, the customized products would postpone shipping time.

6. How long is your warranty period?

Our warranty period is 12 months.
