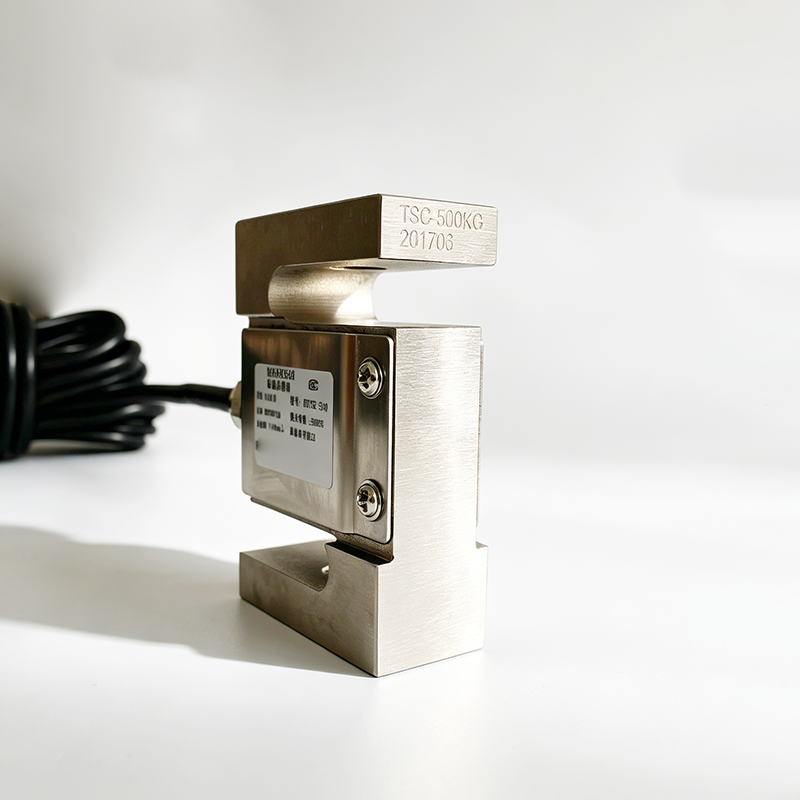

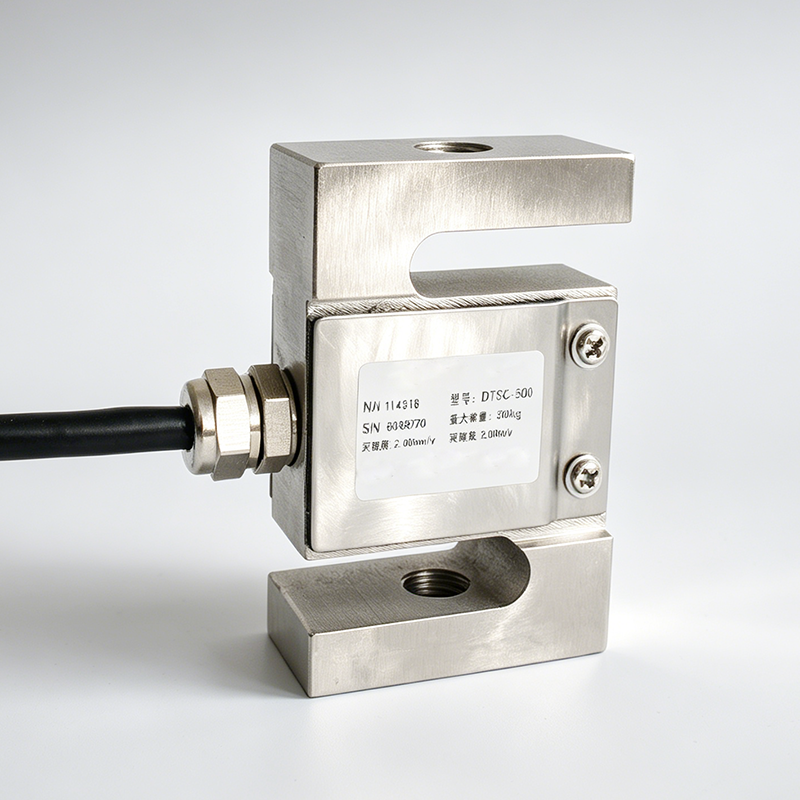

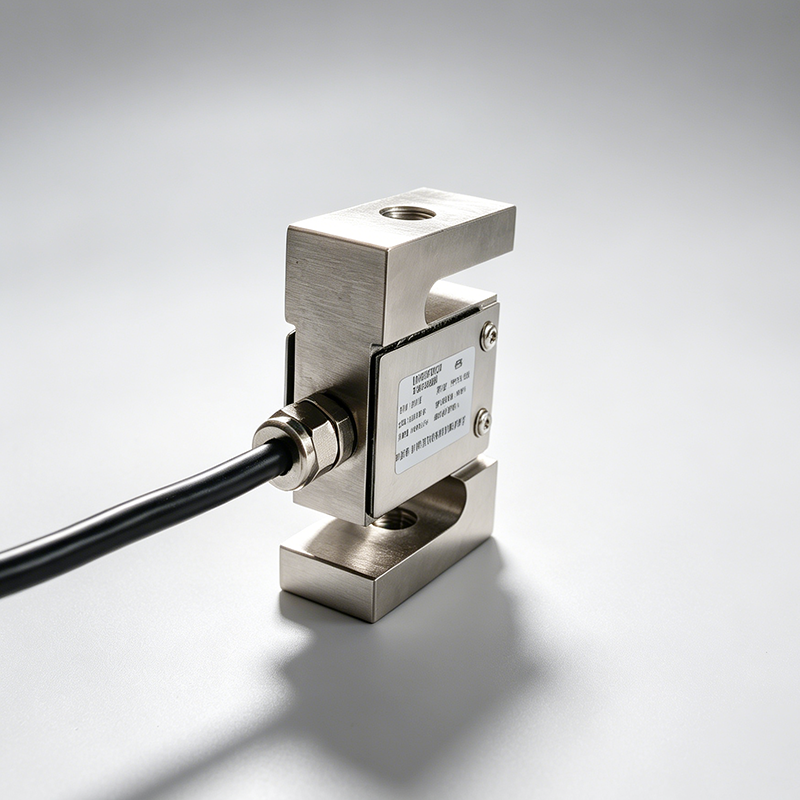

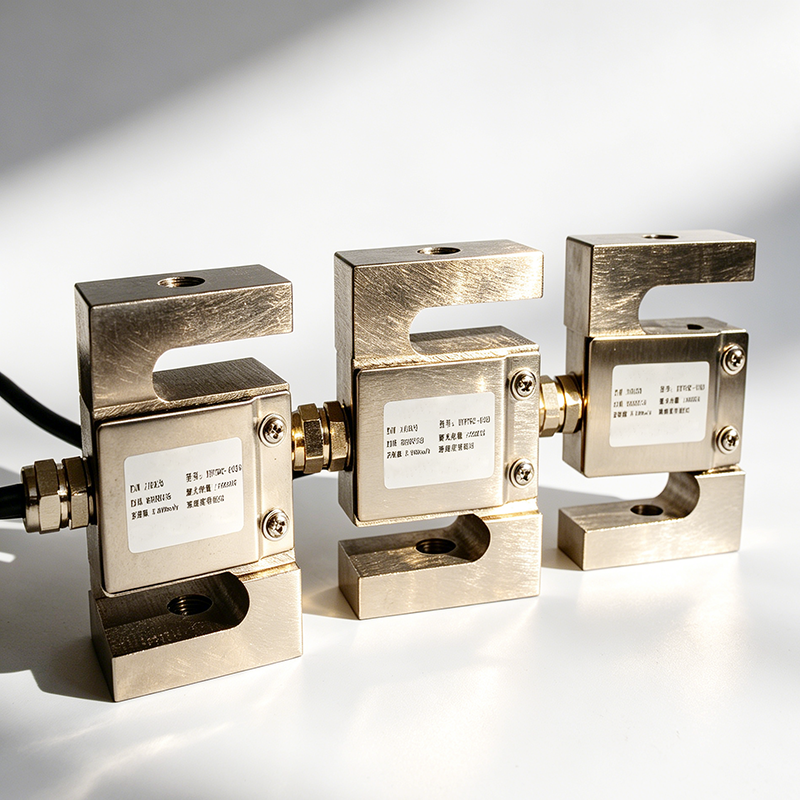

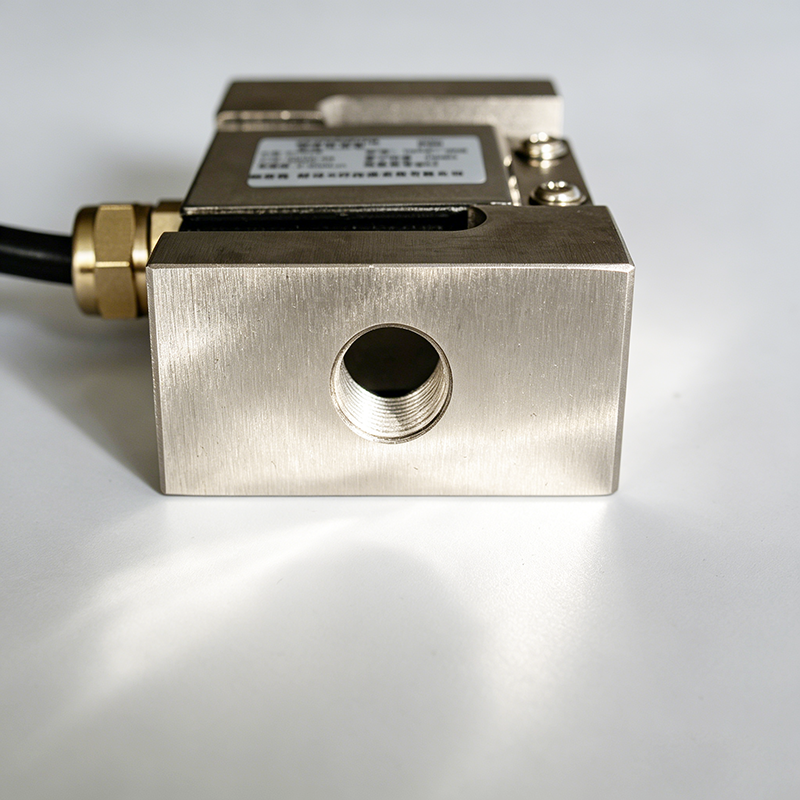

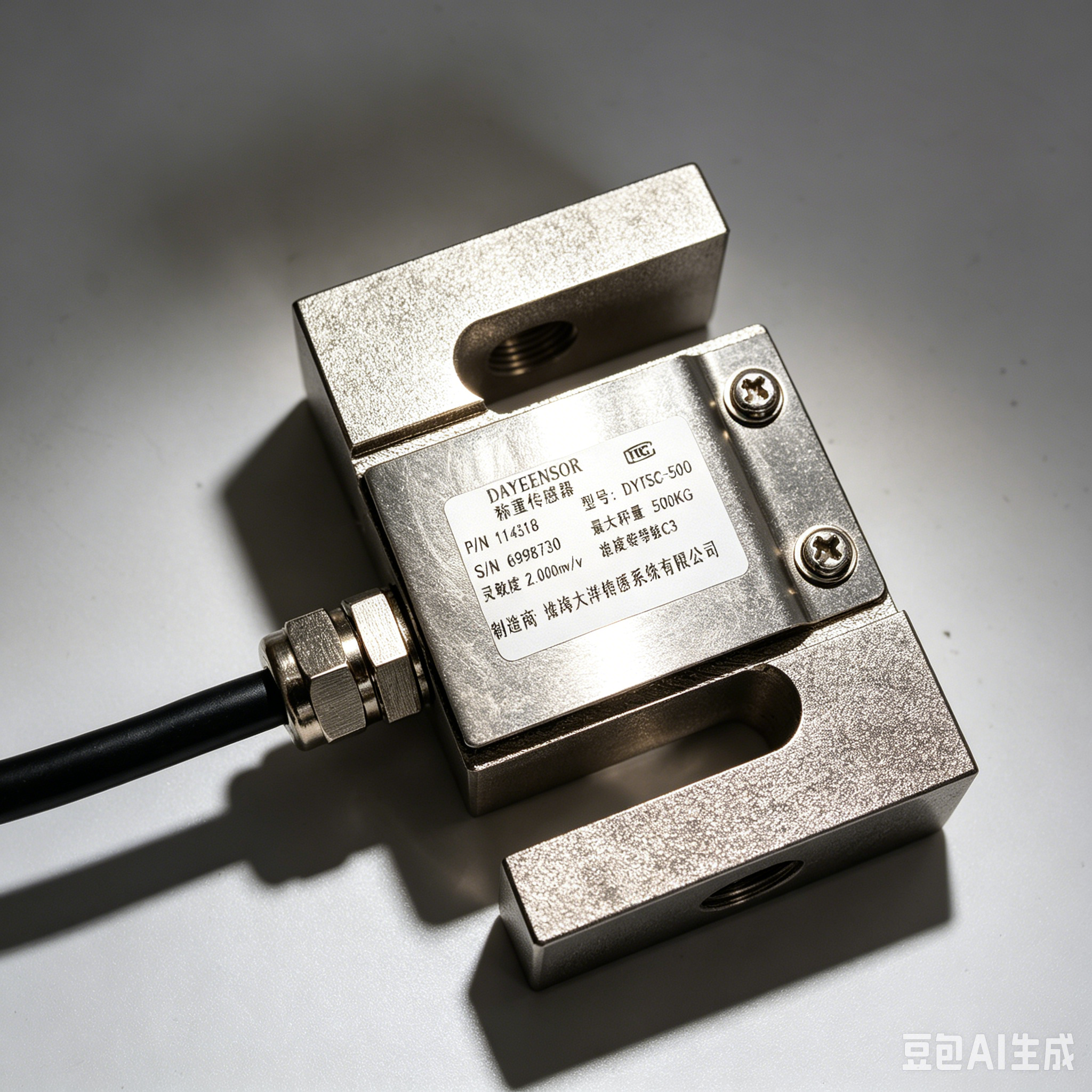

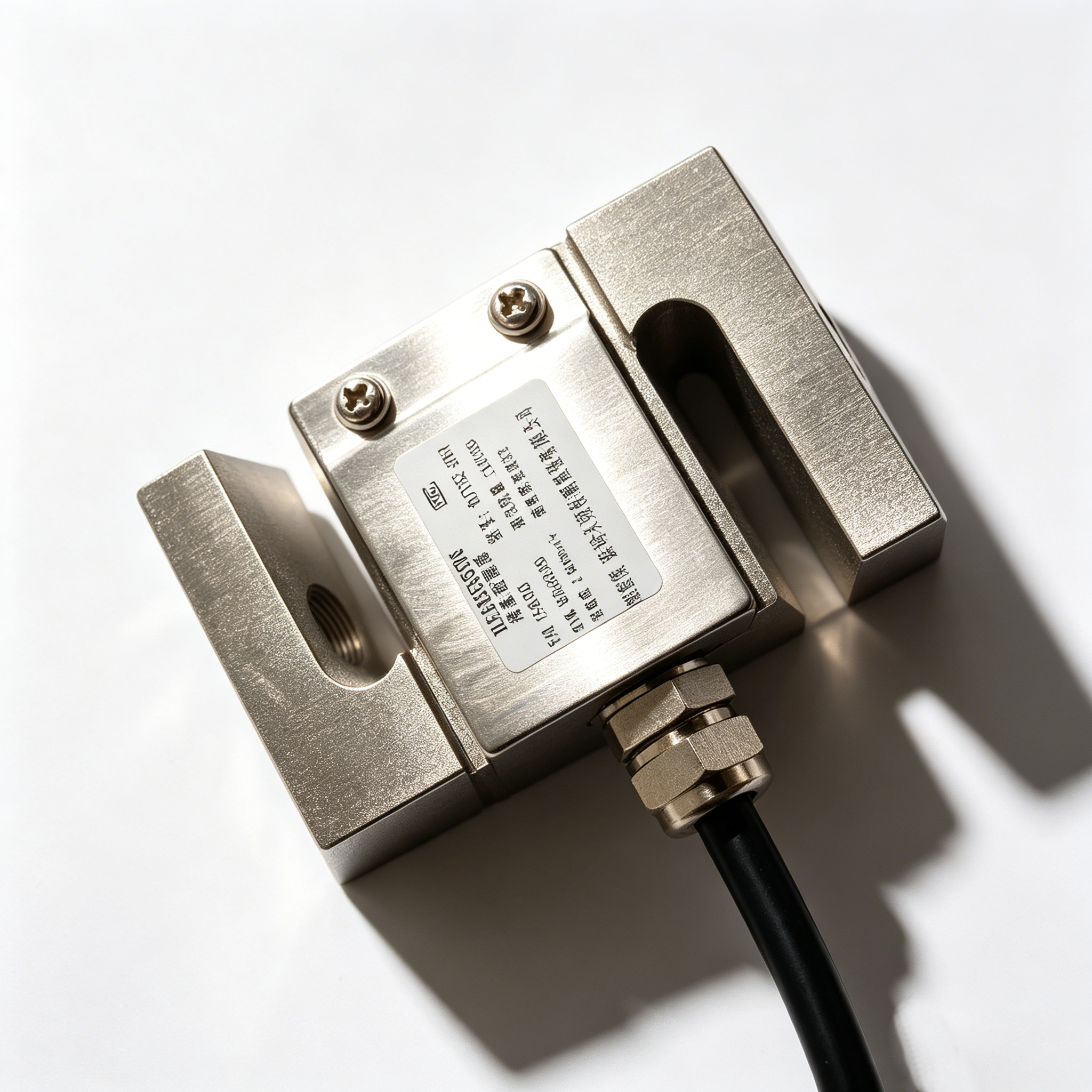

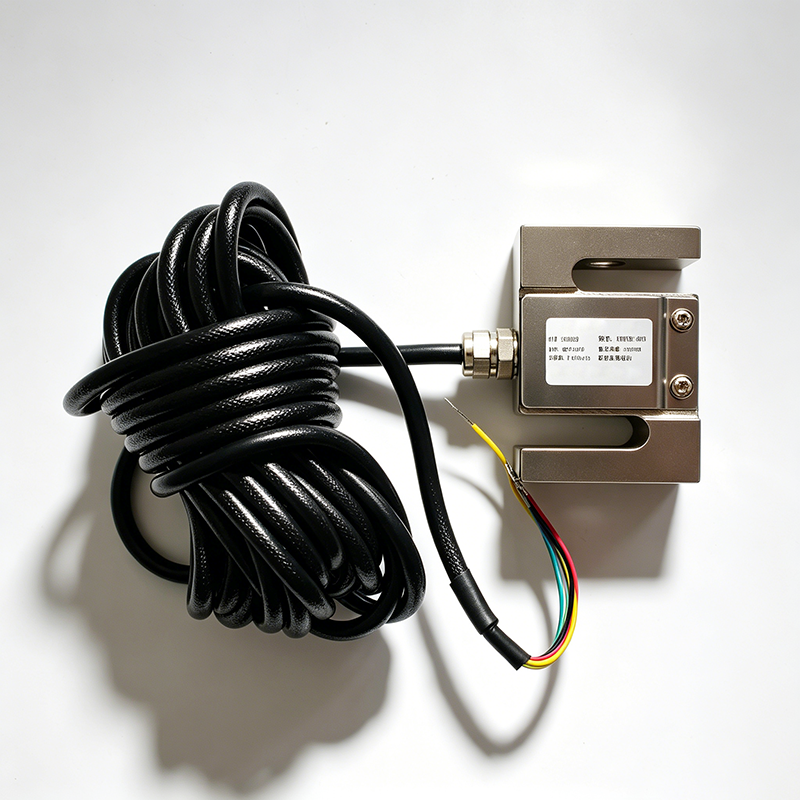

S-Type Load Cell 50kg-5T Tension Compression Force Sensor 2.0-3.0mV/V Weighing Sensor for Industrial Automation & Hopper Scale
Brand SOP
Product origin China
Delivery time 3days
Supply capacity 300 pcs/day
1、S-shape is a common shape of force sensor, which is characterized by simple structure, light weight, convenient installation, high precision, good linearity and high stability. This kind of sensor is usually used to measure light load and medium load.
2、S-Type load cells that receive tension or compression forces. Applications include tank weighing, hoppers, suspended loads and truck scales. S-Type load cells provide superior performance in a compact, versatile package.
3、it can be used in mechanical and electrical integration scales, crane scales, hopper scales and various special application scales and industrial measurement systems.
Product Description
1、S-shape is a common shape of force sensor, which is characterized by simple structure, light weight, convenient installation, high precision, good linearity and high stability. This kind of sensor is usually used to measure light load and medium load.
2、S-Type load cells that receive tension or compression forces. Applications include tank weighing, hoppers, suspended loads and truck scales. S-Type load cells provide superior performance in a compact, versatile package.
Product Parameters
| Parameter Table | |||
| Measuring Range | 50kg-5T | Material | Alloy steel |
| Output Sensitivity | 2.0-3.0±10%mV/V | Resistance | 350Ω |
| Zero Output | ±1%F.S. | Insulance | ≥5000MΩ/100VDC |
| Non-Linear | 0.03%F.S. | Operating voltage | 5-15v |
| Hysteresis | 0.03%F.S. | Operating temperature range | -20-80℃ |
| Repeatability | 0.03%F.S. | Safety overload | 150% |
| Creep(30min) | 0.03%F.S. | Ultimate overload | 300% |
| Temp.effect on output | 0.03% F.S. / 10ºC | Cable specification | Φ5x6m |
| Temp.effect on zero | 0.05% F.S. / 10ºC | Cable ultimate tension | 10kg |
| Response frequency | 10kHz | TEDS | |

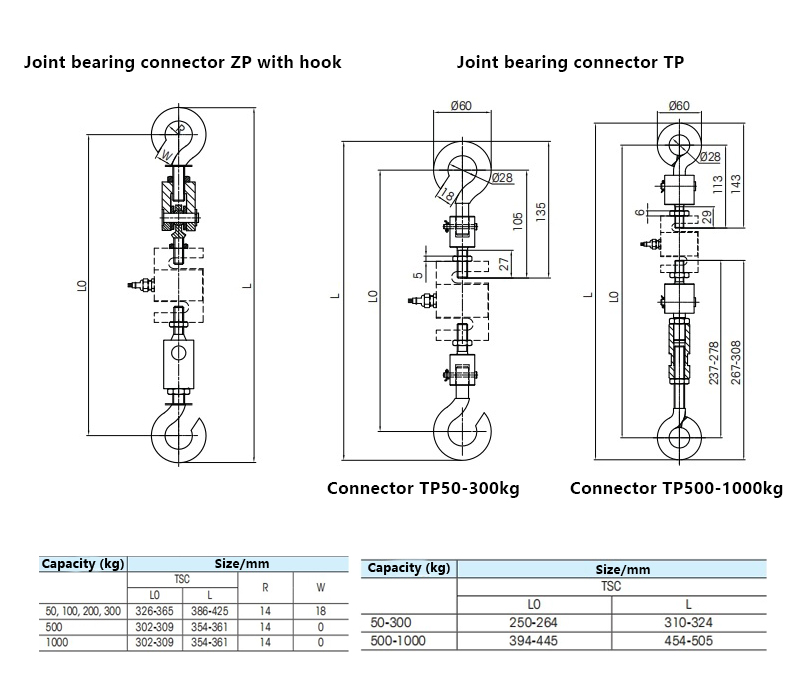

Application
Customer Feedback
Packaging&Shipping
Why choose us?
FAQ
Q3: What is the payment terms?
A: T/T, Western Union, Paypal, Escrow alibaba is acceptable.Escrow is same like paypal, after you place the order and make the payment on alibaba.com, alibaba company will notify us to make the shipment, your money won't be released until you get the goods. If we don't make the shipment, you still can take back your money.
Q4: How long is your warranty period?
A: Our warranty period is 12 months.
