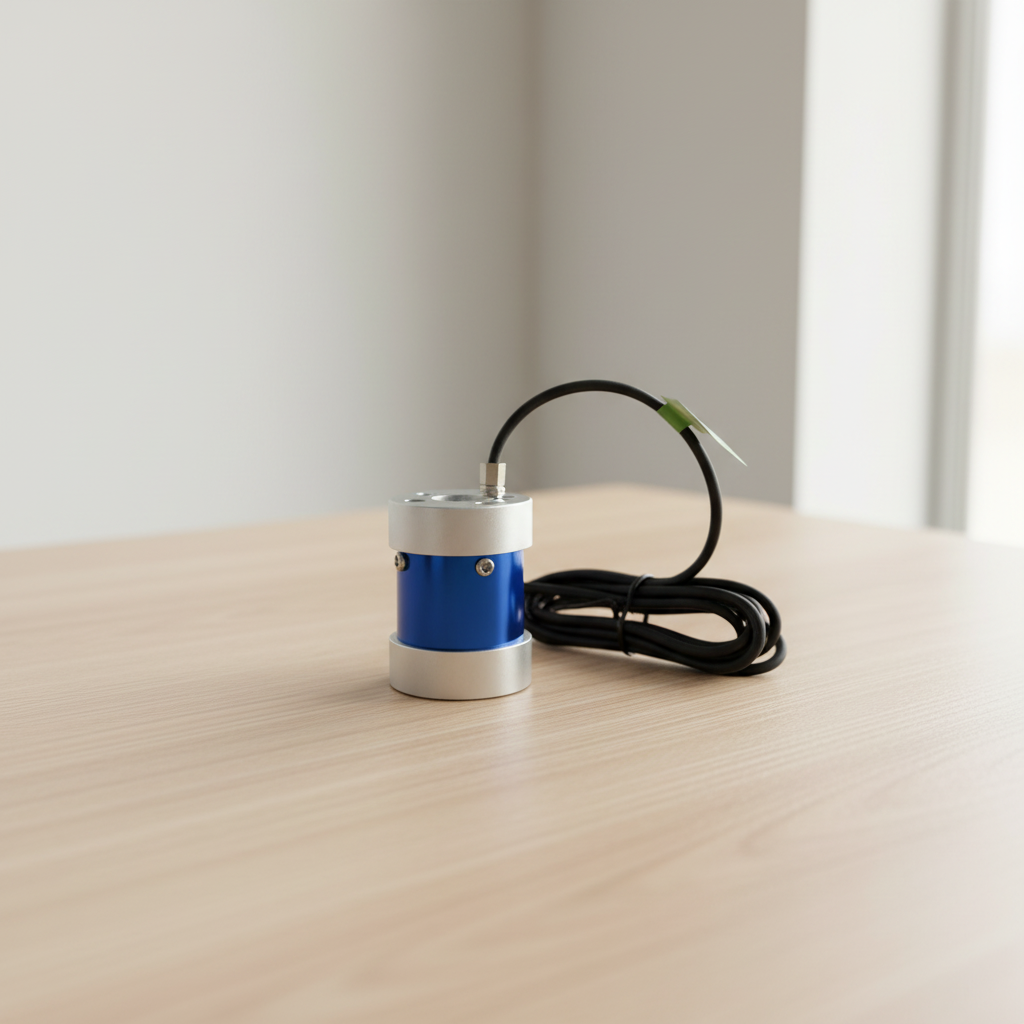

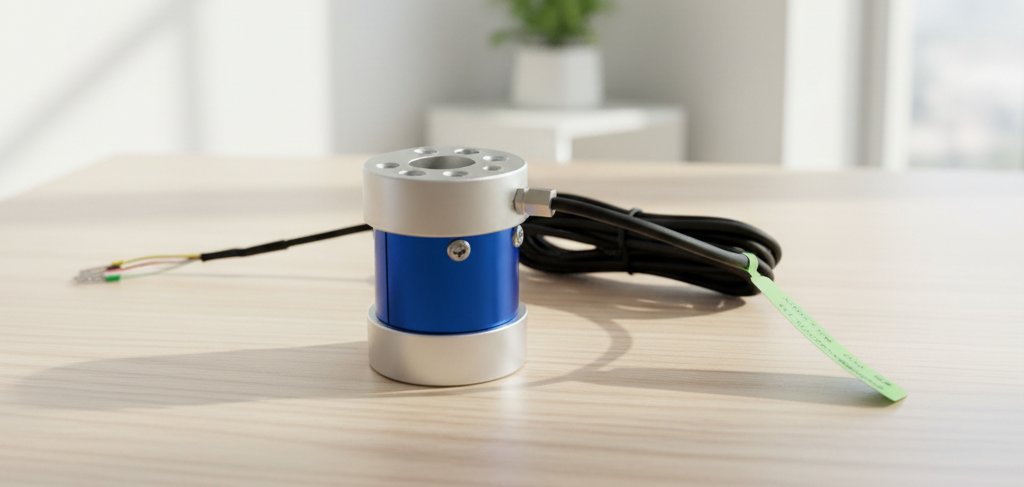

Static Torque Sensor 0.5N.m-100N.m Rotational Force Measurement Automated Torque Weight Sensor Load Cell for Automatic Testing
Brand SOP
Product origin JiangXi
Delivery time 3-7days
Supply capacity 3000PC/day

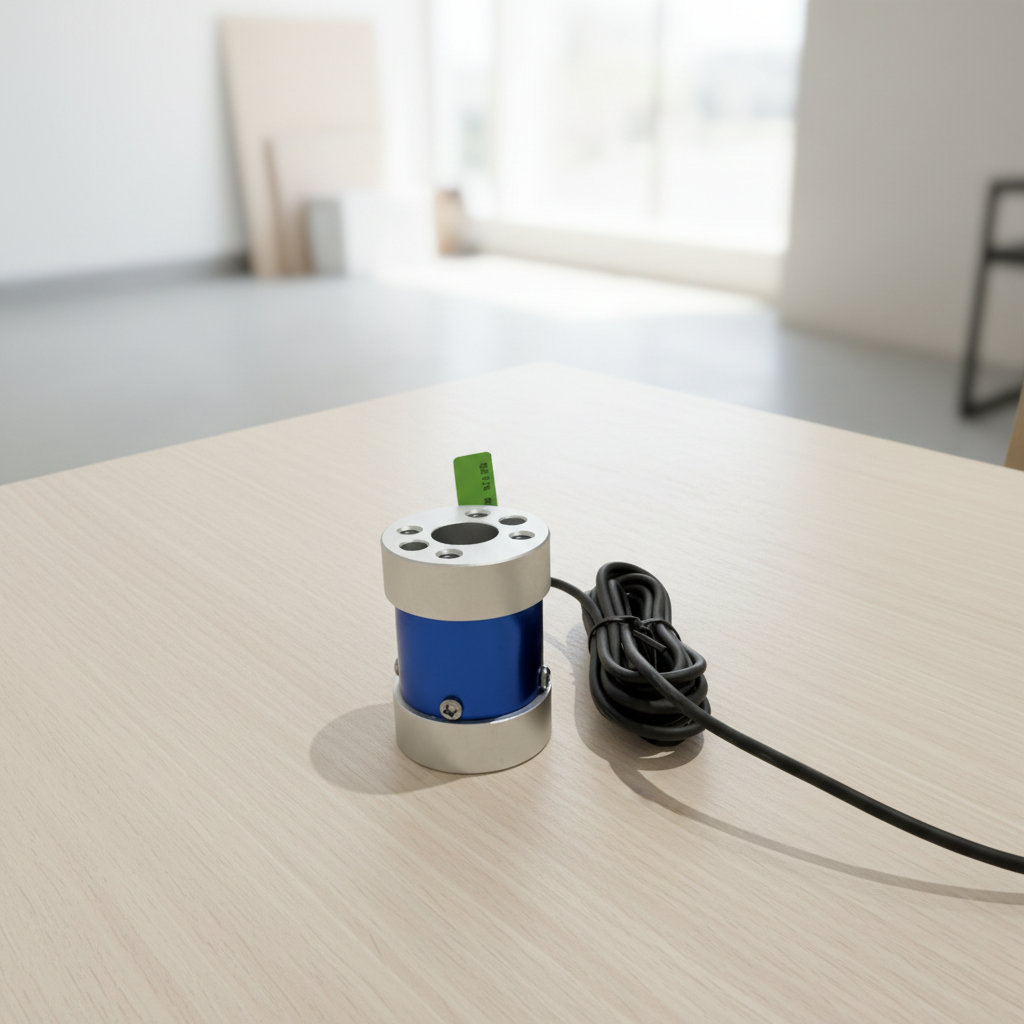

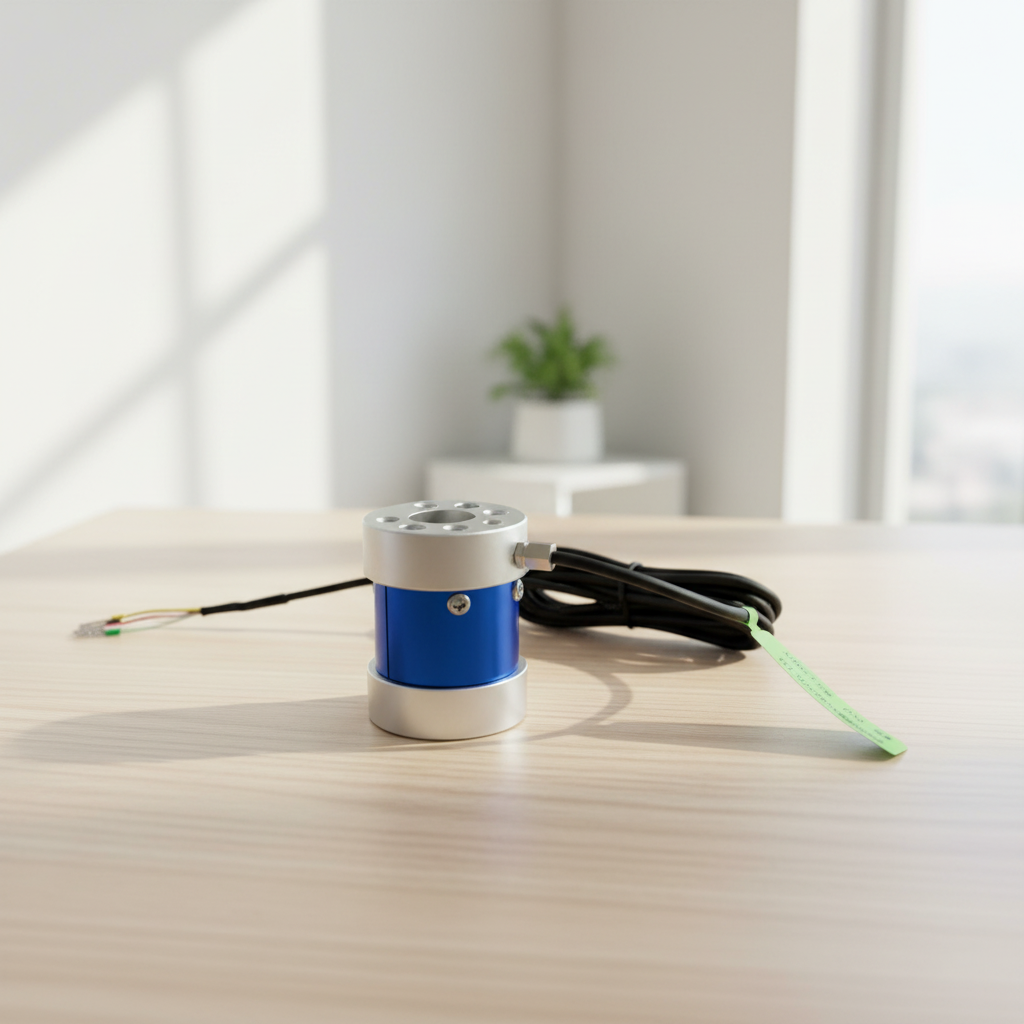

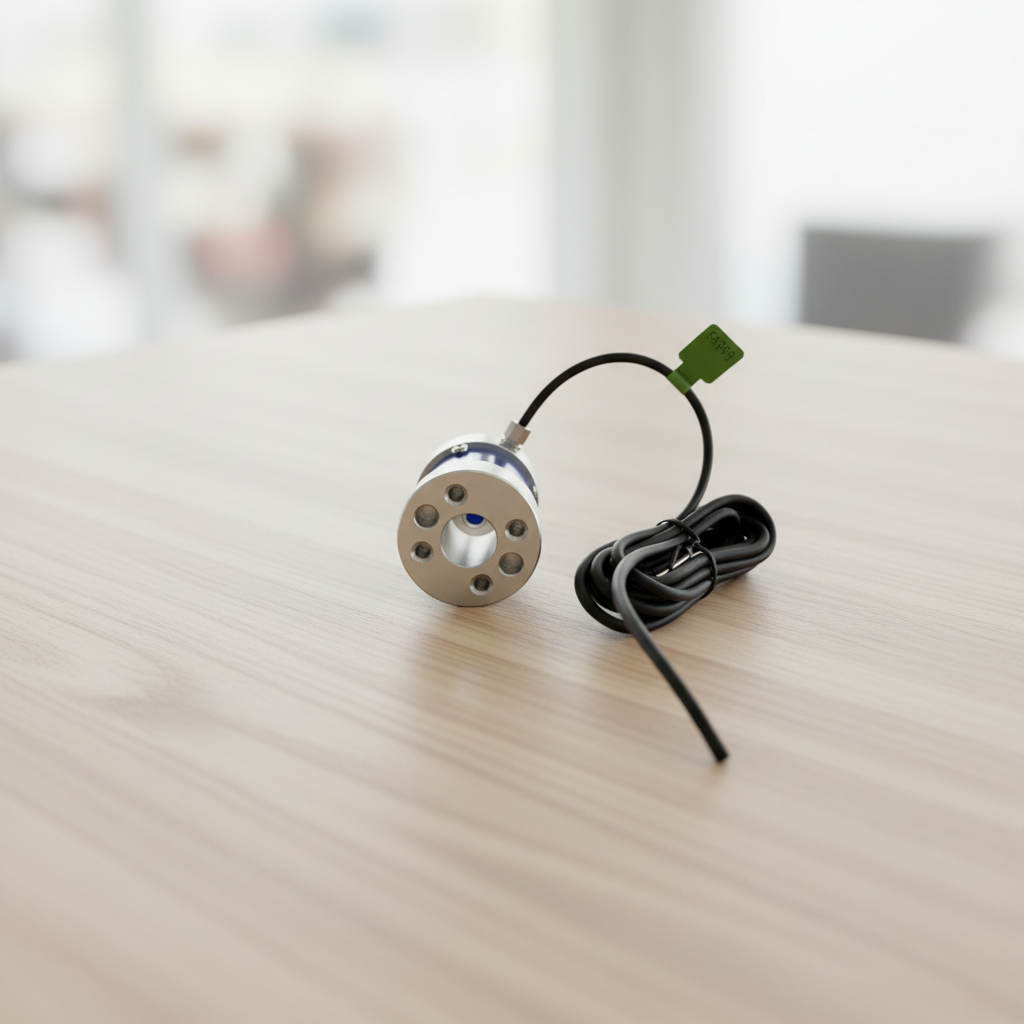

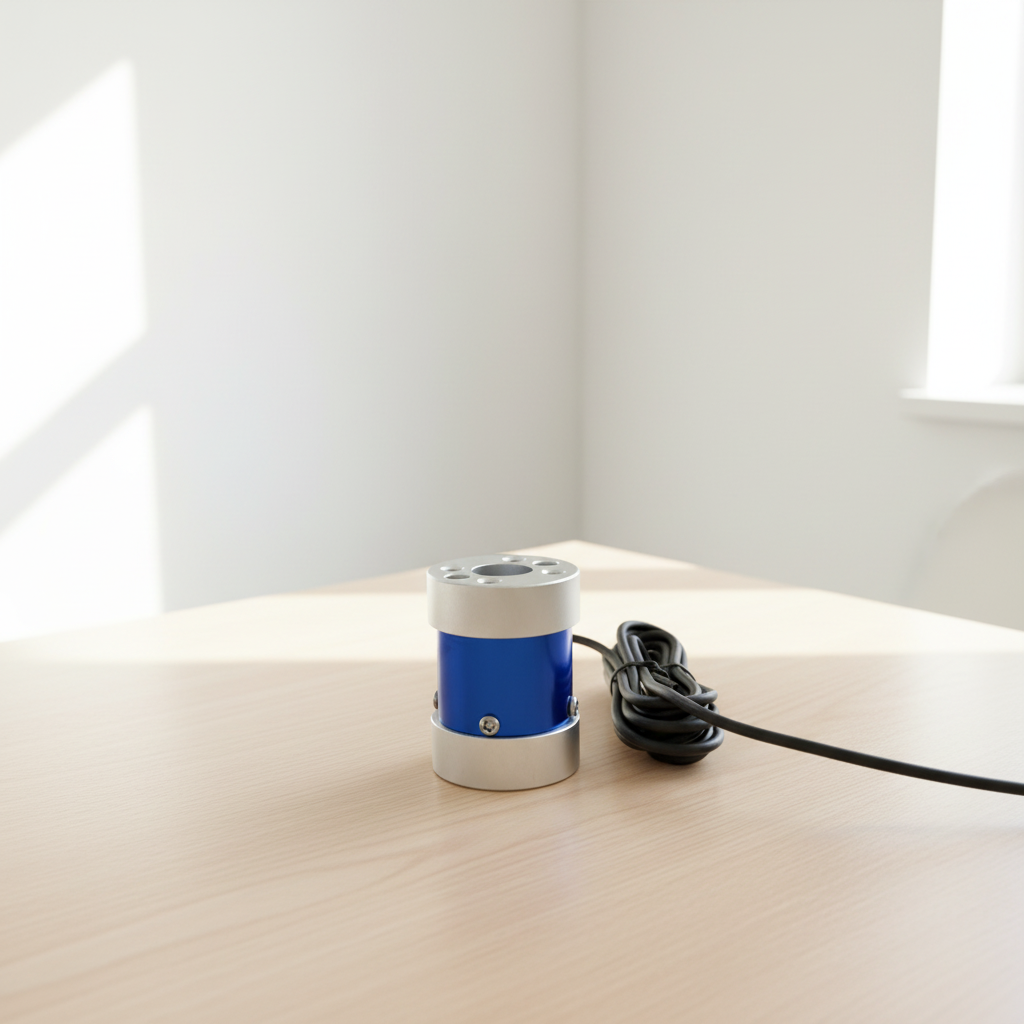

The static torque sensor is a sensor used to measure the torque of a stationary or slowly rotating object. Flange-mounted sensor is connected to a load transfer device and can output a voltage or current signal. It can be used in a variety of industrial applications, such as electric screwdrivers, torque wrenches, wind turbines, etc.
Product Description
Professional High Accuracy Torque Sensor Micro Load Cell Dynamometer for Motor Rotation Obstruction
The static torque sensor is a sensor used to measure the torque of a stationary or slowly rotating object.Flange-mounted sensor is connected to a load transfer device and can output a voltage or current signal.It can be used in a variety of industrial applications, such as electric screwdrivers, torque wrenches, wind turbines, etc.
Product Features
1.Alloy steel construction.
3.Strong anti-interference, can be installed in any position, in any direction.
4.Environmental Protection IP65 with complete hermetic sealing.

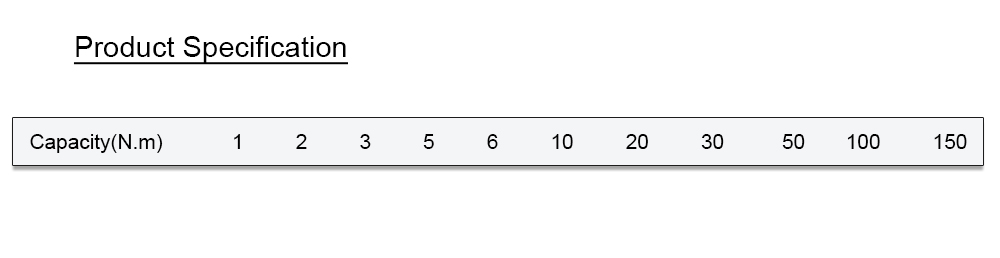

Product parameter
| Capacity | 0-150N.m |
| Rated Output | 2.0mV/V |
| Zero Balance | ±2% F.S. |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Creep(30min) | 0.05%F.S. |
| Temp.effect on output | 0.05% F.S. / 10ºC |
| Temp.effect on zero | 0.05% F.S. / 10ºC |
| Response Frequency | 10kHz |
| Material | Alloy steel/Aluminum Alloy |
| Operating Voltage Range | 5-15V |
| Operating Temp Range | -20-80℃ |
| Safe overload | 150% |
| Maximum Overload | 200% |
| Cable size | Φ3*2m |
| Cable ultimate pull | 10kg |

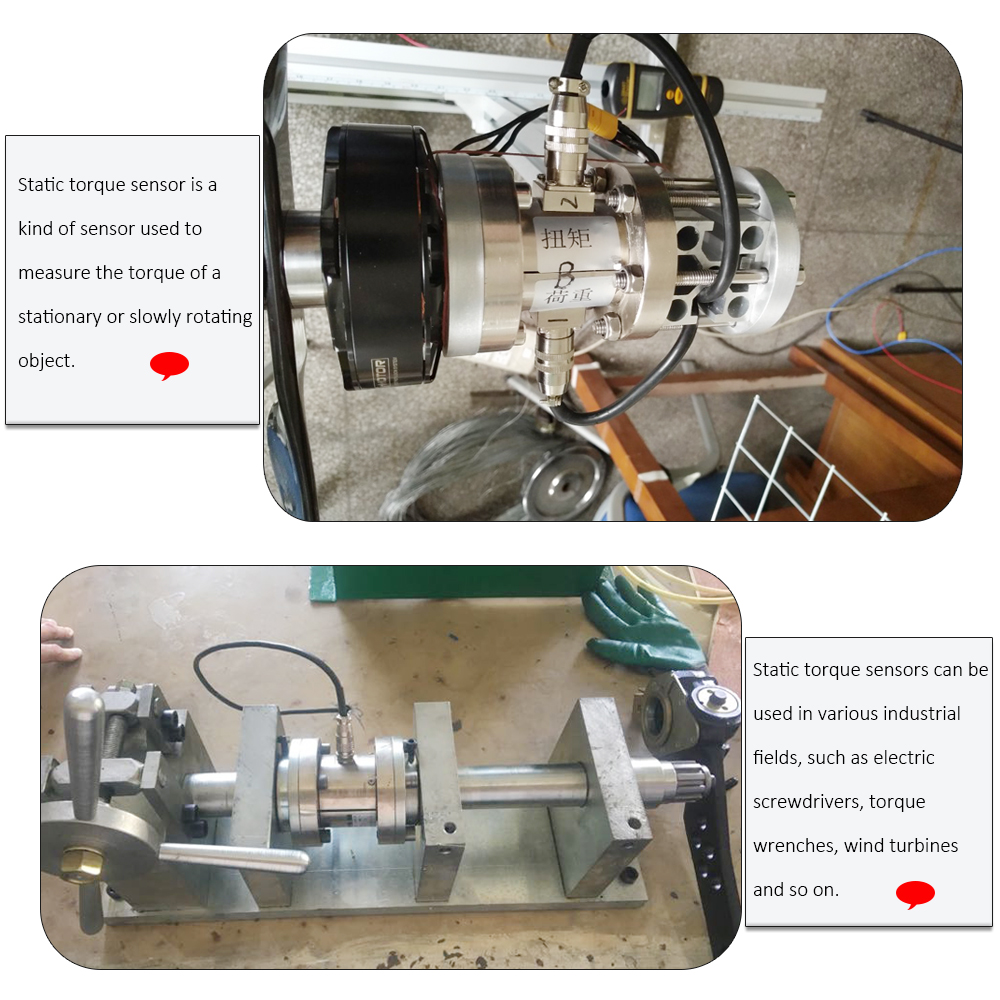

Applications

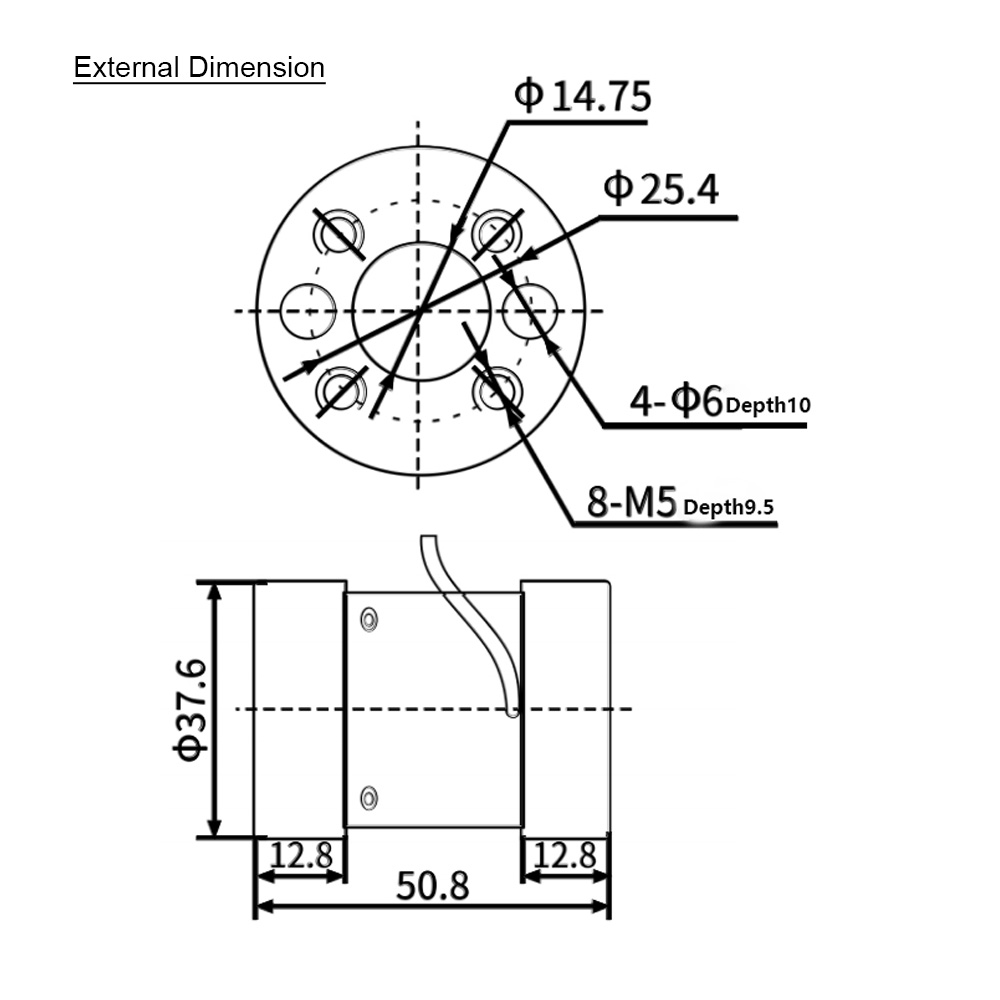

product size
