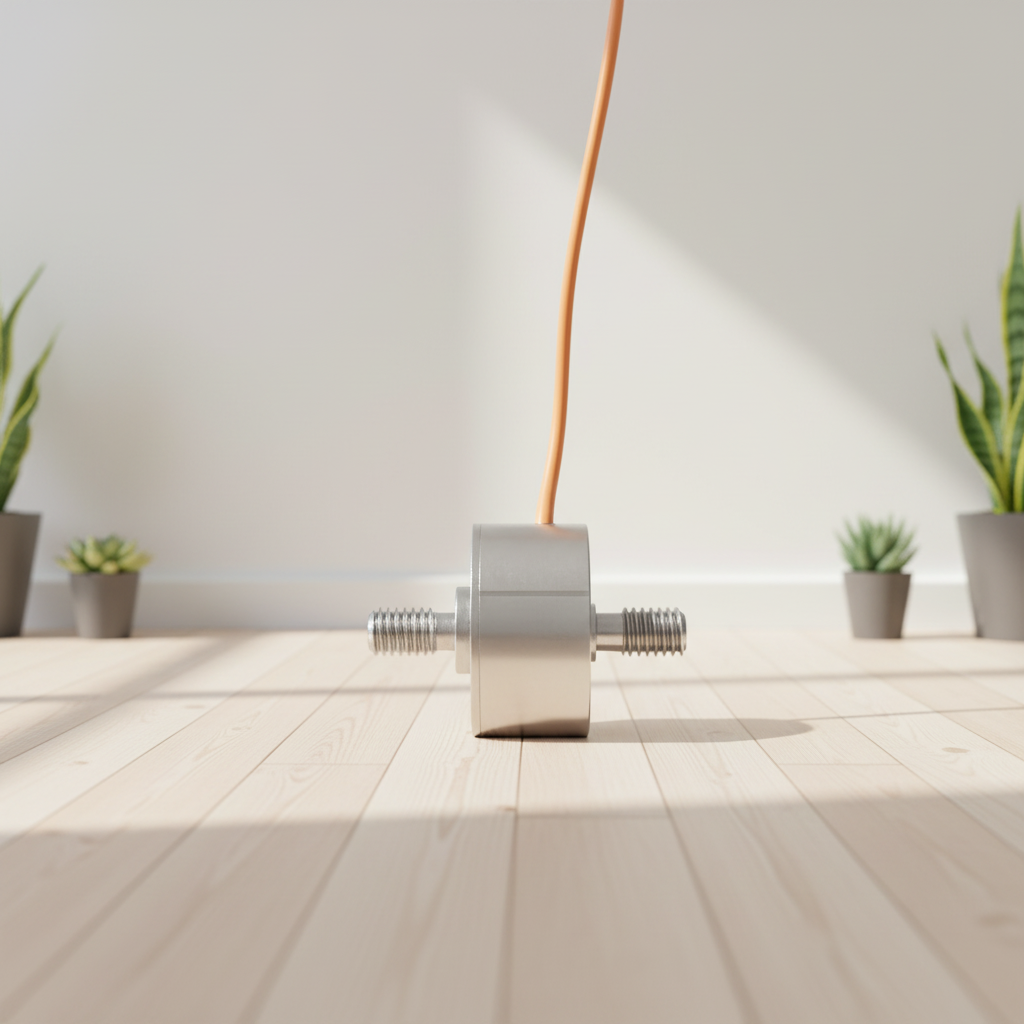

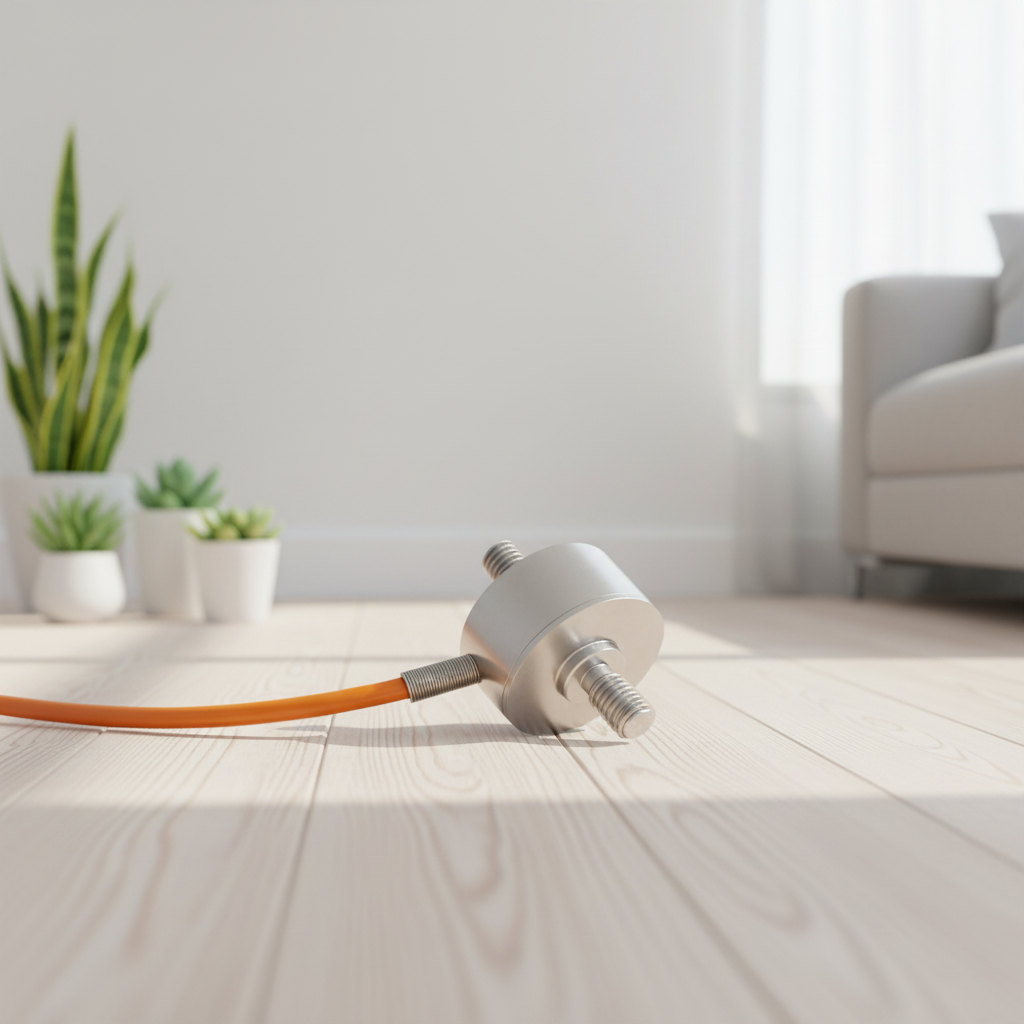

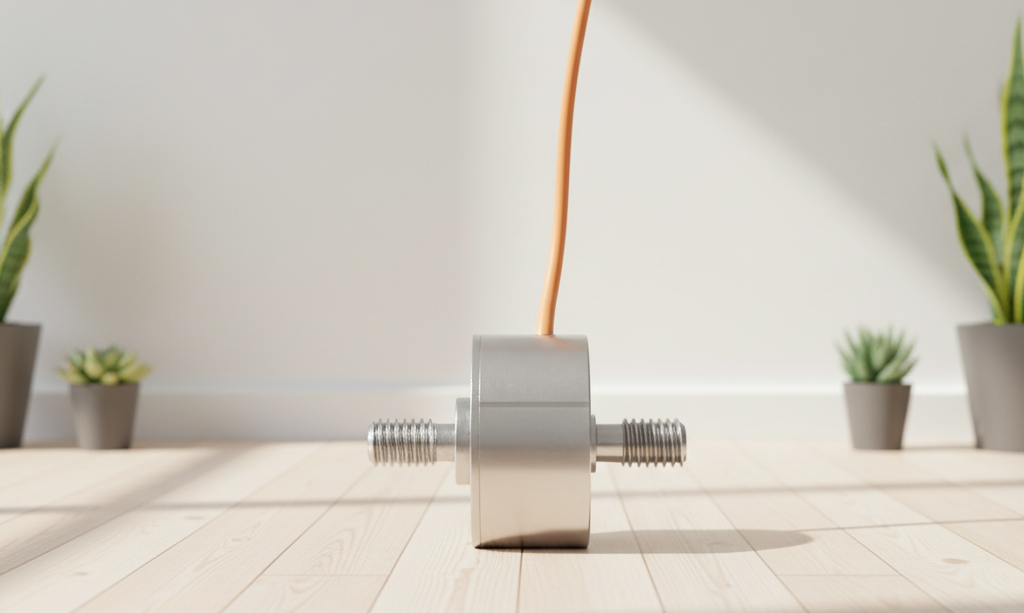

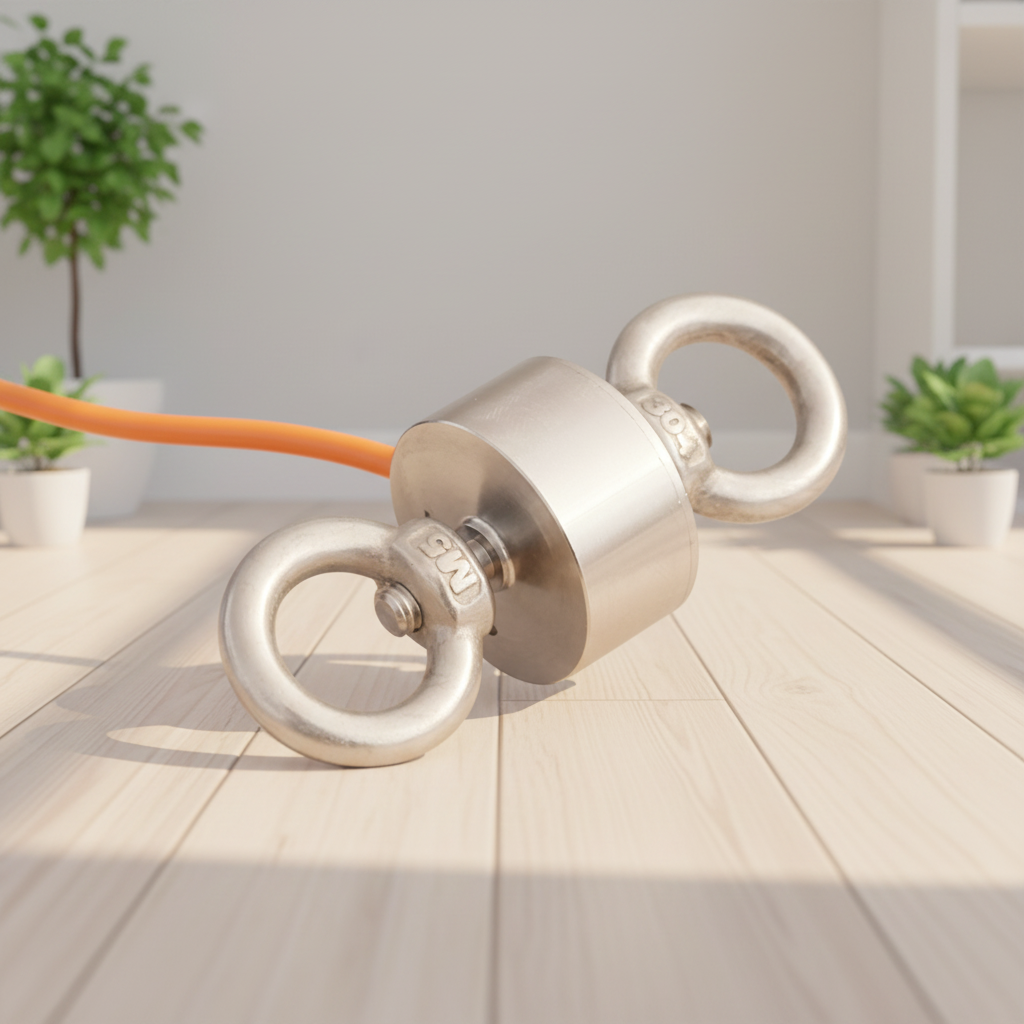

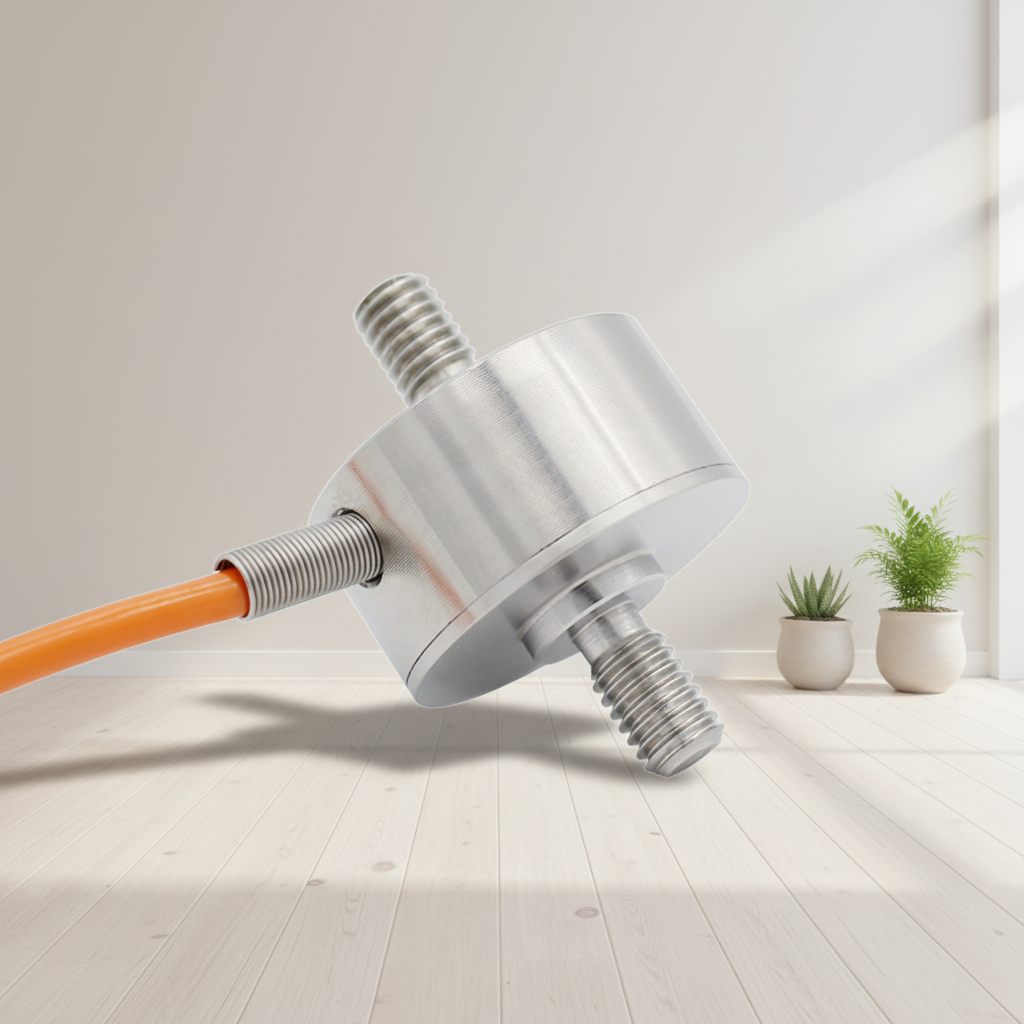

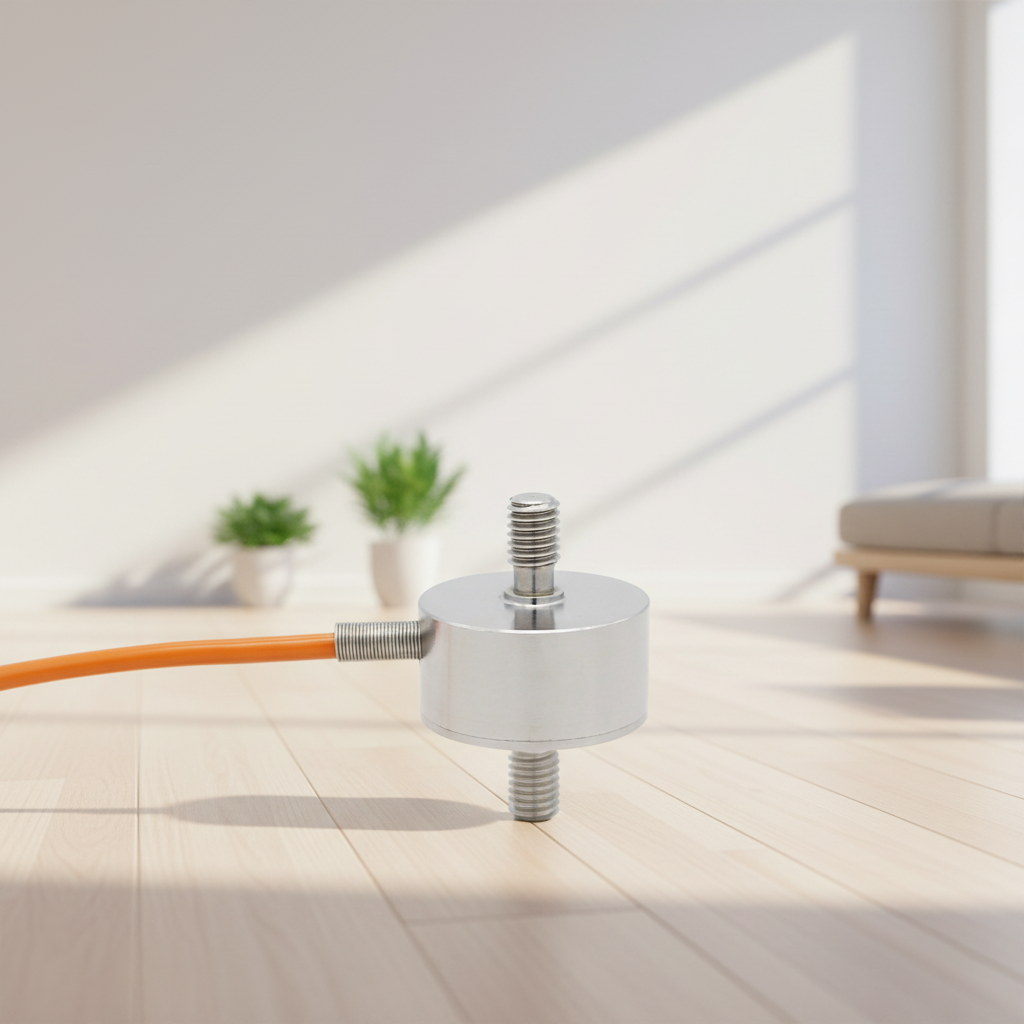

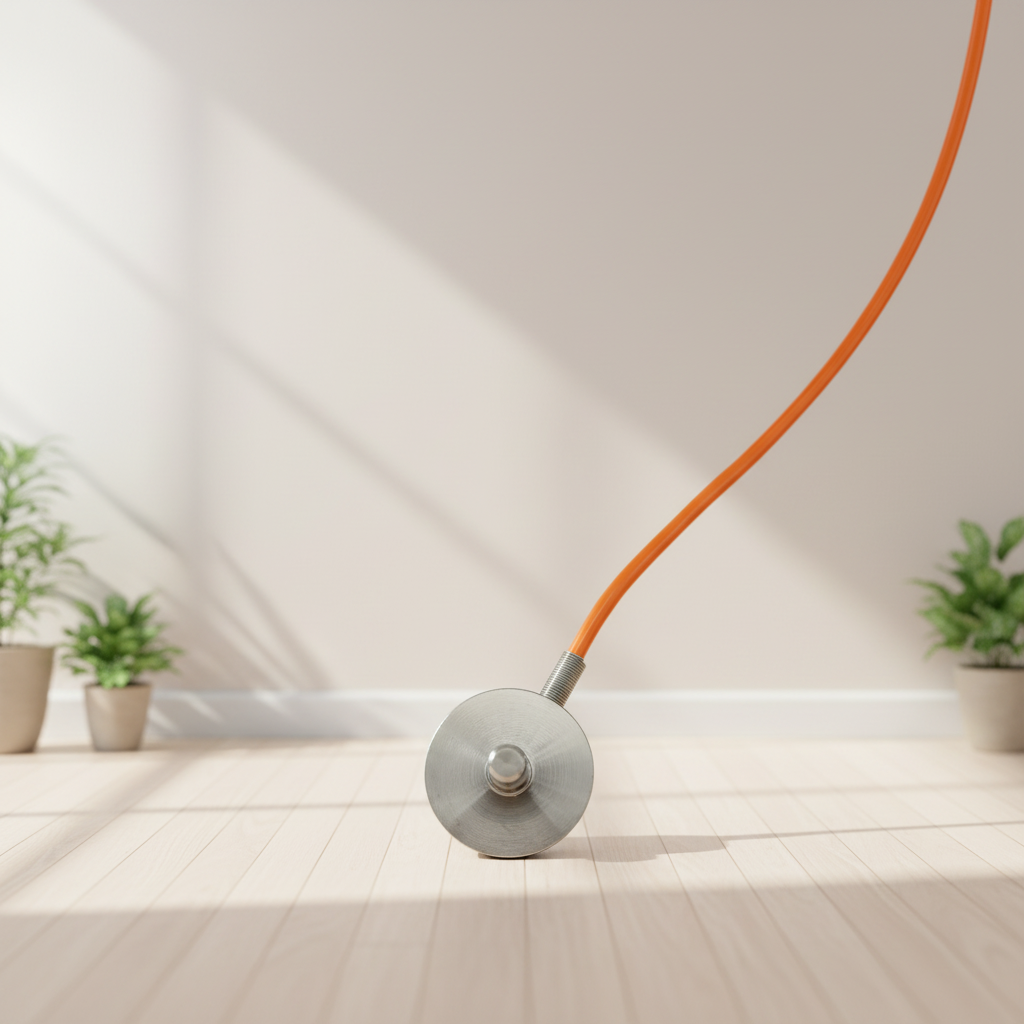

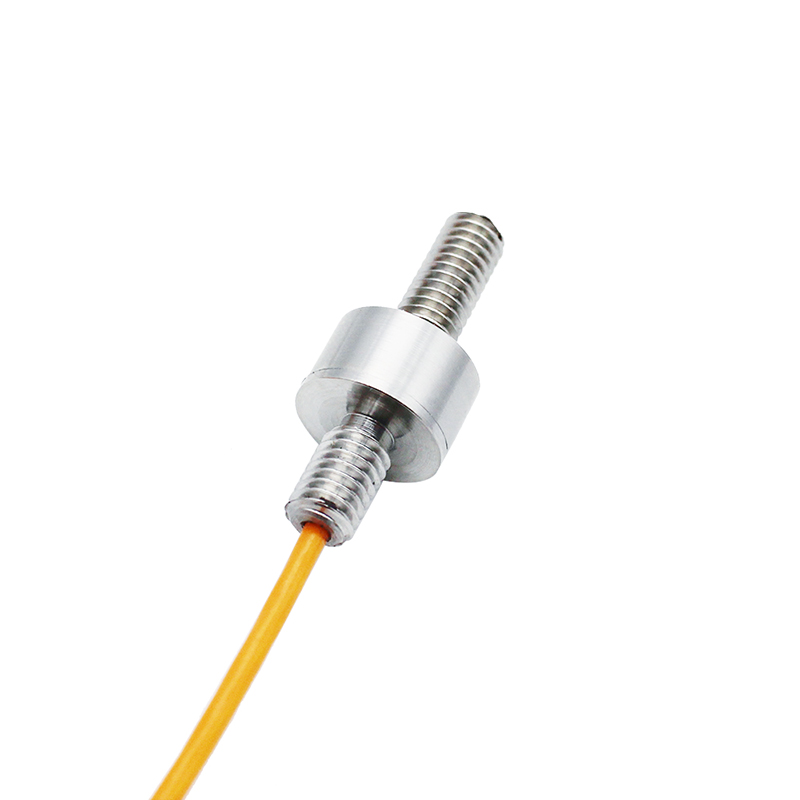

Weight Sensor Micro Load Cell In-Line Threaded Design 5-500KG Tension/Compression Force Sensor for Industrial Measurement

Brand SOP

Product origin China

Delivery time 3-7days

Supply capacity 300 pcs/day

1.This model can be installed directly with screws，Attention should be paid to the center displacement deformation of the sensor during installation.
2.When using a tension sensor, it is best to use a soft connection, such as a universal joint. When using a pressure sensor, one end can be fixed (usually at the fixed end, the deformation end is subjected to force). When fixing, attention should be paid to the flatness and verticality of the force axis.
3.It is suitable for aging testing machines for 3C digital products, force detection on production lines, force monitoring on automated assembly lines, pressure testing machines, and other automation fields.

Send Email

Weight Sensor Micro Load Cell In-Line Threaded Design 5-500KG Tension/Compression Force Sensor for Industrial Measurement

Product Description

Product Features

1.This model can be installed directly with screws，Attention should be paid to the center displacement deformation of the sensor during installation.

2.When using a tension sensor, it is best to use a soft connection, such as a universal joint. When using a pressure sensor, one end can be fixed (usually at the fixed end, the deformation end is subjected to force). When fixing, attention should be paid to the flatness and verticality of the force axis.

3.It is suitable for aging testing machines for 3C digital products, force detection on production lines, force monitoring on automated assembly lines, pressure testing machines, and other automation fields.

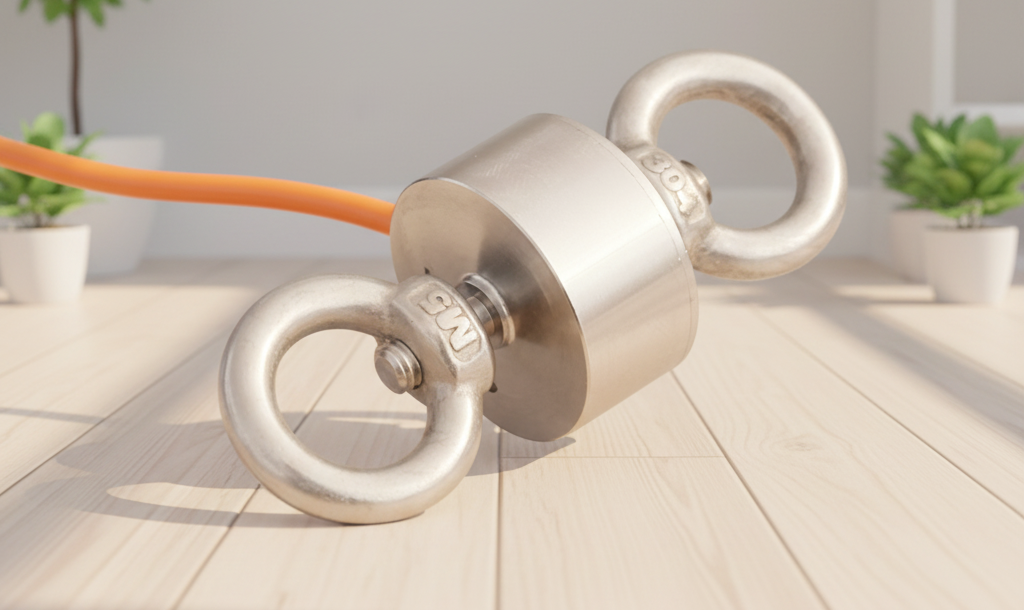

miniature load cell

Product Paramenters

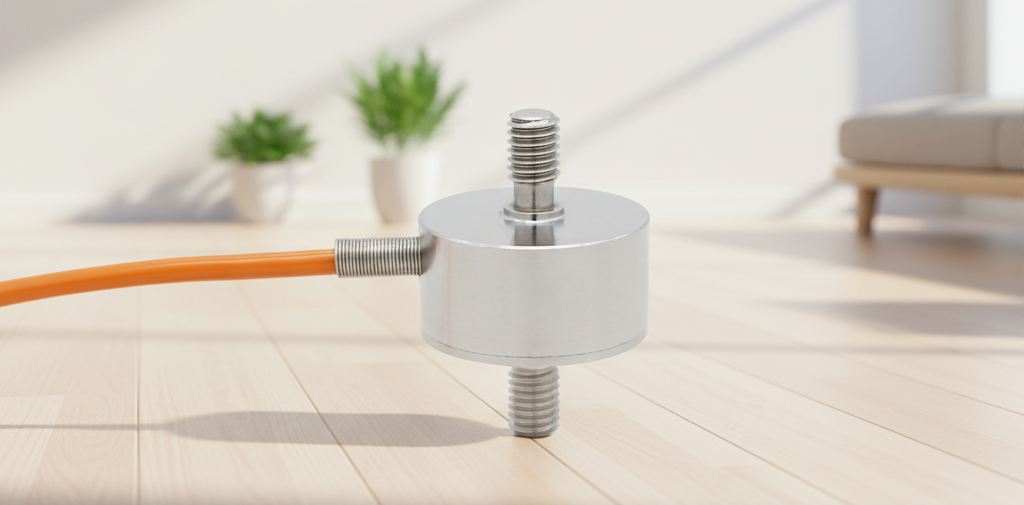

micro load cell

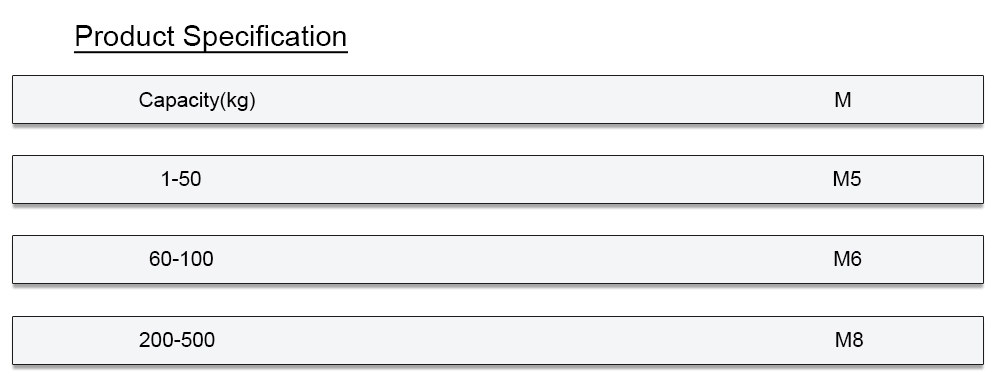

Specification

Impedance

Material	Stainless Steel
Capacities (Kgs.)	1,3, 5,10, 20, 30, 50, 60, 100, 200, 300, 500
Rated Output	1.0-1.5 ±10% mV/V
Hysteresis	< ± 0.1 % F.S.
Creep (30 minutes)	< ± 0.2 % F.S.
Impedance	350Ω
Insulance	≥5000MΩ/100VDC
Maximum Overload	200%
Non - Linearity	< ± 0.3 % F.S.
Non-Repeatability	< ± 0.1 % F.S.

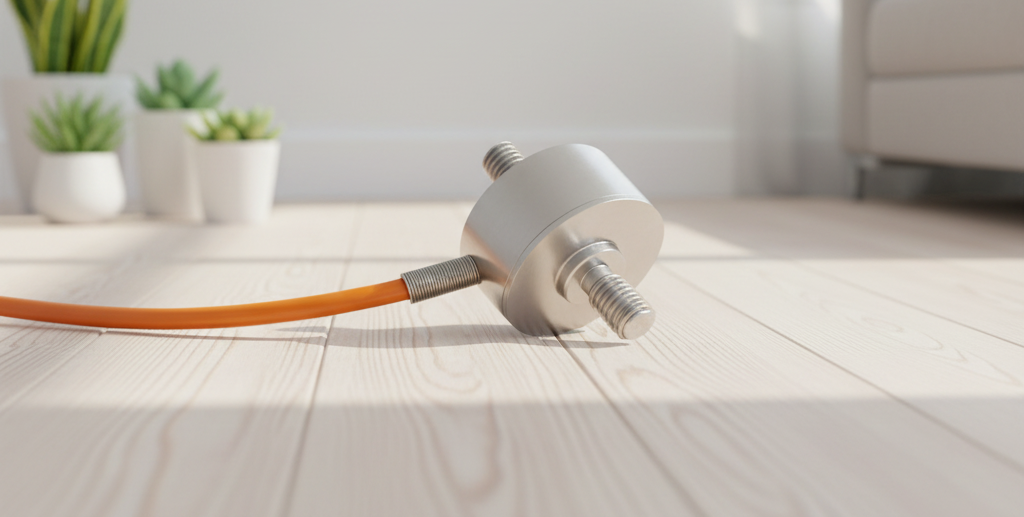

Weight Sensor

miniature load cell

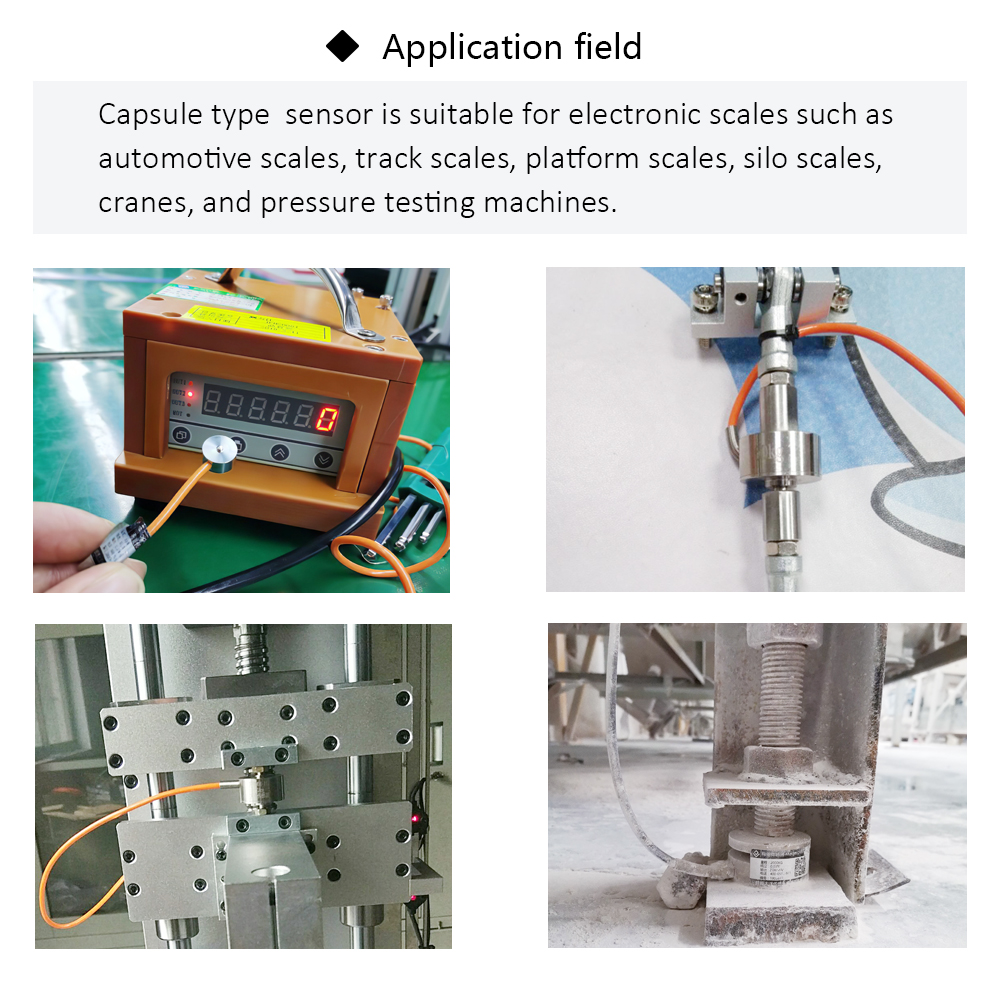

Industry Applications

micro load cell

Packing & Delivery

Micro Miniature Load Cell Tension Sensor Pull Rod Pressure Weight Sensor 60kg 100kg 200kg 300kg 500kg

♦ Packing:

1* Load cell packing materials are eco-friendly and really protect your product well. Each item has its own independent foam/sponge/plastic bag packaging, then packed in a carton

♦ Delivery:

A wide range of options : Express(Fedex, DHL, TNT, EMS, UPS etc.) air and shipping

Company Profile

micro load cell

Weight Sensor

miniature load cell

FAQ

1. What is the MOQ?

If we don't have it in stock, the MOQ is different according different models.

If we have it in stock, we can ship you even 1 pc as sample.

2. What is lead time?

If we have it in stock, we can ship it to you within about 3-5 working days.

If we don't have it in stock, the lead time will be 10-30 days normally.

3. What is the payment terms?

T/T, Western Union, Escrow alibaba is acceptable.Escrow is same like paypal, after you place the order and make the payment on alibaba.com, alibaba company will notify us to make the shipment, your money won't be released until you get the goods. If we don't make the shipment, you still can take back your money.

4. What is the express delivery？

DHL, Fedex, TNT ,EMS, UPS etc.We will choose the safe and cheapest way for you to reduce your cost.Economic shipping way: by sea, by air transport .If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.

5. Can you design and customize products for me?

Definitely, we are extremely good at customizing various load cells. If you have any needs, please tell us. However, the customized products would postpone shipping time.

6. How long is your warranty period?

Our warranty period is 12 months.
