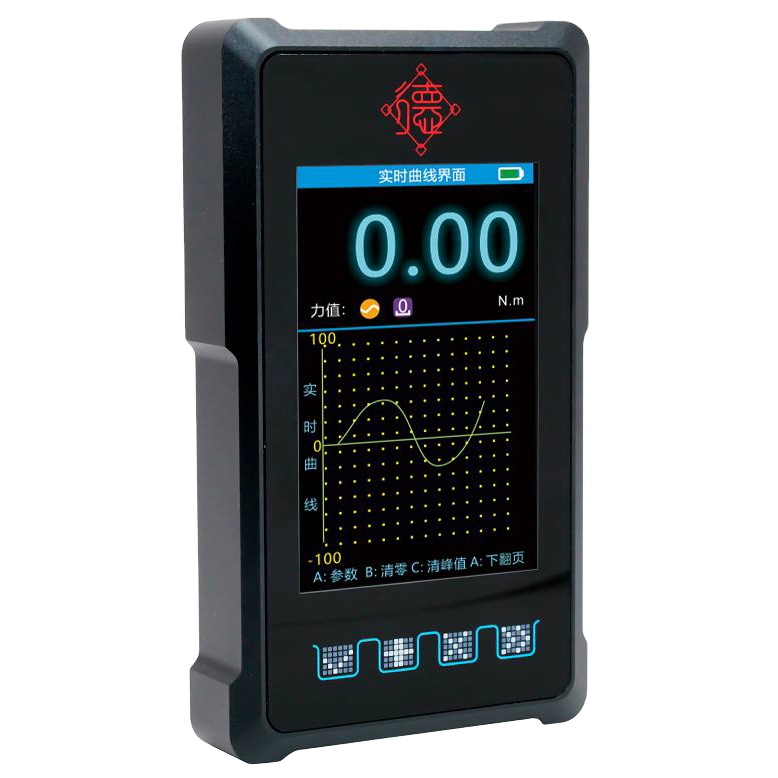

Professional Weighing Scales Electronic Digital Handheld LCD Rechargeable Dynamometer Weight Indicator

1.1. Technical indicators

The sampling rate is up to 12800Hz;

Non-linearity is better than 0.01%; accuracy is better than 0.1%;

Display division-99999~999999;

The battery can be charged and discharged approximately 1000 times;

Analog signal input range -15 ~ 15mV;

Temperature drift is less than 20ppm;

3200mAh battery, can work continuously for 15 hours when fully charged;

1.2. Features

The sampling rate is adjustable in five levels from 50Hz to 12800Hz, and the high sampling rate captures the peak value more accurately;

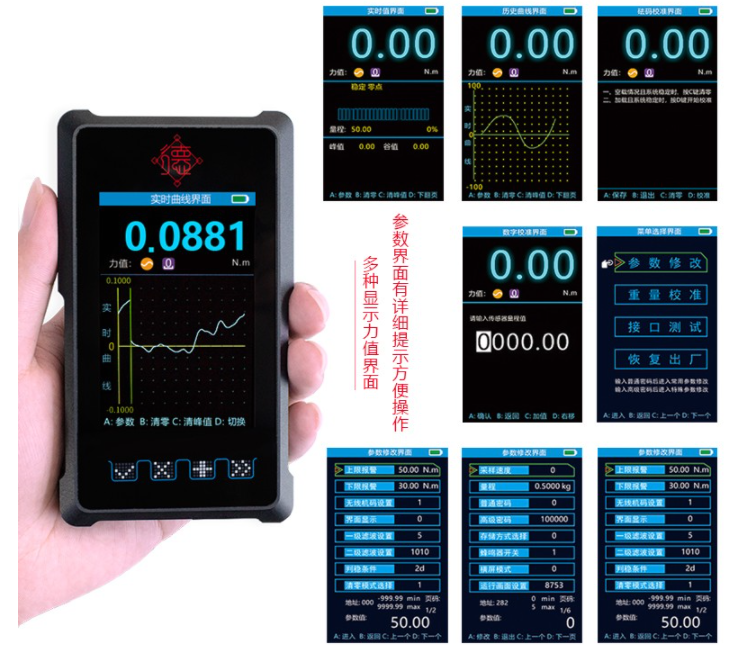

The real-time curve and the last historical curve can be selected and displayed to check the force status during the work process;

Real-time automatic capture of equipment peak and valley values, analysis of sensor status;

Parameter backup and recovery, the modified parameters can also be restored with one key;

Calibration without weights, just enter the sensor parameters to complete the calibration;

Use our TEDS smart sensor, automatically calibrate when power on, modify the corresponding unit and decimal point;

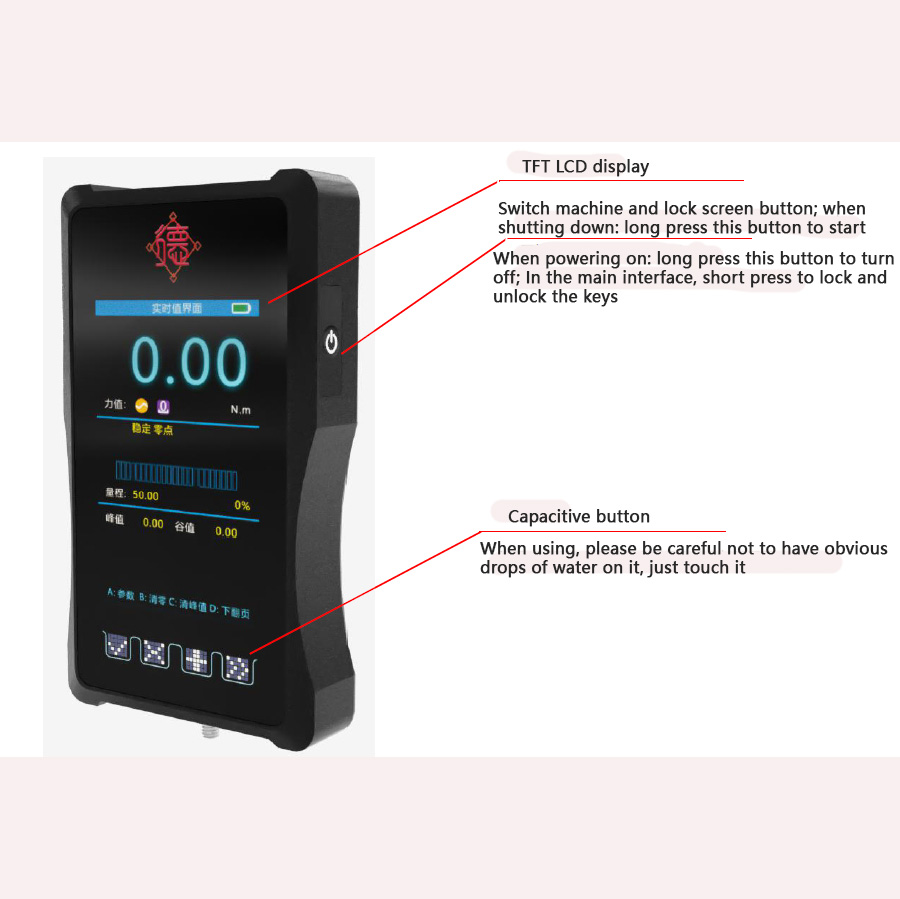

When the battery is low, the meter interface displays the low battery mark, when the charger is plugged in, it displays the charging mark, and the charging light indicates;

Use TYPE-C data cable (optional RS485) to directly connect with PC for Modbus communication, which is convenient for exporting force value data;

In this handheld dynamometer interface test interface, you can view the serial port and wireless communication debugging data;

200 sets of historical data of peak and valley values are stored, and will not be lost after power failure;

Multiple alarm mode selection, upper limit alarm; lower limit alarm; peak and valley value alarm; automatic alarm for twice the range;

A variety of capture mode options, threshold-threshold; threshold-time; threshold-key;

Optional built-in sensor handheld instrument model
