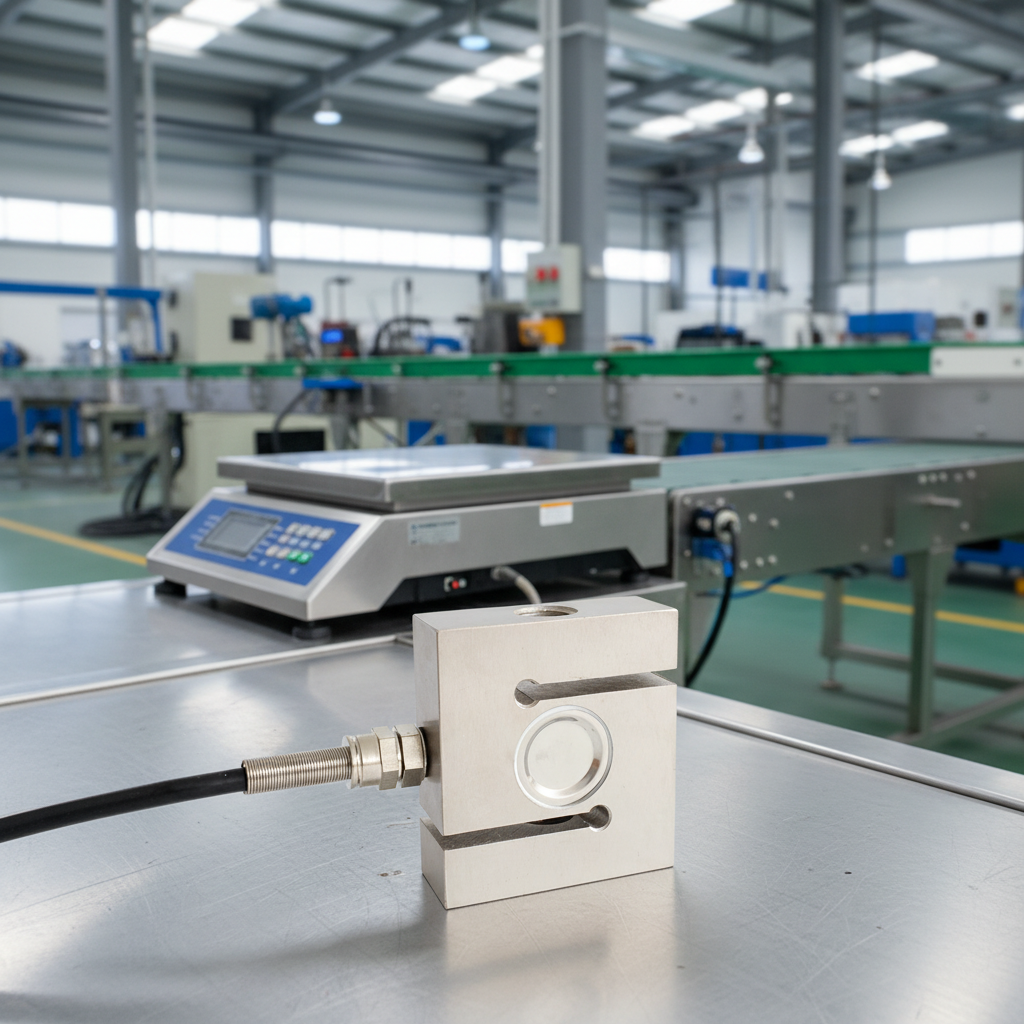

LY Series S-Type Tension & Compression Load Cells – The Ideal Choice for Precision Industrial Force Measurement
The accuracy of tension and compression detection directly affects product yield. Featuring a classic integrated S-beam structure, LY series S-type load cells cover a full measuring range from 1kg to 20T, supporting precise bidirectional tension and compression measurement for various industrial automation and material testing applications.
Exquisite Structure, Stable Durability & Easy Installation
Available in alloy steel and stainless steel versions for corrosion resistance and fatigue resistance. Equipped with multi-size double-end threads (M12/M16/M18), they can be quickly mounted even in compact equipment spaces.
Built with high-precision full-bridge strain gauges, the cells deliver a minimum non-linearity of 0.03%FS, featuring low temperature drift and low creep to maintain stable readings during long-term operation. With standard 350Ω impedance, 2.0mV/V signal output and 5–15V wide voltage supply, they can be directly connected to industrial controllers and PLC acquisition systems.
Insulation resistance reaches ≥5000MΩ for dust and oil resistance. Matched with 3–5m tensile-resistant cables that withstand up to 10kg tension. Dual overload protection (150% safe overload, 200% ultimate overload) prevents damage under unexpected force impact.

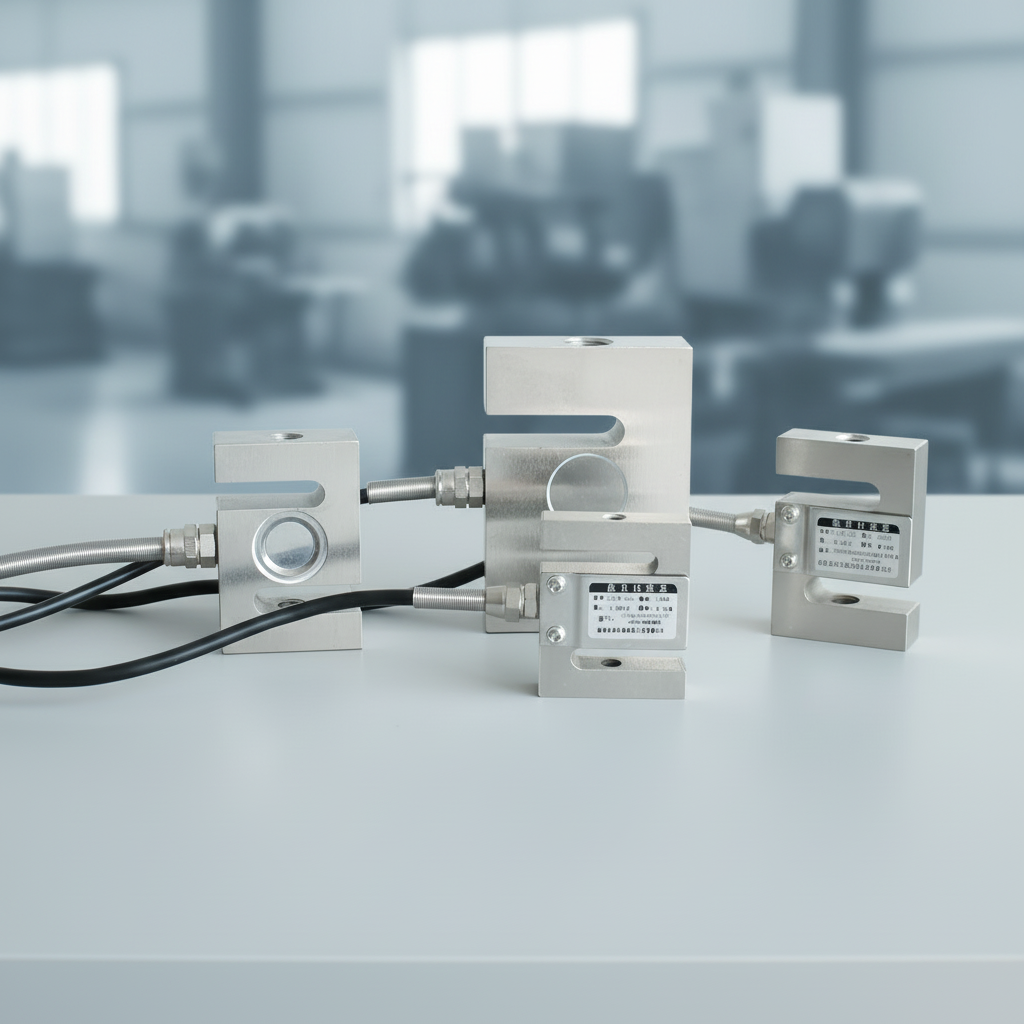

Multiple Models for Customized Selection
LY-101 (0–20T): Thickened alloy steel design for heavy-duty applications including large hydraulic presses, metallurgical lifting equipment and heavy-load tensile tests.
LY-102 / LY-105 (1kg–7T / 0–1.5T): General medium-range models for injection molding machine pressure monitoring, tank weighing and new energy component press-fit testing.
LY-104 (0.2–10T): Standardized dimensions for mass matching, ideal for machine clamping force detection and automated press-fit stations.
LY-107 (0–200kg): Mini stainless steel model with maximum 10kHz high-frequency response, suitable for precision laboratory tests and humid corrosive environments.
LY-108M / LY-109 (1–100kg): Ultra-compact lightweight cells for 3C tactile testing, robot gripper force feedback and automotive small component force measurement.
Widely Applicable to All Industrial Force Measurement Scenarios
Suitable for six major sectors: machinery processing, automotive manufacturing, petrochemical & metallurgy, aerospace, laboratory testing and intelligent robotics. They real-time monitor press-fit force, clamping force and material load to avoid defective assembly and workpiece damage, boosting production yield.
Cost-Effective & Compatible with All Equipment
Unified electrical standards across the series reduce spare part varieties and inventory costs. Infrequent calibration is required for long-term use, cutting maintenance expenses. Standard signal interfaces eliminate custom adapters, enabling quick deployment for production line upgrades and new equipment matching.
Accurately capture micro force values and deliver stable performance under heavy loads. LY series S-type tension & compression load cells serve as core universal components for industrial force control, quality inspection and scientific research experiments.
