Hot
Cheap weighing scale load cell amplifier voltage and current converter weight transmitter 0-5V 0-10V 4-20mA
The external transmitter adopts aluminum alloy shell. The internal imported high-performance device is used to accurately amplify the sensor output signal. The internal voltage regulation, constant current supply bridge, voltage and current conversion, impedance matching, linear compensation, humidity compensation, etc. Convert the mechanics and quantity into standard current and voltage signal output, which can switch 0-5V/1-5V/0-10V, 4-20mA. It can be directly connected to the interface of the automatic control device PLC MCU, host computer terminal, etc.] or computer. With standard signal external zero adjustment, external adjustment gain function, input over protection, output short circuit protection.
Send Email Details -
Hot
Load Cell Force Measurement 4-20mA 0-10V Transmitter Pressure Weighing Sensor Weight Amplifier Transmitter for Belt Weigher
External transmitter, with aluminum alloy shell, accurately amplifies the micro-voltage signal (MV) of the weighing sensor, with neat circuit, constant current bridge supply, voltage-current conversion, impedance adaptation, linear compensation, temperature compensation, etc., and converts mechanical quantities into standard current and voltage signals for output, 4~20mA, 0~10mA, 5v~0~5V, 1~5V,-10.
Send Email Details -
Digital Weighing Indicator 0-10V 4-20mA Adjustable Belt Weigher Controller Weigh Feeder Digital Instrument Load Cell Controller
This high-precision force & weighing control indicator supports up to 9000Hz high-speed sampling, with 0.1% comprehensive accuracy and 0.01% nonlinearity. It features multi-protocol communication (Modbus-TCP, Modbus-RTU RS485, CANOpen), 480x320 color LCD display for real-time/historical curve view, and rich functions like peak capture, auto zero tracking, nonlinear correction, upper/lower limit alarm. With cast aluminum housing, capacitive touch buttons, and 12-30V DC wide power supply, it is ideal for belt scale systems, load cell measurement, PLC-integrated industrial automation, and high-precision force testing applications.
Send Email Details -

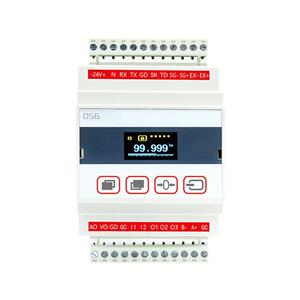

SOP056 Digital Display Weighing Controller with RS485 and RS232 serial ports
The SOP056 instrument is equipped with 2 serial ports, 1 RS485 port, and 1 RS232 port (optional), which execute MODBUS-RTU protocol, ASC active upload, and HEX fast active upload protocol. The MODBUS protocol supports 03 read and 16 write instructions, with a maximum communication speed of 30 packets per second. The HEX active upload protocol is the one that provides the shortest latency and fastest active upload speed.
Send Email Details
