Load Cell Force Measurement 4-20mA 0-10V Transmitter Pressure Weighing Sensor Weight Amplifier Transmitter for Belt Weigher

Brand SOP

Product origin JiangXi

Delivery time 3days

Supply capacity 300pcs/day

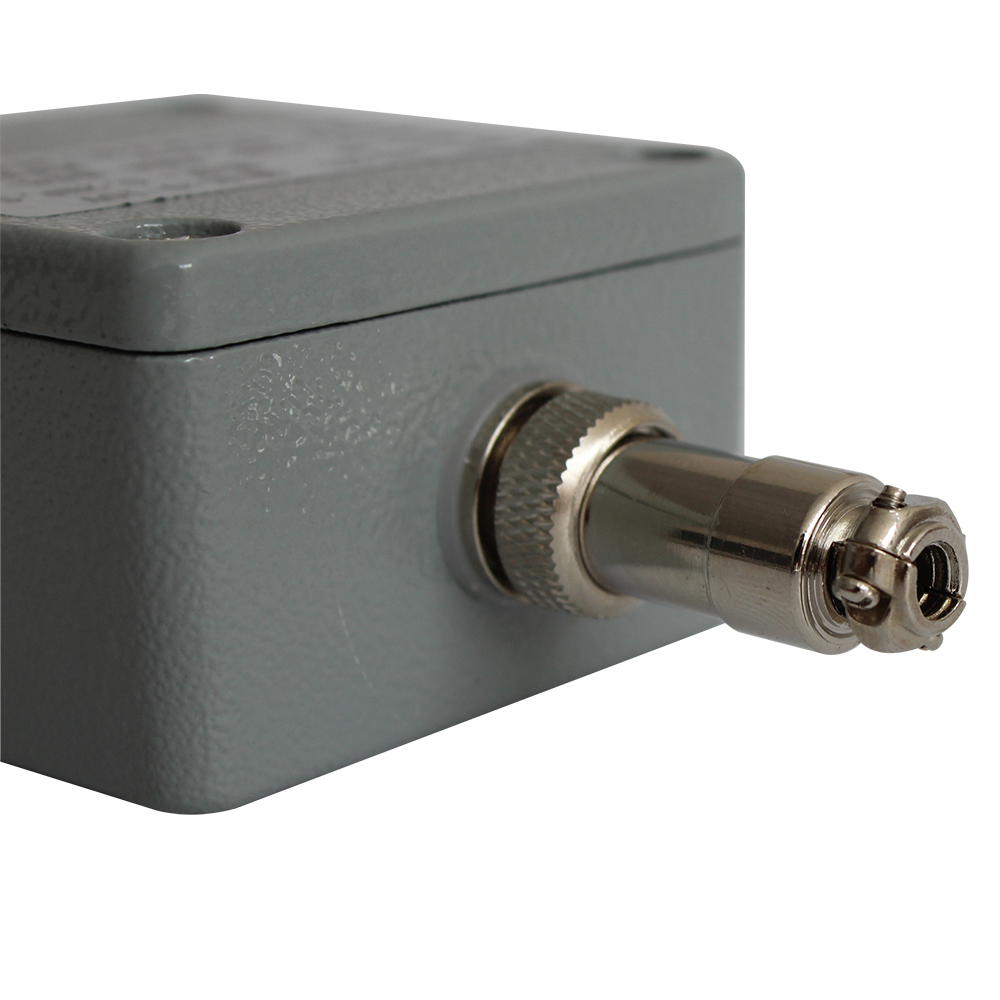

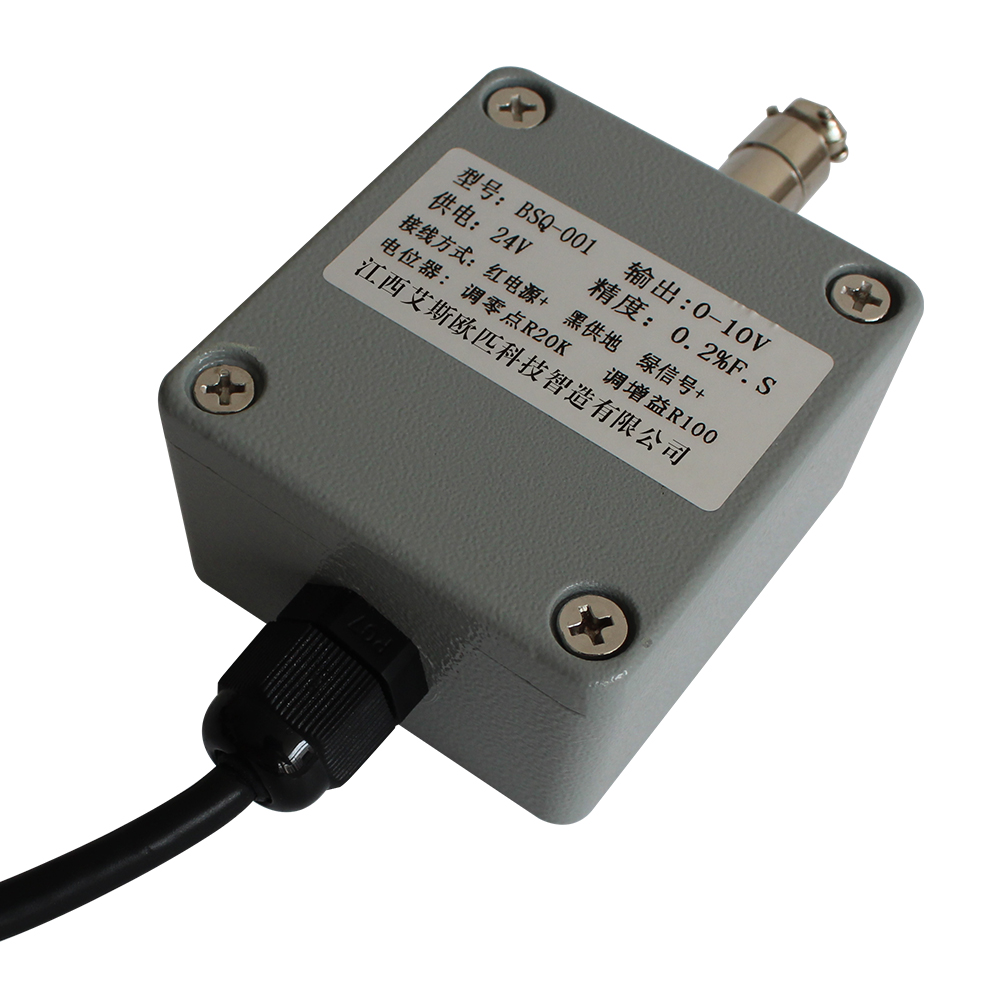

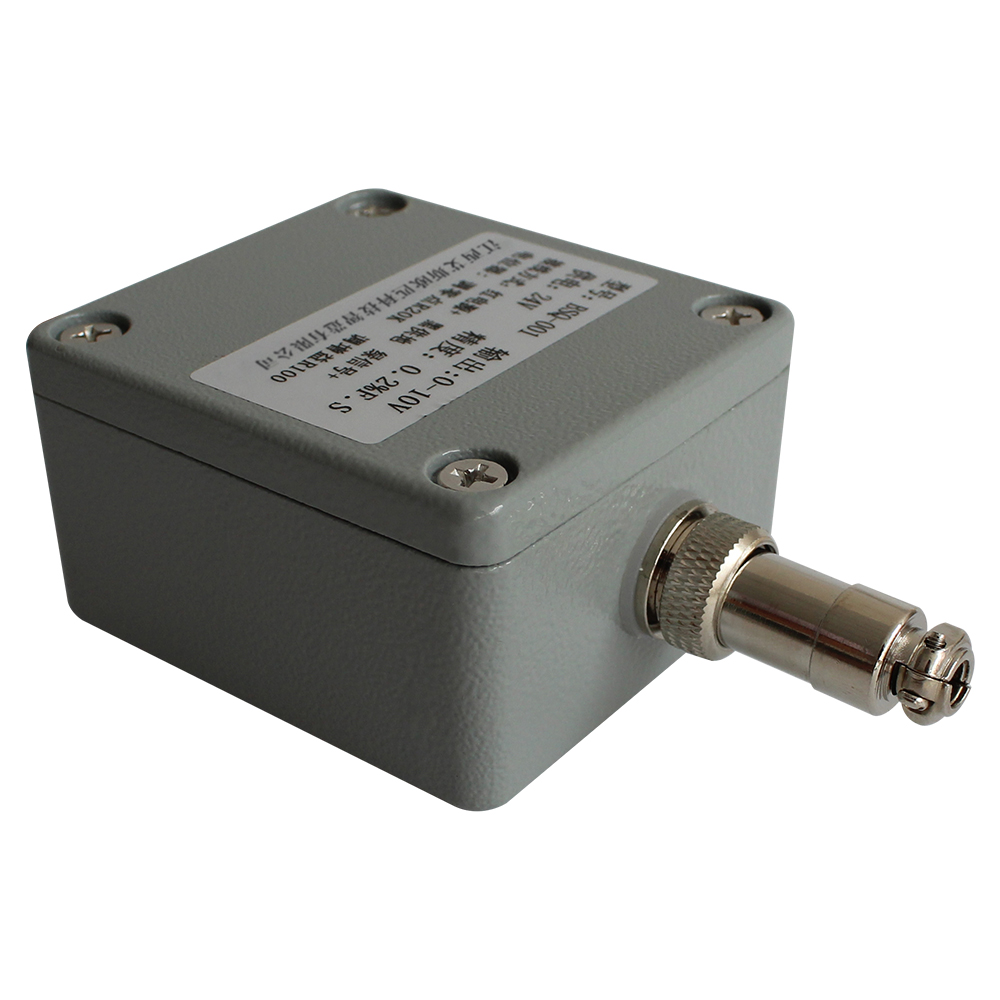

External transmitter, with aluminum alloy shell, accurately amplifies the micro-voltage signal (MV) of the weighing sensor, with neat circuit, constant current bridge supply, voltage-current conversion, impedance adaptation, linear compensation, temperature compensation, etc., and converts mechanical quantities into standard current and voltage signals for output, 4~20mA, 0~10mA, 5v~0~5V, 1~5V,-10.

Send Email

Load Cell Force Measurement 4-20mA 0-10V Transmitter Pressure Weighing Sensor Weight Amplifier Transmitter for Belt Weigher

Product description

Analog or Digital Transmitter for Strain Gauge Load Cells for Strain Gauge Load Cells Amplifier

This high-precision force & The external transmitter adopts aluminum alloy shell. The internal imported high-performance device is used to accurately amplify the sensor output signal. The internal voltage regulation, constant current supply bridge, voltage and current conversion, impedance matching, linear compensation, humidity compensation, etc. Convert the mechanics and quantity into standard current and voltage signal output, which can switch 0-5V/1-5V/0-10V, 4-20mA. It can be directly connected to the interface of the automatic control device PLC MCU, host computer terminal, etc.] or computer. With standard signal external zero adjustment, external adjustment gain function, input over protection, output short circuit protection.

Product Features

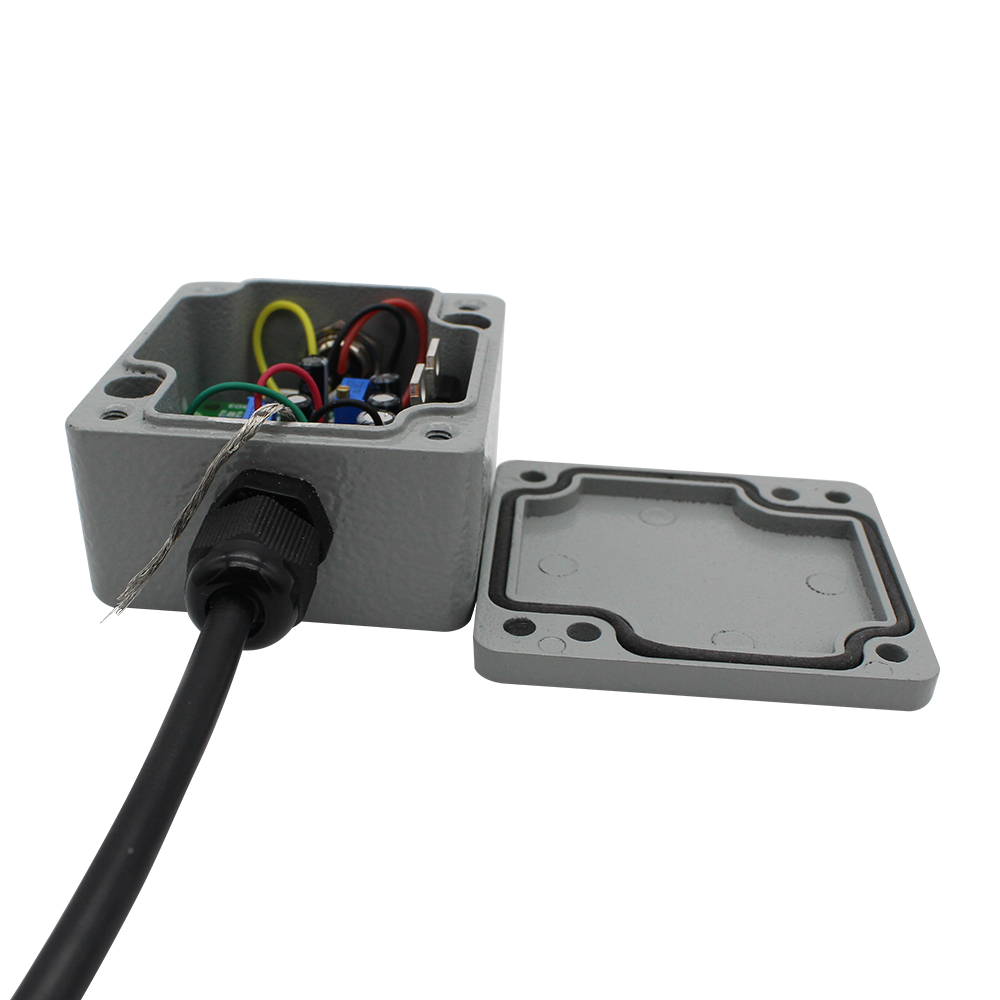

1. Both shell and wire connections are waterproof design, good sealing, suitable for harsh environments
2. Die-cast aluminum housing, rugged, anti-jamming performance
3. High-precision op amp circuit with high accuracy and stability
4. The power supply has surge protection and overcurrent protection
5. Suitable for weighing, pulling pressure, torque and other strain sensor.

Product parameter

Rated input	0-20mV
Rated output	0±5V/0±10V 0-20mA/4-20mA/4-12-20mA
Non-linear	0.2%F.S.
Supply voltage	DC 15-30V
Protect class	Air plug IP65 Water joint IP67 (Optional)
Opening size	Shell(mm): L 65 W 58 H 37
