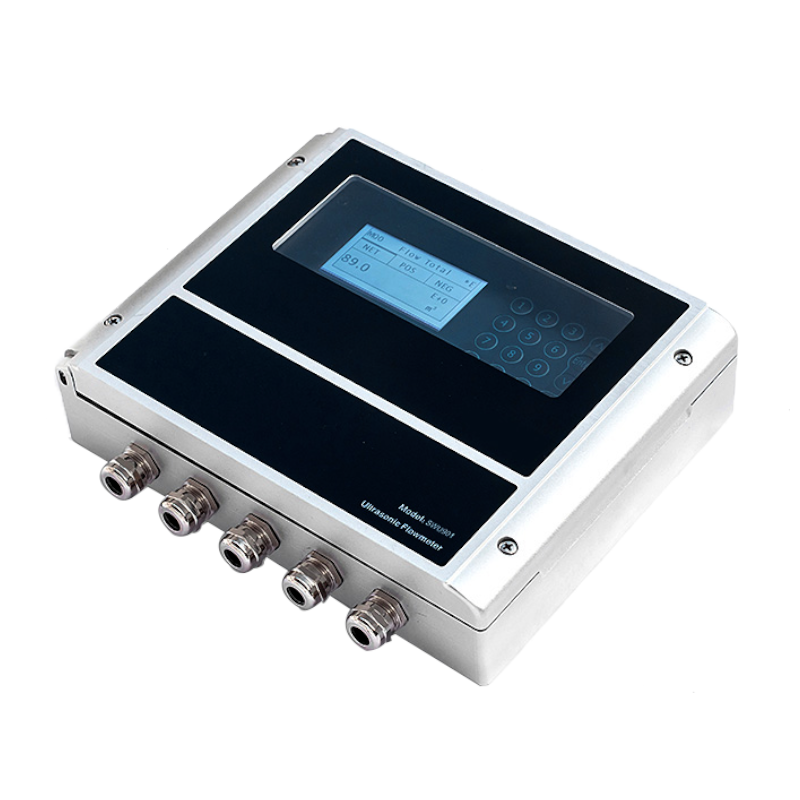

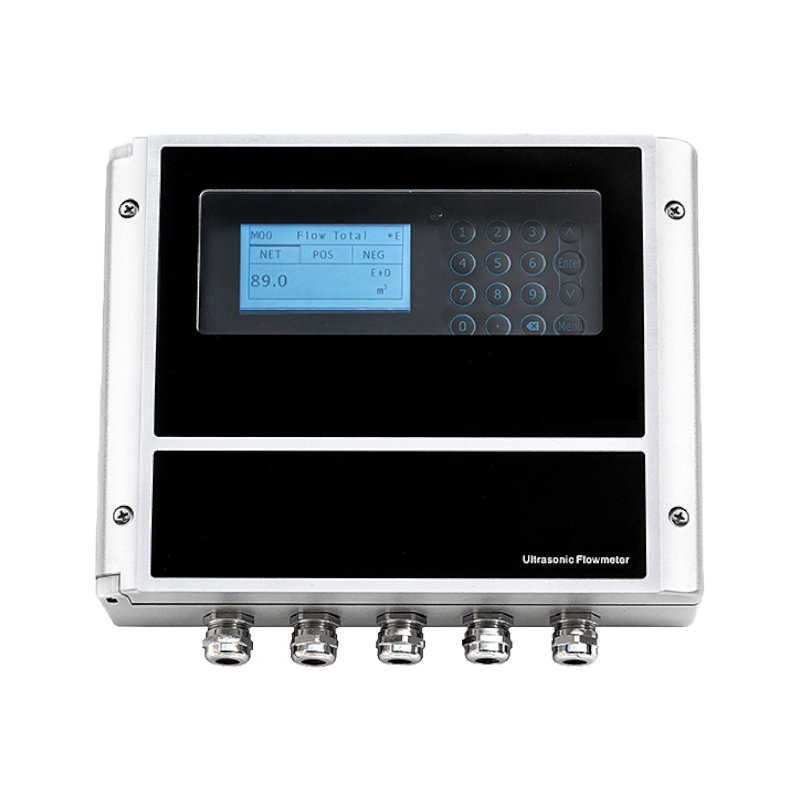

Portable Customized Flow Meter Support Clamp-On Ultrasonic Water Flowmeter Liquid Flow Meter Display for Water Applications

Brand SOP

Product origin JiangXi

Delivery time 3-7days

Supply capacity 3000PC/day

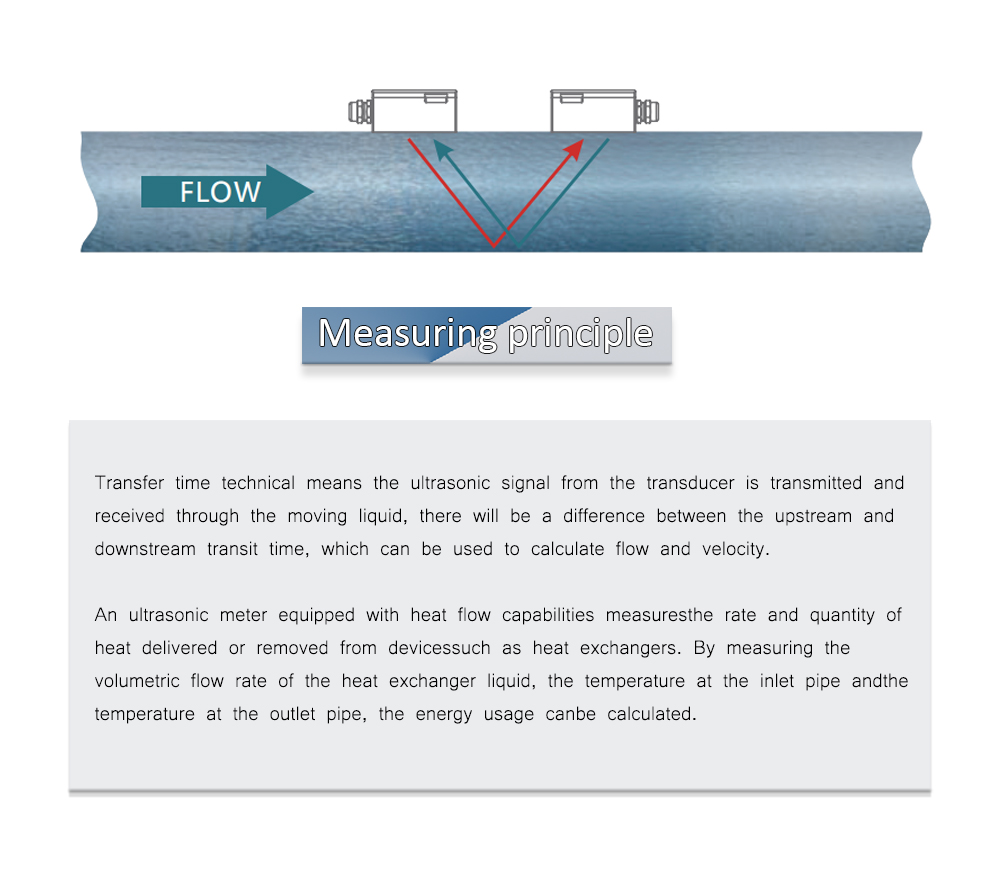

1.SOPSWU901 is a wall-mount, clamp- on type ultrasonic flowmeter which use the transfer time technology. Clamp on type ultrasonic flowmeter is easy to install and no need to cut off the pipe, that saves you lots of troubles and cost，At the same time SOPSWU901 has our unique calculate software to ensure the high accuracy and low velocity response.
2.It adopts TGA time measurement algorithm independently developed by us. TGA measurement technology greatly improves the sampling rate of FT101 ultrasonic flowmeter, and the measurement rate can be more than 300 times per second. Compared with other brands of products, it has greatly improved the tolerance rate of bubbles in the measured pipe diameter. It can tolerate continuous bubbles for up to 5 seconds.
3.The signal strength is increased, and it has greater penetration to all kinds of scale, rust in the pipe and lining in the pipe. The maximum allowable load is 18mm in cement. With the enhanced version of the sensor, the measurement norm (practical application) of the external clamp sensor can reach 2000 mm.

Send Email

Portable Customized Flow Meter Support Clamp-On Ultrasonic Water Flowmeter Liquid Flow Meter Display for Water Applications

Product description

2.It adopts TGA time measurement algorithm independently developed by us. TGA measurement technology greatly improves the sampling rate of FT101 ultrasonic flowmeter, and the measurement rate can be more than 300 times per second. Compared with other brands of products, it has greatly improved the tolerance rate of bubbles in the measured pipe diameter. It can tolerate continuous bubbles for up to 5 seconds.

3.The signal strength is increased, and it has greater penetration to all kinds of scale, rust in the pipe and lining in the pipe. The maximum allowable load is 18mm in cement. With the enhanced version of the sensor, the measurement norm (practical application) of the external clamp sensor can reach 2000 mm.

Clamp-On Ultrasonic Water Flowmeter

Product features

1.Easy and convenient installation, high flexibility. A pair of the transducer could fit all pipe size in the range.
2.High accuracy (±0.5%), High speed computing ( sampling frequency achieve 300 pcs/s- including the calculate), good performance in very low velocity ( lowest flow at which the reaction starts 0.03m/s)
3.Single medium can be measured, can be widely used in water treatment, pure water, ultra-pure water, petroleum and chemical industry, HVAC and other fields.

4.All of our model could choose the BTU/ energy function as an option.

5.We have 130℃ as the middle temperature transducer, also we have the high temperature transducer which could long time work in 180℃.

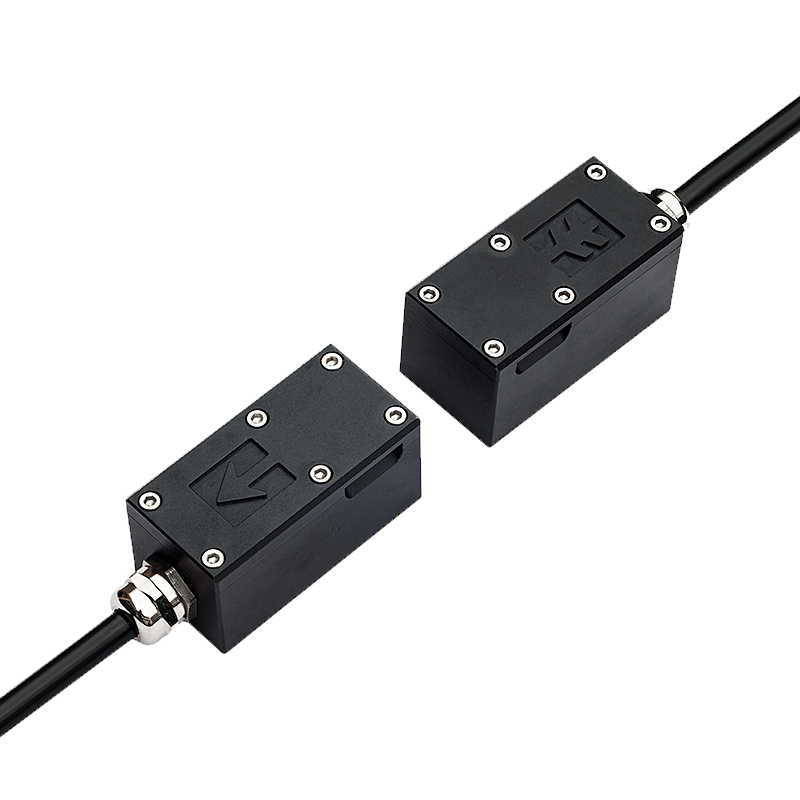

6.There are two kinds of transducers for ultrasonic flowmeter: clamp-on transducer and plug-in transducer.

7.The transducer adopts our unique manufacturing technology and matching technology, and the zero range can be controlled within 0.03 m/s. The time difference between each pair of sensors is less than 2 nanoseconds, thus effectively ensuring the authenticity of the measured time difference.

8.The clamp-on sensor is easy to install and flexible. In the installation process, there is no need to stop the machine and stop the water. Especially for the measuring medium with strong acid and alkali, accurate flow can be obtained only by clamping and installing it outside the pipe wall.

measurement flowmeter

Product advantage

1.Customized product - small pipe diameter

2.Customized product - large pipe diameter

ultrasonic flowmeter

Clamp-On Ultrasonic Water Flowmeter

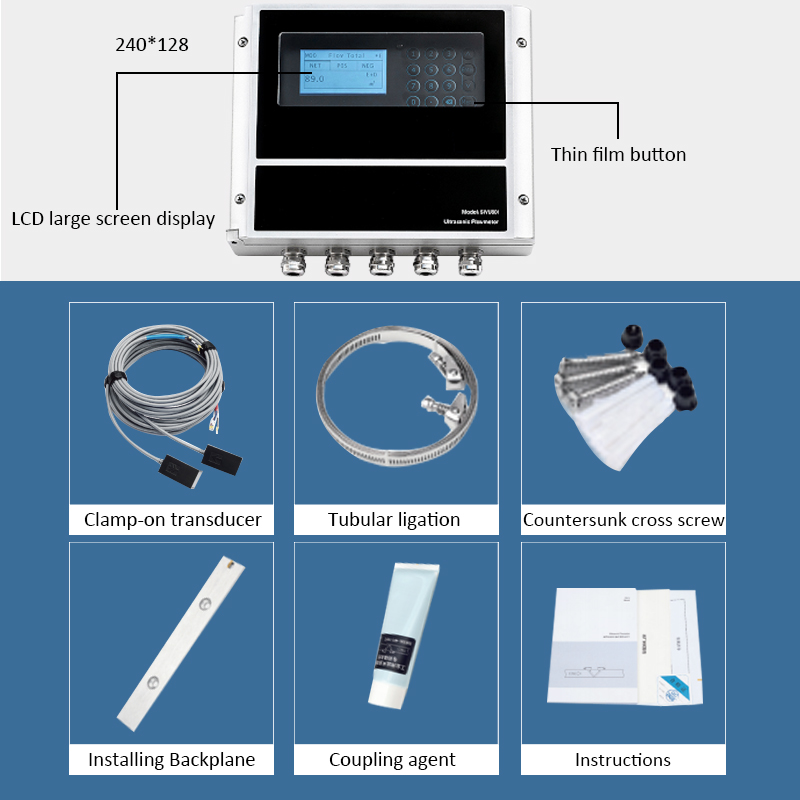

Product Accessories

SOPSWU901 product accessories include:

installation backplate, clamp-on transducer (protection level IP68, sealed design, twisted pair shielded output), pipe tie, coupling agent, countersunk cross screw, expansion rubber plug, plug, certificate of conformity, instruction manual, calibration report, and packing list.

Product parameter

Performance
Flow range	±0.09ft/s ~ ±40ft/s (±0.01m/s ~ ±12m/s)
Accuracy	±0.5% of reading (for ±1.5ft/s~±40ft/s)
Repeatability	0.15% of measured value
Linearity	±0.5%
Pipe size	1"to 200" (25mm to 5000mm). Pipe size under 1" is an option

Function
Outputs	Analog output: 4~20mA, max load 750Ω. Pulse output: 0~9999Hz, OCT, (min. and max. frequency is adjustable) Relay output: SPST, max 1Hz,(1A@125VAC or 2A@30VDC)
Communication	RS232&RS485
Memory	TF card (Max 32G)
Power supply	90 to 245 VAC, 48 to 63 Hz. Or 10 to 36VDC
Display	240*128 back lit LCD
Temperature	Transmitter: -14℉~140℉(-20℃~60℃) Transducer:-40℉~176℉(-40℃~80℃,standard)
Humidity	Up to 99% RH,non-condensing
