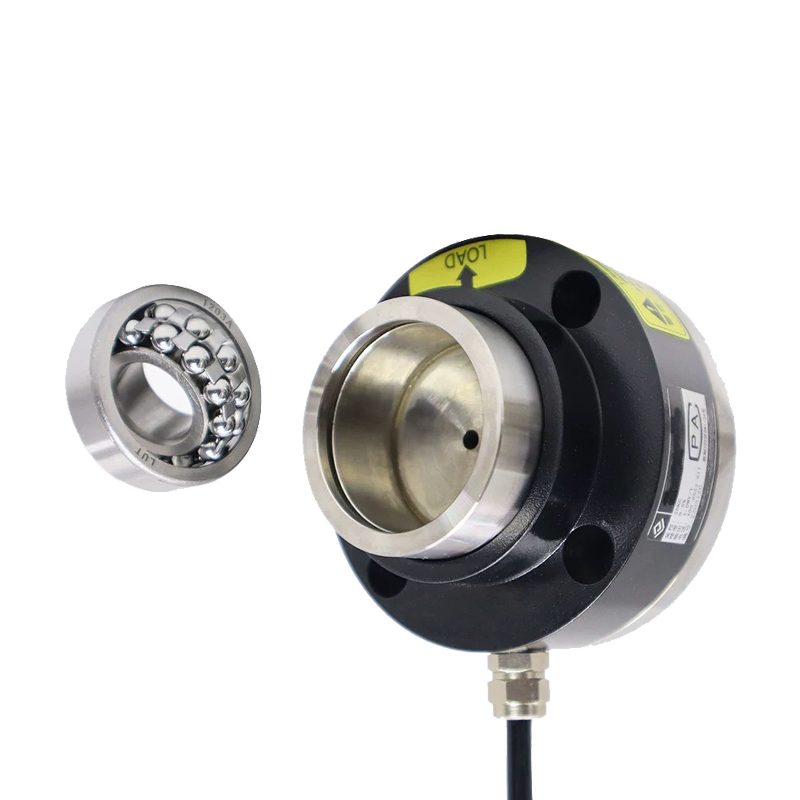

Side Pressure Tension Load Cell Weight Sensor 50kg for Measurement and Control of Tension
Brand SOP
Product origin JiangXi
Delivery time 3-7days
Supply capacity 3000PC/day

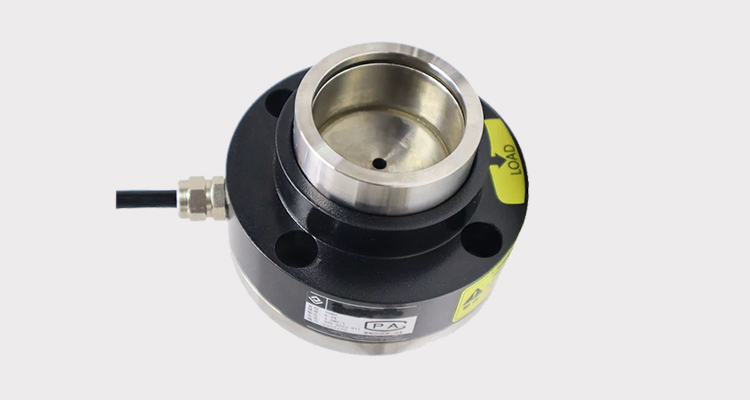

1.The lateral pressure tension sensor is a double-hole shear beam structure, which is convenient to install and use, simple to operate and easy to maintain, and is specially used to measure the tension of steel wire rope. The wire rope is fixed on the sensor through U-bolt. When the wire rope is pulled, the force is applied to the sensor through the steering wheel.
2.It is suitable for lifting, water conservancy, mining industry and all kinds of tension testing industries. it can be used for tension measurement or long-term monitoring of wire rope.
3.Its characteristics are as follows：High accuracy、 Stable performance、Suitable for wire rope tension force measurements.
Products Description

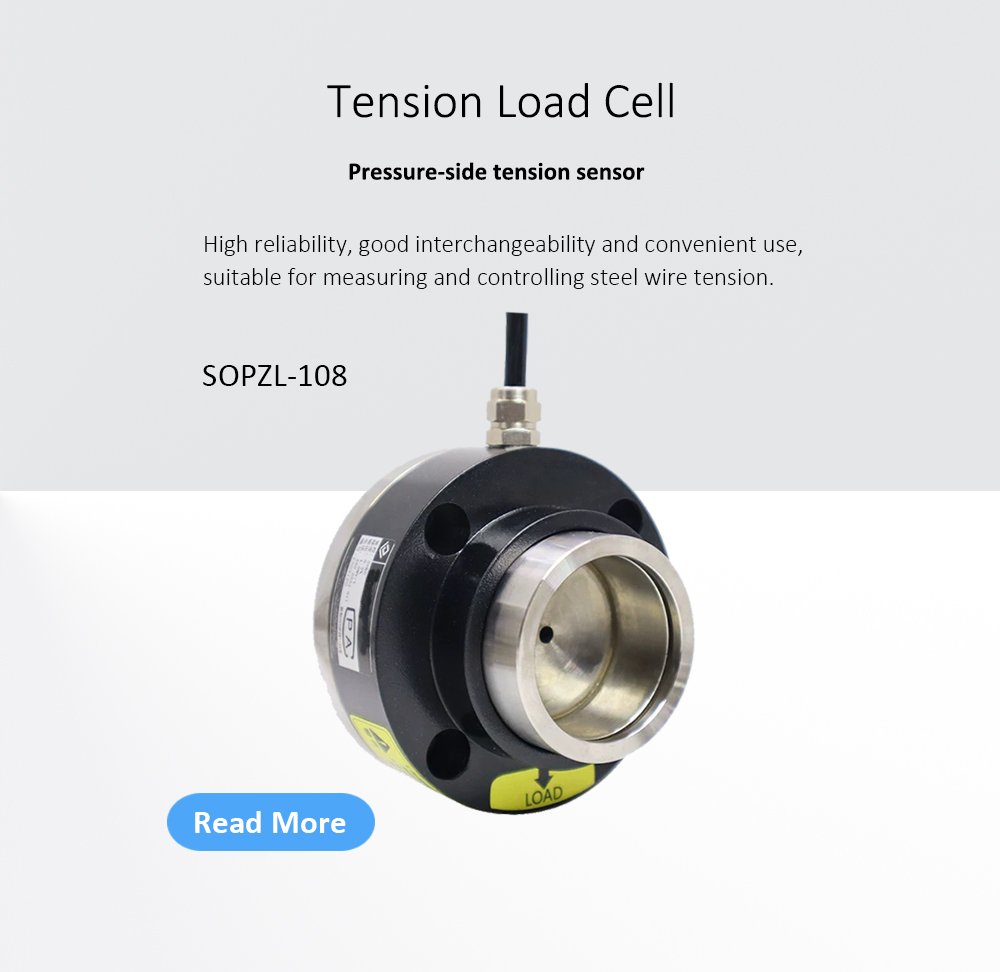

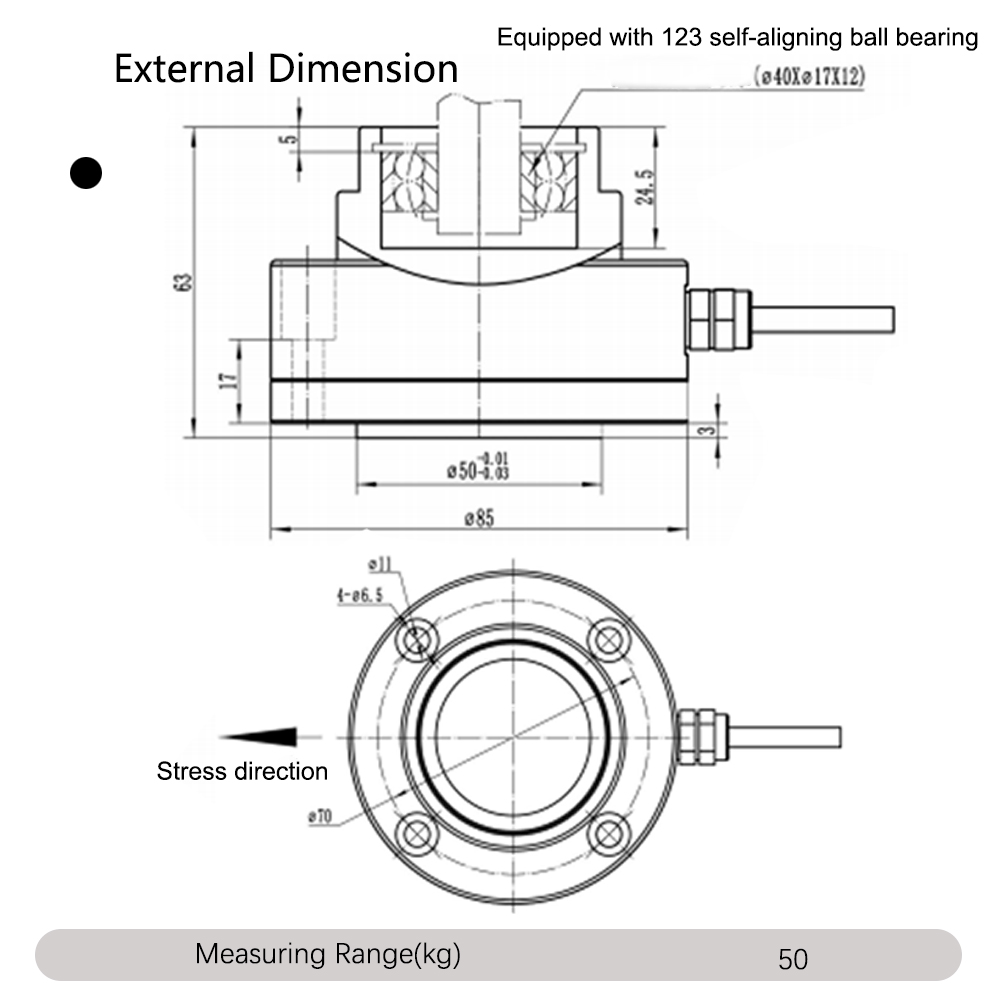

SOPZL-108
3.Its characteristics are as follows：High accuracy、 Stable performance、Suitable for wire rope tension force measurements.
Product Paramenters
| Rated range | 0-50kg | Material | Alloy steel |
| Output Sensitivity | 1.0-2.0mV/V | Impedance | 350Ω |
| Zero Output | ±1%F.S. | Insulance | ≥5000MΩ/100VDC |
| Non-linearity | 0.5%F.S. | Operating Voltage Range | 5-15V |
| Hysteresis | 0.5%F.S. | Operating Temp Range | -20-60℃ |
| Repeatability | 0.3%F.S. | Safe overload | 150% |
| Creep (30min) | 0.3%F.S. | Maximum Overload | 200% |
| Temp.effect on output | 0.05% F.S. / 10ºC | Cable size | Φ5.5x2m |
| Temp.effect on zero | 0.05% F.S. / 10ºC | Cable ultimate pull | 10kg |
| Response frequency | 10kHz | TEDS |
Industry Applications

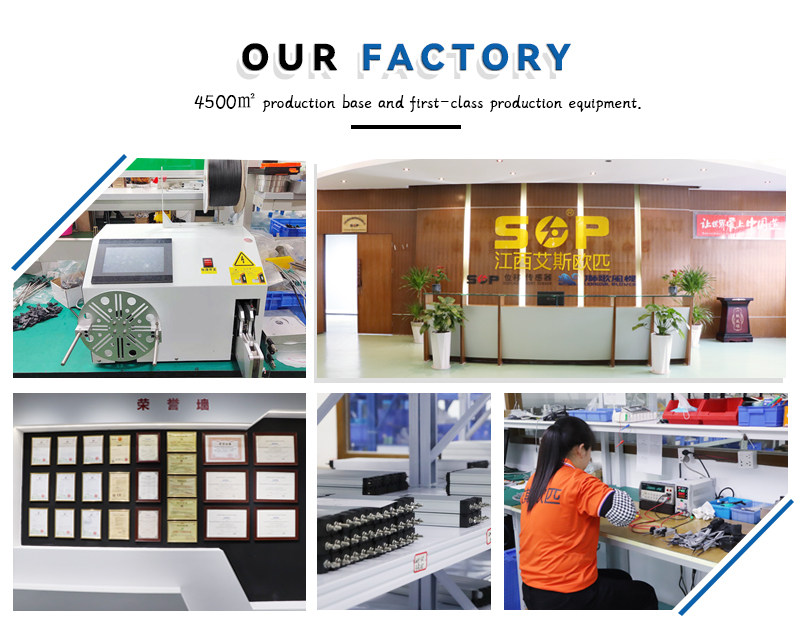

Company Profile
