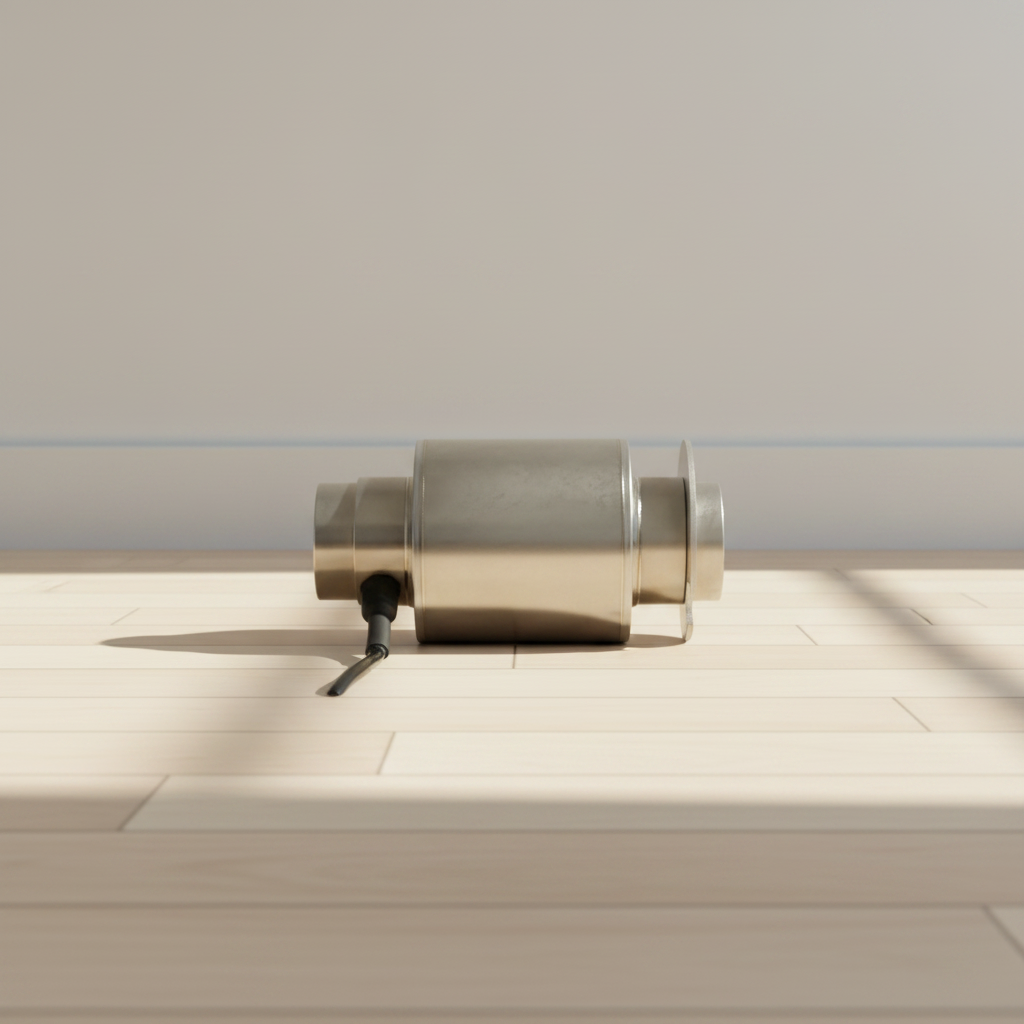

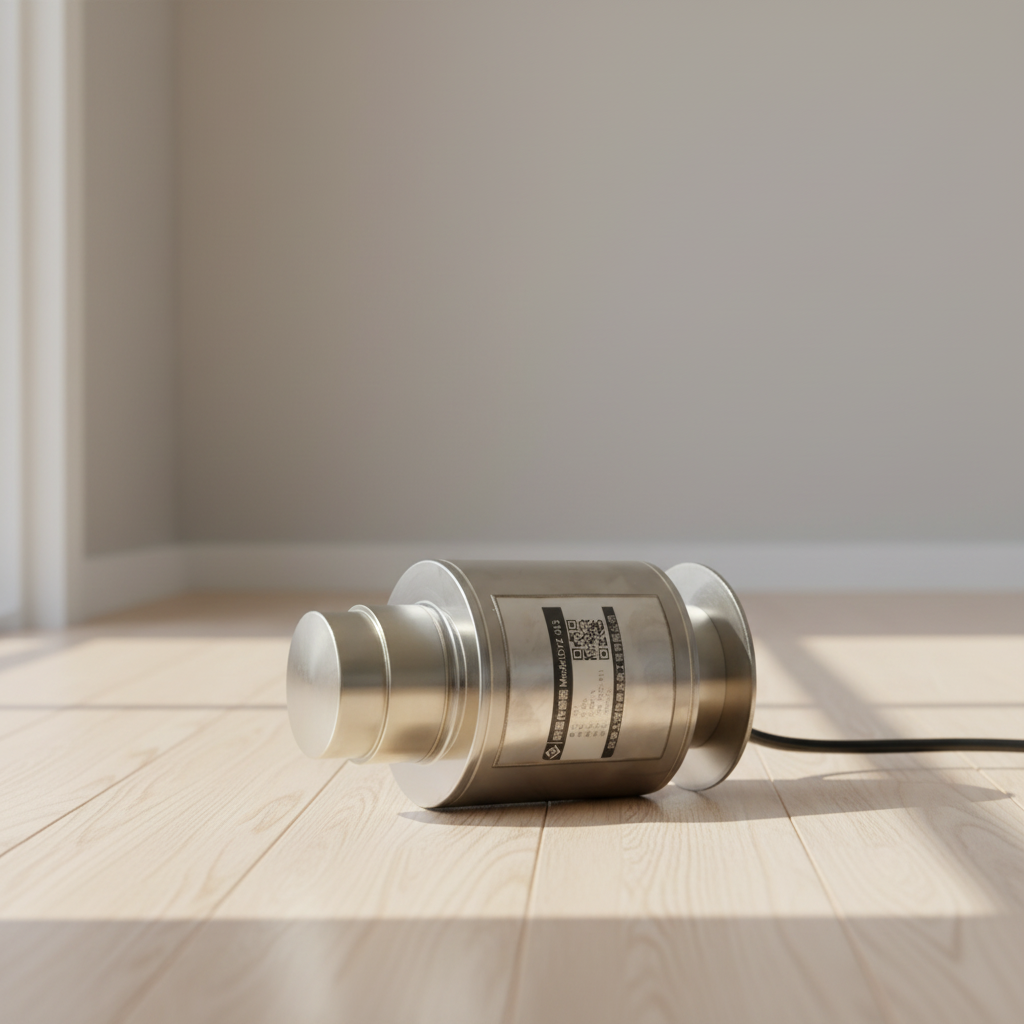

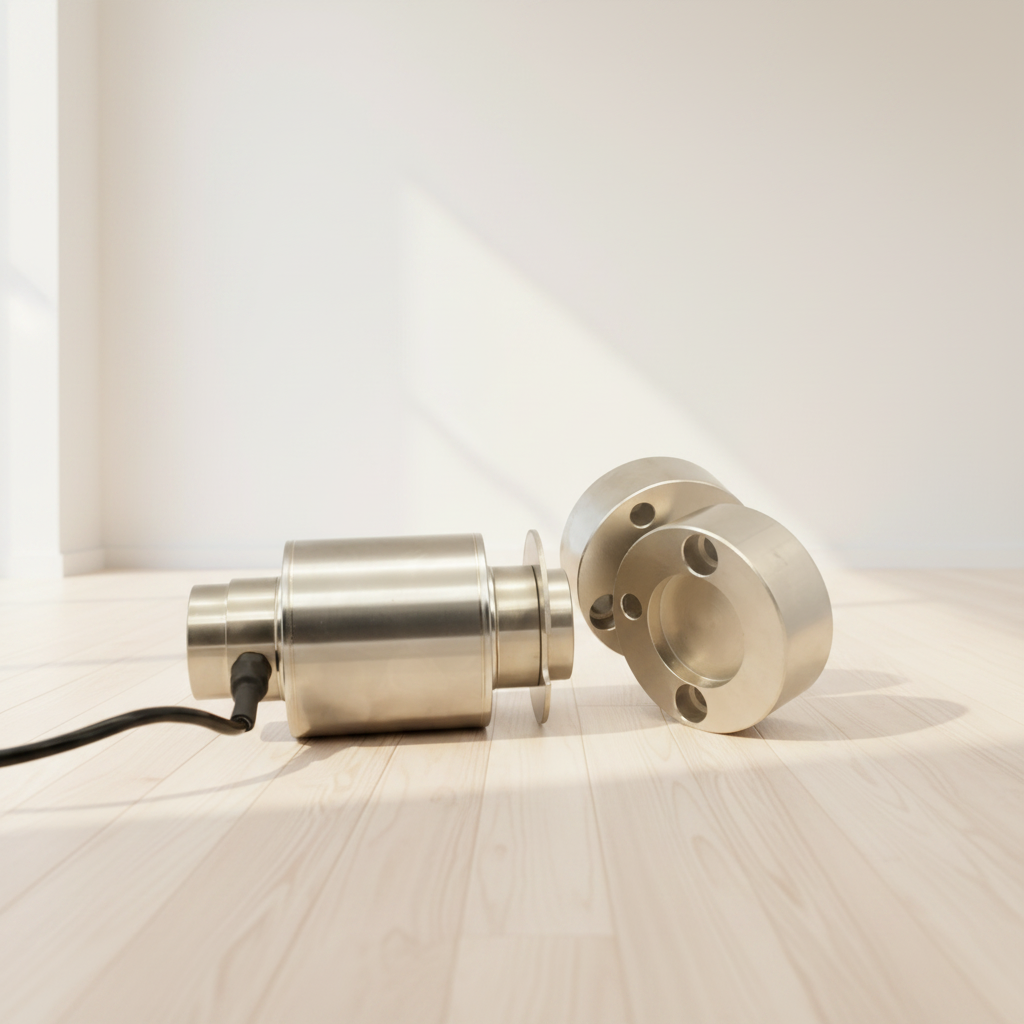

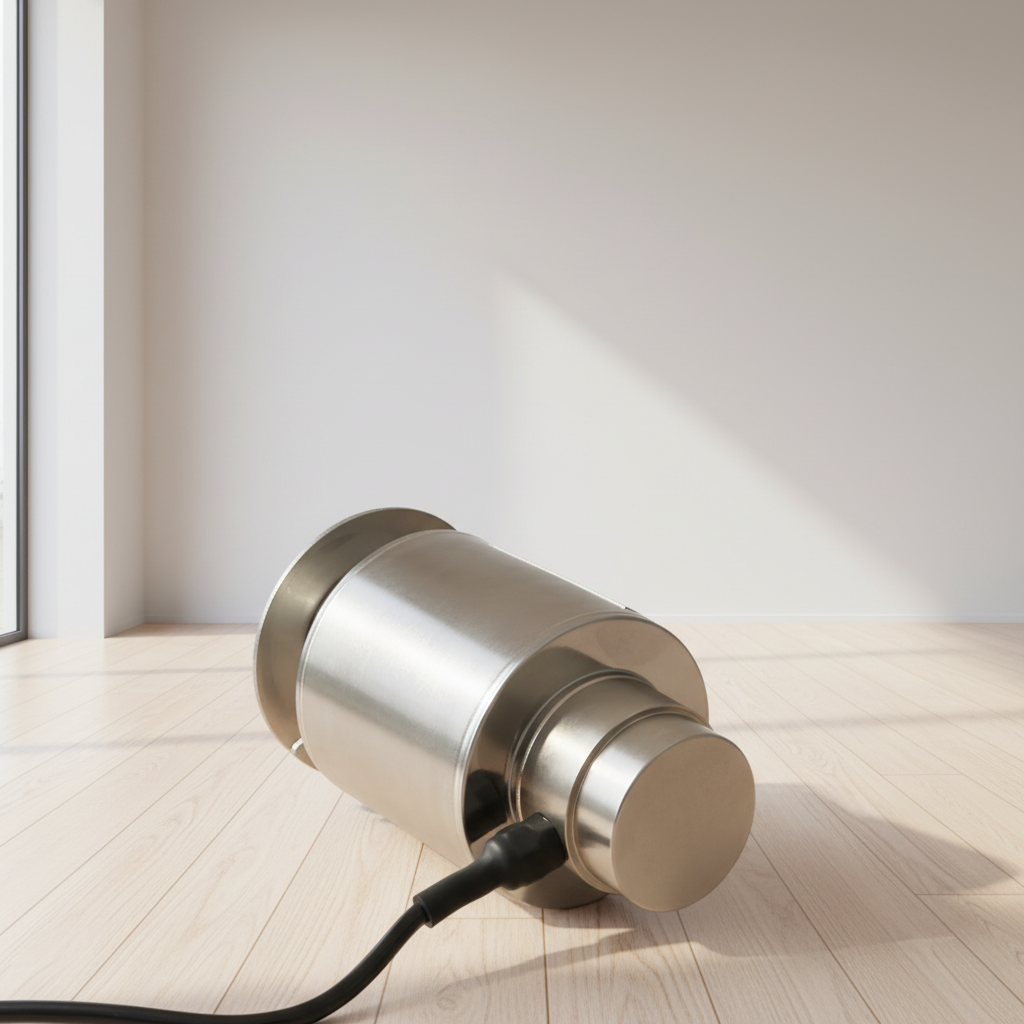

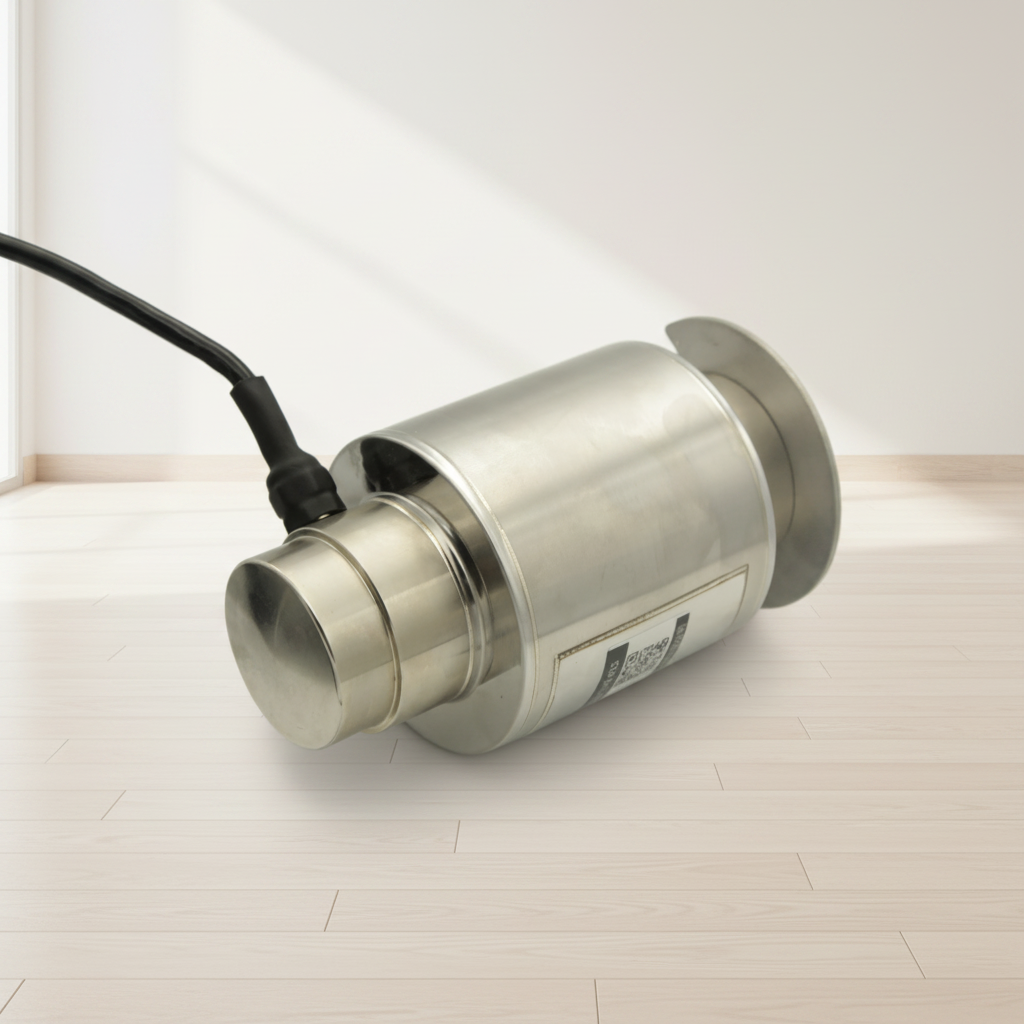

Stainless Steel Load Cell Sensor Column Type Charging Cell Compression Force Sensor10T 15T 20T 30T 40T 50T for Truck Scale
Brand SOP
Product origin JiangXi
Delivery time 3-7days
Supply capacity 3000PC/day
The column type load cell is mainly used in large force area such as pressure equipment, cell phone assembly, small pressure platform, testing machine, press fitting machine, hydraulic press, hot and cold presses, electronic hook scales hopper scales and other types of electronic heavy equipment and tensile testing equipment.
Product Description

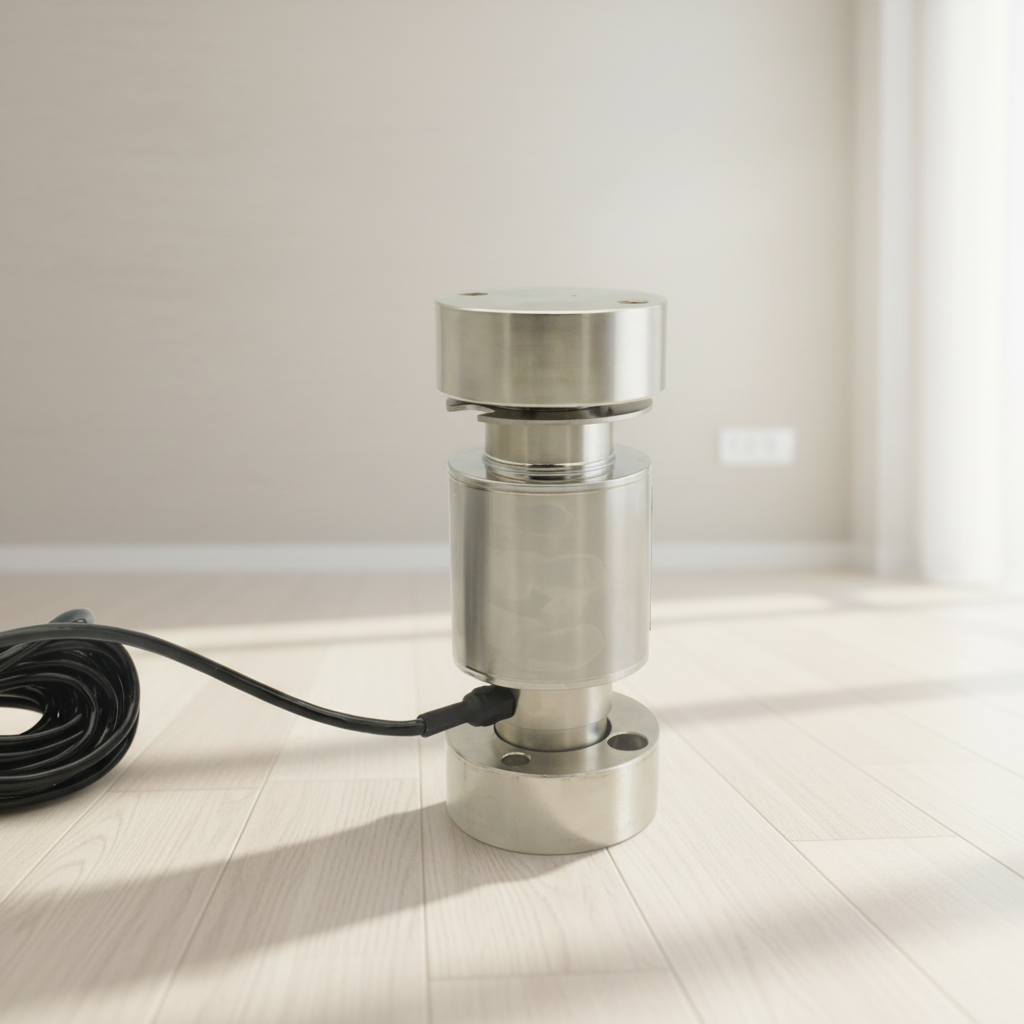

High Precision Column Type Truck Scale Load Cell 10T 15T 20T 30T 40T 50T for truck
The column type load cell is mainly used in large force area such as pressure equipment, cell phone assembly, small pressure platform, testing machine, press fitting machine, hydraulic press, hot and cold presses, electronic hook scales hopper scales and other types of electronic heavy equipment and tensile testing equipment.
1. Wide range of capacities from 0 to 50T.
3. High precision and compact structure.
5.Calibration in mV/V low profile design.
Product parameters
| Capacity | 0-50ton | Rated Output | 2.0/3.0±10%mV/V |
| Zero Balance | ±2% F.S. | Non-linearity | 0.3%F.S. |
| Hysteresis | 0.1%F.S. | Repeatability | 0.1%F.S. |
| Creep(30min) | 0.05%F.S. | Temp.effect on output | 0.05% F.S. / 10ºC |
| Temp.effect on zero | 0.05% F.S. / 10ºC | Material | Alloy steel |
| Operating Voltage Range | 5-15V | Operating Temp Range | -20-80℃ |
| Safe overload | 150% | Maximum Overload | 200% |
| Cable size | Φ5*3m | Cable ultimate pull | 10kg |
Packing & Delivery
Factory Supply Column Type Loadcell Sensor 80 Ton 500 Ton for Industry Weighing Equipment
1 * load cell
♦ Packing:
packing materials are eco-friendly and really protect your product well. Every item has their own independent packing with Carton box.
♦ Delivery:
A wide range of options : Express(Fedex, DHL, TNT, EMS, UPS etc.) air and shipping
